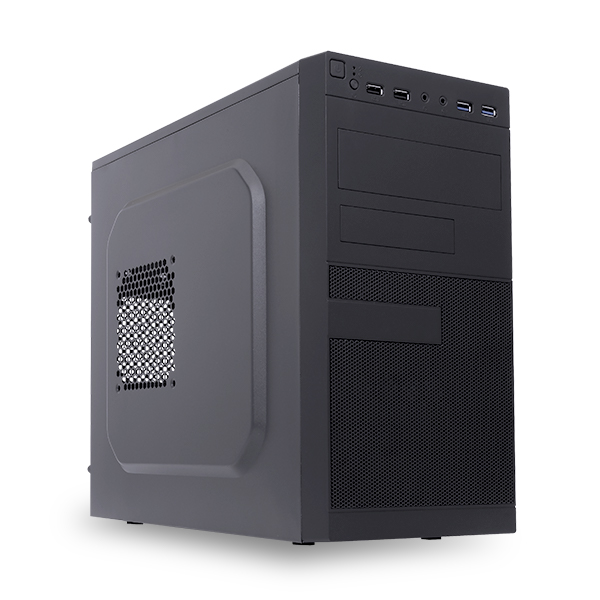

PC Case Micro ATX MILL

Mill is a Micro ATX format chassis. Its design is discreet but original, since it combines smooth material with grid texture.
Its structure allows installing cooling systems. A perfect chassis for users who looking for performance and simplicity in the same product.
P/N:52079 · EAN:6940533541790
matx-500w-usb3

DESIGN

Discreet and sober design but with original touches that combine smooth material with grid texture.

MILL Micro ATX

– Includes MATX 500W power supply.
– Includes USB 3.0 and USB 2.0 connection.
– Design that combines smooth panels with grid texture.

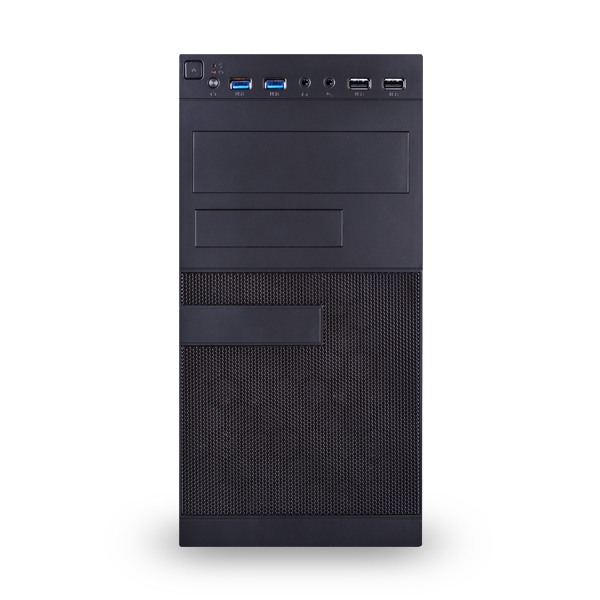

FRONT CONNECTORS

The connector panel is located in the upper area of the front. It has two USB 2.0 ports, two USB 3.0 ports, HD audio and microphone.

PRODUCT
PC Case Micro ATX MILL PN:52079


TYPE CHASSIS
Micro ATX


DIMENSIONS
390 (L) x 175 (W) x 350 (H) mm


WEIGHT
3,075 kg


COLOUR
Black


MATERIAL
SGCC


SIDE PANEL
Metal


EXPANSION SLOT
4 Normal


BAY 5,25” INT/EXT
0 / 1


BAY 3,5” INT/EXT
2 / 1


BAY 2,5” SSD INT/EXT
3 / 0


CONNECTOR
USB 2.0 x 2 / USB 3.0 x 2


MICROPHONE / HD AUDIO
Yes / Yes


FPOWER SUPPLY ADMITTED
Included ATX 500W


COMPATIBILITY AIR COOLING
Yes


MAX CAPACITY OF FANS
2 x (80 mm) or (90 mm)


CPU COOLER MAX HEIGHT
150 mm


WIDTH MAX GPU / PCI CARD
320 mm


VGA COMPATIBILITY
Yes (Normal Profile)


MAX DIMENSION ADMITTED GRAPHIC CARD
320 mm


PACKAGING

DIMENSIONS
435 (L) x 211 (W) x 390 (H) mm


WEIGHT
4,7 kg


CUBIC CAPACITY
0,0358 m3


COLOUR
brown


MATERIAL
Paperboard


PACKAGE CONTENT
Pc Case Micro ATX / Power Supply / Screws


CERTIFICATIONS
CE / ROHS


TECHNICAL SHEET-GALLERY
PC Case Micro ATX MILL PN:52079


MANUAL


DRIVERS


OTHERS
Product link in ICECAT


*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
