The 52035 ATX 600W power supply features a 120mm ultra-quiet red fan.
In addition, it includes safety protection against overvoltage, voltage drops, overcurrent and short circuits. It incorporates power corrector (PPFC), which regulates the input voltage, for a stable and efficient conversion, compensating the fluctuations of the power supply.
P/N:52035 · EAN:6940533541547

IN DETAIL

PRODUCT

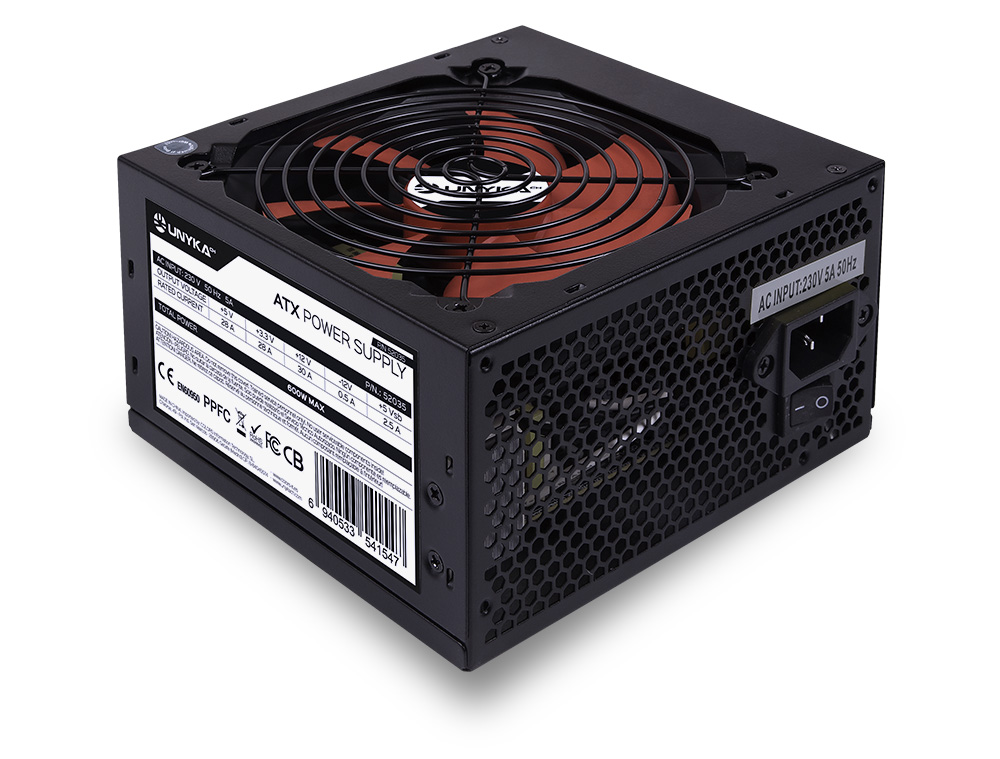

Power Supply ATX 600W GAMING PN:52035
VERSION
INTEL 2.3
TYPE CHASSIS
ATX
DIMENSIONS
140 (L) x 150 (W) x 85 (H) mm
WEIGHT
1,58 kg
COLOUR
Black / Fan Red
SWITCH
Yes
CONTROL OF ENERGY
- Nominal Power Supply Voltage: 600W
- Maximum AC Input Current 230V / 50 Hz Serial: 52035 / +3.3V / +5V / +12V1 / -12V / +5Vsb
- Maximum Output Current +3,3V: 28 A
- Maximum Output Current +5V: 28 A
- Maximum Output Current +12V1: 30 A
- Maximum Output Current -12V: 0,5 A
- Maximum Output Current +5Vsb: 2,5 A
POWER FACTOR
PPFC
CAPACITORS
Chinese
SATA CONNECTOR
2 x 450 mm / 2 x 600 mm
20 + 4 PIN CONNECTOR
1 x 450 mm
4 + 4 PIN CONNECTOR
1 x 450 mm
PCI-E 6 + 2 PIN CONNECTOR
1 x 450 mm
MOLEX CONNECTOR
1 x 450 mm / 1 x 600 mm / 1 x 750 mm
FDD CONNECTOR
1 x 460 mm
RAIL
Single
FAN
120 mm
NOISE LEVEL
19-28dBA
PACKAGING
DIMENSIONS
200 (L) x 165 (W) x 95 (H) mm
WEIGHT
1,78 kg
CUBIC CAPACITY
0,0031 m3
COLOUR
Retail
MATERIAL
Paperboard
PACKAGE CONTENT
Power Supply ATX / European Standard Power Cable
PROTECTIONS & CERTIFICATIONS
CE / OVP / UVP/ OTP / OCP/ OLP / OPP / SCP
EFFICIENCY & CERTIFICATIONS
ROHS / EN60950 / TÜV
TECHNICAL SHEET-GALLERY
Power Supply ATX 600W GAMING PN:52035
