P/N:UK324001 · EAN:8436617921193 · GIN14:18436617921190
Lower your CPU temperatures with the UNYCOOL H40 heatsink, keeping your PC cool and running at peak performance. Built with high-quality materials, optimized airflow, and a 9-blade fan design, this cooler ensures efficient heat dissipation with minimal noise, thanks to its PWM fan.
Compatible with multiple sockets (LGA 1151, LGA 1200, LGA 1700, AM4), it offers easy and versatile installation for a wide range of setups. Made from aluminium and copper, it delivers long-lasting durability and maximum thermal performance.
COMPACT AND FUNCTIONAL DESIGN
The UNYCOOL H40 is designed for simple builds that require hassle-free efficiency. With compact dimensions of 122 x 154 x 100 mm, it fits easily into small form factor cases and avoids interference with RAM modules or other components.
EFFICIENT ALUMINIUM HEATSINK
This model features an extruded aluminium heatsink block with high-density fins to maximize airflow. Paired with a 120 mm PWM fan (with temperature sensor) that spins up to 2,000 RPM, it delivers the perfect balance between performance and quiet operation.

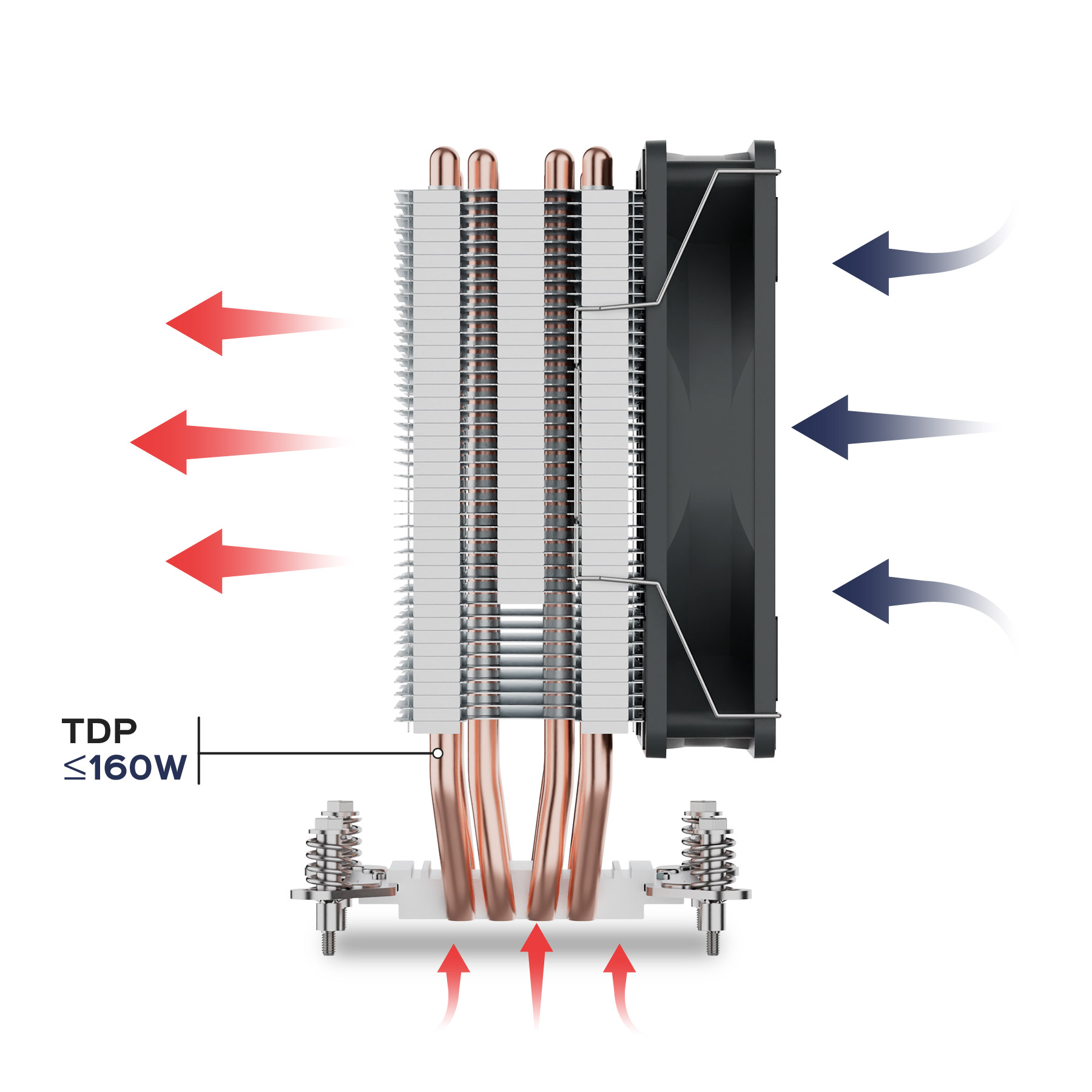

Its 4 copper heatpipes enhance heat dissipation, supporting CPUs with up to 160W TDP.
An excellent choice for office work, web browsing, or multimedia use.

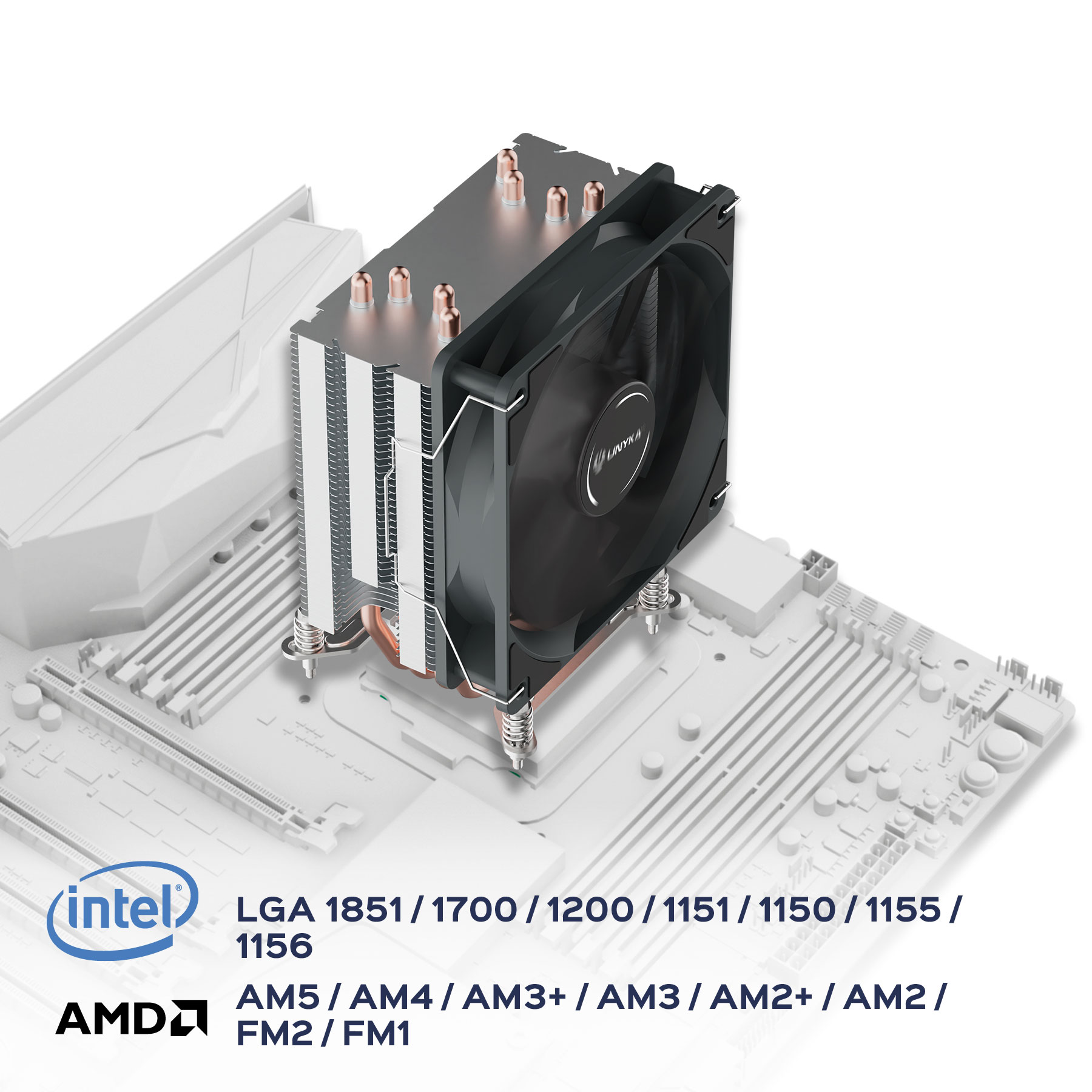

MULTIPLATFORM COMPATIBILITY
Thanks to its compact design, you won’t encounter issues with RAM clearance. It’s also compatible with multiple Intel and AMD socket platforms.
Intel: Socket 1700 / 1200 / 1151 / 1150 / 1155 / 1156
AMD: AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
1
Intel Bracket.
2
AMD Bracket.
3
Backplate.
4
Screw Set.
5
Thermal Paste.
DESIGNED FOR EASY INSTALLATION ON INTEL AND AMD PLATFORMS
ncludes retention brackets, thermal paste, and mounting accessories to ensure easy installation on both Intel and AMD platforms.
1 - Intel Bracket
2 - AMD Bracket.
3 - Backplate.
4 - Screw Set.
5 - Thermal Paste.
PRODUCT
CPU Cooler UNYCOOL H40 PN:UK324001
DIMENSIONS
122 (L) x 153 (W) x 100 (H) mm
WEIGHT
350 g
FAN
DIMENSIONS
120 (L) x 120 (W) x 25 (H) mm
COLOR
Black
DESIGN
Standard
BEARING
Hydraulic
RPM
1300–2000 RPM ±10%
MTBF
40000 h
NOISE LEVEL
31.6 dBA
CFM
75.89
NUMBER OF BLADES
9
PIN CONNECTOR
4-Pin
TEMPERATURE SENSOR
Yes / PWM
STARTUP VOLTAGE
12V
TDP
≤160W
HEATSINK
DIMENSIONS
122 (L) x 153 (W) x 90 (H) mm
COLOR
Gray
HEAT PIPE
4
MATERIAL
Aluminum / Copper
SOCKET COMPATIBILITY
LGA 1700 / LGA 1200 / LGA 1151 / LGA 1150 / LGA 1155 / LGA 1156
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
PACKAGING
DIMENSIONS
135 (L) x 115 (W) x 170 (H) mm
WEIGHT
500 g
VOLUME
0.0026 m3
COLOR
Retail
MATERIAL
Cardboard
PACKAGE CONTENTS
Fan / Heatsink / Intel and AMD Mounting Kits / Screws / Thermal Paste
MASTER BOX DIMENSIONS
590 (L) x 428 (W) x 370 (H) mm
MASTER BOX WEIGHT
16,29 kg
UNITS PER MASTER BOX
30
UNITS PER AMERICAN PALLET
–
UNITS PER EUROPEAN
–
