Heatsink Cooler CPU 90MM

The UNYKAch CPU fan with 90mm diameter is designed with an aluminum base for constant cooling and optimum performance for your equipment. In addition, it is easy to install with push and pull technology.
The aluminum base is in direct contact with the CPU, thus guaranteeing a constant cooling and a perfect dissipation of the heat generated by your equipment.
P/N:UK532002 · EAN:6974560220649
3000rpm-90mm-7blades-4pin

IN DETAILS

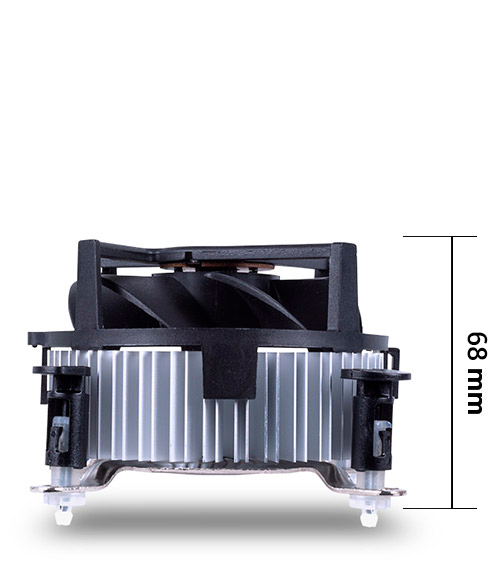

unykach-ventilador-cpu-90-532002-aldetalle-1

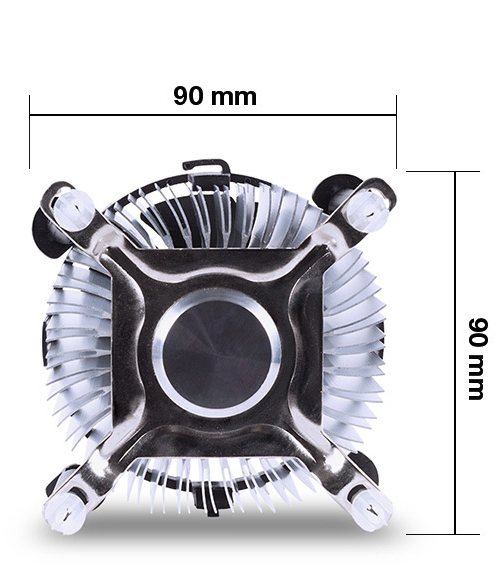

Cooler CPU UNYKAch size
unykach-ventilador-cpu-90-532002-aldetalle3

PRODUCT
Heatsink Cooler CPU 90 mm PN:UK532002


DIMENSIONS
68 (L) x 90 (W) x 90 (H) mm


WEIGHT
200 g


FAN

DIMENSIONS
27 (L) x 90 (W) x 90 (H) mm


WEIGHT
51 g


COLOUR
Black


DESIGN
Normal


BEARING
Hydraulic


RPM
900 / 3000 RPM ± 10 %


MTBF
30000 h


NOISE LEVEL
25,694dBA


CFM
33,67


Nº BLADES
7


CONNECTOR Nº PIN
4 Pin


CABLE LENGTH
250 mm


START VOLTAGES
5V


HEATSINK

DIMENSIONS
31 (L) x 90 (W) x 90 (H) mm


WEIGHT
152 g


COLOUR
Gray


HEATSINK QUANTITY
38


COMPATIBLE SOCKET
LGA 775 / 1156 / 1155 / 1150 / 1151 / 1200


PACKAGING

DIMENSIONS
100 (L) x 100 (W) x 80 (H) mm


WEIGHT
229 g


CUBIC CAPACITY
0,008 m3


COLOUR
Retail


MATERIAL
Paperboard


PACKAGE CONTENT
Fan / Heatsink


CERTIFICATIONS
CE / ROHS


TECHNICAL SHEET-GALLERY
Heatsink Cooler CPU 90 mm PN:UK532002


MANUAL


DRIVERS


OTHERS


*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
