P/N:UK321015 · EAN:8436617922107 · GTIN-14:18436617922104
Lower your CPU temperatures with the UNYCOOL H37 heatsink, keeping your PC cool and running at peak performance. Built with high-quality materials, optimized airflow, and a 11-blade fan design, this cooler ensures efficient heat dissipation with minimal noise, thanks to its PWM fan.
Compatible with multiple sockets (LGA 1151, LGA 1200, LGA 1700, LGA 1851, AM4 and AM5), it offers easy and versatile installation for a wide range of setups. Made from aluminium and copper, it delivers long-lasting durability and maximum thermal performance.
COMPACT AND FUNCTIONAL DESIGN

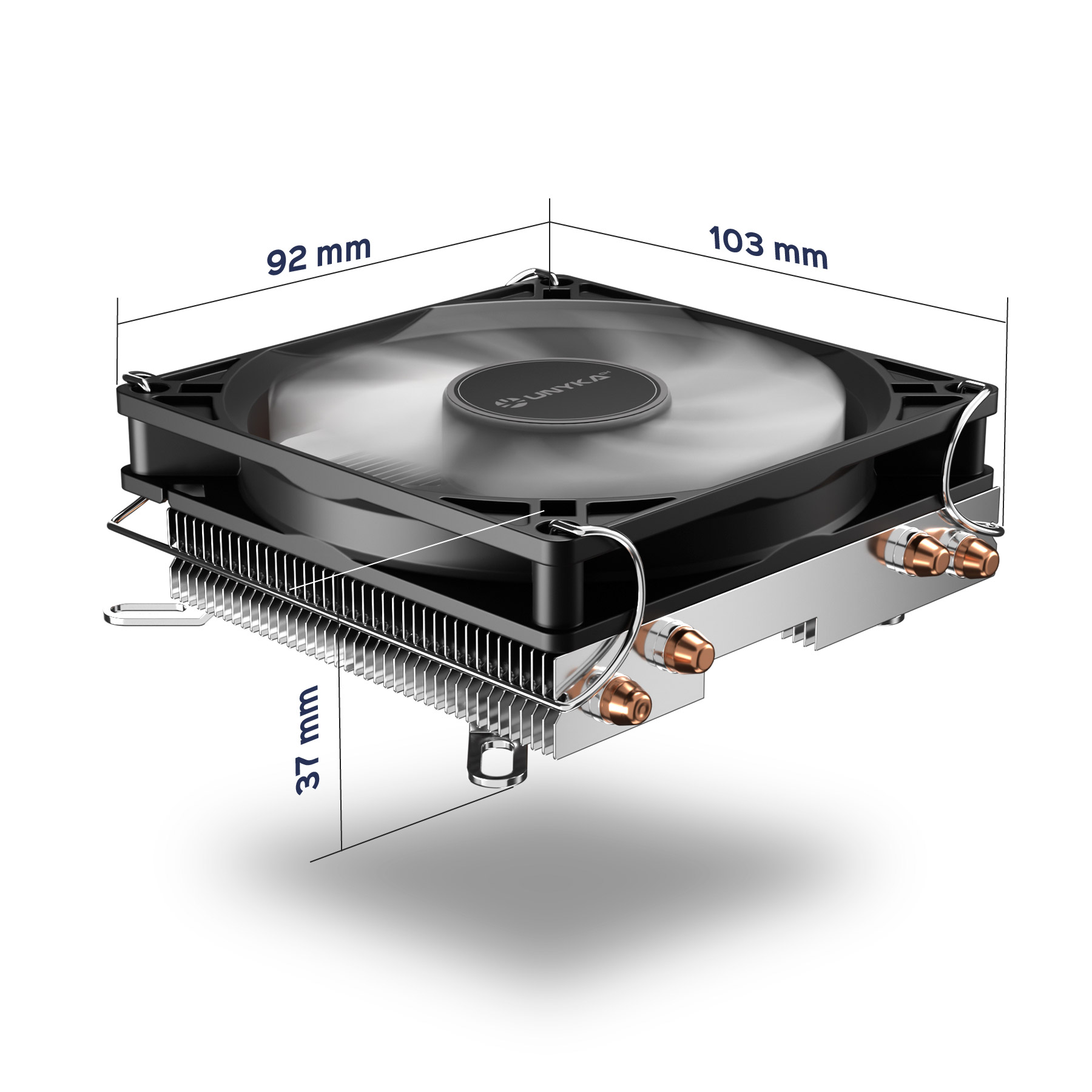

The UNYCOOL H37 is designed for simple builds that require hassle-free efficiency. With compact dimensions of 92 x 103 x 37 mm, it fits easily into small form factor cases and avoids interference with RAM modules or other components.
EFFICIENT ALUMINIUM HEATSINK

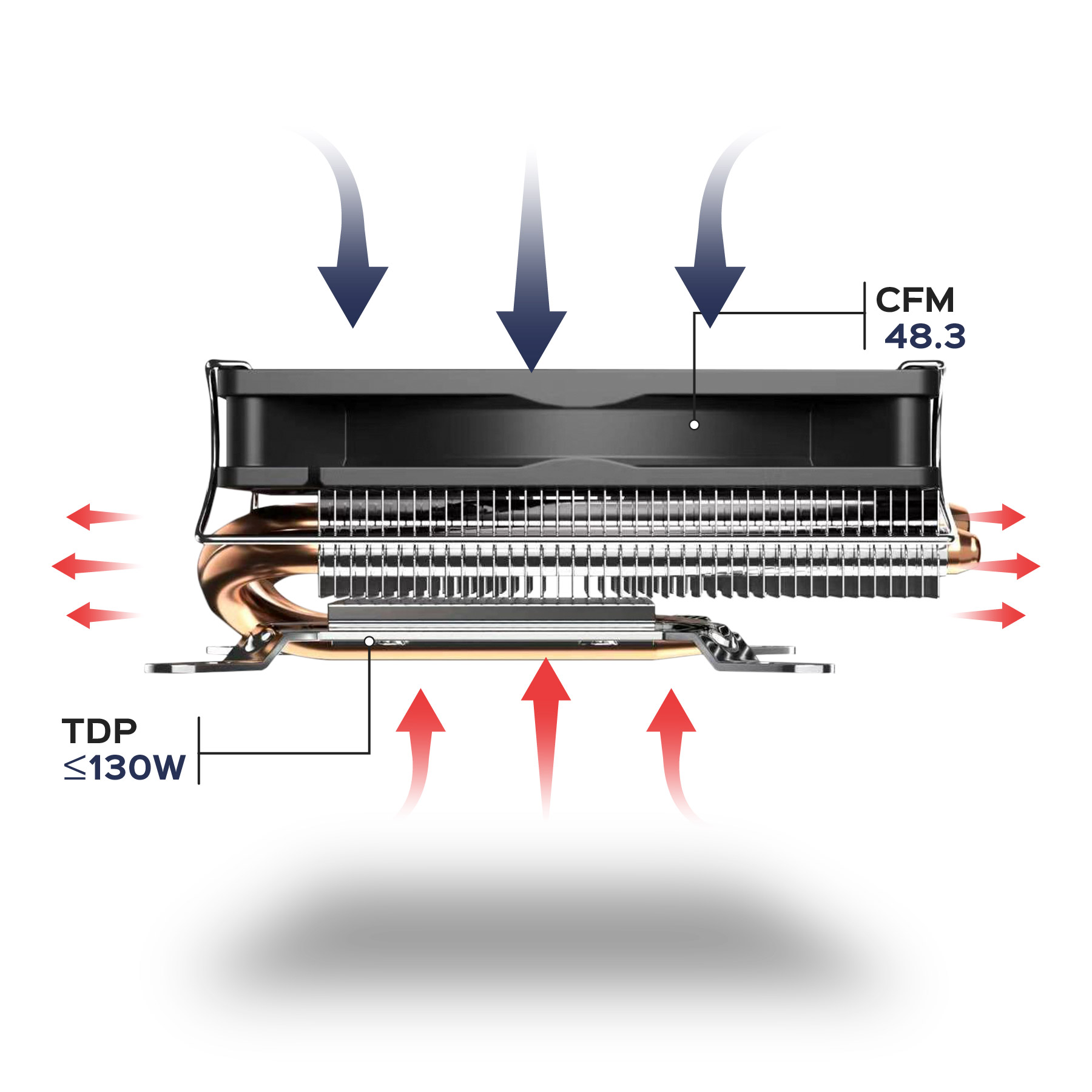

This model features an extruded aluminium heatsink block with high-density fins to maximize airflow. Paired with a 120 mm PWM fan (with temperature sensor) that spins up to 1600 RPM, it delivers the perfect balance between performance and quiet operation.
Its 4 copper heatpipes enhance heat dissipation, supporting CPUs with up to 160W TDP.
An excellent choice for office work, web browsing, or multimedia use.

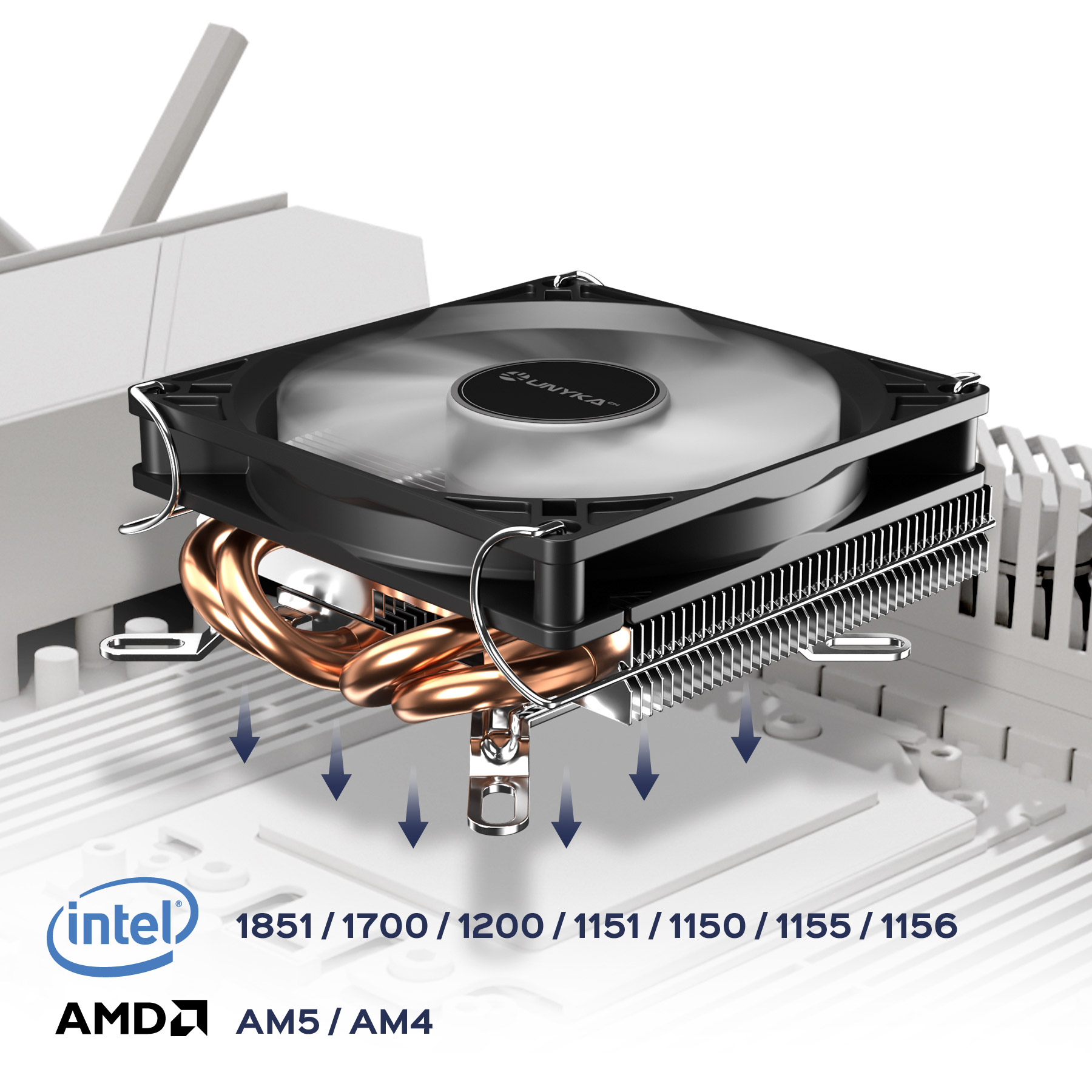

MULTIPLATFORM COMPATIBILITY
Thanks to its compact design, you won’t encounter issues with RAM clearance. It’s also compatible with multiple Intel and AMD socket platforms.
Intel: Socket 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
AMD: AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
1
Intel Bracket.
2
AMD Bracket.
3
Backplate.
4
Screw Set.
5
Thermal Paste.

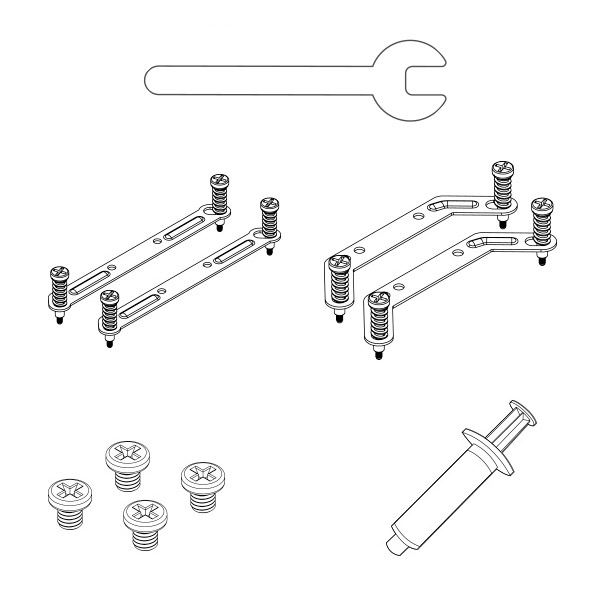

DESIGNED FOR EASY INSTALLATION ON INTEL AND AMD PLATFORMS
ncludes retention brackets, thermal paste, and mounting accessories to ensure easy installation on both Intel and AMD platforms.
1 - Intel Bracket
2 - AMD Bracket.
3 - Backplate.
4 - Screw Set.
5 - Thermal Paste.
PRODUCT
low Profile CPU Cooler UNYCOOL H37 PN:UK321015
DIMENSIONS
103 (L) x 92 (W) x 37 (H) mm
WEIGHT
165 g
FAN
DIMENSIONS
90 (L) x 90 (W) x 15 (H) mm
COLOR
Black / White
DESIGN
Standard
BEARING
Hydraulic
RPM
800-3000 RPM ± 10 %
MTBF
40.000 h
NOISE LEVEL
≤33.6dBA
MAXIMUM AIR PRESSURE
3.24 mm H2O
CFM
48.3
NUMBER OF BLADES
11
PIN CONNECTOR
4-Pin
TEMPERATURE SENSOR
Yes / PWM
STARTUP VOLTAGE
7V
TDP
≤130W
CABLE LENGHT
270 mm
HEATSINK
DIMENSIONS
90 (L) x 90 (W) x 15 (H) mm
COLOR
Gray
NUMBER OF HEAT SINK
40
HEAT PIPE
4
MATERIAL
Aluminum / Copper
SOCKET COMPATIBILITY
LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
AM5 / AM4
PACKAGING
DIMENSIONS
180 (L) x 137 (W) x 75 (H) mm
WEIGHT
360 g
VOLUME
0,0018 m3
COLOR
Retail
MATERIAL
Cardboard
PACKAGE CONTENTS
Fan / Heatsink / Intel and AMD Mounting Kits / Screws / Thermal Paste
MASTER BOX DIMENSIONS
700 (L) x 380 (W) x 325 (H) mm
MASTER BOX WEIGHT
–
UNITS PER MASTER BOX
30
UNITS PER AMERICAN PALLET
–
UNITS PER EUROPEAN
–
