P/N:UK710108 · EAN:8436617920769 · GTIN-14:18436617920803
UNYKAch Desktop TV / MONITOR Mount for Flat and Curved Screens from 13 to 32 Inches (up to 10 kg per arm), Gas Spring, and Swivel, Max VESA 100 x 100 mm,
The UNYKAch UK1478 mount is ideal for 13" to 32" monitors (2 kg to 10 kg), with VESA compatibility of 75x75 mm and 100x100 mm. Its design maximizes your desk space and allows tilting, swiveling, and height adjustment, reducing neck and back strain.
It includes two installation options: C-clamp or grommet mount. With integrated cable management and a 360° swivel, it ensures a neat setup and perfect viewing angle adjustment.It includes two installation options: C-clamp and grommet base. With integrated cable management and 360° swivel, it ensures a tidy environment and perfect viewing angle adjustment.
- Monitor position perfectly adapted ergonomically for all heights.
- Number of monitors/TVs supported: one.
- Made of high-strength steel with gas spring.
- Maximum load weight: 10 kg (22 lbs).
- Max VESA: 100 x 100 / 75 x 75 mm.

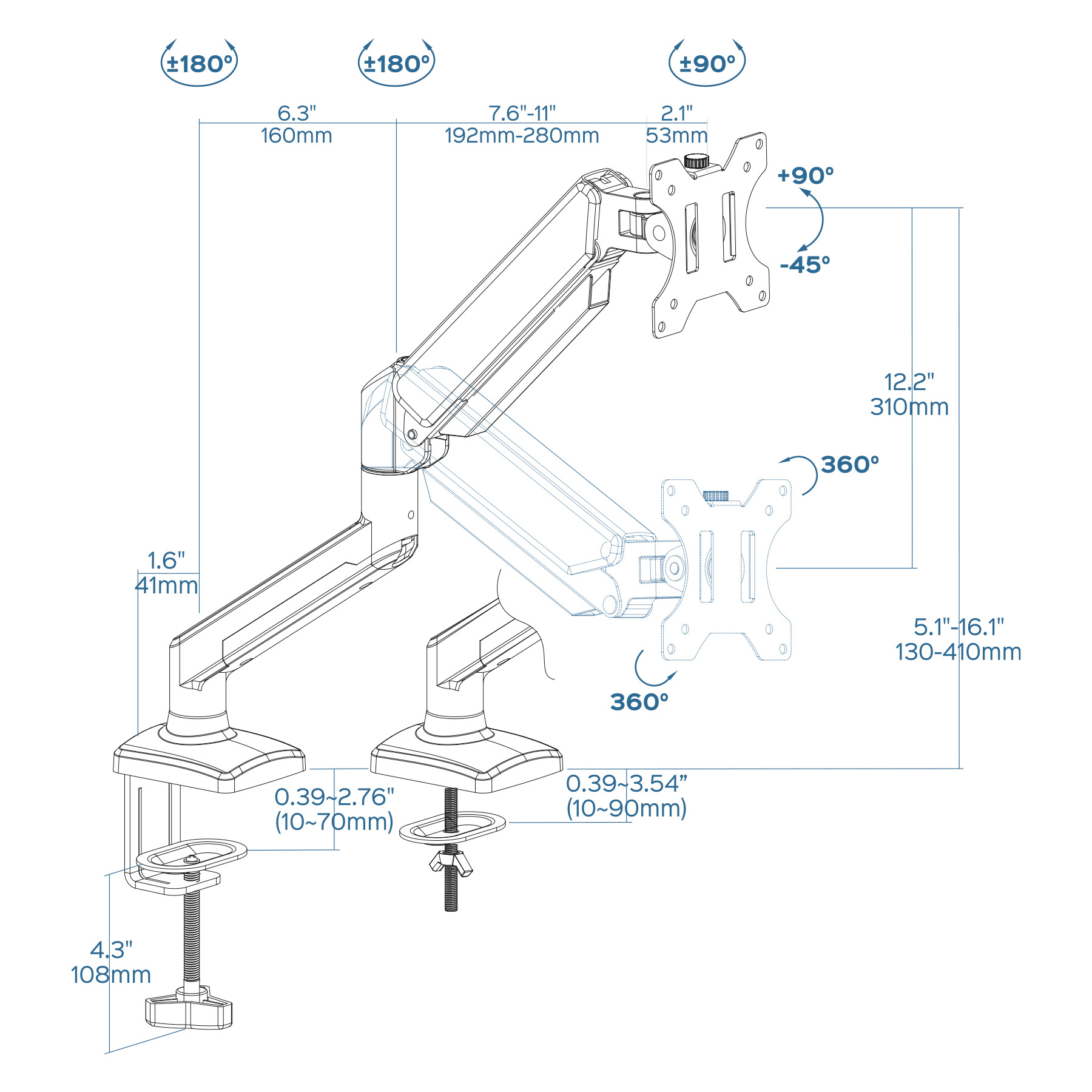

- Height: 130 – 410 mm.
- Tilt: +90° ~ -45°.
- 360° rotation.

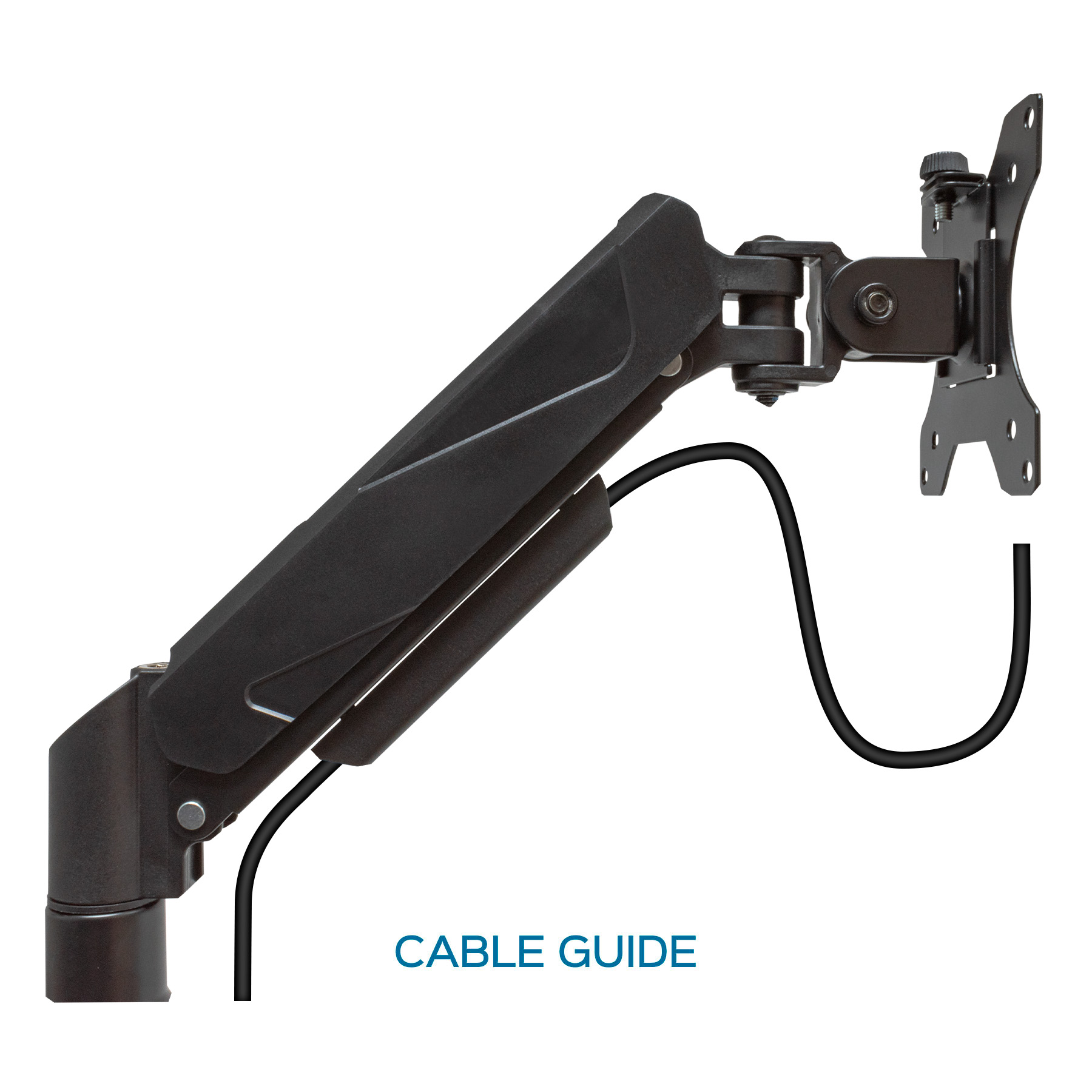

- Cable management.
- Desktop mounting with C-clamp or grommet mount.
- Multilingual instruction manual included.
UNIVERSAL COMPATIBILITY
The UNYKAch UK1478 mount (P/N: UK710108) is fully versatile, designed to fit monitors or TVs from 13" to 32" with a weight range of 2 kg to 9 kg. Its VESA compatibility of 75x75 mm and 100x100 mm ensures it fits a wide variety of models. Additionally, the hydraulic system allows for smooth and precise adjustments, making it easy to customize your TV’s position for comfortable and ergonomic viewing.
PRODUCT
Universal Desk Mount 13’’- 32’’ with Gas Spring UK1478 PN:UK710108
SCREEN SIZE
13″ – 32″
HEIGHT
130 mm – 410 mm
WEIGHT
1,85 kg
MATERIAL
Steel / Aluminum / Pástic
MAXIMUM LOAD WEIGHT
10 kg (22 lbs)
TILT
+90°~-45°
ROTATION
360°
VESA
100 x 100 mm
DIMENSIONS
395 x 200 x 90 mm
WEIGHT
2,04 kg
CUBIC CAPACITY
0,0071 m3
COLOUR
Brown
MATERIAL
Colour
PACKAGE CONTENT
Desktop Stand / Screws
CERTIFICATIONS
CE / ROSH

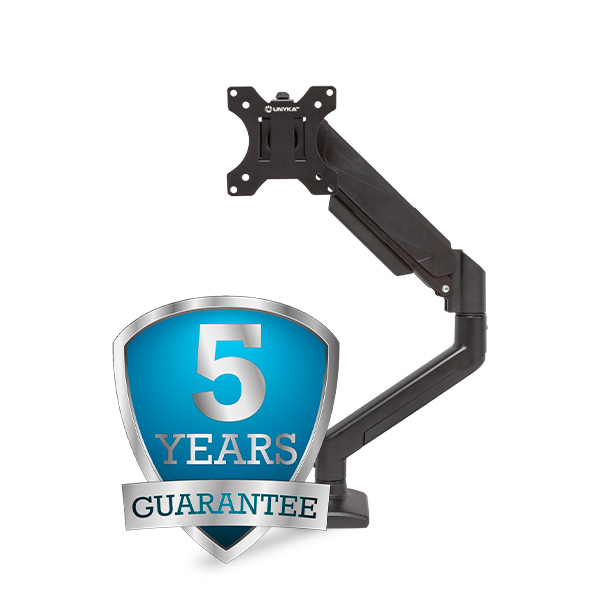

WARRANTY
5 Years
TECHNICAL SHEET
Universal Desk Mount 13’’- 32’’ with Gas Spring UK1478 PN:UK7101081
GALLERY
–
MANUAL
User Manual Universal Desk Mount 13’’- 32’’ with Gas Spring UK1478 PN:UK710108
DRIVERS
–
OTHERS
–
CARTON
6 PCS
DIMENSIONS
42 x 41,5 x 30 cm
WEIGHT
N.W:14.4 kg / G.W:15 kg
