EXAGON PC Case ATX

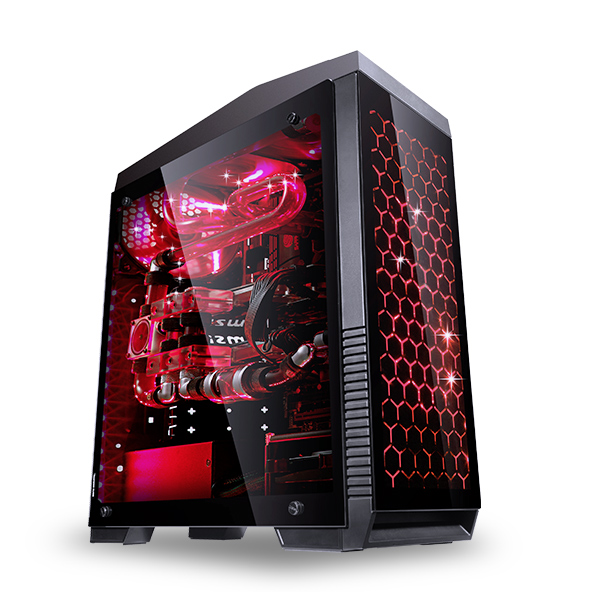

The design of the ATX Exagon case is characterized by its two sides with tempered glass, one of them opaque / dyed black. The front is composed of a grid of hexagons and also protected by a panel of tempered glass. Although, without doubt, the most spectacular of Exagon is that it is a box with RGB lighting, which can be modified to suit the user.
P/N: 512101 · EAN: 6940533542469
atx-templateglass-rgb-usb3

FULL VISION

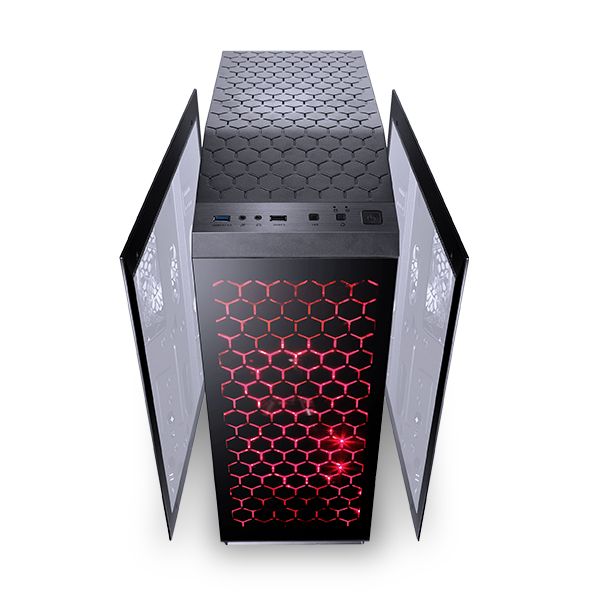

Two sides and the front of the ATX Exagon case are made of tempered glass. In addition, one of the side panels is opaque glass, generating a very peculiar effect. This feature provides the case with an innovative design that allows users to create equipment where all the components are visible.

EXAGON ATX

– RGB chassis.
– Tempered glass side panels.
– Front with original design and tempered glass panel.
– Tool Less mounting system.
– Allows to install a liquid cooling system up to 240 mm.
– It allows to install up to 5 fans.

RGB STYLE

The ATX Exagon case stands out as an RGB chassis. A fully customizable chassis that will change color according to the taste of each user. In this way the personalization of the chassis as well as the effects achieved reach their maximum exponent. And in a very simple way since all the modifications are made from the button located at the top of the case.

ABOSOLUTE VENTILATION

The ATX Exagon case allows installing up to 5 fans of 120 mm as well as a liquid cooling of up to 240 mm, favoring the correct ventilation of all components which will substantially improve the performance of the equipment.

PRODUCT
PC Case ATX Exagon PN:512101


TYPE CHASSIS
ATX


DIMENSIONS
430 (L) x 205 (W) x 520 (H) mm


WEIGHT
7,5 Kg


COLOUR
Black


MATERIAL
SPCC / Tempered Glass


SIDE PANEL
Tempered Glass


EXPANSION SLOT
7 Normal


BAY 5,25” INT/EXT
0 / 0


BAY 3,50” INT/EXT
2 / 0


BAY 2,50” SDD INT/EXT
2 / 0


CONNECTOR
USB 2.0 / USB 3.0


MICROPHONE / HD AUDIO
Yes / Yes


POWER SUPPLY ADMITTED
ATX


ANTI DUST FILTER
Yes


COMPATIBILITY AIR COOLING
Yes


COMPATIBILITY AIR COOLING
Yes


MAX CAPACITY OF FANS
Front 2 x (120 mm) / Rear 1 x (120 mm) / Top 2 x (120 mm)


MAX CAPACITY LIQUID REFRIGERATION
Rear 1 x (120 mm) / Top 1 x (120 mm)


CPU COOLER MAX HEIGHT
170 mm


WIDTH MAX GPU / PCI CARD
145 mm


VGA COMPATIBILITY
Yes (Low Profile)


MAX DIMENSION ADMITTED GRAPHIC CARD
350 mm


TOOL LESS
Yes


PACKAGING

DIMENSIONS
566 (L) x 275 (W) x 510 (H) mm


WEIGHT
8,6 Kg


CUBIC CAPACITY
0,0785 m3


COLOUR
Brown


MATERIAL
Paperboard


PACKAGE CONTENT
PC Case ATX / Screws


CERTIFICATIONS
CE / ROHS


TECHNICAL SHEET-GALLERY
PC Case ATX Exagon PN:512101


MANUAL


DRIVERS


OTHERS


*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
