PC Case MATX ARMOR C20

The MATX Armor C20 case is a perfect solution for users who want to start assembling their own equipment. It has the front and a full side of high quality methacrylate that provides a very demanded effect in the leisure sector.
Armor C20 is compatible with liquid cooling systems and also allows to place up to 7 fans distributed between the front, the rear, the top and next to the power supply.
P/N: 511204 · EAN: 6940533542650
matx-metacrilic-usb2-usb3

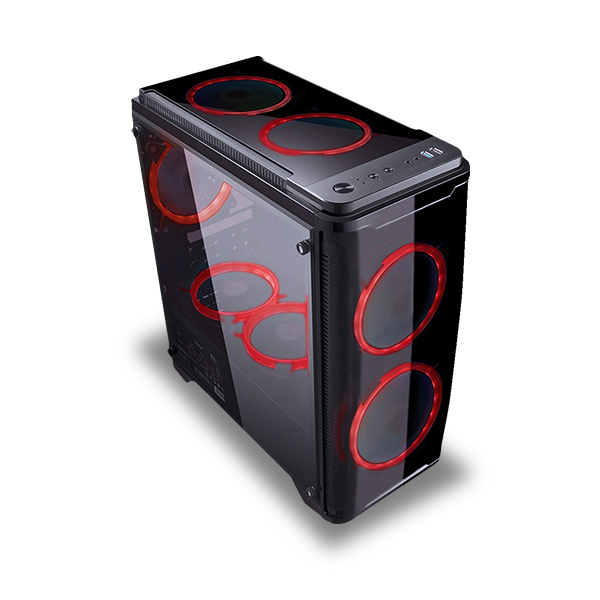

FULL VISION

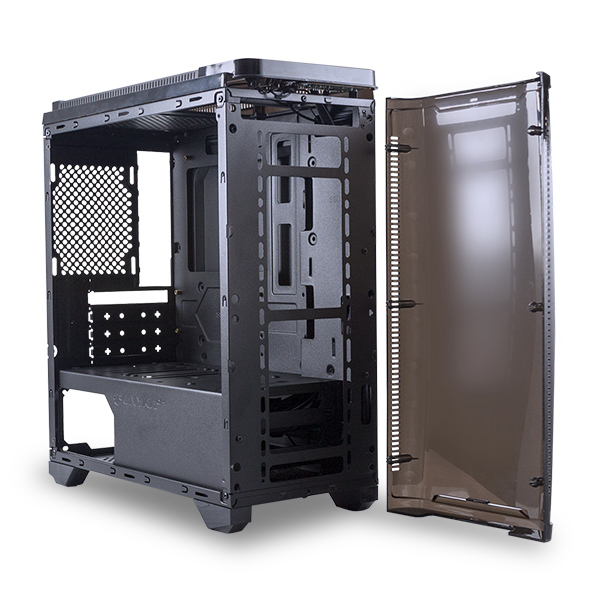

Front and side window of methacrylate that provides a wide perspective of the chassis of the Armor C20 as well as all the components of the equipment.

ARMOR C20 MATX

– Frontal and methacrylate side panel for a total vision effect.
– Possibility of installing up to 7 fans.
– Tool Less mounting system.
– Allows to install a liquid cooling system up to 240 mm in the front.

VENTILATION

The Armor C20 case allows you to place up to 7 fans: two on the front, one on the back, two on the top and two more next to the power supply. In addition, it is compatible with liquid cooling systems up to 240 mm (installation on the front, liquid cooling of 120 mm can be installed on the top or rear).

PRODUCT
PC Case MATX Armor C20 PN:511204


TYPE CHASSIS
MATX


DIMENSIONS
341 (L) x 198 (W) x 375 (H) mm / 25 l


WEIGHT
3,4 kg


COLOUR
Black


MATERIAL
SPCC / Metacrilato


SIDE PANEL
Methacrylate


EXPANSION SLOT
4 Normal


BAY 5,25” INT/EXT
0 / 0


BAY 3,5” INT/EXT
2 / 0


BAY 2,5” SDD INT/EXT
2 / 0


CONNECTOR
1 x USB 2.0 / 1 x USB 3.0


MICROPHONE / HD AUDIO
Yes/ Yes


POWER SUPPLY ADMITTED
ATX (smaller than 160 mm)


ANTI DUST FILTER
Yes


COMPATIBILITY AIR COOLING
Yes


COMPATIBILITY LIQUID COOLING
Yes


MAX CAPACITY OF FANS
Front 2 x (120 mm) / Rear 1 x (120 mm) / Top 2 x (120 mm) / Down 2 x (120 mm)


MAX CAPACITY LIQUID REFRIGERATION
Down 1 x (240 mm) / Rear 1 x (120 mm)


CPU COOLER MAX HEIGHT
150 mm


WIDTH MAX GPU / PCI CARD
335 mm


VGA COMPATIBILITY
Yes (Low Profile)


MAX DIMENSION ADMITTED GRAPHIC CARD
360 mm


TOOL LESS
Yes


PACKAGING

DIMENSIONS
463 (L) x 235 (W) x 433 (H) mm


WEIGHT
4,1 kg


CUBIC CAPACITY
0,0471 m3


COLOUR
Brown


MATERIAL
Paperboard


PACKAGE CONTENT*
PC Case MATX / Screws / *NOT INCLUDE FANS


CERTIFICATIONS
CE / ROSH


TECHNICAL SHEET-GALLERY
PC Case MATX Armor C20 PN:511204


MANUAL


DRIVERS


OTHERS


*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
