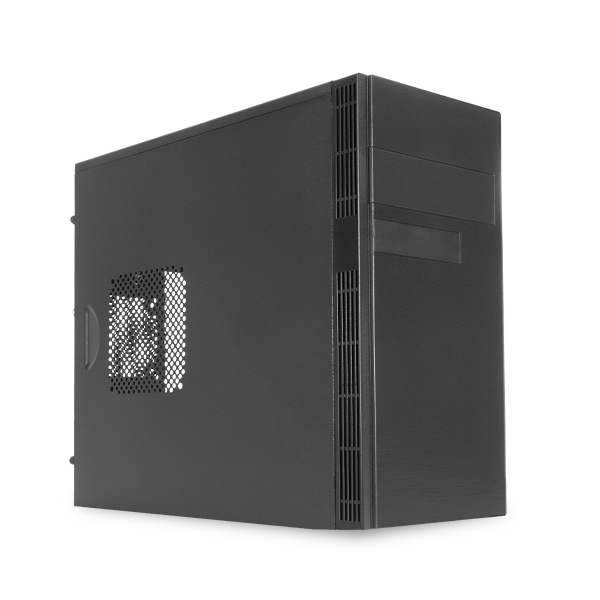

Grey Rain Evo is a Micro ATX case that stands out for its clean, elegant design and a front panel with a brushed steel-like texture, blending style and functionality. Its well-structured interior layout is optimized to support multiple storage devices, making it a smart and adaptable solution for modern computing needs. A case that strikes the perfect balance between aesthetic appeal, expandability, and efficient space management—ideal for users seeking performance in a refined form factor.
P/N:52088 · EAN:6940533543411
THOUGHTFUL DESIGN FOR AN EFFORTLESS BUILD
Every detail of the Grey Rain Evo has been carefully engineered to provide a comfortable and efficient building experience. Its internal structure allows for the quick installation of components, streamlined cable management, and an optimized internal layout—perfect for users who need fully equipped configurations without compromising on space. This case is designed to make building your system simple, clean, and frustration-free.
GREY RAIN EVO Micro ATX
– Includes 500W MATX Power supply.
– Sober design, frontal with brushed finish.
– USB 2.0 and 3.0 connections.
PREMIUM CONSTRUCTION WITH DURABLE MATERIALS
Built to last, the Grey Rain Evo features high-quality materials and a compact yet sturdy design:
- Made from 0.5 mm SGCC steel and premium ABS, ensuring strength and durability.

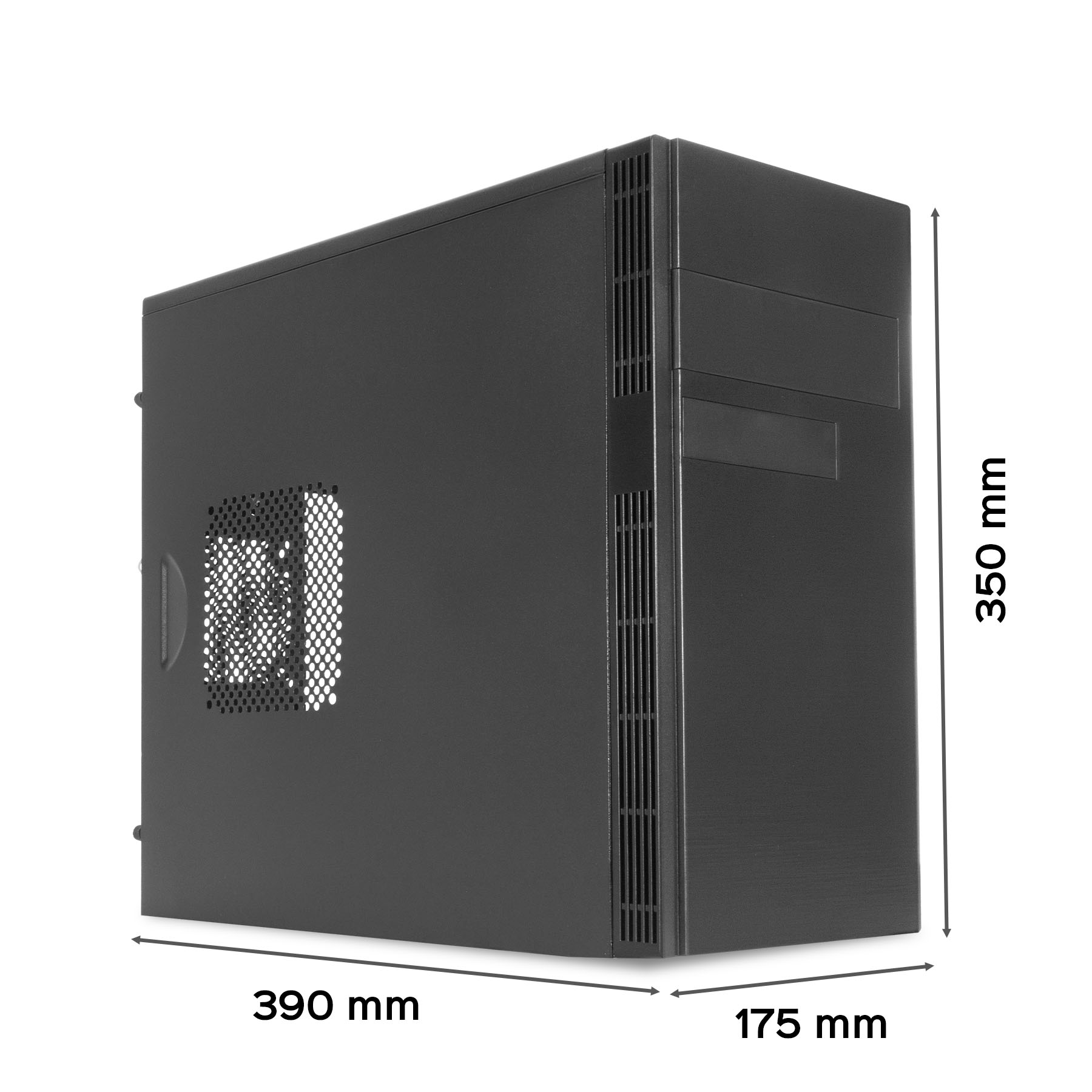

- Dimensions: 390 x 175 x 350 mm – compact footprint ideal for small setups.
- Solid metal side panel for enhanced robustness and long-term reliability.
- Weight: 3.785 kg – strong yet lightweight for easy transport.
- Includes a 500W ATX power supply with top-mounted installation.
- Color: Sleek black finish with a brushed-style front panel for a professional, understated look.
1
Encendido / Apagado
2
Reset
3
Conexión USB 2.0
4
Salida de Audio y Entrada de Audio
5
Conexión USB 3.0

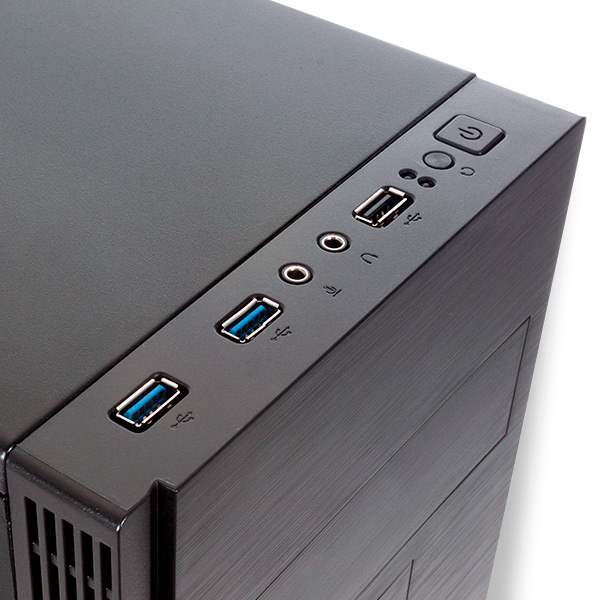

COMPLETE FRONT-TOP CONNECTIVITY
The front-top I/O panel of the Grey Rain Evo provides all essential ports and buttons within easy reach:
- Power button
- Reset button
- USB 2.0 port
- HD Audio + Microphone jack
- 2 x USB 3.0 ports
This ergonomic layout ensures quick access to controls and peripherals, enhancing usability and convenience.

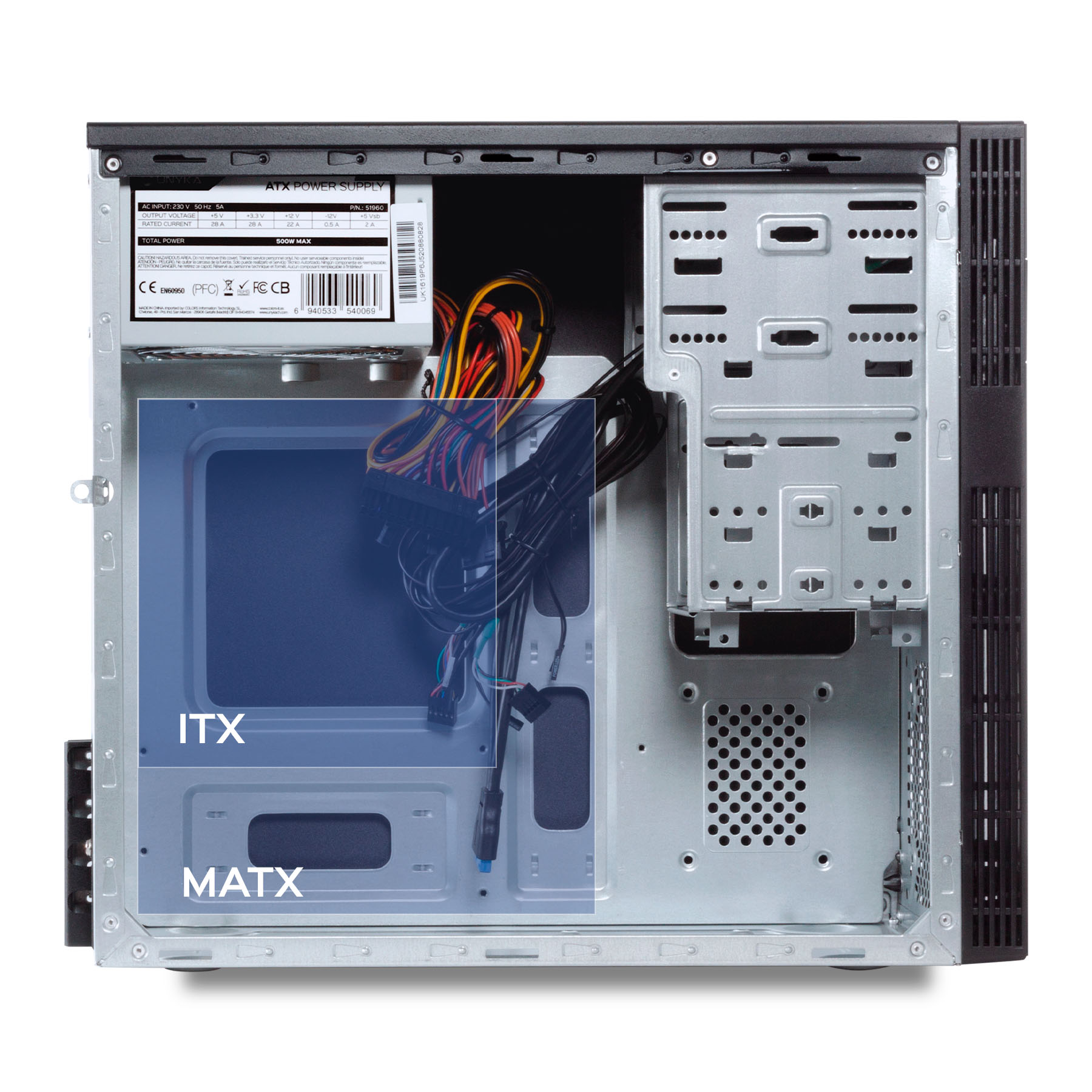

SPACIOUS COMPATIBILITY FOR YOUR HARDWARE
Designed to maximize compatibility within a compact Micro ATX form factor:

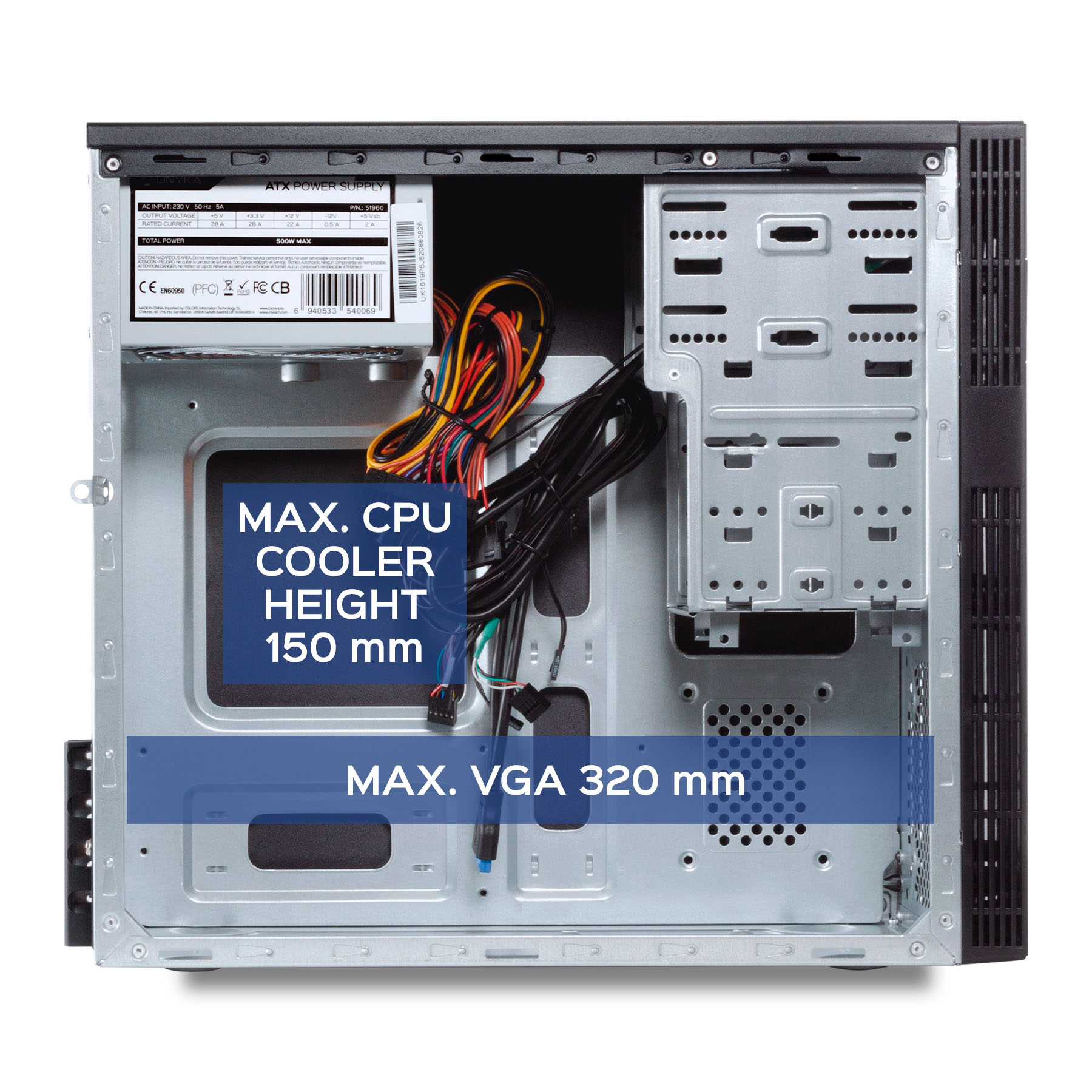

- Supports graphics cards up to 320 mm in length.
- Accommodates CPU coolers up to 150 mm in height.
- Compatible with standard-profile VGA cards for versatile hardware options.

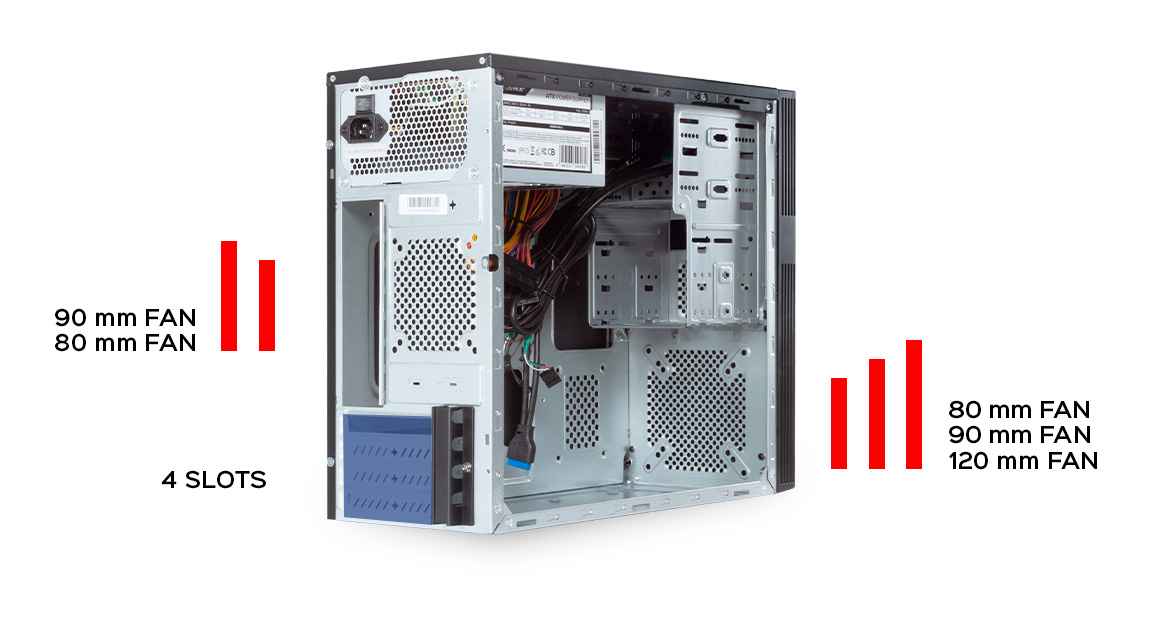

EFFICIENT COOLING AND EXPANSION OPTIONS
Optimized system designed to deliver effective thermal performance within a compact form factor:
- Supports up to 2 optional fans to enhance internal airflow.
- Compatible with 80 mm, 90 mm, and 120 mm fan sizes, adapting to various cooling needs.
- Designed for air cooling systems, ideal for quiet and stable configurations.
- Features 4 expansion slots for adding graphics cards or other components, offering greater versatility.
PRODUCT
PC Case Micro ATX GREY RAIN EVO PN:52088
TYPE CHASSIS
Micro ATX
DIMENSIONS
390 (L) x 175 (W) x 350 (H) mm
WEIGHT
3,785 kg
COLOUR
Black
MATERIAL
SGCC 0.5 mm / ABS
SIDE PANEL
Metal
EXPANSION SLOT
4 Normal
BAY 5,25” INT/EXTT
0 / 1
BAY 3,5” INT/EXT
2 / 1
BAY 2,5” SSD INT/EXT
3 / 0
CONNECTOR
1 x USB 2.0 / 2 x USB 3.0
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
Included ATX 500W
COMPATIBILITY AIR COOLING
Si
MAX CAPACITY OF FANS
2 x (80 mm) or (90 mm) or (120 mm)
CPU COOLER MAX HEIGHT
150 mm
WIDTH MAX GPU / PCI CARD
320 mm
VGA COMPATIBILITY
Perfil Normal
MAXIMUM DIMENSION ADMITTED GRAPHIC CARD
320 mm
PACKAGING
DIMENSIONS
440 L x 220 W x 390 H mm
WEIGHT
4,6 kg
CUBIC CAPACITY
0,0377 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Micro ATX Chassis / Power Supply / Screws / Standard Power Cable
CERTIFICATIONS
CE / ROSH
