We expand the Aero family with the C15 model. A micro-ATX case that offers the perfect balance between functionality and aesthetics. It features a mesh front panel that allows optimal airflow and the possibility of installing optical drives or card readers in its external bays.
It features a total of 4 USB ports (2 × USB 2.0, 1 × USB 3.0, and 1 × USB-C), ensuring versatile, fast, and efficient connectivity for all types of peripherals. It includes a rear 80 mm fan, designed to promote consistent airflow and improve overall system cooling. In addition, it is compatible with standard ATX power supplies (not included), providing flexibility to choose a higher-power or more efficient PSU depending on the project’s requirements.
P/N:UK52015 · EAN:8436617921827
LARGE INTERNAL CAPACITY

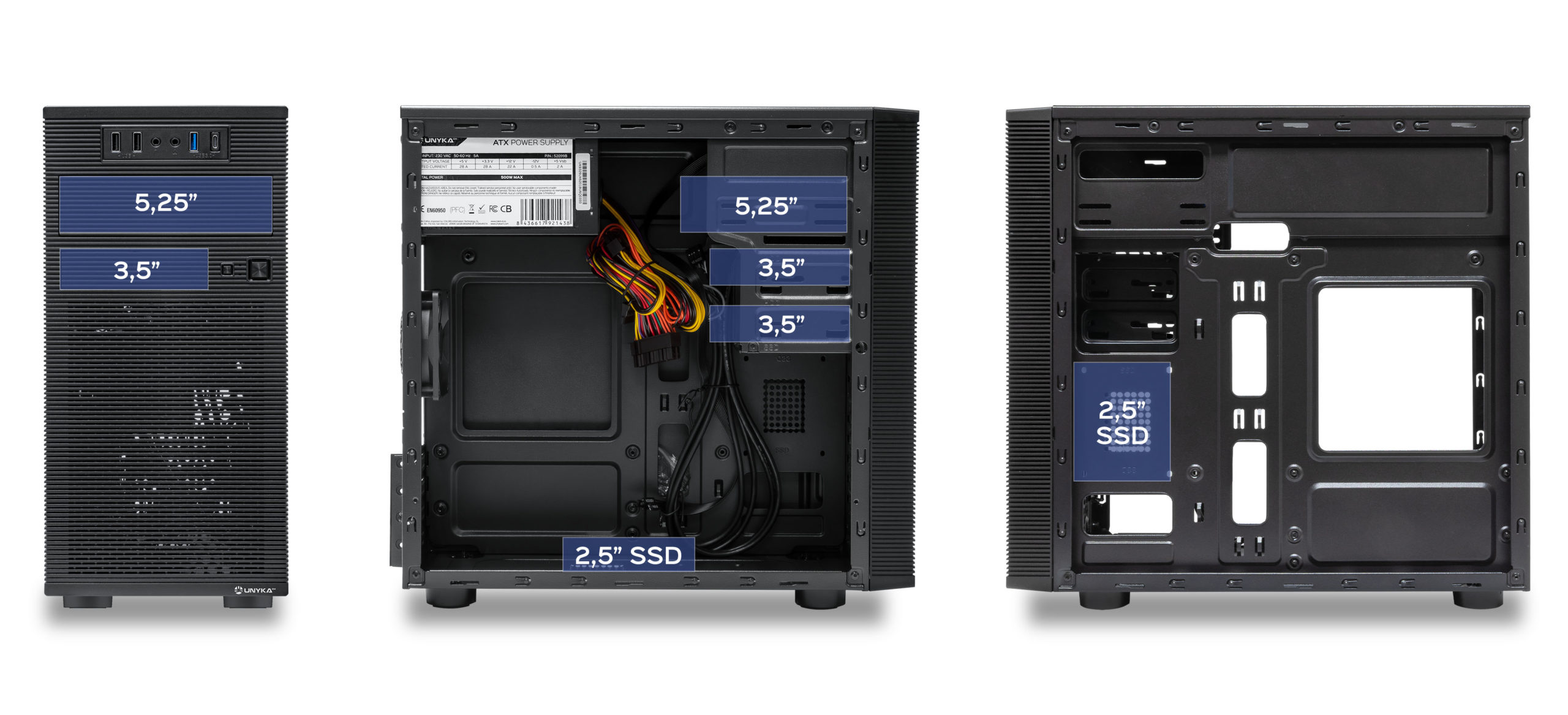

- 2 SSD drives + 2 HDD

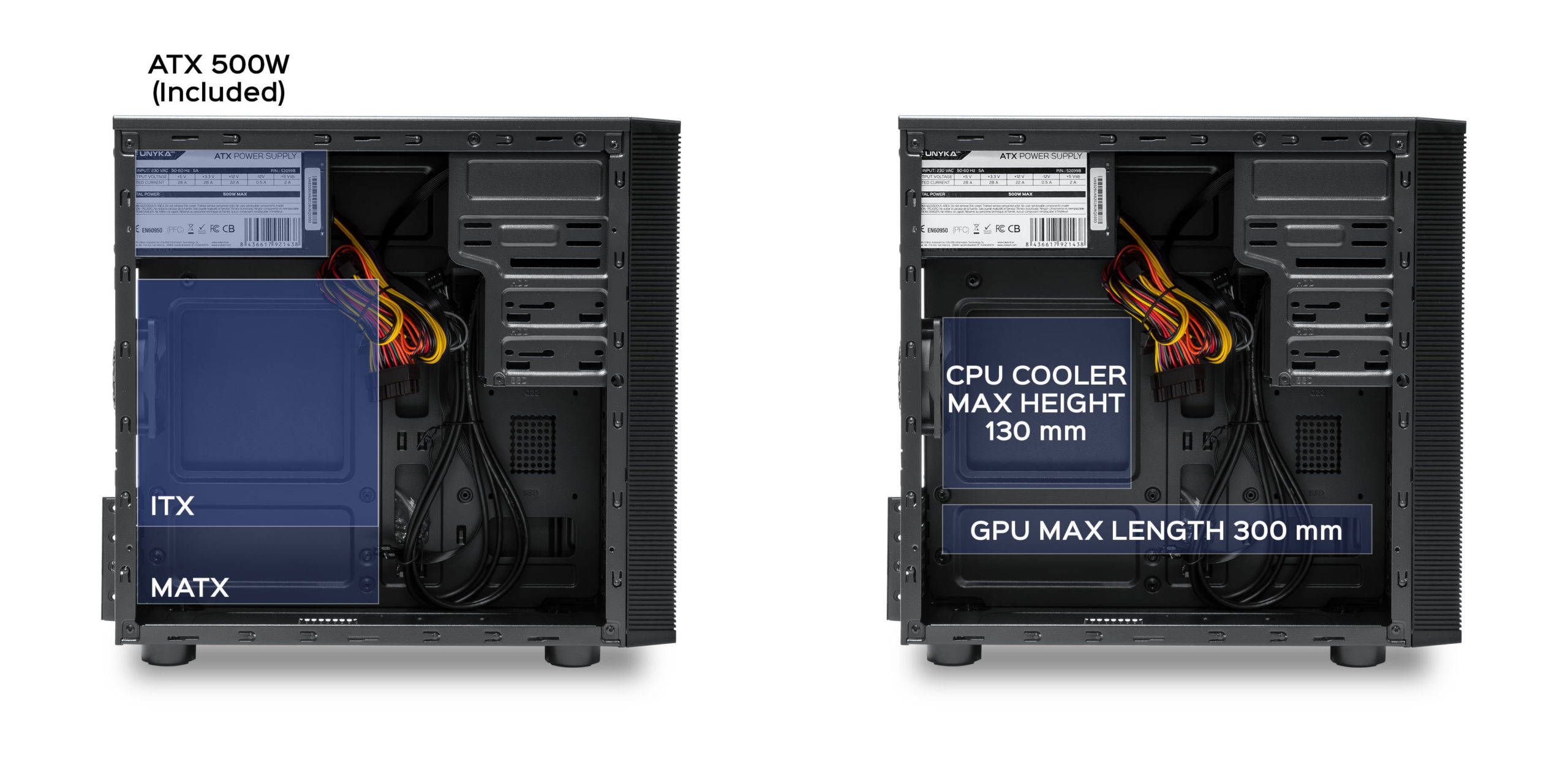

- Supported motherboards: mATX / ITX
- Graphics cards up to 300 mm
- Support for CPU coolers up to 130 mm in height
- Optimized internal design for easy installation and maintenance
Aero C15 MATX
– Sleek and elegant design with high-quality finishes.
– 2 × USB 2.0, 1 × USB 3.0, and 1 × USB Type-C 3.0.
– Capacity for up to 4 drives.
– Supports up to 2 fans.
OPTIMAL COOLING

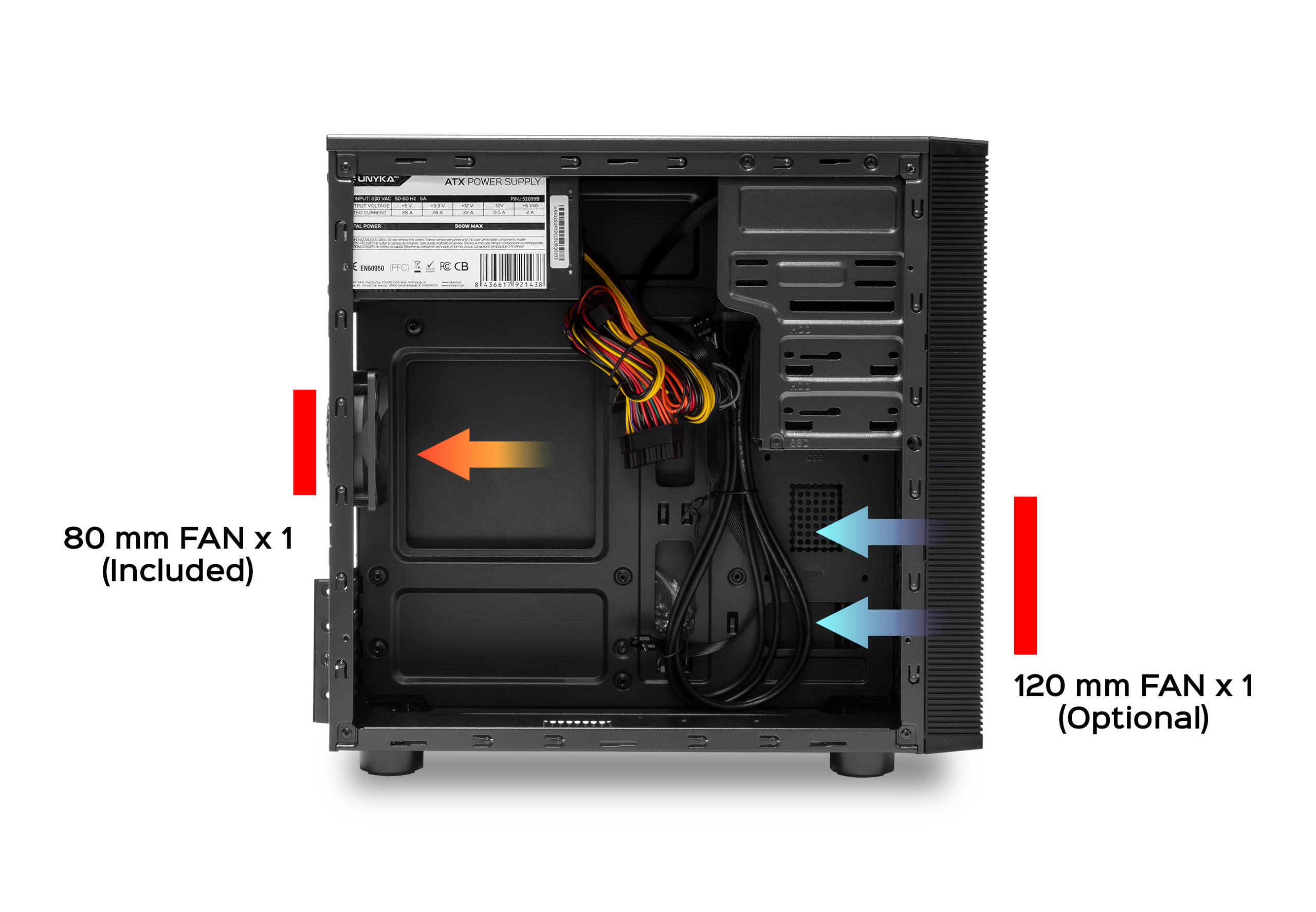

The ventilated front panel ensures proper airflow to reach the optional 120 mm fan, allowing hot air to be exhausted through the rear grille and the included 80 mm fan.
EXTERNAL BAYS
The ventilated front panel ensures proper airflow to the optional 120 mm fan, allowing hot air to be expelled through the rear grille and the compatible optional 80 mm fan.
FULL FRONT CONNECTIVITY
The Unyka Aero C15 includes a USB Type-C port and USB 3.0 for high-speed devices, as well as USB 2.0 for universal compatibility. Integrated HD audio connectors provide a complete multimedia experience.

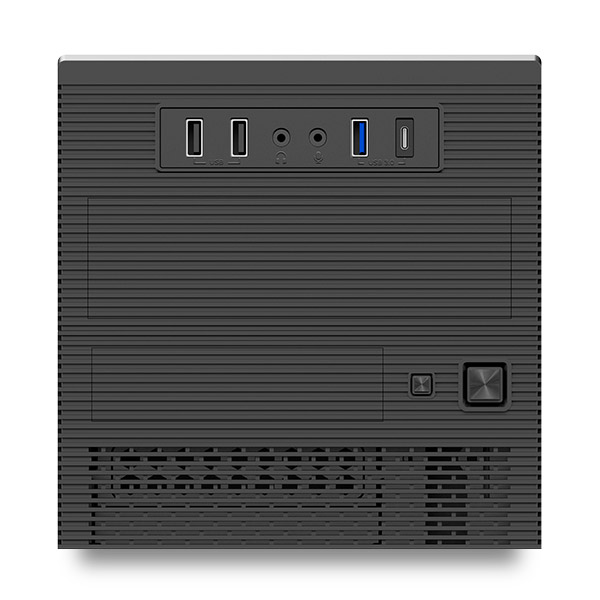

Front panel layout:
1 – Power on/off button
2 – Reset
3 – USB 2.0
4 – HD Audio
5 – USB 3.0
6 – USB Type-C (3.0 – 4.8 Gb/s)
1
Power on/off button
2
Reset
3
USB 2.0
4
HD Audio
5
USB 3.0
6
USB Type-C (3.0 – 4.8 Gb/s)
MATERIALES Y DIMENSIONES
- Material: Acero SPCC 0.45 mm / ABS para máxima durabilidad.

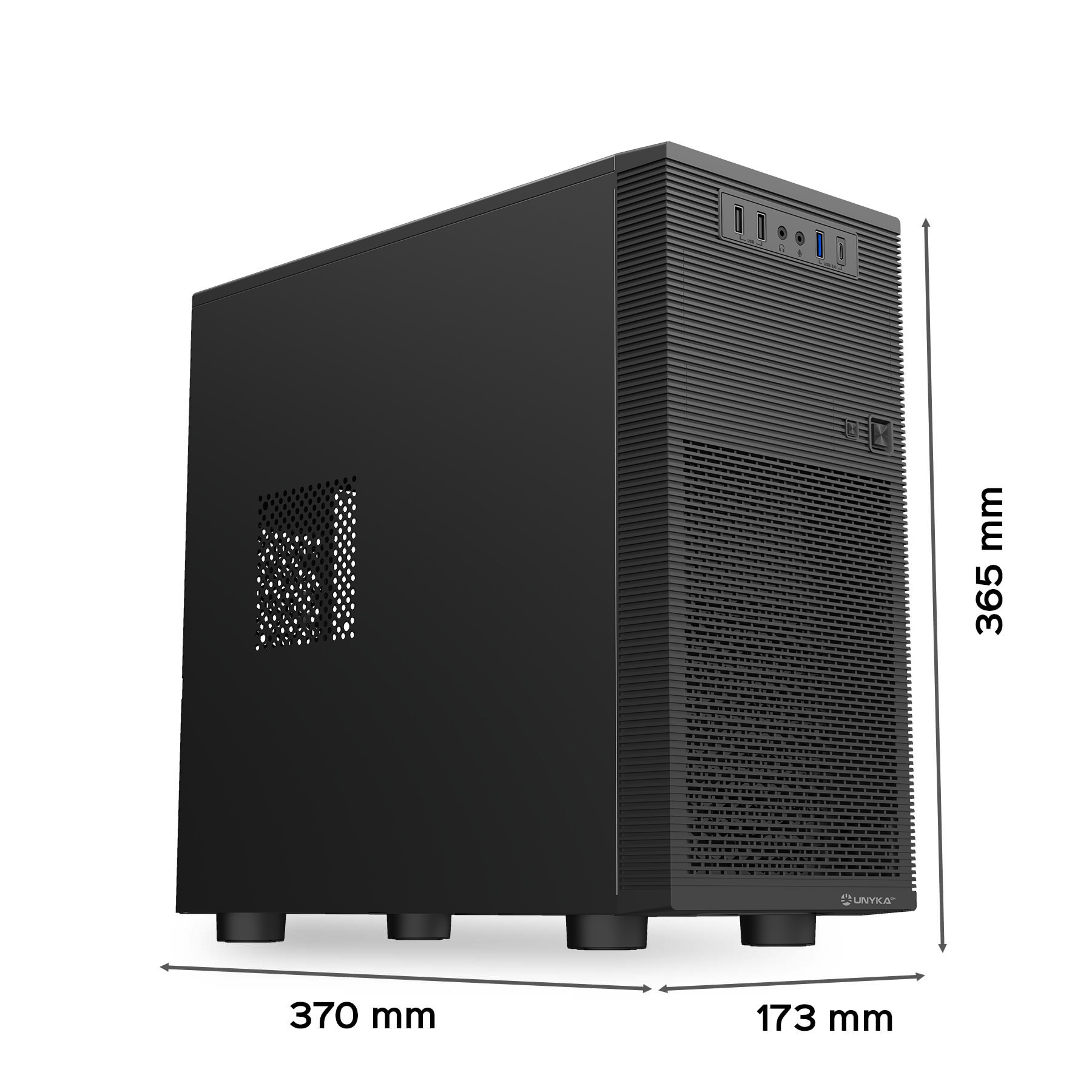

- Dimensiones: 365 x 173 x 370 mm.
- Fuente de alimentación ATX (no incluida) montaje superior.
- Peso: 2.8 kg - Robusto pero manejable.
- Color: Negro elegante con acabado profesional.
PRODUCT
PC Case MATX AERO C15 PN:UK52015
TYPE CHASSIS
MATX
DIMENSIONS
365 (L) x 173 (W) x 370 (H) mm
WEIGHT
2,8 kg
COLOUR
Black
MATERIAL
SGCC 0.45 mm / ABS
MOTHERBOARD
MATX / ITX
EXPANSION SLOT
4 Normal
BAY 5,25” INT/EXT
0 / 1
BAY 3,5” INT/EXT
1 HHD / 1 FDD
BAY 2,5” SSD INT/EXT
2 / 0
CONNECTOR
2 x USB 2.0 / 1 x USB 3.0 / 1 x USB Type C 3.0
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
ATX (Top)
COMPATIBILITY AIR COOLING
Yes
MAX CAPACITY OF FANS
Front: 1 x 120 mm (Optional) / Rear: 1 x 80 mm (Included)
CPU COOLER MAX HEIGHT
130 mm
MAXIMUM DIMENSION ADMITTED GRAPHIC CARD
300 mm
FAN DIMENSIONS
80 (L) x 80 (W) x 25 (H) mm
WEIGHT
67.8 g
COLOR
Black
MATERIAL
PC + PBT
STARTING VOLTAGE
6V DC
RATED VOLTAGE
12V DC
BEARING
Hydraulic
RPM
800 / 1800 RPM ± 10%
MTBF
40,000 h
NOISE LEVEL
25 dBA
NUMBER OF BLADES
7
CONNECTOR (PIN)
4-Pin
PWM
Yes
CFM
36.2
MAXIMUM PRESSURE
0.56 mm-H₂O
PACKAGING
DIMENSIONS
405 (L) x 215 (W) x 427 (H) mm
WEIGHT
3,69 Kg
CUBIC CAPACITY
0,0371 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
PC Case MATX / Screws
CERTIFICATIONS
CE / ROHS
