PC Case Micro ATX UK2012 80 Plus Bronce

VERSATILE DESIGN WITH VERTICAL OR HORIZONTAL ORIENTATION

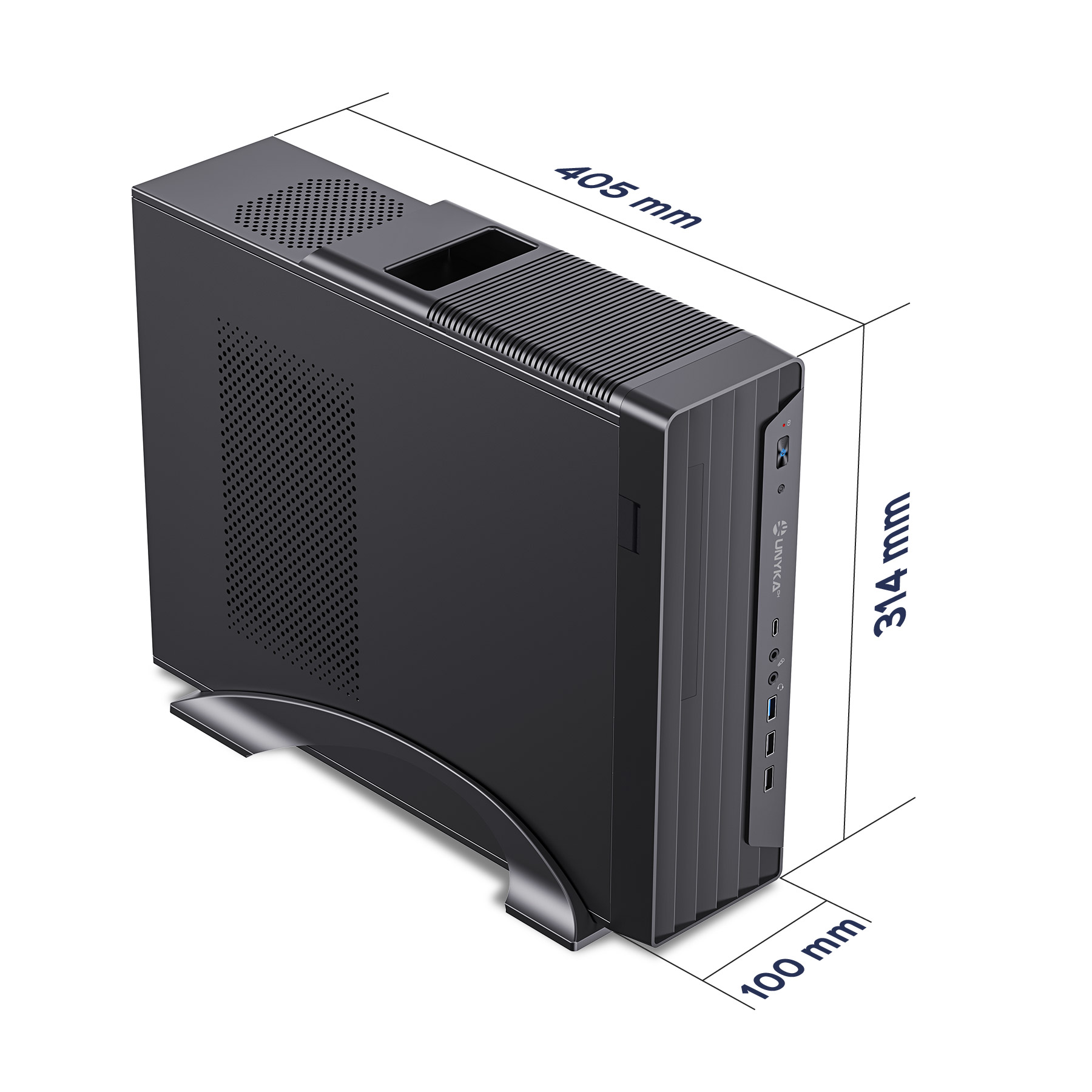

The UK2012 chassis is designed to adapt to different work environments thanks to its vertical mounting stand, allowing installation in either horizontal or vertical orientation depending on the user’s needs. This flexibility helps optimize desk space while improving access to front ports and connections.

Its robust structure ensures reliable protection for internal components, delivering a stable and durable solution for professional and continuous-use environments.

EFFICIENT COOLING AND COMPACT-FORMAT COMPATIBILITY

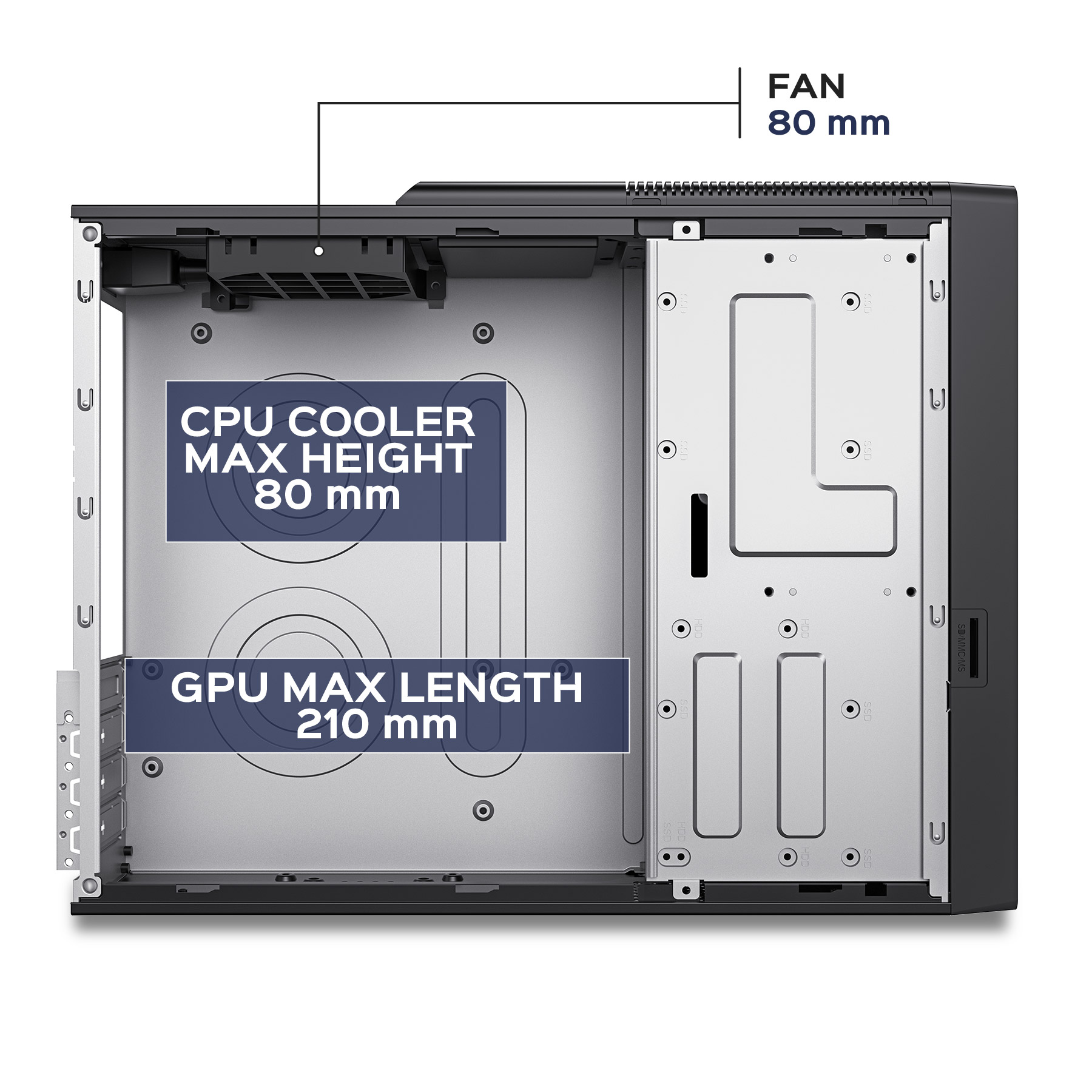

The UK2012 case includes an 80 mm fan that helps maintain proper airflow inside the chassis, ensuring stable performance during daily use.
It is designed for compact systems and is compatible with CPU coolers up to 80 mm in height, as well as low-profile graphics cards up to 210 mm in length, delivering a balance between performance and space efficiency without compromising compatibility in small-form-factor builds.

FLEXIBLE STORAGE AND FULL COMPATIBILITY

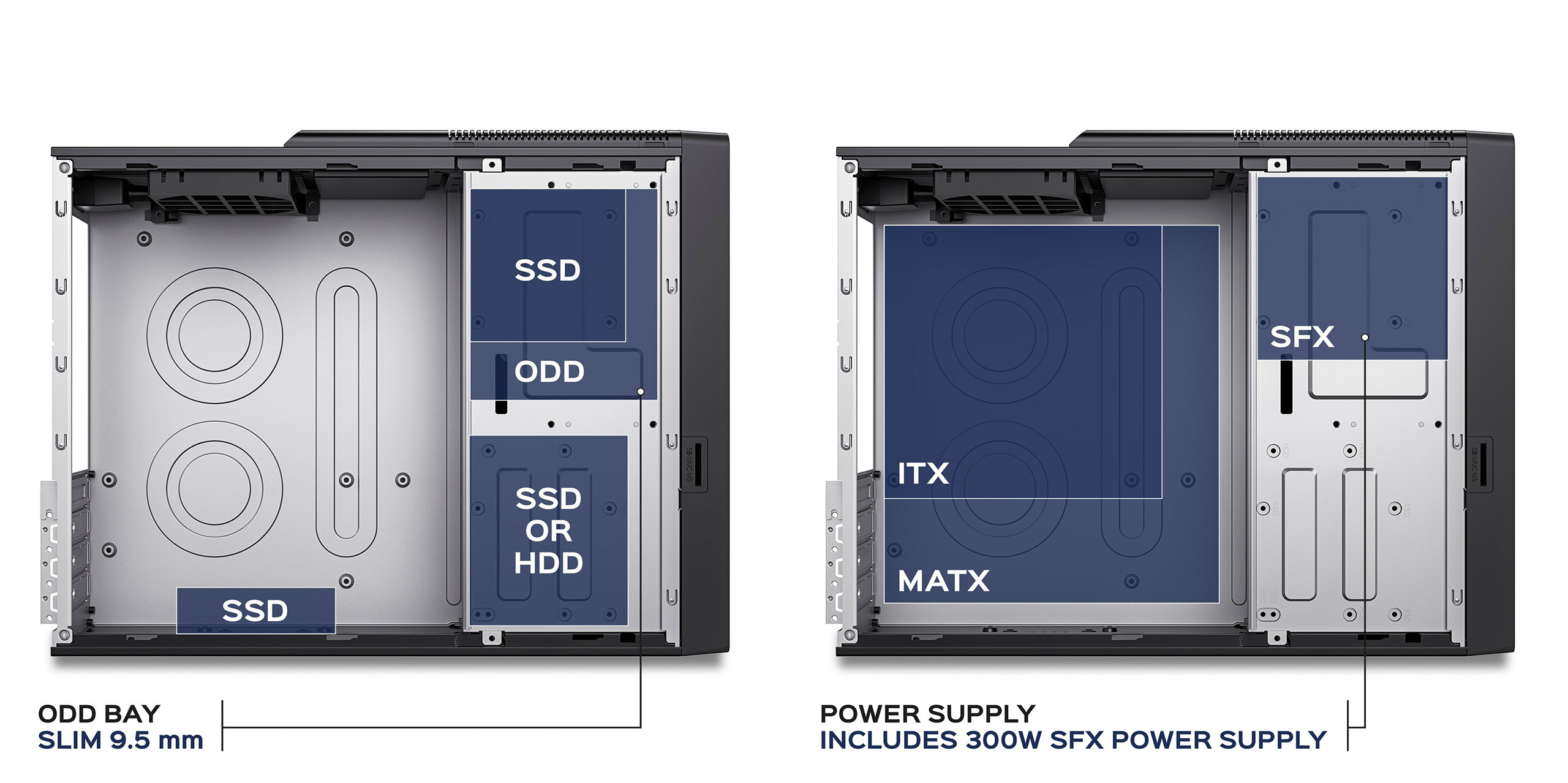

The UK2012 case offers a versatile storage configuration that adapts to different needs. It includes up to 3 internal drive bays for SSDs, or a combination of 2 SSDs + 1 3.5” HDD, allowing users to balance speed and capacity depending on the type of usage.
It also features a 9.5 mm slim ODD bay, ideal for systems that still require optical drive support or additional modules in a compact format, while maintaining full functionality within a reduced footprint design.
It is compatible with ITX and Micro-ATX motherboards, providing flexibility for different compact system builds.
As a ready-to-use solution, it integrates a 300W SFX power supply with 80 Plus Bronze certification, ensuring energy efficiency, stability, and reliable performance in office and general-purpose environments.

CONECTIONS

The UK2012 case incorporates a protection system that continuously logs any tampering attempts through the BIOS. This ensures that the system remains protected against potential intrusions or unauthorized modifications.

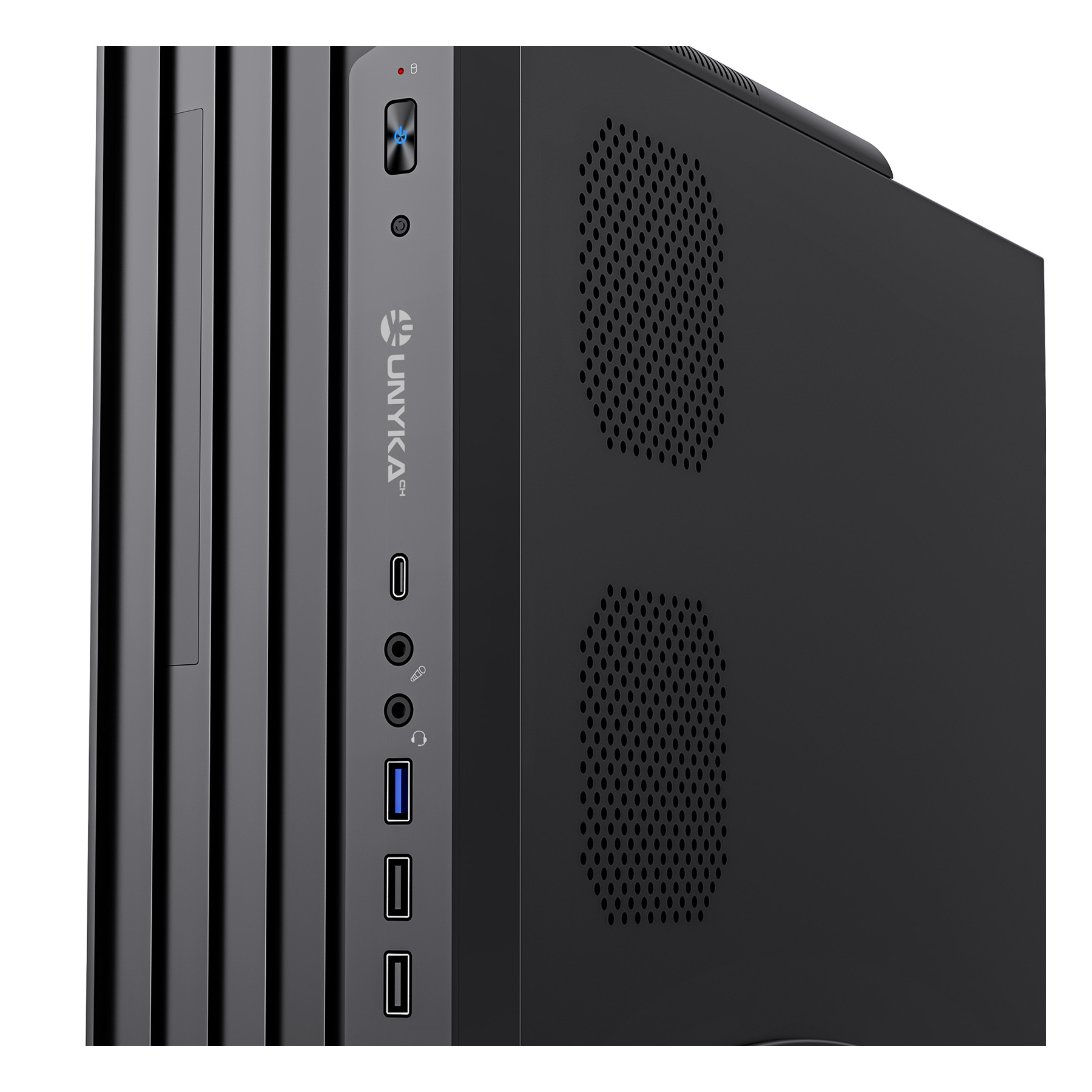

Front panel layout:
1 - Power on/off button
2 - Reset
3 - USB Type-C (3.0 – 4.8 Gb/s)
4 - Combo Audio + Microphone
5 - USB 3.0
6 - USB 2.0
6 - 9.5 mm ODD bay

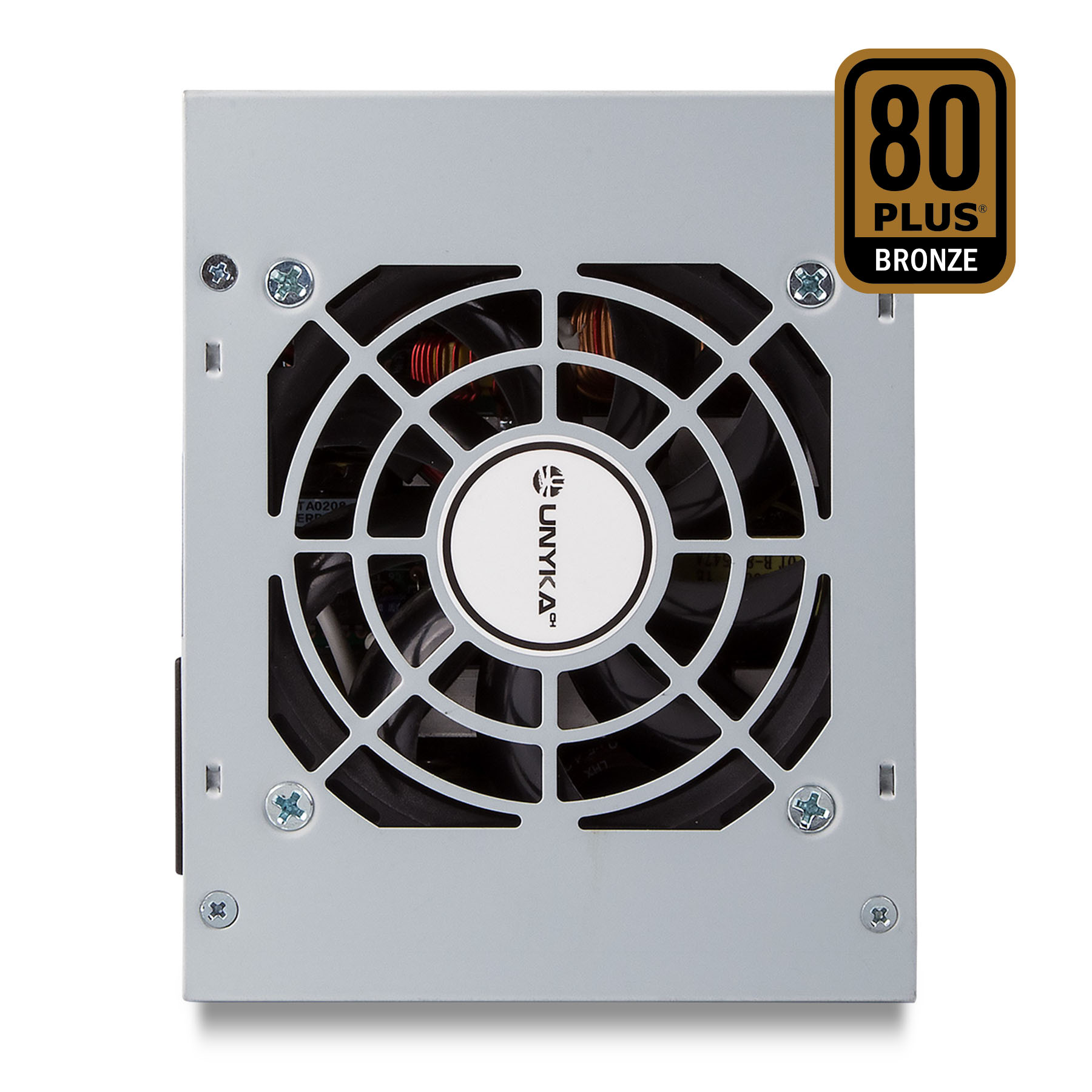

300W SFX POWER SUPPLY WITH 80 PLUS BRONZE EFFICIENCY

The UK2012 case includes the 52003 SFX power supply unit, rated at 300W and certified 80 Plus Bronze, delivering real power output and up to 88% energy efficiency for stable performance with optimized power consumption.
It features an ultra-quiet 80 mm fan for efficient cooling and discreet operation, along with built-in protection systems against overvoltage, undervoltage, overcurrent, and short circuits, ensuring safe and reliable use at all times.
This is a dependable solution for general-purpose and professional systems, providing the necessary power for balanced compact builds with safe and continuous operation.
