The new UNYKAch NUMEN 500 PRO TYPE C chassis is a 17-liter Micro ATX format, supporting standard ATX power supplies and featuring a total of 5 USB ports, including 2 USB 2.0, 2 USB 3.0, and 1 USB Type C. Additionally, its design allows for both horizontal and vertical placement, making it versatile to adapt to any space and need. This case is compatible with ATX power supplies, making it an excellent option for projects that require a more powerful or less powerful power supply. With this case, users can enjoy a modern and attractive design, without sacrificing functionality or connectivity.
P/N:UK52115 · EAN:6974560220984
TOTAL CAPACITY
The UNYKAch NUMEN 500 PRO TYPE C is a 17-liter Micro-ATX chassis designed to deliver the perfect balance between a compact footprint and extensive hardware compatibility. Supporting both Micro-ATX and Mini-ITX motherboards, it enables versatile PC builds without compromising performance.

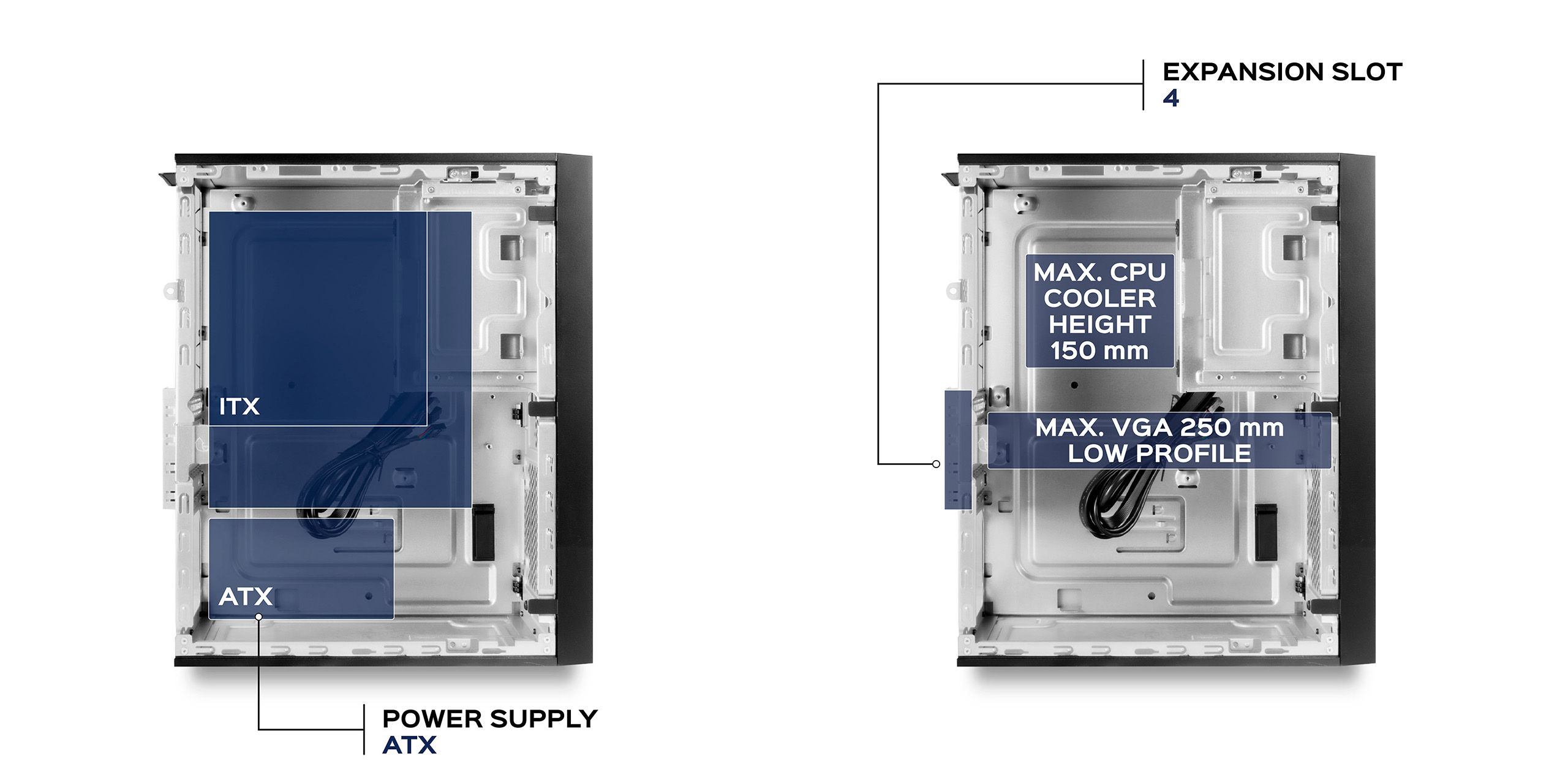

Its interior accommodates a standard ATX power supply (not included), features 4 expansion slots, and provides clearance for CPU air coolers up to 150 mm in height. It also supports graphics cards up to 250 mm in length, offering the flexibility to build a system tailored for both productivity and entertainment.
With its modern design and excellent upgrade potential, the NUMEN 500 PRO TYPE C is the ideal choice for users looking for a compact, functional chassis ready to support today's hardware.
NUMEN 500 PRO TYPE C 17 Litres Micro ATX
– 17 Litres chassis.
– Adaptable to horizontal or vertical position
– 2 USB 2.0, 2 USB 3.0 and 1 USB Type C 2.0.
– Compatible with ATX power supplies.

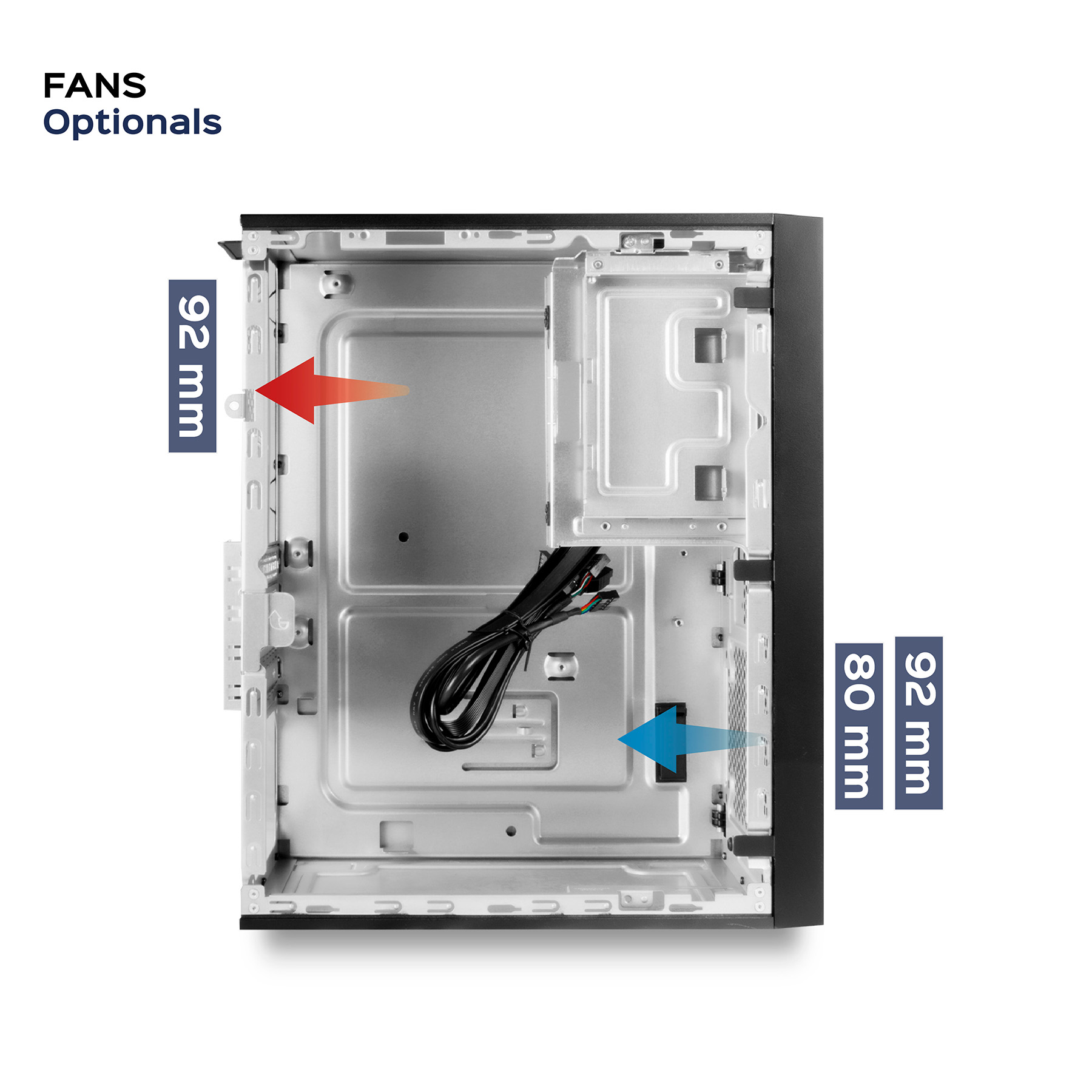

OPTIMIZED COOLING
The NUMEN 500 PRO TYPE C is engineered to promote efficient airflow throughout the chassis, helping maintain stable operating temperatures even under demanding workloads. It supports the installation of one 80 mm or 92 mm front fan and one 92 mm rear fan (not included), providing the flexibility to configure the cooling system according to the specific requirements of your build.

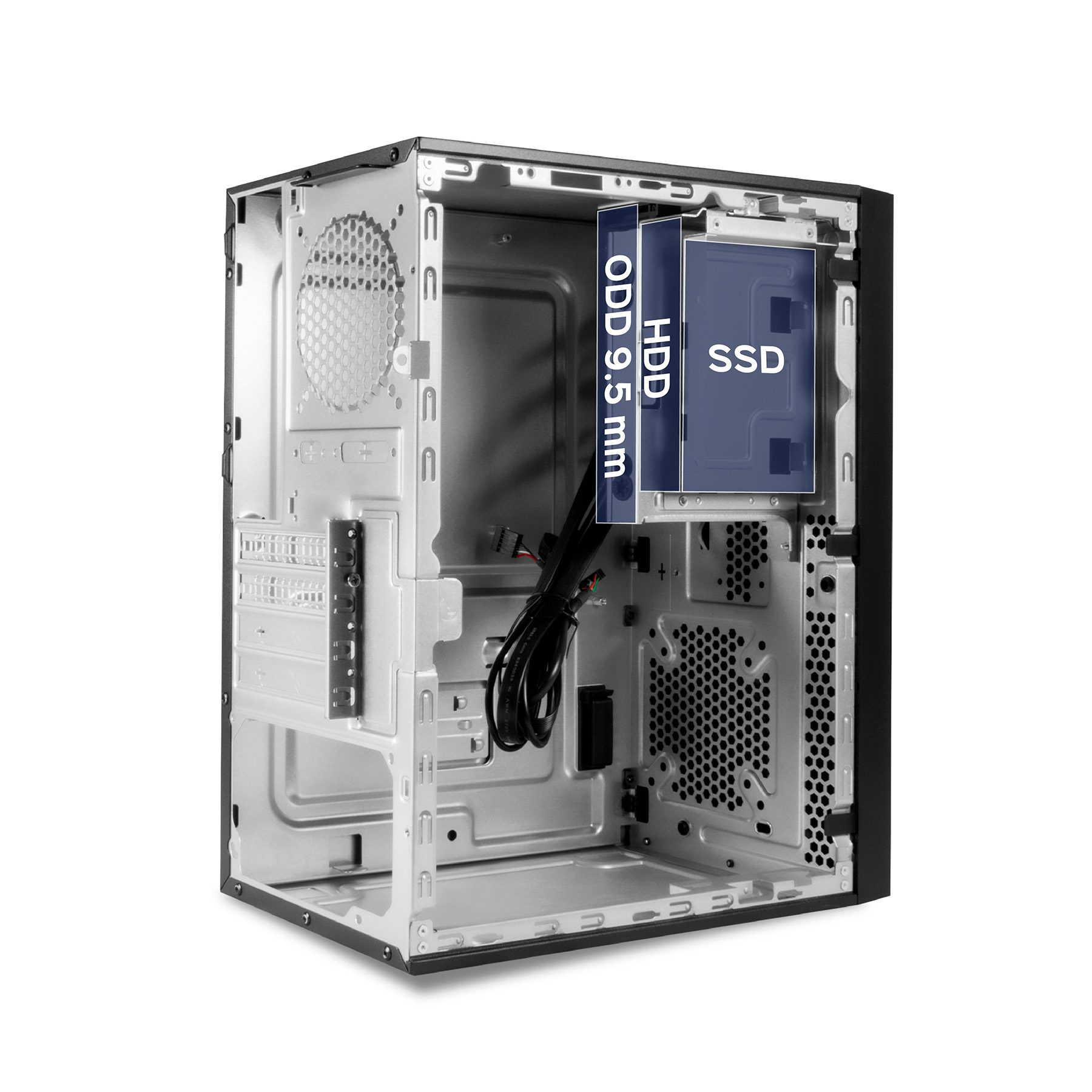

STORAGE OPTIONS
The NUMEN 500 PRO TYPE C features a practical internal layout for installing your essential storage devices. It includes one internal 3.5" drive bay for HDDs, one internal 2.5" bay for SSDs, and one 9.5 mm Slim ODD bay, allowing the installation of a slim optical drive without compromising the chassis' compact design.
1
Power Button
2
Reset Button
3
HD Audio In/Out
4
2 × USB 2.0 Ports
5
2 × USB 3.0 Ports
6
USB Type-C 2.0 Port

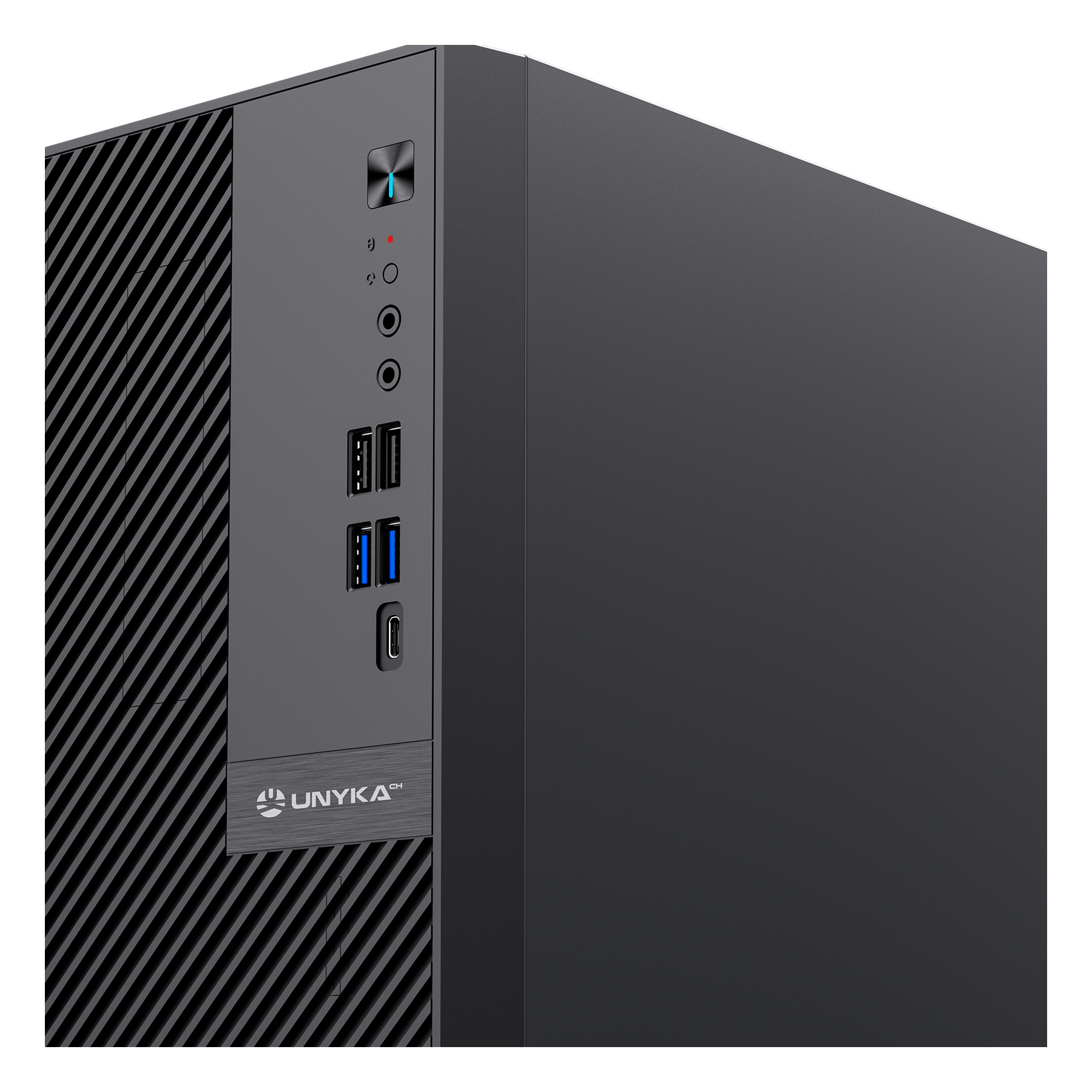

FUNCTIONAL FRONT
The NUMEN 500 PRO TYPE C features a conveniently positioned front I/O panel, providing quick and easy access to the system's essential controls and connectivity. Its practical layout allows you to connect peripherals and external devices with ease while keeping the main functions always within reach. Everything is integrated into a functional design that enhances everyday usability.
1 - Power Button
2 - Reset Button
3 - HD Audio In/Out
4 - 2 × USB 2.0 Ports
5 - 2 × USB 3.0 Ports
6 - USB Type-C 2.0 Port

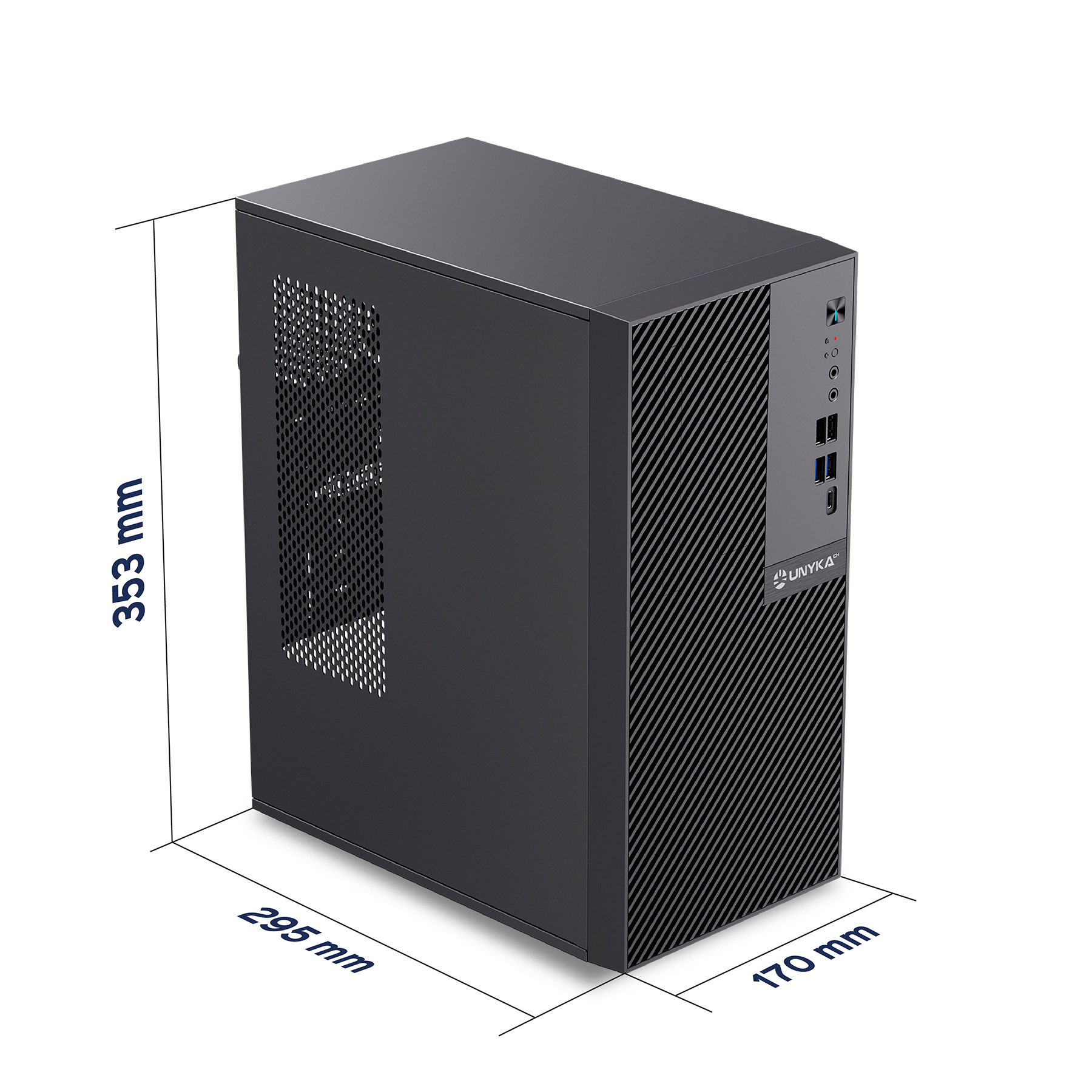

MATERIALS & DIMENSIONS
Built with 0.7 mm SGCC steel and high-quality ABS, the NUMEN 500 PRO TYPE C delivers a robust and durable structure designed for everyday use. Its compact 17-liter form factor maximizes space efficiency while providing excellent hardware compatibility.
- Material: 0.7 mm SGCC Steel / ABS
- Dimensions: 295 × 170 × 353 mm (17 L)
- Weight: 3.6 kg
- Color: Black
PRODUCT
PC Case Micro ATX Numen 500 PRO TYPE C 17 Litres PN:UK52115
TYPE CHASSIS
Micro ATX
MOTHERBOARD
Micro ATX (Max 244 x 244 mm) / ITX
DIMENSIONS
295 (L) x 168 (W) x 353 (H) mm / 17 Litres
DIMENSIONS WITHOUT FRONT
265 (L) x 170 (W) x 350 (H) mm
WEIGHT
3,6 kg
COLOUR
Black
MATERIAL
SGCC 0.7 mm / ABS
SIDE PANEL
Metal
EXPANSION SLOT
4 Normal
BAY ODD
1 Slim (9.5 mm)
BAY 5,25” INT/EXT
0 / 0
BAY 3,5” INT/EXT
1 / 1
BAY 2,5” SSD INT/EXT
1 / 0
CONNECTOR
USB 2.0 x 2 / USB 3.0 x 2 / USB Type C 2.0 x 1
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
ATX
COMPATIBILITY AIR COOLING
Yes
MAX CAPACITY OF FANS
Front 1 x (92 mm) or (80 mm) Optional / Rear 1 x (92 mm) Optional
CPU COOLER MAX HEIGHT
150 mm
WIDTH MAX GPU / PCI CARD
180 mm
VGA COMPATIBILITY
Yes (Normal Profile)
MAXIMUM DIMENSION ADMITTED GRAPHIC CARD
250 mm
PACKAGING
DIMENSIONS
421 (L) x 241 (W) x 366 (H) mm
WEIGHT
4,1 Kg
CUBIC CAPACITY
0,0371 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
PC Case Micro ATX / Screws
CERTIFICACIONES
CE / ROHS
