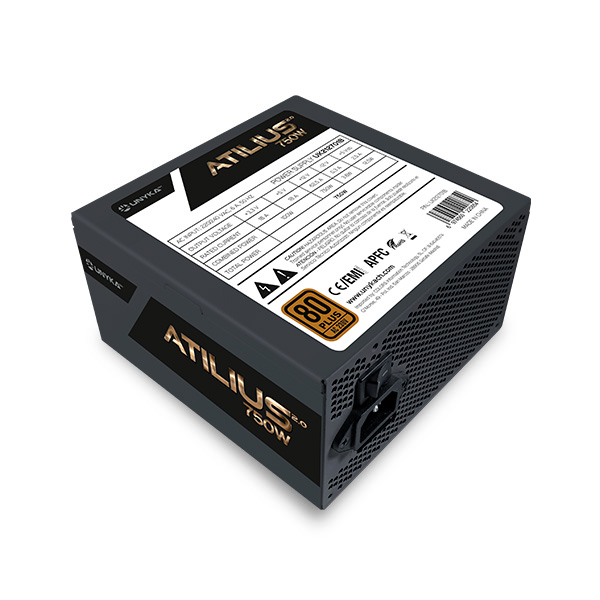

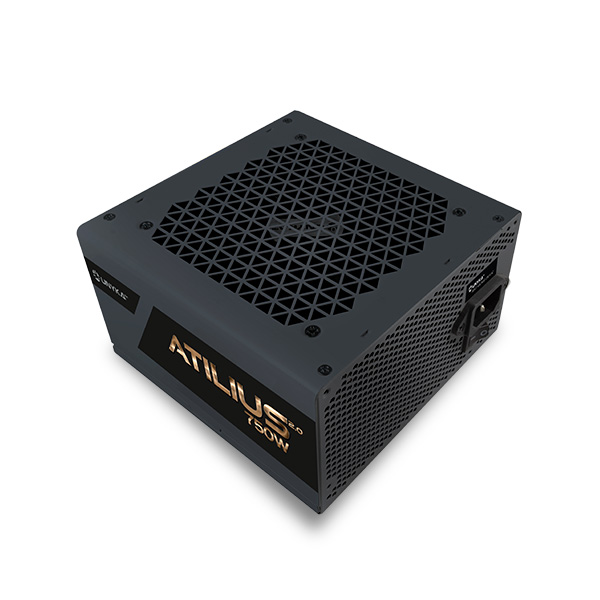

Power Supply ATX ATILIUS 2.0 BLACK 750W
The ATILIUS 2.0 power supply is an excellent choice for users who require real and reliable power for work or leisure without interruptions. With an ATX format of 750W and 80+ Bronze, this power supply is perfect for the most demanding users.
In addition, its ultra-silent 120mm fan ensures optimal performance and effective cooling at all times. And when it comes to style, the elegance and sobriety of its black design make it a perfect complement to any case.
P/N:UK212701 · EAN:6974560220854
AVAILABLE COLORS
ATILIUS 2.0 BLACK 750W
– Real power of 750W.
– 80+ Bronze.
– Ultra-silent 120mm fan.
REAL POWER
The standout feature of UNYKAch's ATILIUS 2.0 power supplies is their real power of 750W, which means that they provide precise and stable power delivery without fluctuations or drops that could affect the performance of your equipment. This is due to their intelligent circuit design and the incorporation of high-quality components that ensure a constant and safe energy supply.
PRODUCT
Power Supply ATX ATILIUS 2.0 Black 80+ Bronze PN:UK212701
VERSION
INTEL 2.4
TYPE CHASSIS
ATX
DIMENSIONS
150 (L) x 150 (W) x 85 (H) mm
WEIGHT
1,5 kg
COLOUR
Black
SWITCH
Yes
CONTROL OF ENERGY
- Nominal Power Supply Voltage:750W
- Maximum AC Input Current 220-240V / 50-60 Hz Serial: UK212701 / +3.3V / +5V / +12V / -12V / +5Vsb
- Maximum Output Current +3,3V: 18 A
- Maximum Output Current +5V: 18 A
- Maximum Output Current +12V: 62,5 A
- Maximum Output Current -12V: 0,3 A
- Maximum Output Current +5Vsb: 2,5 A
POWER FACTOR
APFC
CAPACITORS
Taiwanese
SATA CONNECTOR
2 x (500 mm + 150 mm + 150 mm)
20 + 4 PIN CONNECTOR
1 x 550 mm
4 + 4 PIN CONNECTOR
1 x (600 mm + 150 mm)
PCI-E 6 + 2 PIN CONNECTOR
2 x (550 mm + 150 mm)
MOLEX CONNECTOR
1 x (550 mm + 150 mm + 150 mm)
RAIL
Single
FAN
120 mm
RPM
2000 – 2400 ± 10 %
PACKAGING
DIMENSIONS
290 (L) x 195 (W) x 85 (H) mm
WEIGHT
1,9 kg
CUBIC CAPACITY
0,0067 m3
COLOUR
Retail
MATERIAL
Paperboard
PACKAGE CONTENT
ATX Power Supply / European Standard Power Cable
PROTECTIONS & CERTIFICATIONS
CE / OVP / UVP / OTP / OLP / OPP / SCP / APFC
EFFICIENCY & EFFICIENCY
ROHS / CE / 80+ Bronze
TECHNICAL SHEET-GALLERY
Power Supply ATX ATILIUS 2.0 Black 750W 80+ Bronze PN:UK212601
MANUAL
–
DRIVERS
–
OTHERS
Certification 80+ PLUS Bronze Atilius 2.0
