Server Rack
P/N:80.20.08 · EAN:6940533543435
Our high quality UNYKAch 2U Rack Server, for any server installation and enterprise data centers: databases, big data and analytics, virtualization, cloud computing and / or video surveillance.
In silver color, is designed with 4 HOT SWAP bays of 3.5 ”discs for data storage.
IN DETAILS
1

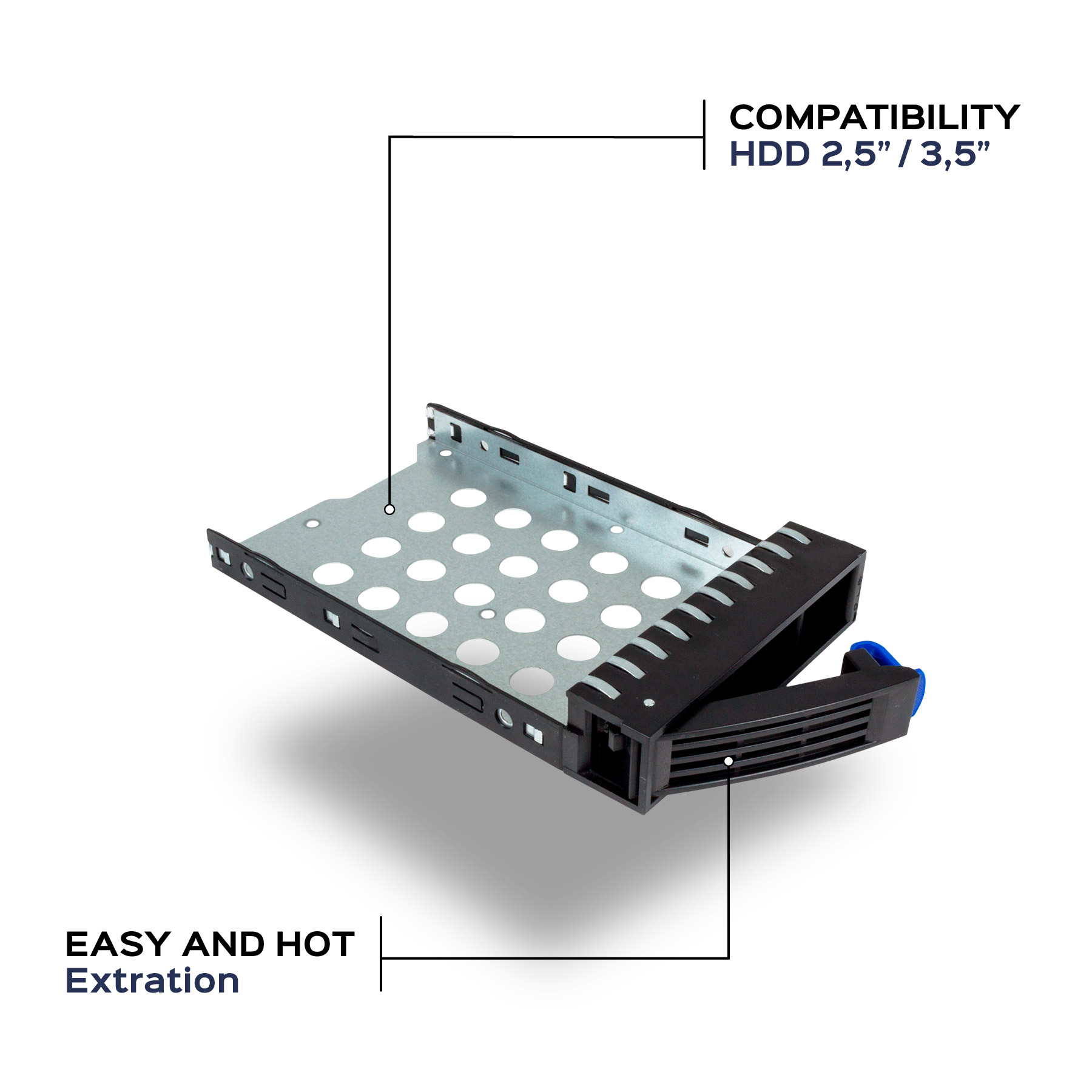

8 HOT SWAP bays for 3.5 ” or 2.5″ disc for data storage
2
4 Fans of 80 mm
PRODUCT
TYPE CHASSIS
2U Standard

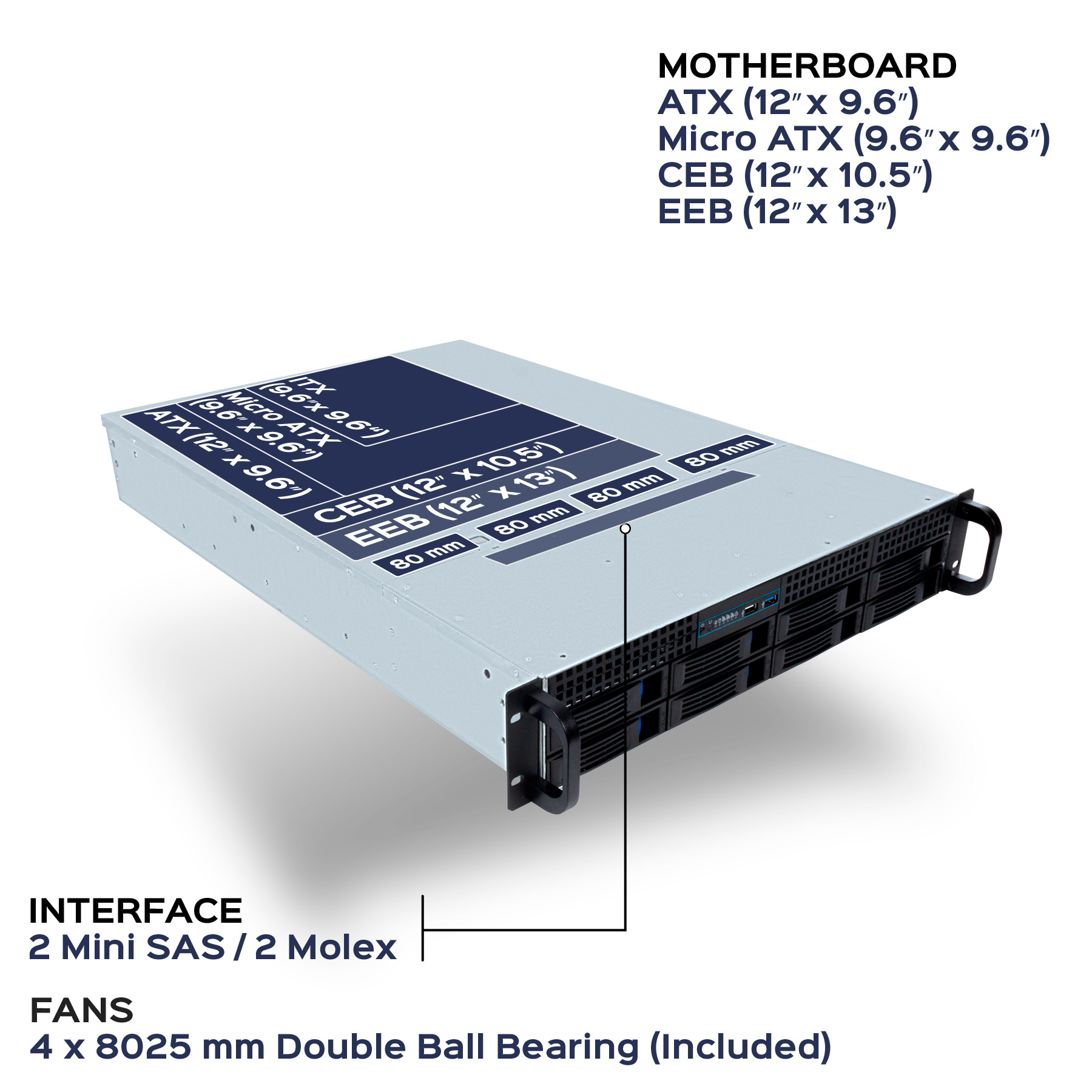

MOTHERBOARD
EEB (12″x13″) / CEB(12″x10.5″) / ATX (12″x9.6″) / MATX (9.6″ x 9.6“)
DIMENSIONS
650 (L) x 430 (W) x 89 (H) mm
WEIGHT
11 kg
COLOUR
Black / Silver
MATERIAL
SGCC 1.2 mm
FAN
4 x 8025 mm Double Ball Bearing
BAY 5,25” INT/EXT
0 / 0
BAY 3,5” / 2,5”
8 HDD HOT SWAP / 0
CONNECTOR
USB 2.0 x 1 / USB 3.0 x 1
INTERFACE
2 Mini SAS / 2 Molex

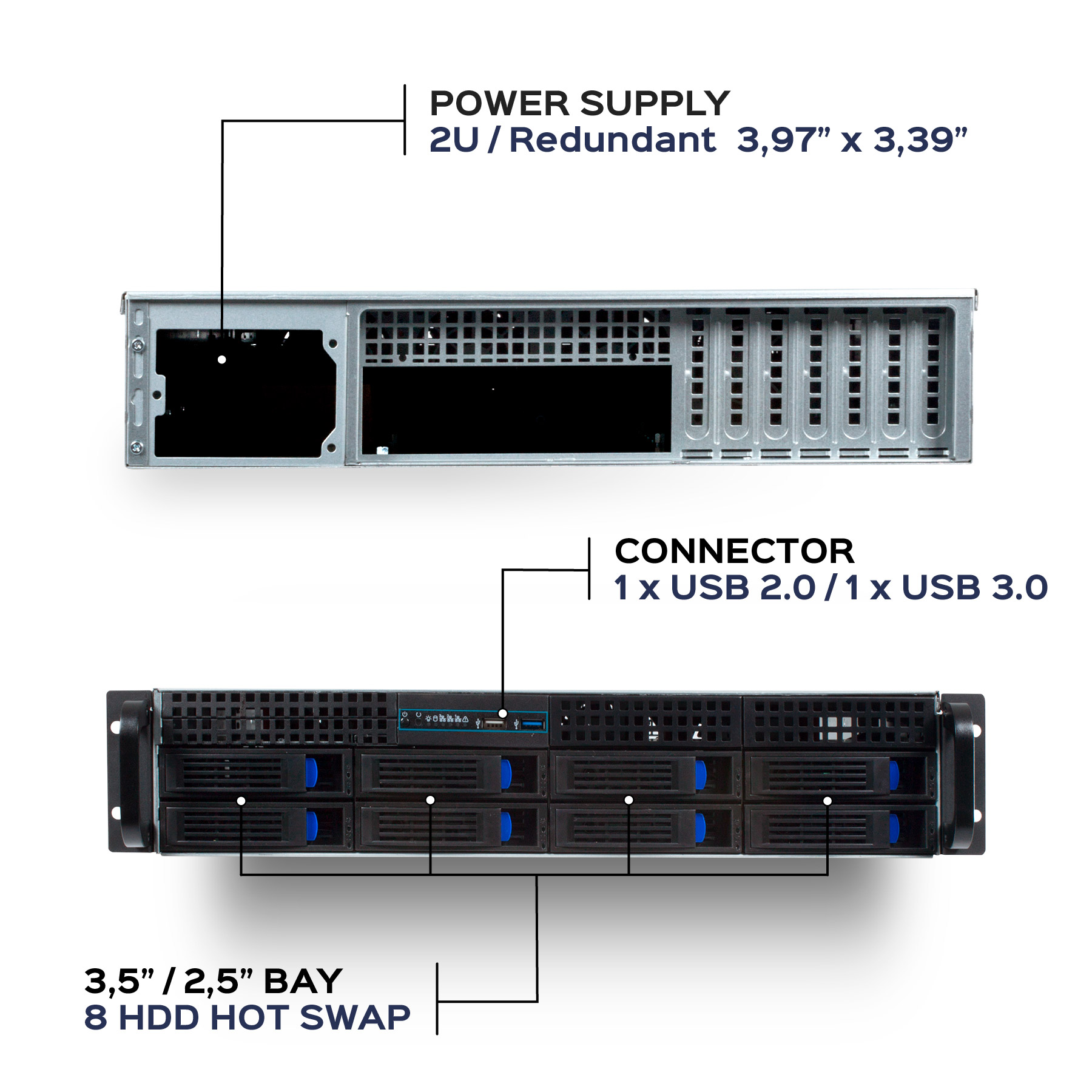

POWER SUPPLY ADMITTED
2U / Mini Redundant Power Supply de 3,97” x 3,39“
*HOT SWAP Bays are compatible with 3,5″ or 2,5″
PACKAGING
DIMENSIONS
830 (L) x 555 (W) x 155 (H) mm
WEIGHT
13 kg
CUBIC CAPACITY
0,0714 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Server Rack / Screws
CERTIFICATIONS
CE / ROSH
WARRANTY
10 Years
DOWNLOAD
TECHNICAL SHEET-GALLERY
Server Rack 2U HSW4208 PN:80.20.08
MANUAL
–
DRIVERS
–
OTHERS
Product link in ICECAT
OTHER FEATURES
MASTER BOX DIMENSIONS
850 (L) x 578 (W) x 175 (H) mm
MASTER BOX WEIGHT
14 kg
UNITS PER MASTER BOX
1
UNITS PER AMERICAN PALLET
10
UNITS PER EUROPEAN PALLET
–
