Hot Swap Rack Chassis
P/N:80.30.16 · EAN:6940533544241
Our high quality UNYKAch 3U Rack Server, for any server installation and enterprise data centers: databases, big data and analytics, virtualization, cloud computing and / or video surveillance. In silver color, is designed with 16 HOT SWAP bays of 3.5 ”discs for data storage.
PRODUCT
TYPE CHASSIS
3U Standard

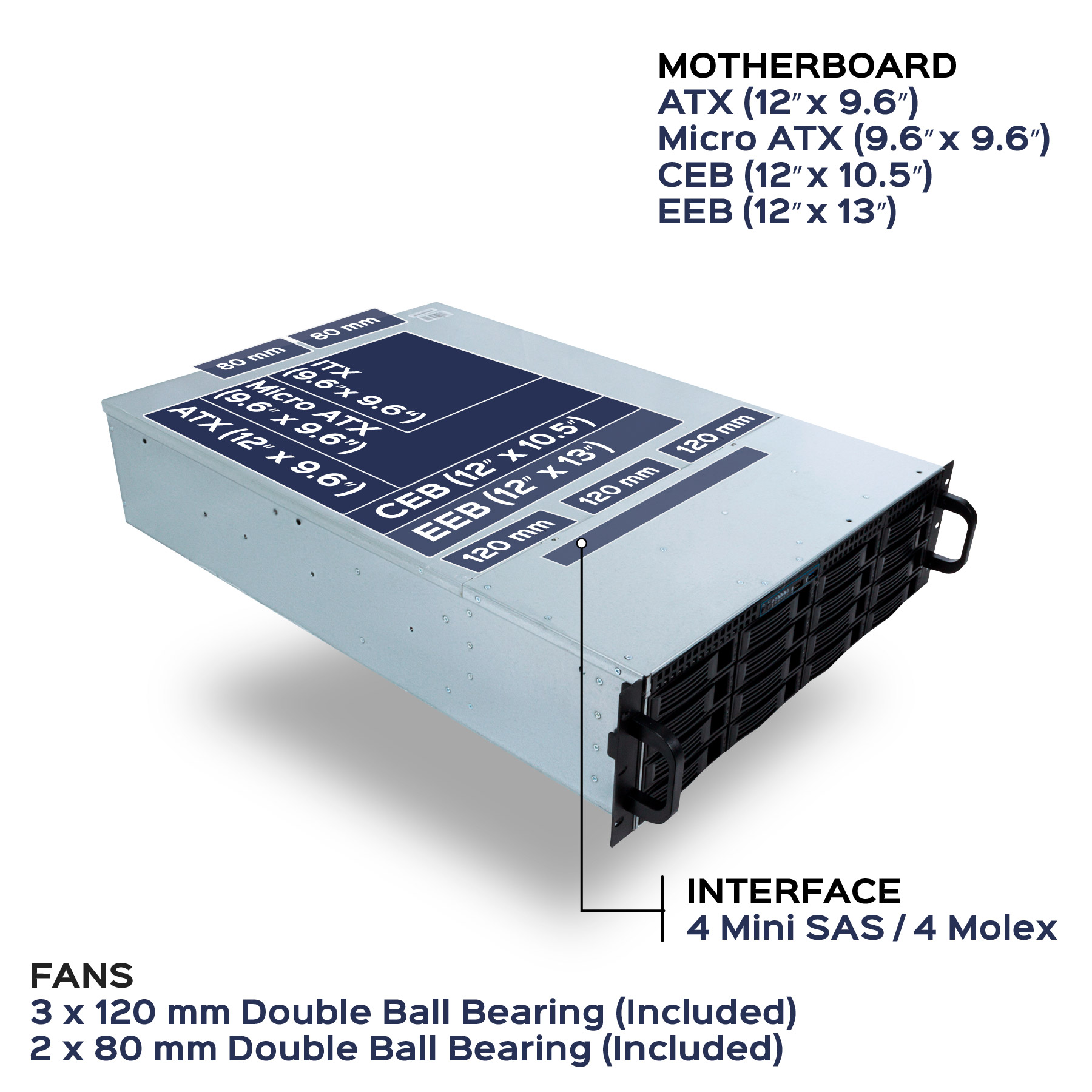

MOTHERBOARD
EEB (12“ x 13″) / CEB(12“ x 10.5″) / ATX (12“ x 9.6″) / MATX (9.6″ x 9.6“)
DIMENSIONS
650 (L) x 430 (W) x 132 (H) mm
WEIGHT
16 kg
COLOUR
Black / Silver
MATERIAL
SGCC 1.2 mm
FAN
3 x 120 mm Double Ball Bearing (Included)
2 x 80 mm Double Ball Bearing (Included)
BAY 5,25” INT/EXT
0 / 0
BAY 3,5” / 2,5”
16 HDD HOT SWAP / 0

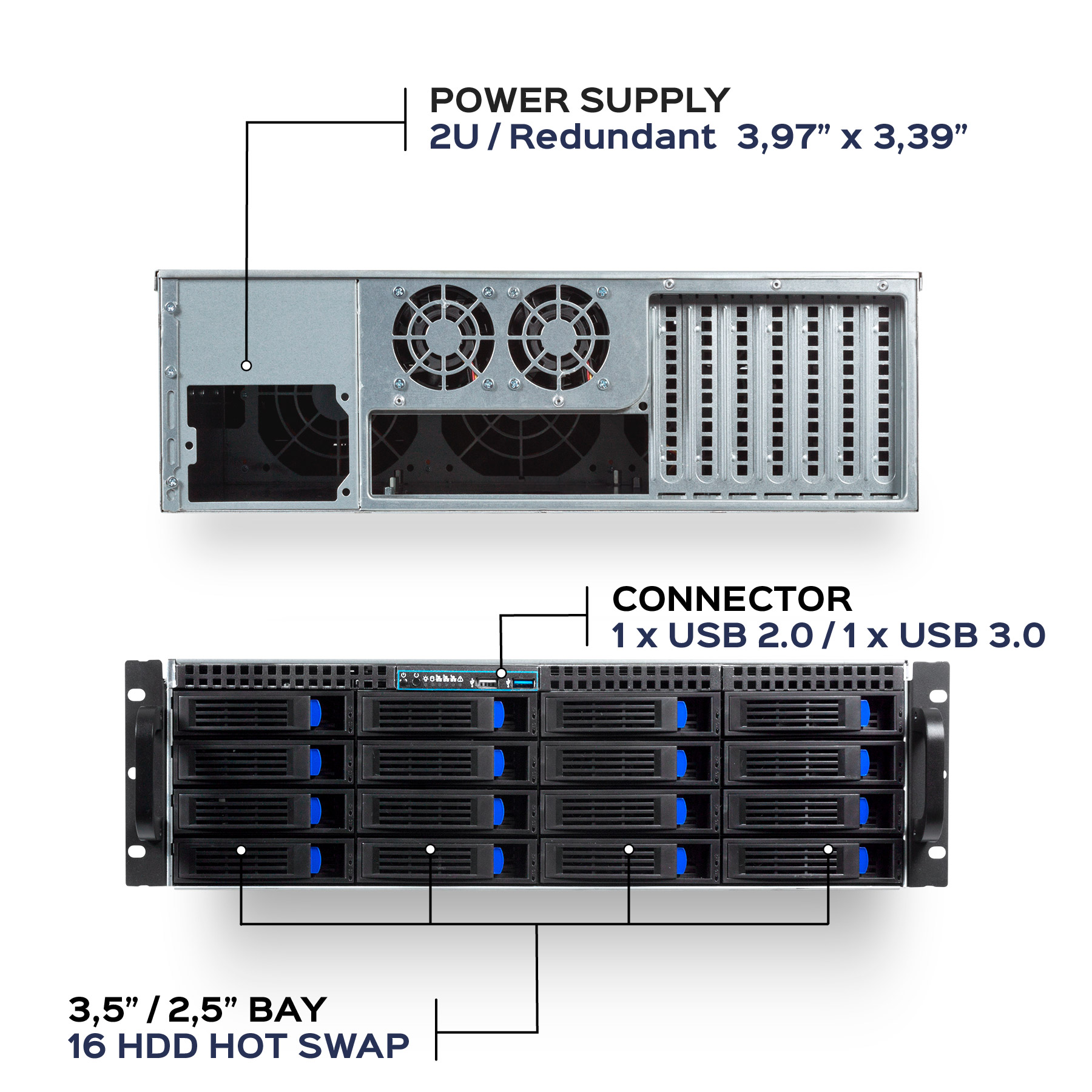

CONECTOR
USB 2.0 x 1 / USB 3.0 x 1
CONNECTOR
4 Mini SAS / 4 Molex
POWER SUPPLY ADMITTED
Redundant Power Supply / FLEX 2U
COMPATIBABLE RAILS

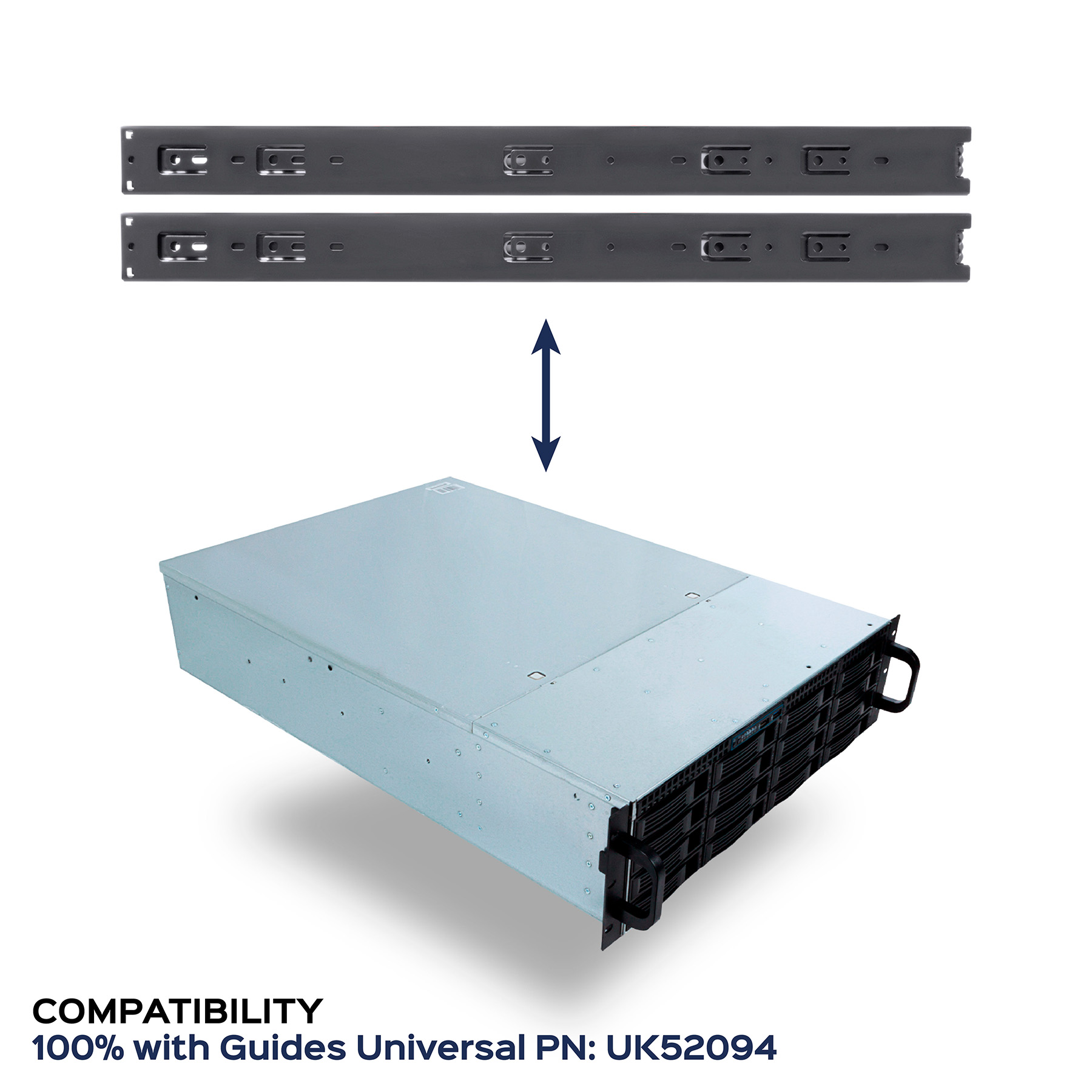

Rails Universal PN:UK52094 (Sold separately)

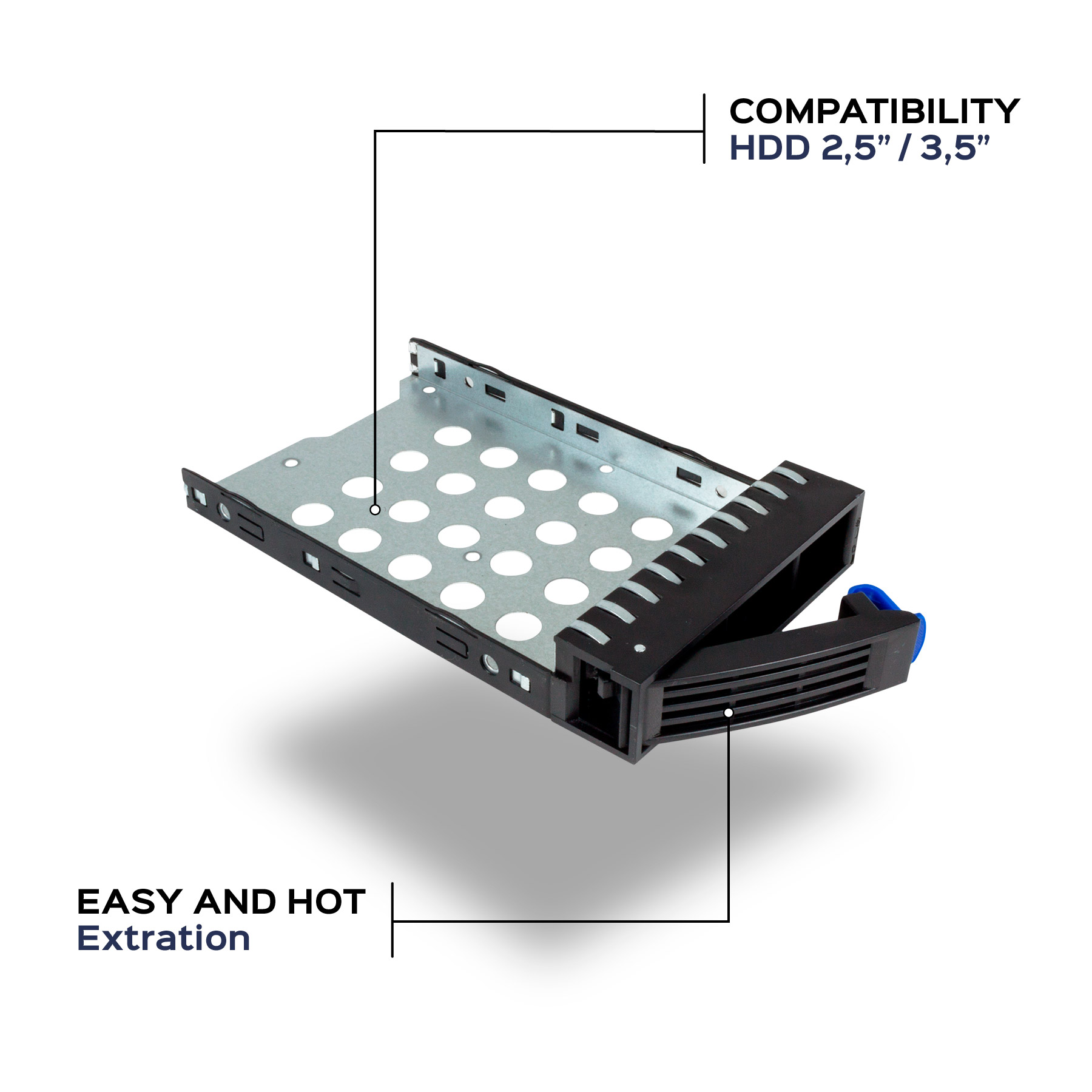

*HOT SWAP Bays are compatible with 3,5″ or 2,5″
PACKAGING
DIMENSIONS
830 (L) x 560 (W) x 200 (H) mm
WEIGHT
18 kg
CUBIC CAPACITY
0,0929 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Server Rack / Screws
CERTIFICATIONS
CE / ROSH
WARRANTY
10 Years
DOWNLOAD
TECHNICAL SHEET
Hot Swap Rack Chassis 3U HSW4416 PN:80.30.16
MANUAL
–
DRIVERS
–
OTHERS
Product link in ICECAT
CE Certificate of Conformity
OTHER FEATURES
MASTER BOX DIMENSIONS
845 (L) x 570 (W) x 215 (H) mm
MASTER BOX WEIGHT
18 kg
UNITS PER MASTER BOX
1
UNITS PER AMERICAN PALLET
14
UNITS PER EUROPEAN PALLET
–
