Server Rack Hot Swap
2U HSW4208 G3 12 GB BACKPLANE

P/N: UK80.20.08G3 · EAN: 6974560221011
The UNYKA Pro HSW4208 G3 2U Hot Swap Rack Server is a high-performance solution that combines power and flexibility in a compact chassis. This server offers hot swap capabilities, allowing for the hot swapping of SAS and SATA3.0 hard drives without the need to power down the system. With support for up to 8 3.5" or 2.5" drives, it provides ample storage space to meet the demands of data-intensive enterprise environments.
In addition to its impressive storage capacity, the server features an advanced cooling system with 4 hot-swappable 8038 model fans. These fans ensure efficient airflow and proper temperature control to keep the system running smoothly and reliably.
The UNYKA Pro HSW4208 G3 2U Hot Swap Rack Server offers extensive expansion options, including 7 standard. This allows for the addition of extra cards and customization of the server to meet specific business needs, providing enhanced versatility and adaptability.
When it comes to reliability and availability, the server supports both single battery and redundancy configurations, ensuring uninterrupted service and data protection in case of failures. It also includes the UID (Unique Identification) function, simplifying server management and locating in environments with multiple devices, thus improving operational efficiency and maintenance.
cloud-80mm-usb3-atx
Noticias-3d-Profesional-Review

IN DETAILS

unykach-19_Servidor-Rack-HOT-SWAP-2U-HSW4208-G3-12GB-BACKPLANE-detalle
1

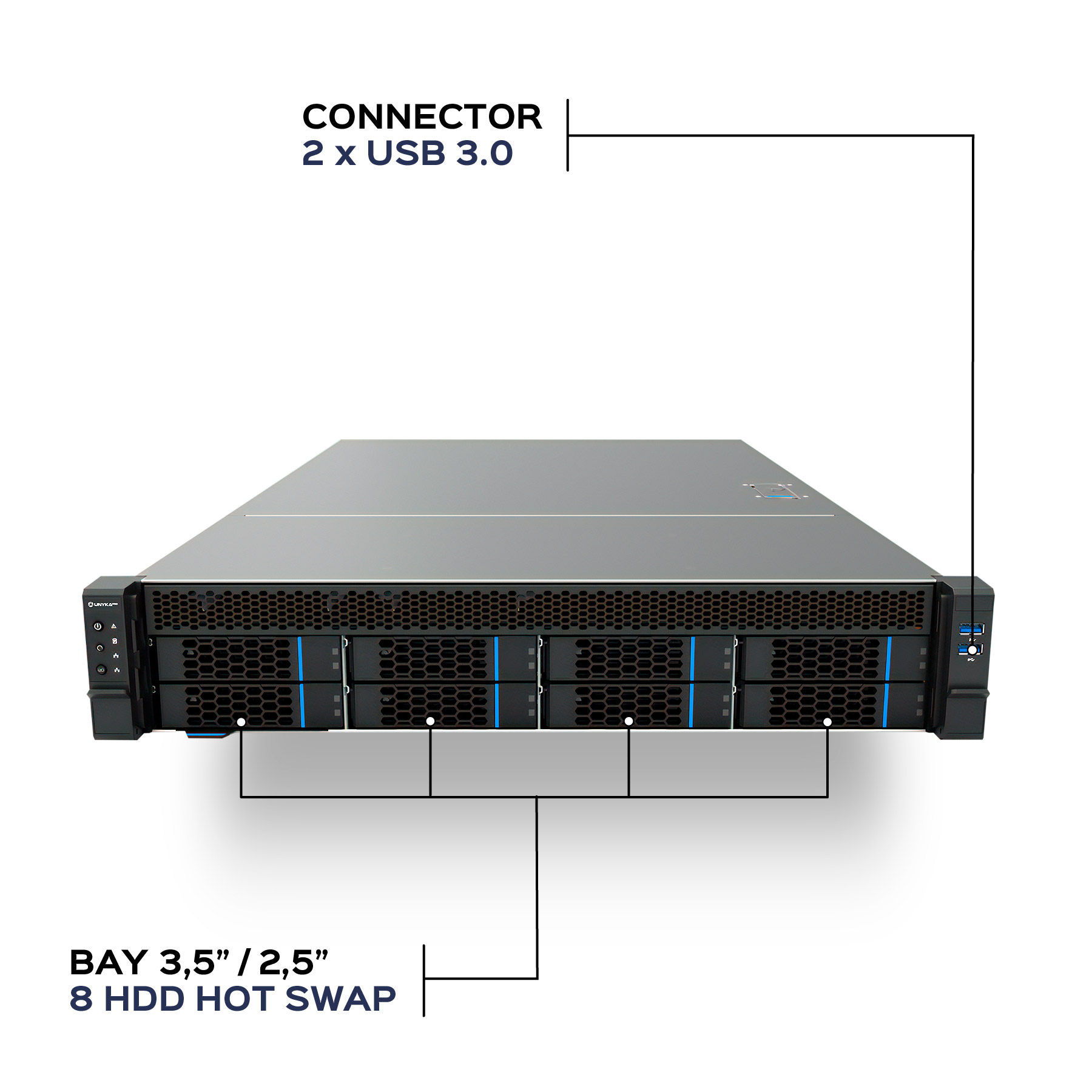

8 HOT SWAP bays for 3.5 ” or 2.5″ disc for data storage
2
4 x 80 mm fans
3
2 USB 3.0 ports
4

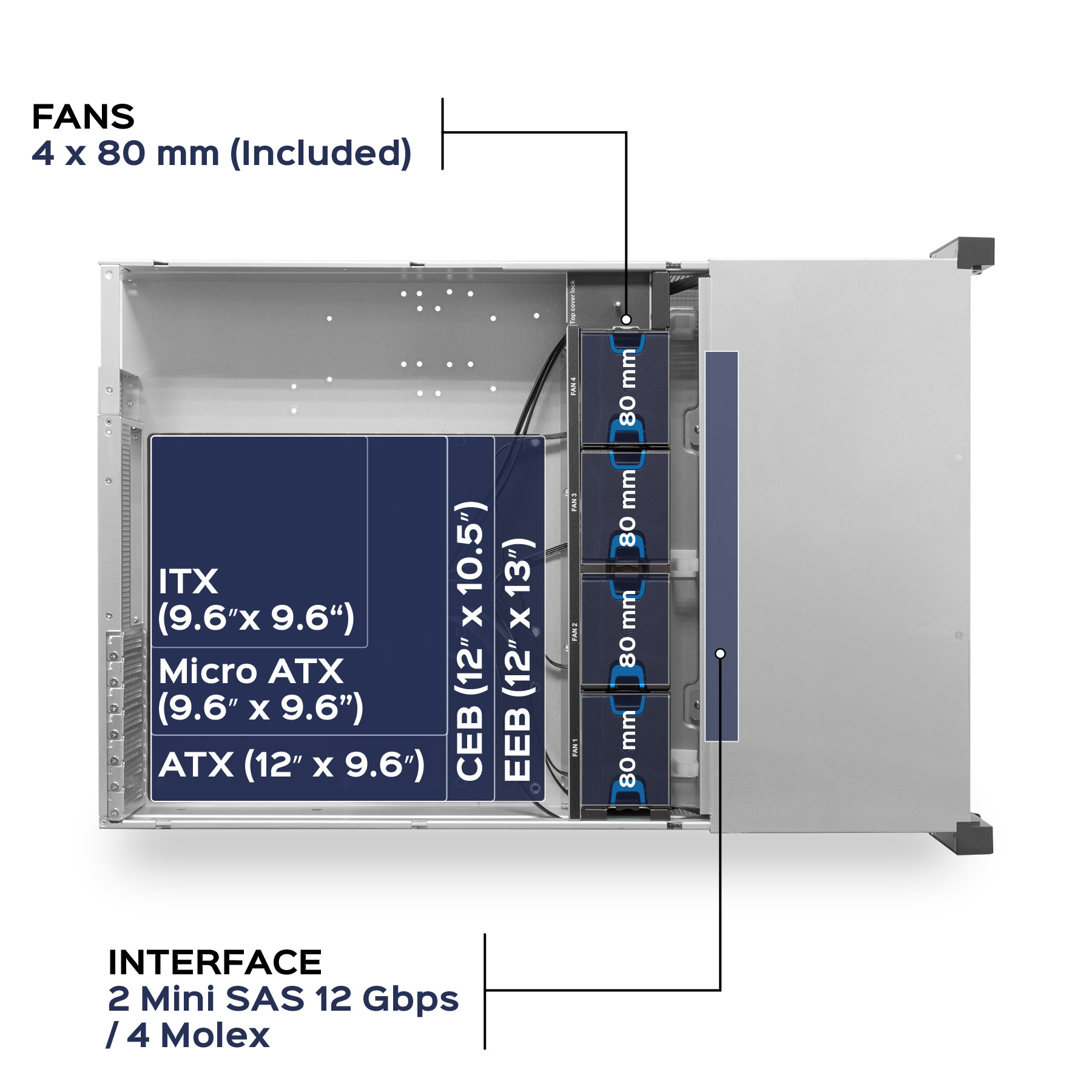

EEB (12″x13″) / CEB (12″x10.5″) / ATX (12″x9.6″) / MATX (9.6″ x 9.6“)

PRODUCT

TYPE CHASSIS
2U Standard


MOTHERBOARD
EEB (12″ x 13″) / CEB (12″ x 10.5″) / ATX (12″ x 9.6″) / MATX (9.6″ x 9.6“)


DIMENSIONS
685 (L) x 435 (W) x 87 (H) mm

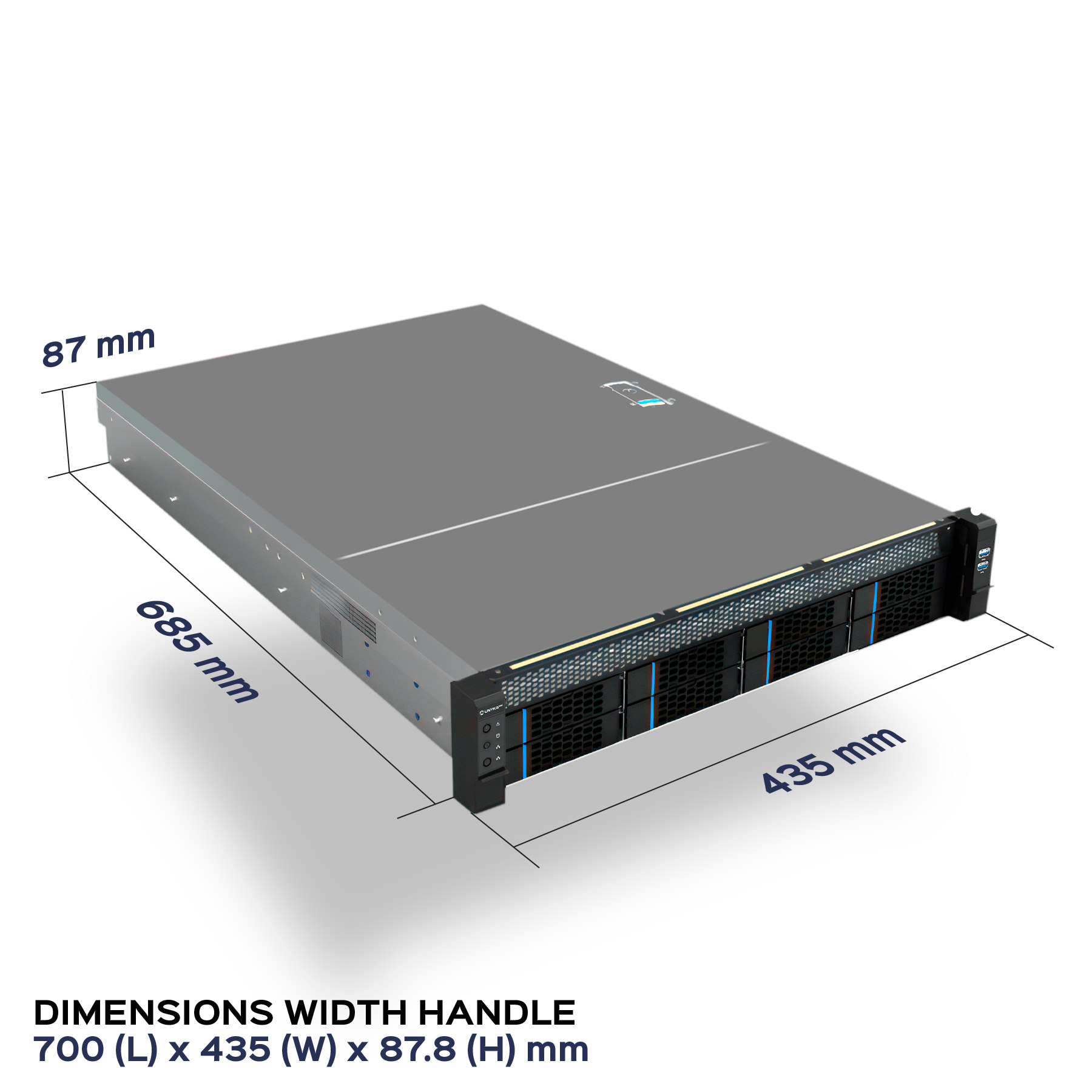

DIMENSIONS WIDTH HANDLE
700 (L) x 435 (W) x 87 (H) mm


WEIGHT
9,7 kg


COLOUR
Black / Silver


MATERIAL
SGCC 1.2 mm

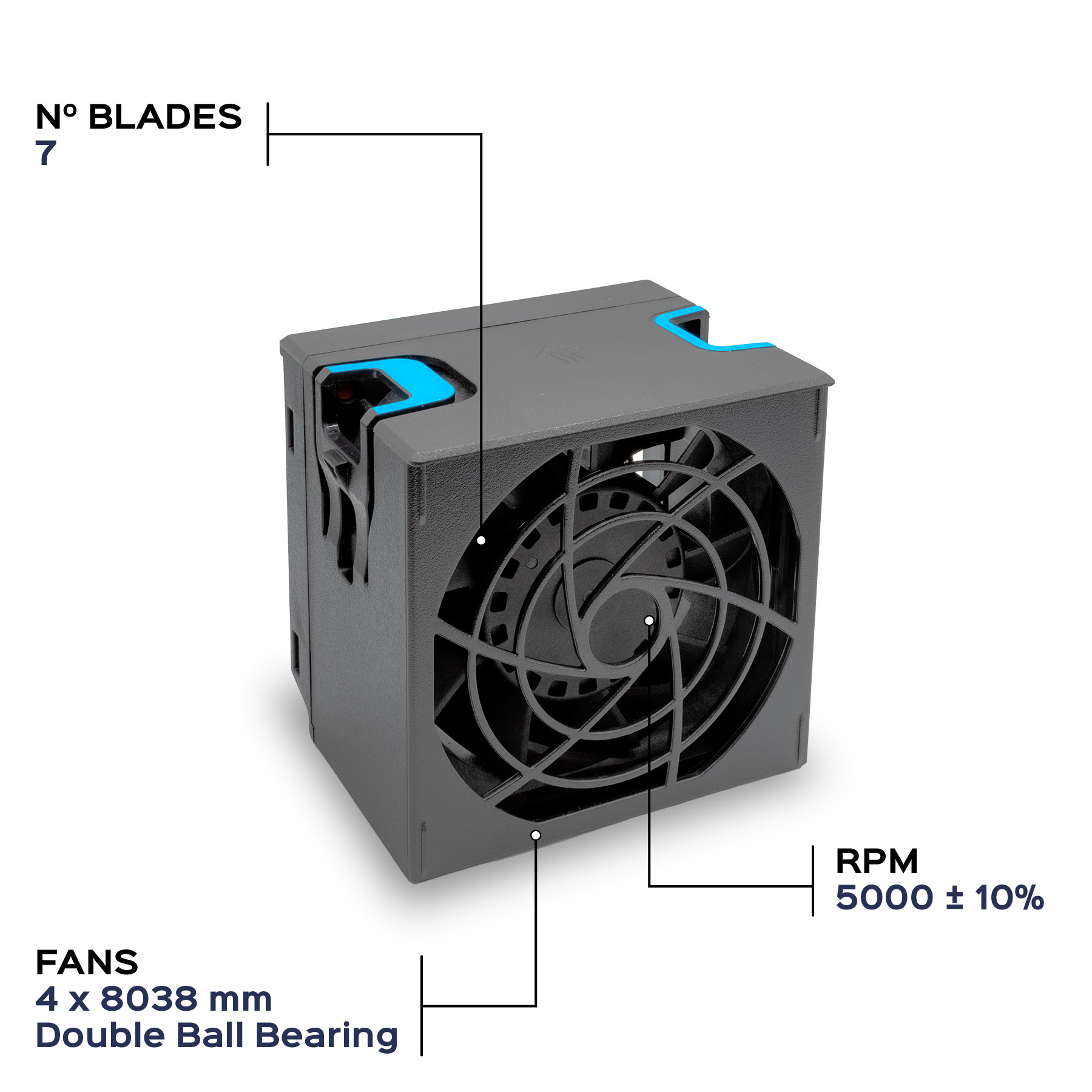

FAN
4 x 8038 mm Double Ball Bearing


Nº BLADES
7


RPM
5000 ± 10%


BAY 5,25” INT/EXT
0 / 0


BAY 3,5” / 2,5”
8 HDD HOT SWAP


CONNECTOR
USB 3.0 x 2


INTERFACE
2 Mini SAS 12 Gbps / 4 Molex

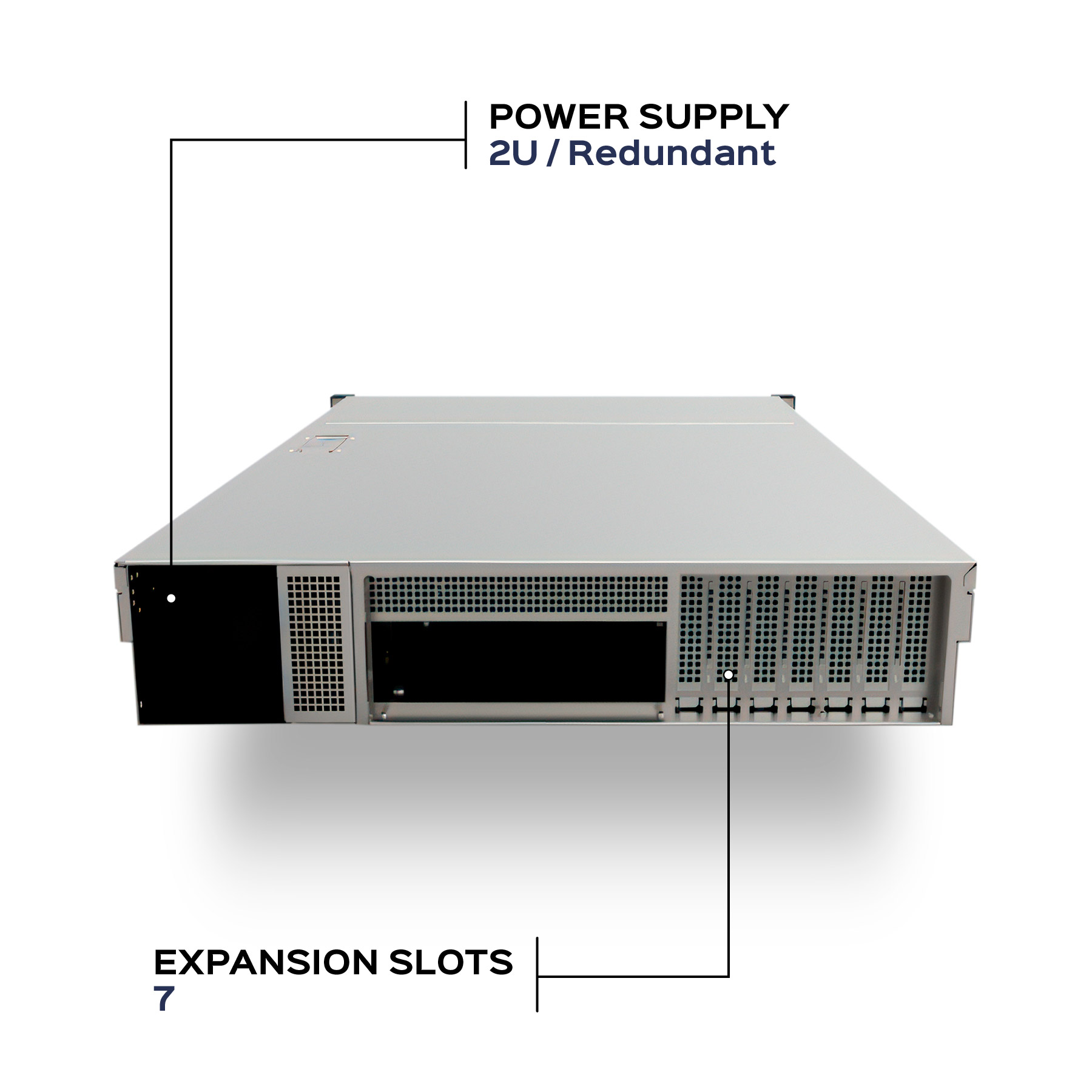

POWER SUPPLY ADMITTED
2U / Mini Redundant Power Supply 3,97” x 3,39“


*HOT SWAP Bays are compatible with 3,5″ or 2,5″

PACKAGING

DIMENSIONS
836 (L) x 577 (W) x 204 (H) mm


WEIGHT
13,5 kg


CUBIC CAPACITY
0,0984 m3


COLOUR
Brown


MATERIAL
Paperboard


PACKAGE CONTENT
Server Rack / Fans / Screws


WARRANTY
10 Years


RECOMMENDED

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
