Server Rack Hot Swap
P/N:80.40.24 · EAN:6940533545064
Hot Swap 4U (80.40.24) from UNYKAch is perfect for any server installation and enterprise data centers: databases, big data and analytics, virtualization, cloud computing, and / or video surveillance.

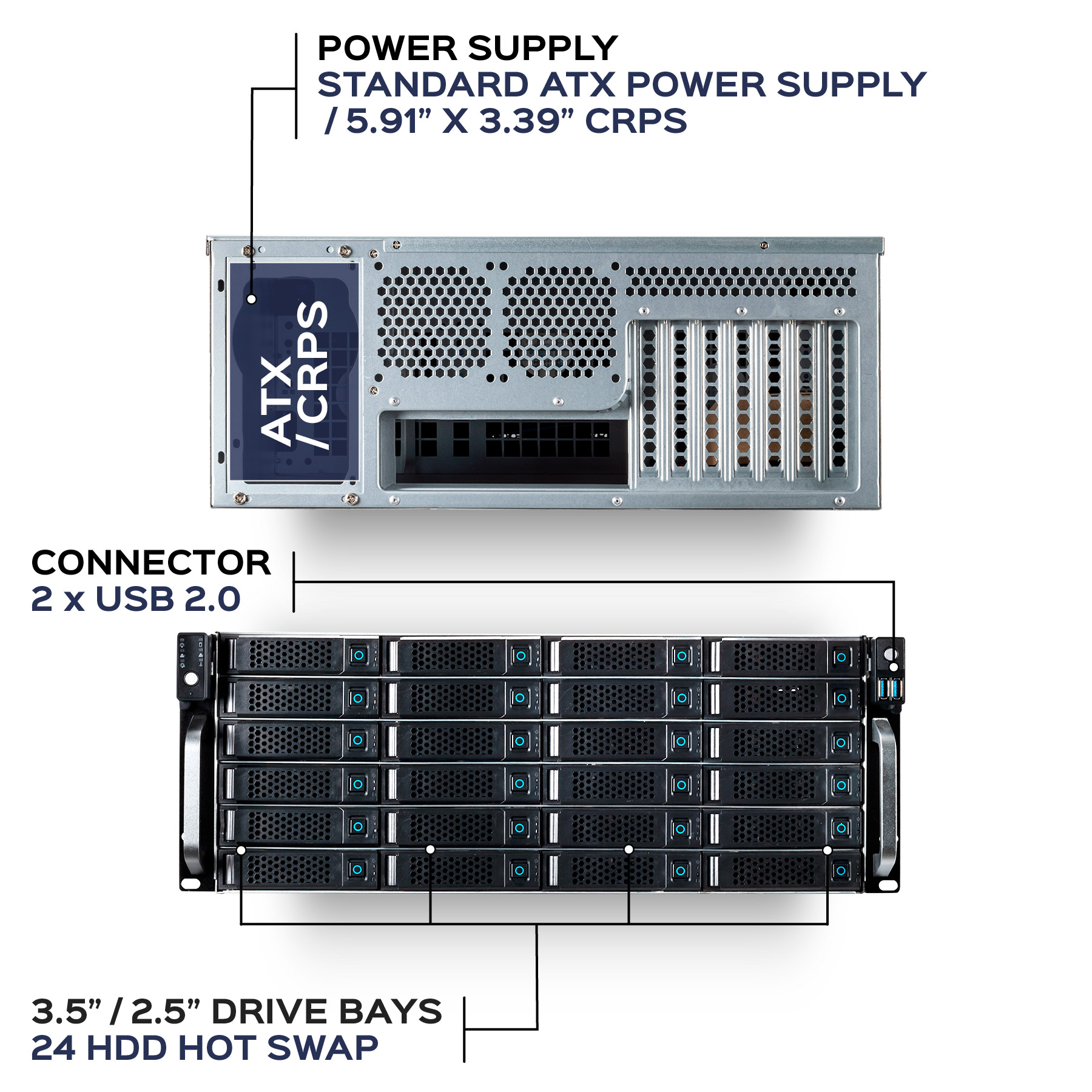

Its design is simple, easy to assemble and maintain. Its front in black color has 24 Hot Swap bays for 3.5 "and 2.5" hard drives, it contains as well as 2 USB 2.0 ports.
It has seven expansion slots and is compatible with EEB (12 "x 13") / CEB (12" x 10.5") / ATX (12" x 9.6") / MATX (9.6" x 9.6") boards.

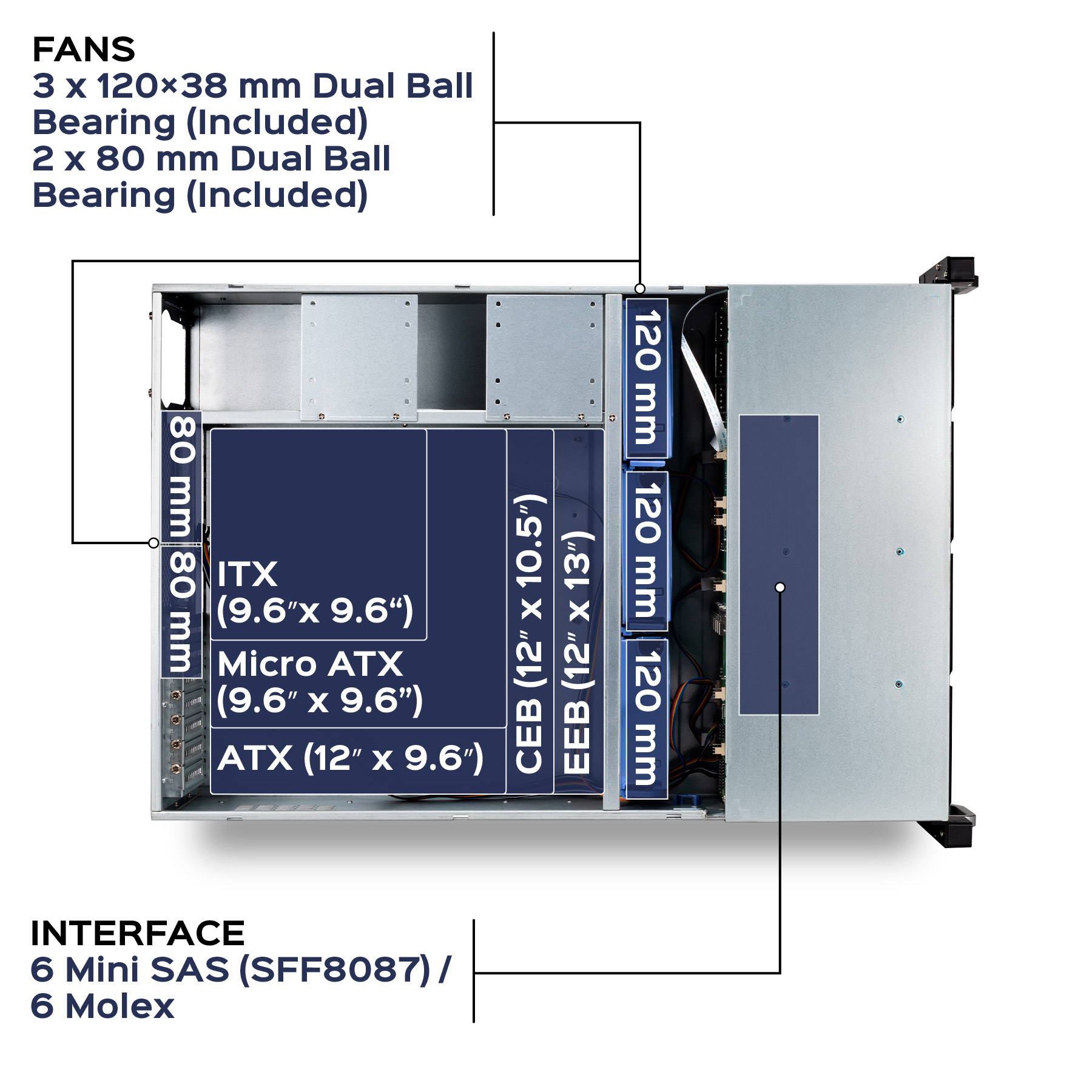

As a cooling system, it uses 3 120mm fans (included) located in the middle of the case, to which two rear ones can be added.
It does not include a power supply, but supports standard 5.91" x 3.39" ATX or Redundant PSUs.
The 4U chassis is made from 1.0mm section steel and offers very good strength, rigidity and performance.
IN DETAILS
1

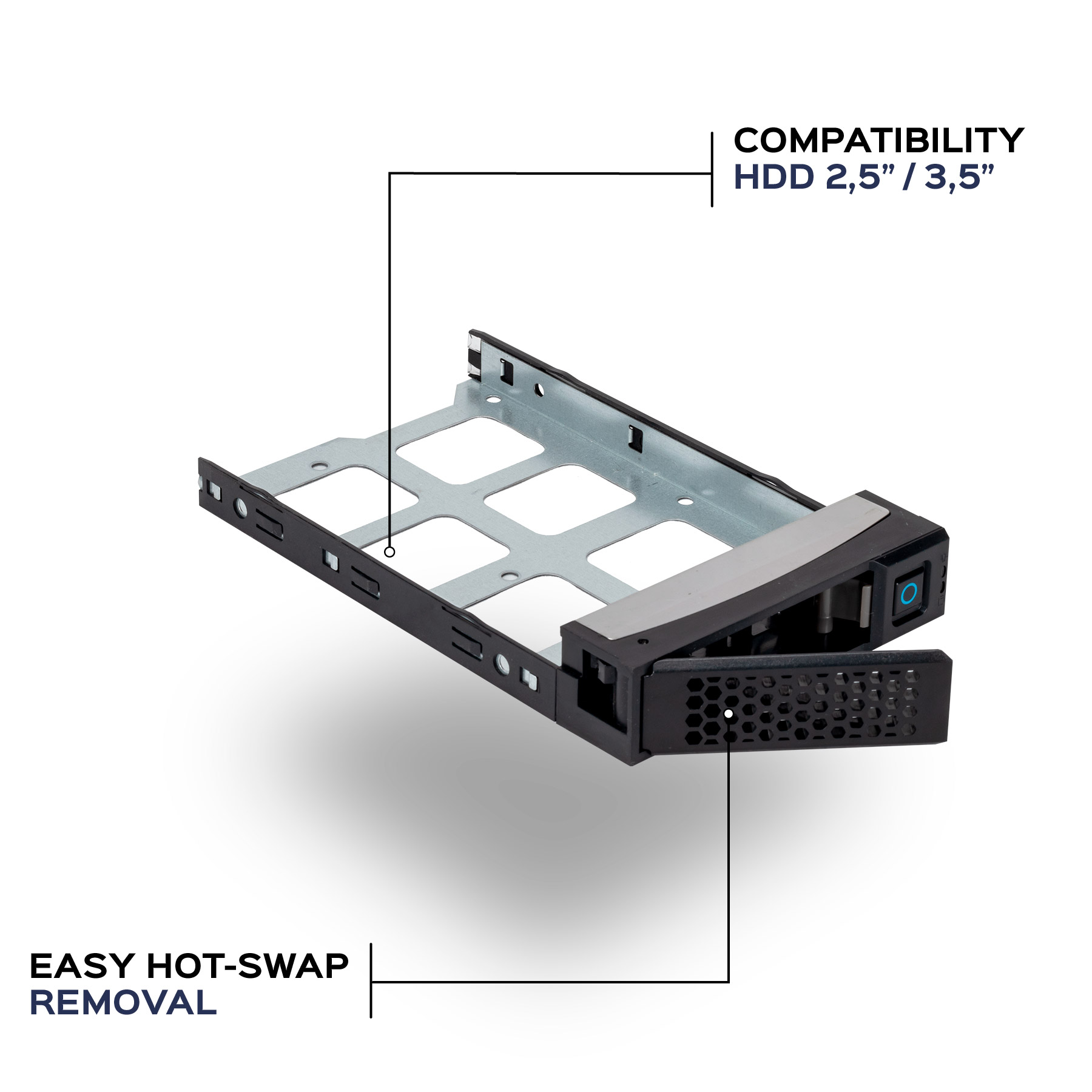

24HOT SWAP bays for 3.5 ” or 2.5″ disc for data storage
2
2 USB 2.0 ports
3
3 Fans of 120 mm
4
EEB (12“ x 13″) / CEB (12“ x 10.5″) / ATX (12“ x 9.6″) / MATX (9.6″ x 9.6“)
PRODUCT
PRODUCT
Server Rack Hot Swap 4U 24 Bays PN:80.40.24
TYPE CHASSIS
4U Standard
MOTHERBOARD
EEB (12“ x 13″) / CEB (12“ x 10.5″) / ATX (12“ x 9.6″) / MATX (9.6″ x 9.6“)

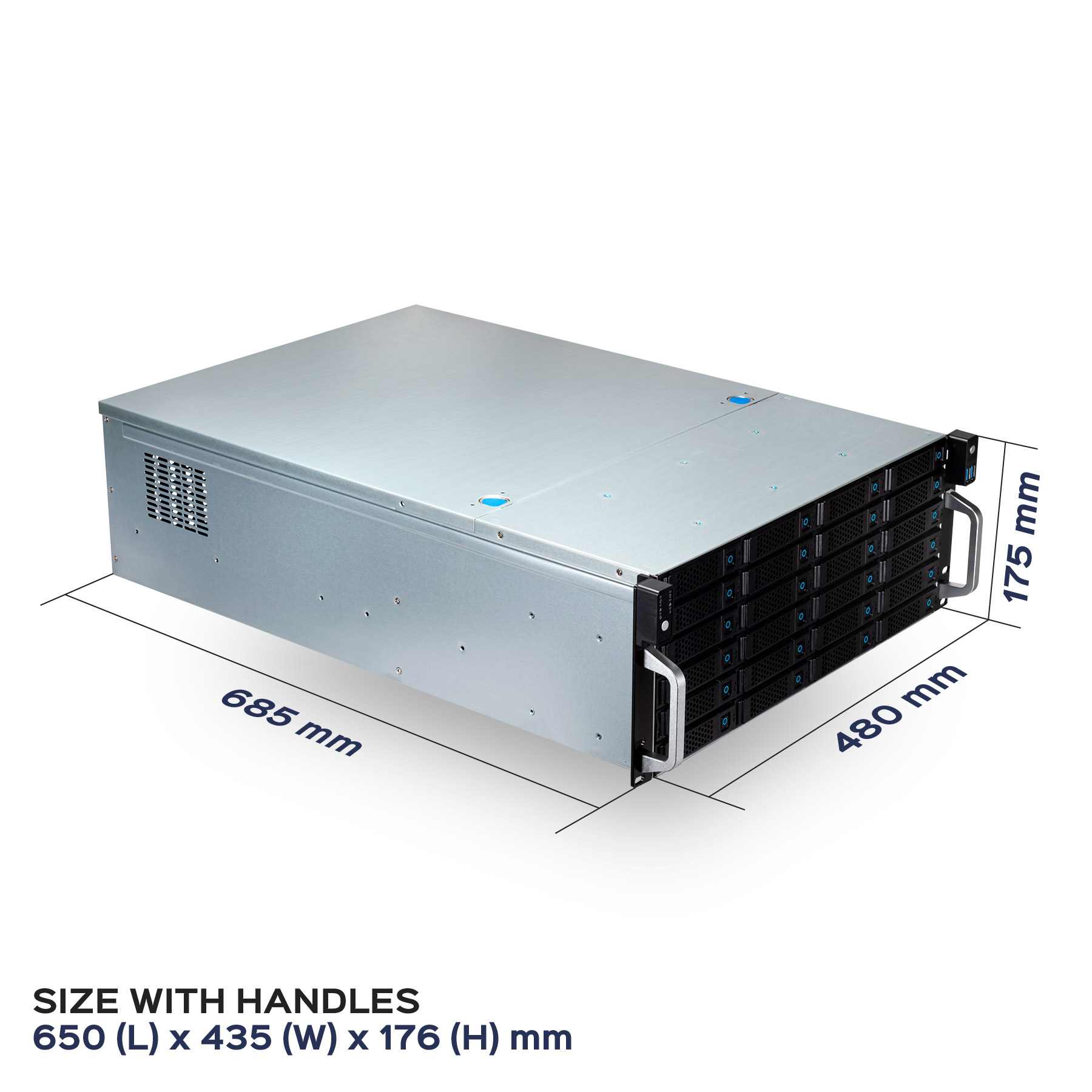

DIMENSIONS
650 (L) x 435 (W) x 176 (H) mm
DIMENSIONS WIDTH HANDLE
685 (L) x 480 (W) x 176 (H) mm
WEIGHT
15.3 kg
COLOUR
Black / Silver
MATERIAL
SGCC 1.0 mm

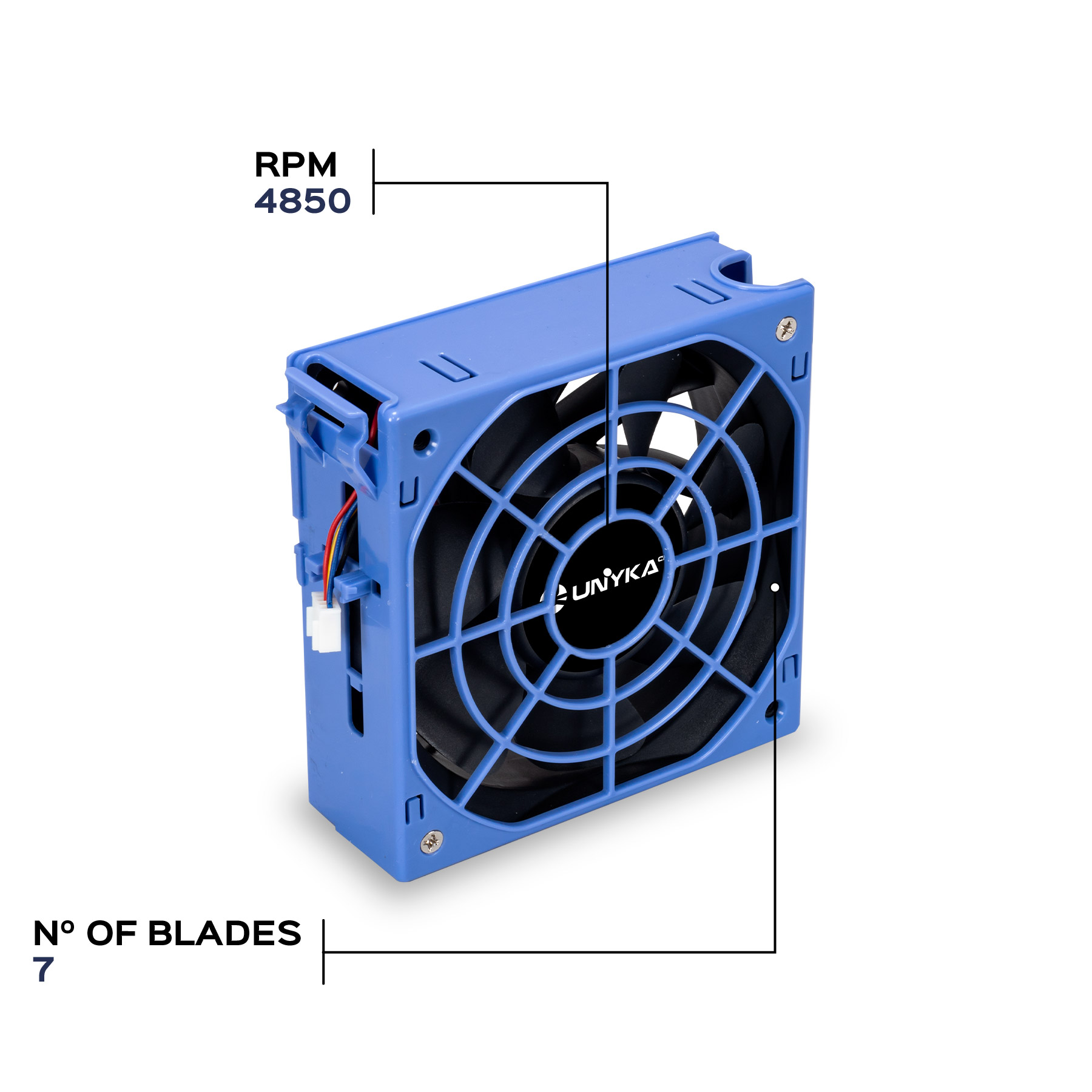

FAN
3 x 12038 mm Double Ball Bearing
Nº BLADES
7
RPM
4850 ± 10%
BAY 3,5” / 2,5”
24 HDD HOT SWAP
CONNECTOR
USB 2.0 x 2
INTERFACE
6 Mini SAS / 6 Molex
POWER SUPPLY ADMITTED
ATX Standard / Redundant Power Supply 5,91” x 3,39”
*HOT SWAP Bays are compatible with 3,5″ or 2,5″
PACKAGING
DIMENSIONS
845 (L) x 565 (W) x 245 (H) mm
WEIGHT
17,6 kg
CUBIC CAPACITY
0,1169 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Server Rack / Fans / Screws
WARRANTY
10 Years
