P/N:UK80.40.630 · EAN:6974560221233
UNYKA PRO presents its latest-generation Workstation & IDC Rack, meticulously designed for the professional environment. It is ideal for clients working in settings with complex applications and analyzing very large datasets, as well as emerging applications such as AI and virtual reality.
Featuring a versatile split-chassis design with high-end details like aluminum handles and a reinforced structure, ensuring durability and strength.
Furthermore, it includes 8 internal 3.5" bays and two 2.5" bays, along with 8 standard PCIe expansion slots, supporting up to 4 GPUs to meet the most demanding industry requirements.
This innovative proposal from UNYKA PRO redefines standards in the sector, offering advanced solutions for the most demanding professionals.
IN DETAILS
1

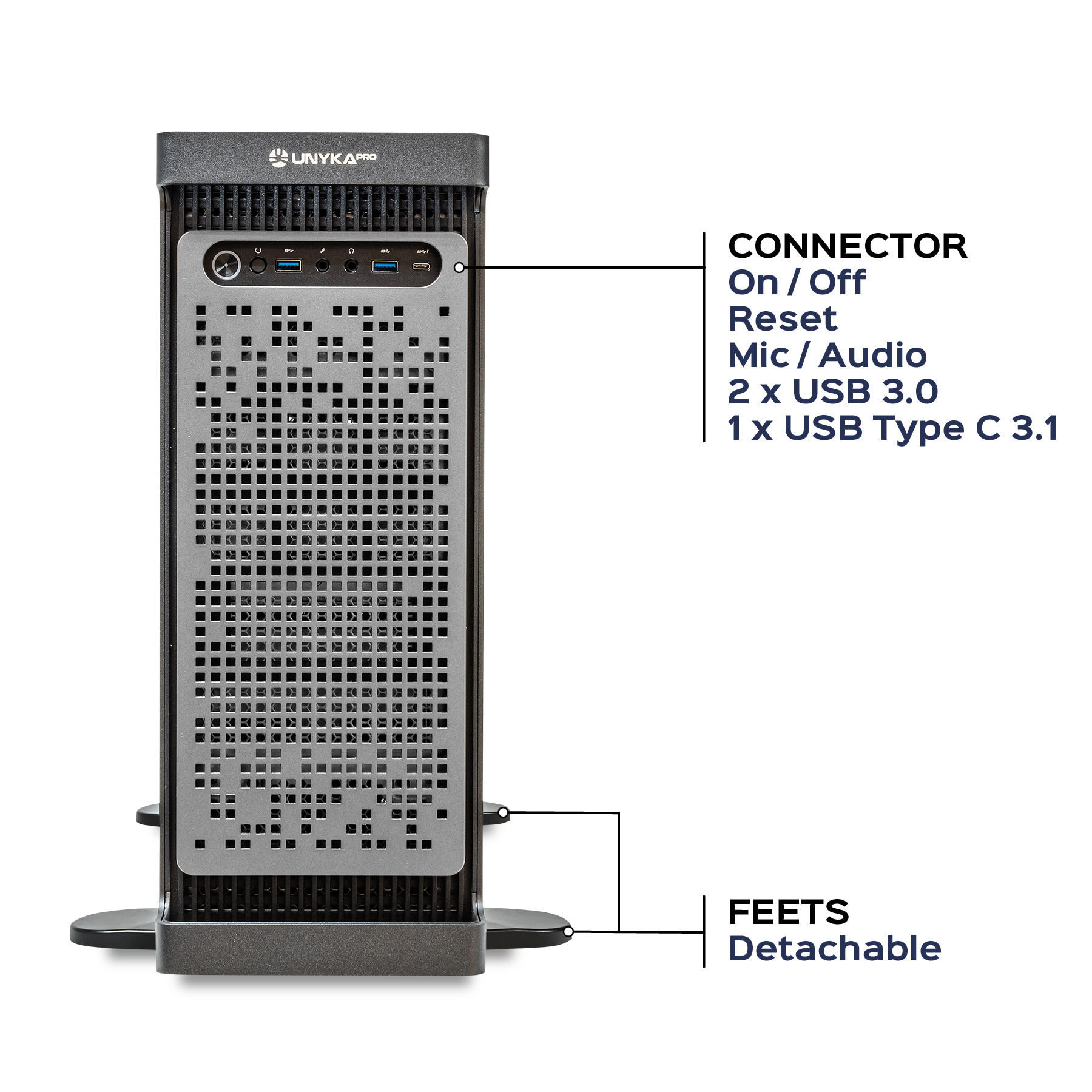

Two USB 3.0 connectors and one Type C 3.1.
2

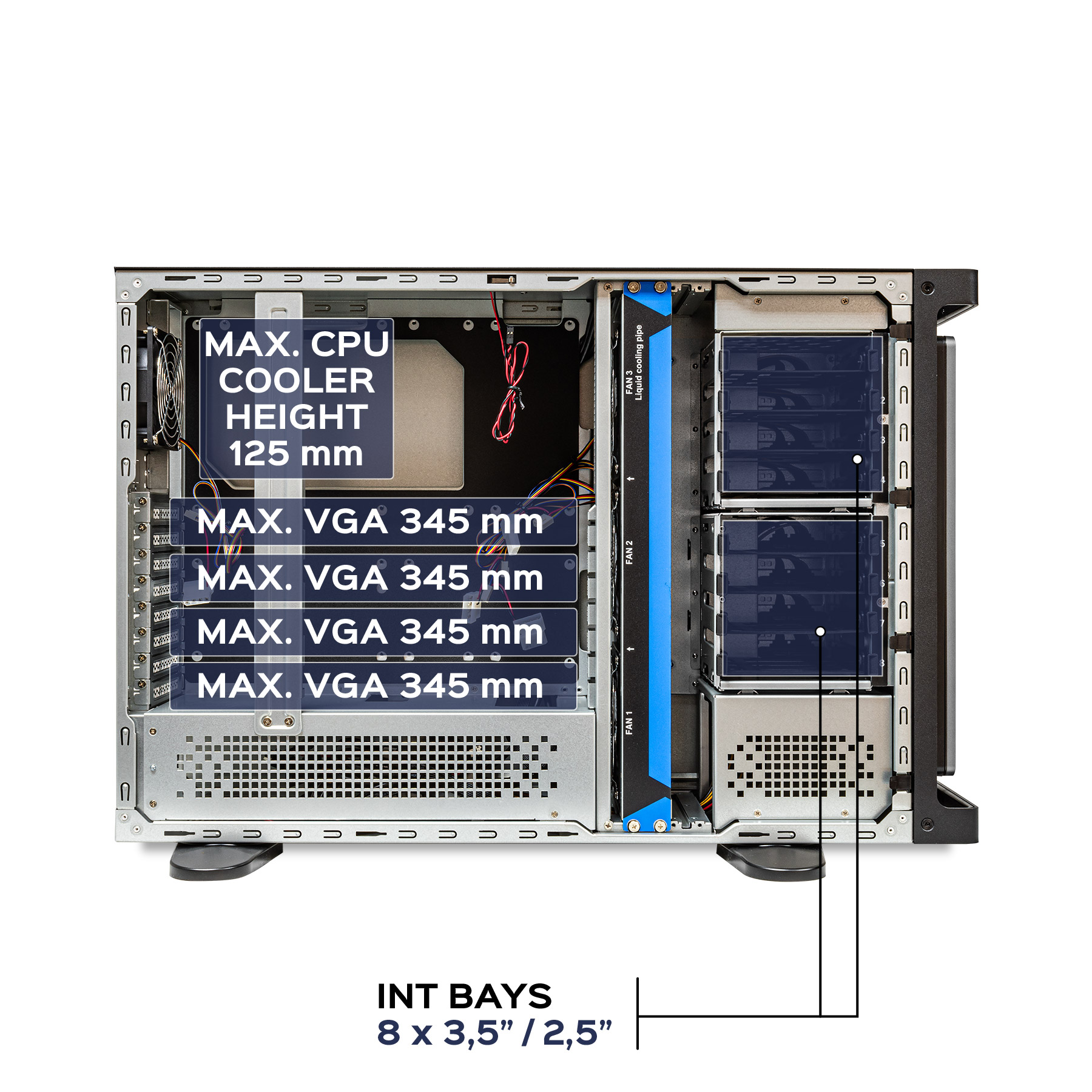

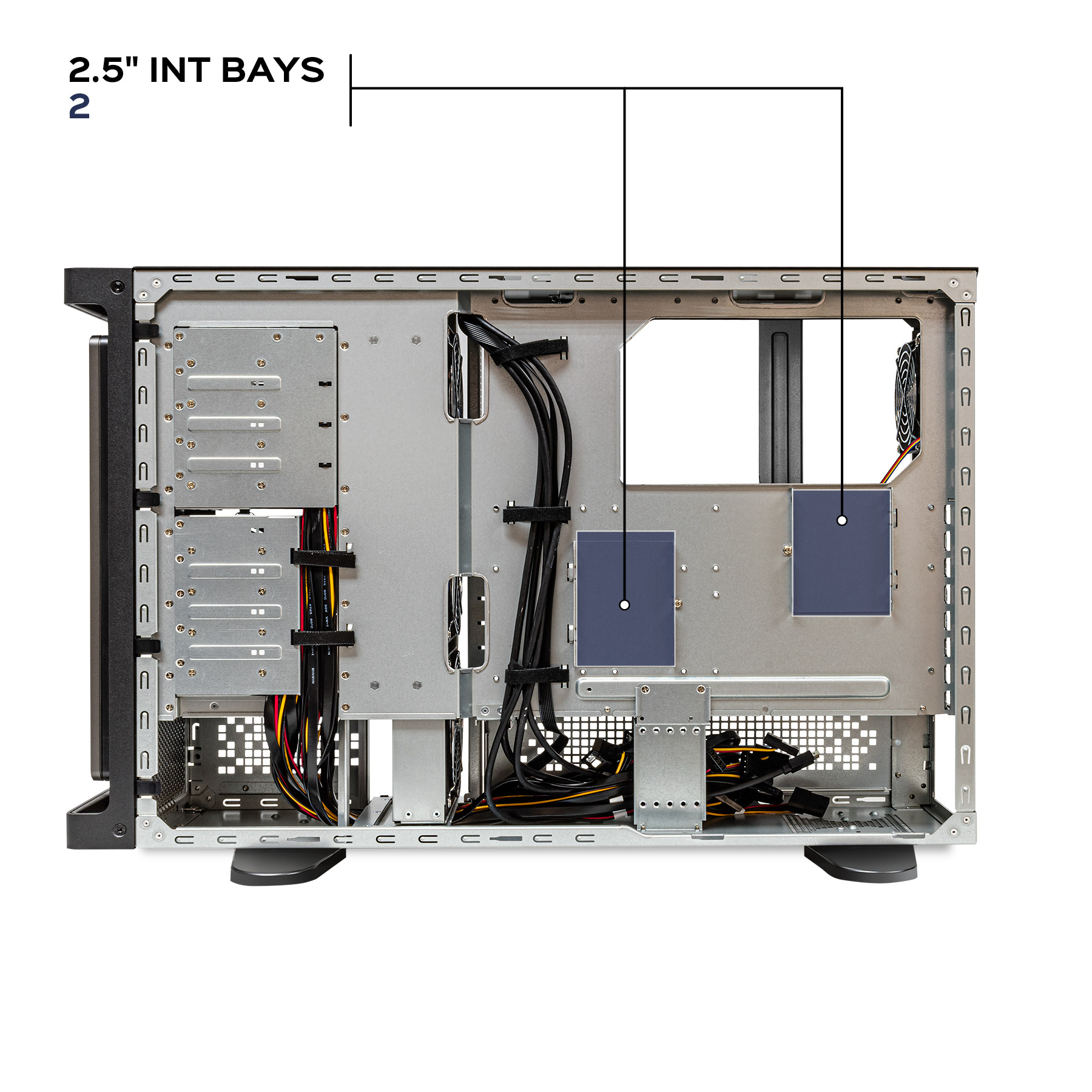

8 internal 3.5″ bays and two 2.5″ bays.
3

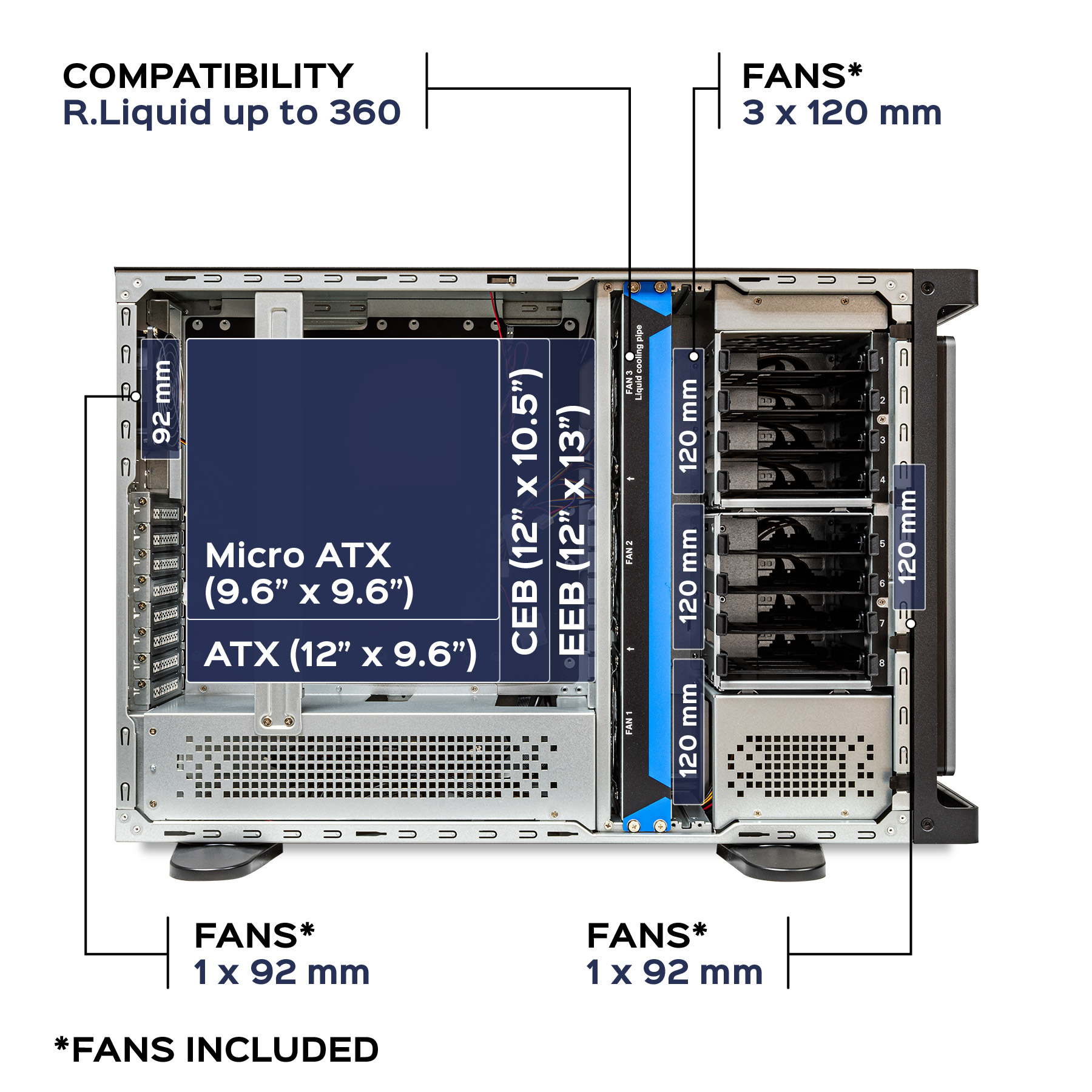

Option to install three 120mm fans or a 360mm liquid cooling system with included bracket.
4
Compatible with up to 4 graphics cards.
5

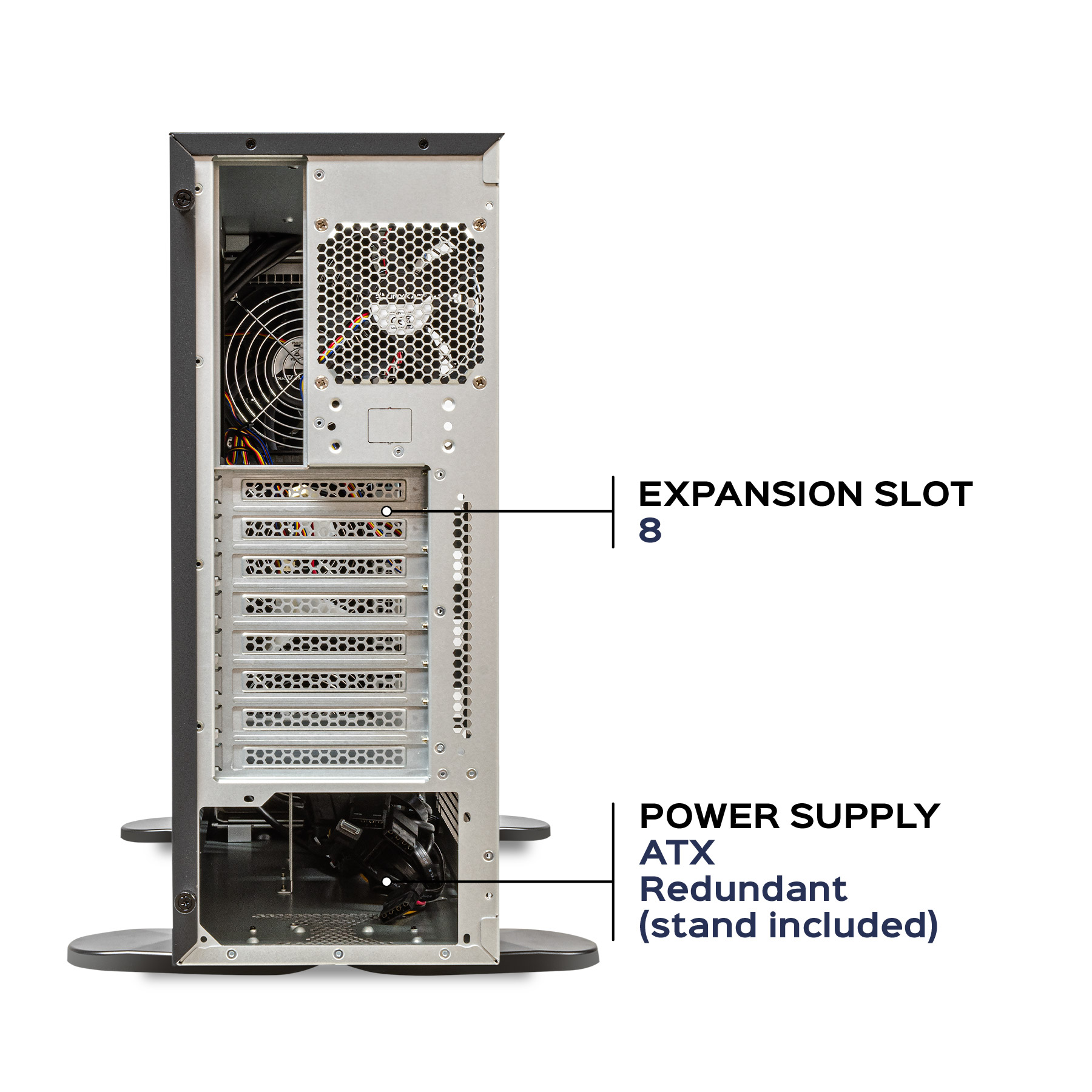

9225 fan, 8 PCI-E slots, and compatibility with ATX or CRPS power supply through an adapter.
PRODUCT
TYPE CHASSIS
4U ATX
MOTHERBOARD
EEB (12″ x 13″) / CEB (12″ x 10.5″) / ATX (12″ x 9.6″) / MATX (9.6″ x 9.6“)

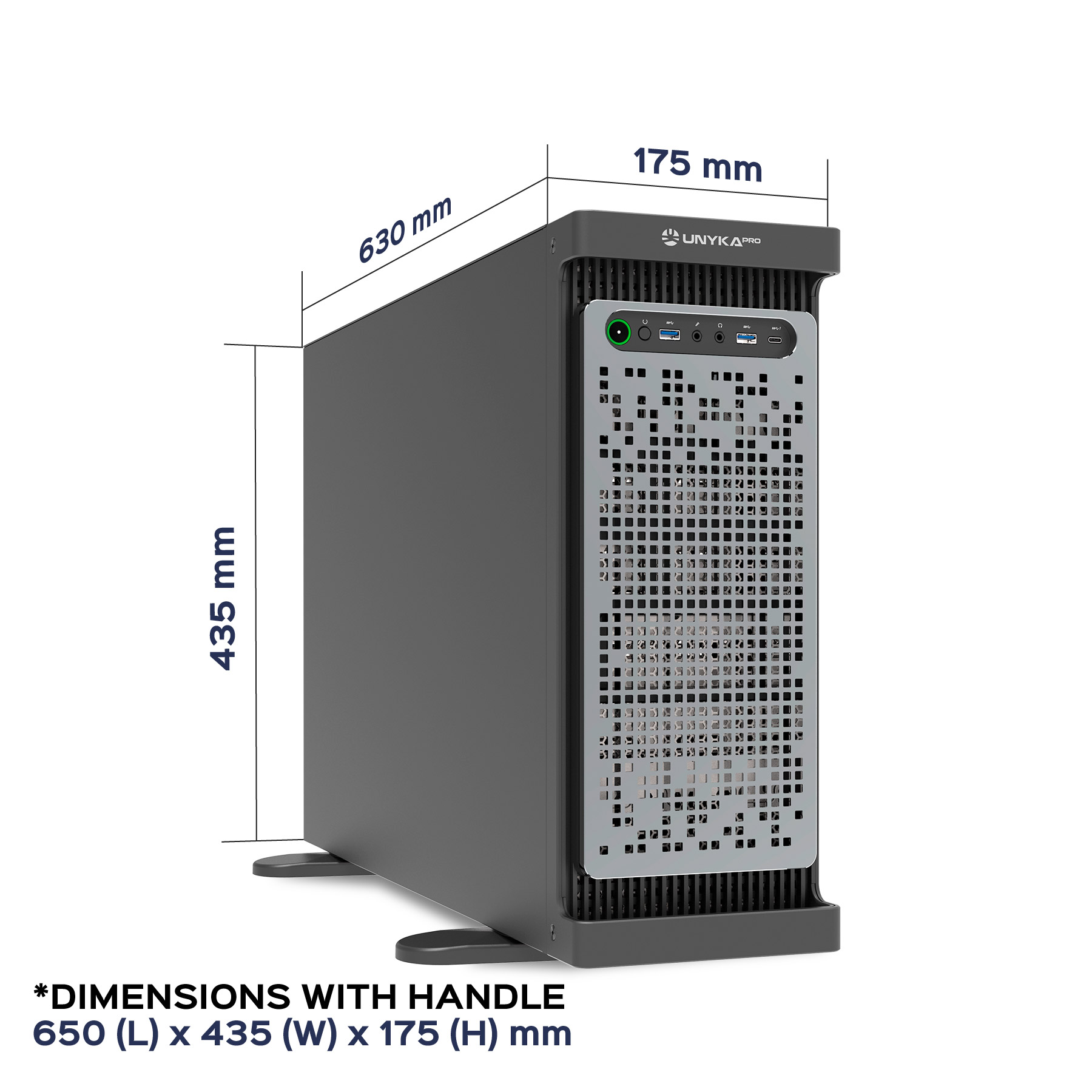

DIMENSIONS
630 (L) x 435 (W) x 175 (H) mm
DIMENSIONS WITH HANDLE
650 (L) x 435 (W) x 175 (H) mm
WEIGHT
17,95 kg
COLOUR
Black / Silver
MATERIAL
ABS+PC SGCC1.2 mm
HANDLE MATERIAL
Iron handle + sgcc2.0mm (iron external, plastic internal cover)
EXPANSION SLOT
8 Normal
BAY 3,25”
8 / 0
BAY 3,25”/2,5 INT/EXT
2 / 0
CONNECTOR
USB 3.0 x 2 / USB Type C 3.1 x 1
POWER SUPPLY ADMITTED
ATX / Redundant CRPS Power Supply (with support)
ANTI DUST FILTER
Yes
FAN
Front 1 x (92 x 92 x 25 mm) *Optional / Rear 1 x (92 x 92 x 25 mm) Included / Center Section 3 x (120 x 120 x 38 mm) Included
FAN 120 MM
RPM 1800 ± 10% / CFM 59.0 / inH20 2.35 / dBA 34.5 – 37.5 / MTBF 70000 h
FAN 92 MM
RPM 3500 ± 10% / CFM 64.5 / inH20 4.6 / dBA 40.5 – 43.5 / MTBF 70000
COMPATIBILITY WHITH LIQUID COOLING
Yes, compatible with 360mm liquid cooling using the included bracket
PACKAGING
PACKAGING
DIMENSIONS
813 (L) x 566 (W) x 292 (H) mm
WEIGHT
22,20 kg
CUBIC CAPACITY
0,1343 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Rack Case / Fans / Screws
CERTIFICATIONS
CE / ROSH
