Liquid Cooler CPU
AQUASPHERE PRO 360 TRX4

P/N:UK80.360.500 · EAN:6974560221134
The UNYKA Pro Aquasphere TRX4 is an advanced liquid cooling solution designed for high-power TR4 processors with a TDP of up to 450W.
It provides efficient and consistent cooling with a flow rate of 1.8L/min. With its optimized design and 2000 RPM fans, it ensures a smooth and quiet experience.
Trust in the UKLiquid360 TRX4 to take your professional performance to the next level.
The AquaSphere PRO 360 TRX4 can be adapted to AMD’s new generation of server processors thanks to the SP5 socket mounting kit. With this adapter, the system is compatible with 5th generation AMD EPYC CPUs, maintaining optimal thermal performance and secure installation.
7blades-2000rpm-3pin

IN DETAIL

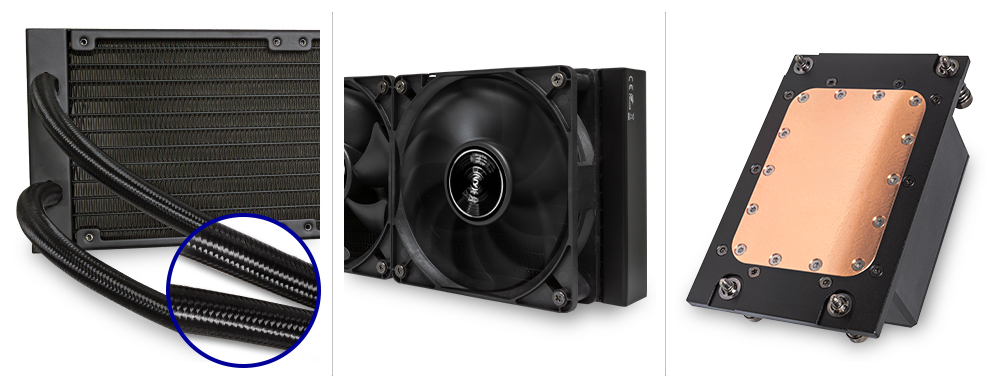

unykach-UKLIQUID-360-TRX4-UK80.360.500-detalle
1
38mm Radiator Thickness
2
Ultra-durable braided cable with a thickness of 12mm and a length of 400mm.
3
32.6 (MAX:35.6) dBA
4
RPM 2000 ±10%
5
4-Pin Connection
6
TDP de ≤300W
7
Compatible with AMD TRX4
8
RPM 2300 ±10%
9
Coolant Flow Rate 1.8L/min Liquid Flow Rate 1.8L/min

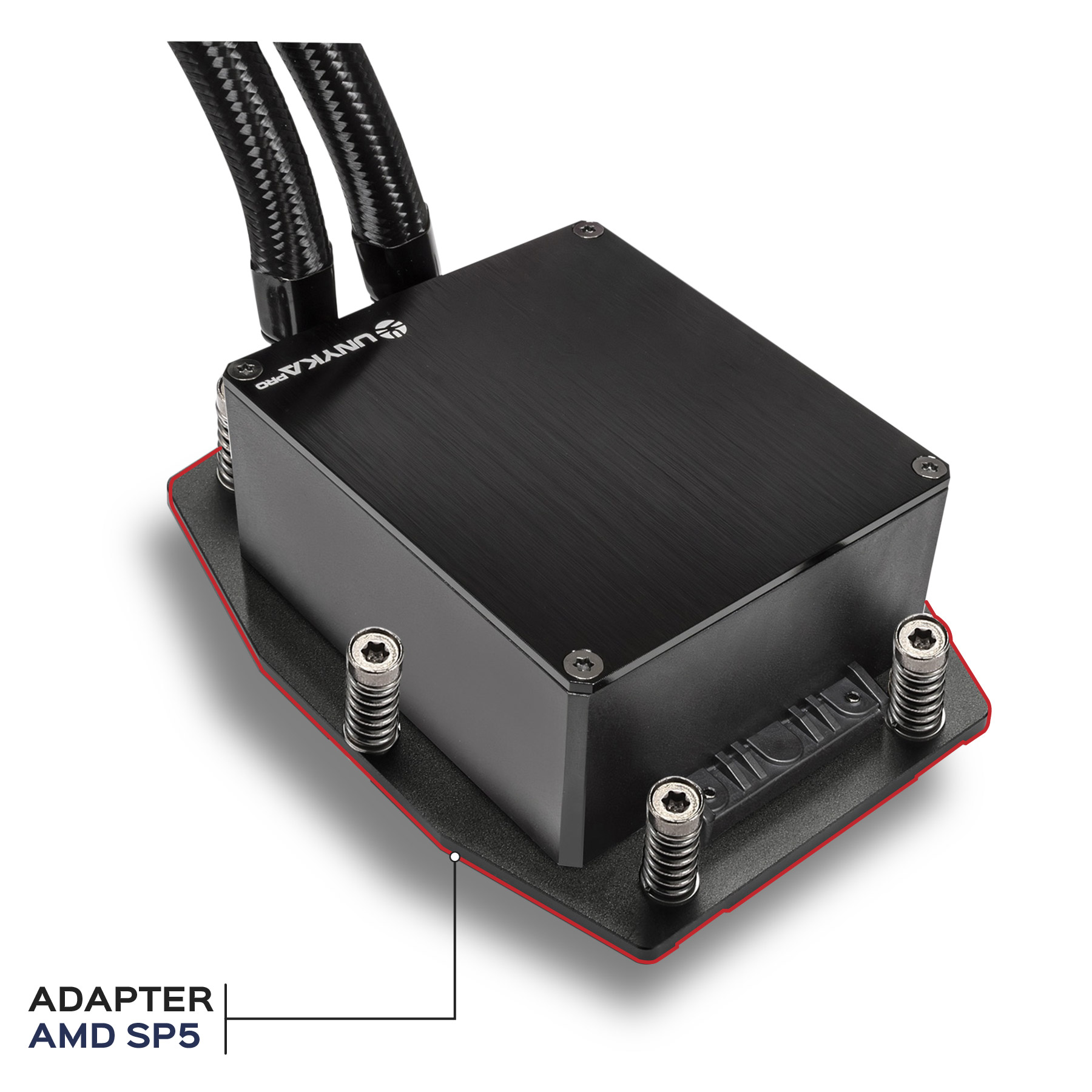

Kit de Montaje de Socket AMD SP5-en

COMPATIBLE SOCKETS

The AquaSphere PRO 360 TRX4 is compatible with the new 5th-generation AMD EPYC server processors via an SP5 mounting kit, enabling support for high-performance platforms with a greater number of cores, improved energy efficiency, and intensive workloads, ensuring stable and reliable cooling even in demanding professional environments.

*The AMD SP5 Socket Mounting Kit / UK80.05.500 is sold separately.

PRODUCT

DIMENSIONS
395 (L) x 120 (W) x 63 (H) mm

WEIGHT
1,6 kg

RADIADOR

DIMENSIONS
395 x 120 x 38 mm

COLOUR
Black

MATERIAL
Aluminum

COOLANT FLOW RATE
1.8L/min

LIQUID FLOW RATE
1.8L/min

TDP
≤450W

TUBE LENGTH
400 mm

TUBE THICKNESS
12 mm

BEARING TYPE
Zirconia Ceramic

RPM
2300 RPM ±10%

MTBF
30000 h

COMPATIBILITY
AMD TRX4 / AMD SP5 (only with the Mounting Kit for AMD SP5 Socket UK80.05.500, sold separately)

PIN CONNECTOR
4 Pin

FAN

DIMENSIONS
120 x 120 x 25 mm

COLOUR
Black

BEARING TYPE
Hydraulic

RPM
2000 RPM ±10%

NOISE LEVEL
32.6(MAX : 35.6) dBA

NUMBER OF BLADES
7

PIN CONNECTOR
4 Pin

PWM
Si

MAX. AIR FLOW
62.99CFM/1.783 m³/min

NOMINAL POWER
1.44（2.7 Max.)W

PACKAGING

DIMENSIONS
480 (L) x 212 (W) x 133 (H) mm

WEIGHT
2,4 kg

CUBIC CAPACITY
0,01353 m3

COLOUR
Retail

MATERIAL
Paperboard

PACKAGE CONTENTS
Liquid Cooling / Mounting Kit (*Thermal paste not included)

DOWNLOADS

TECHNICAL SHEET
Liquid Cooler CPU Aquasphere TRX4 PN:UK80.360.500

MANUAL
–

DRIVERS
–

OTHERS
–

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
