P/N:UKPSU2U600W · EAN:6974560220717
UNYKA PRO presents this FLEX ATX 2U Certified 80 Plus power supply, it is made with Japanese capacitors to be used in professional environments, since it has a real continuous power of 600W. This supply is specially designed to be mounted in chassis that support 2U power supply formats.
It has a 60mm fan with double ball bearings to prolong its lifespan, located in the inner part to reduce noise, and ensure constant airflow and optimal cooling under any workload.
PRODUCT
VERSION
INTEL 2.3
CHASSIS TYPE
2U

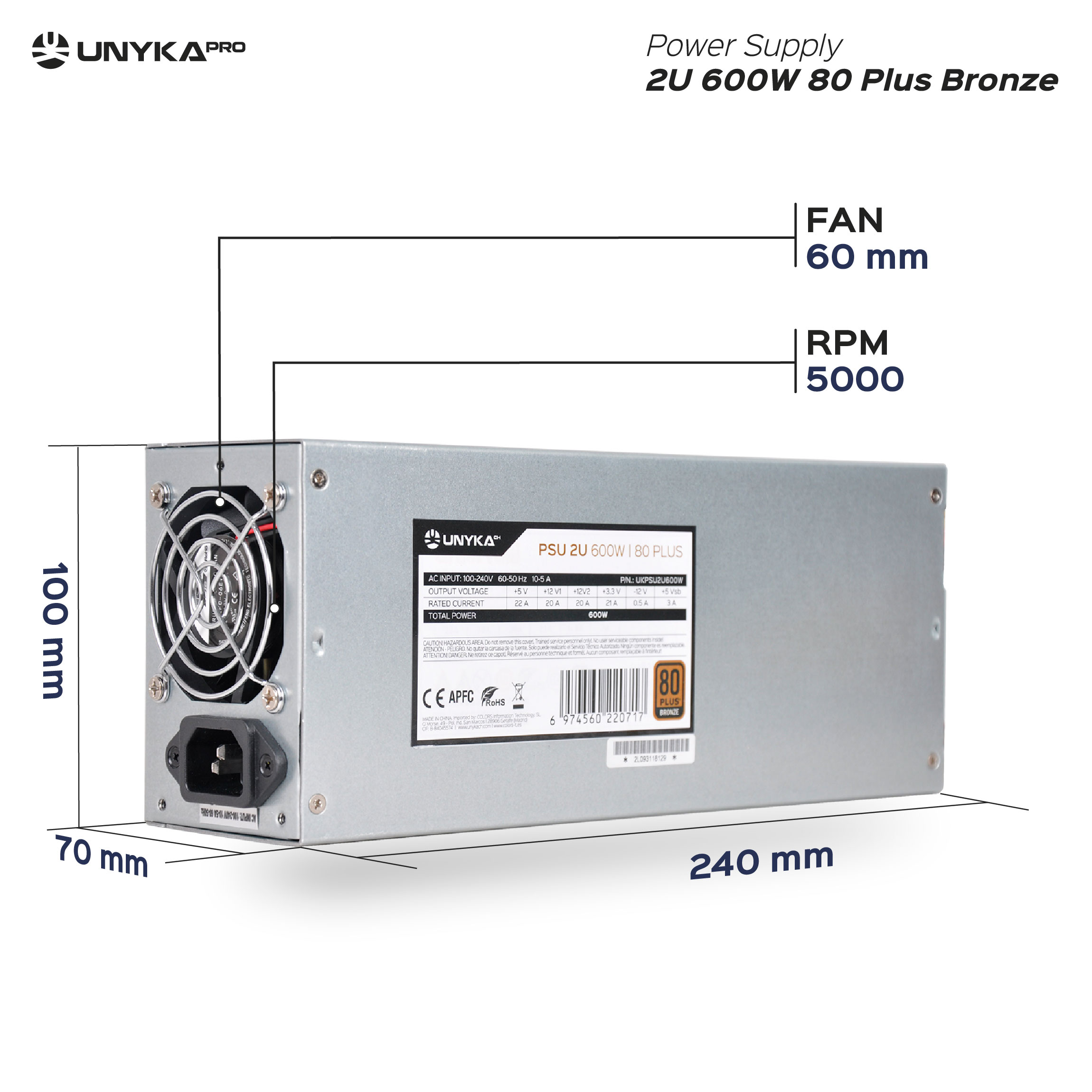

DIMENSIONS
240 (L) x 100 (W) x 70 (H) mm
WEIGHT
1,8 kg
COLOUR
Silver
CONTROL OF ENERGY

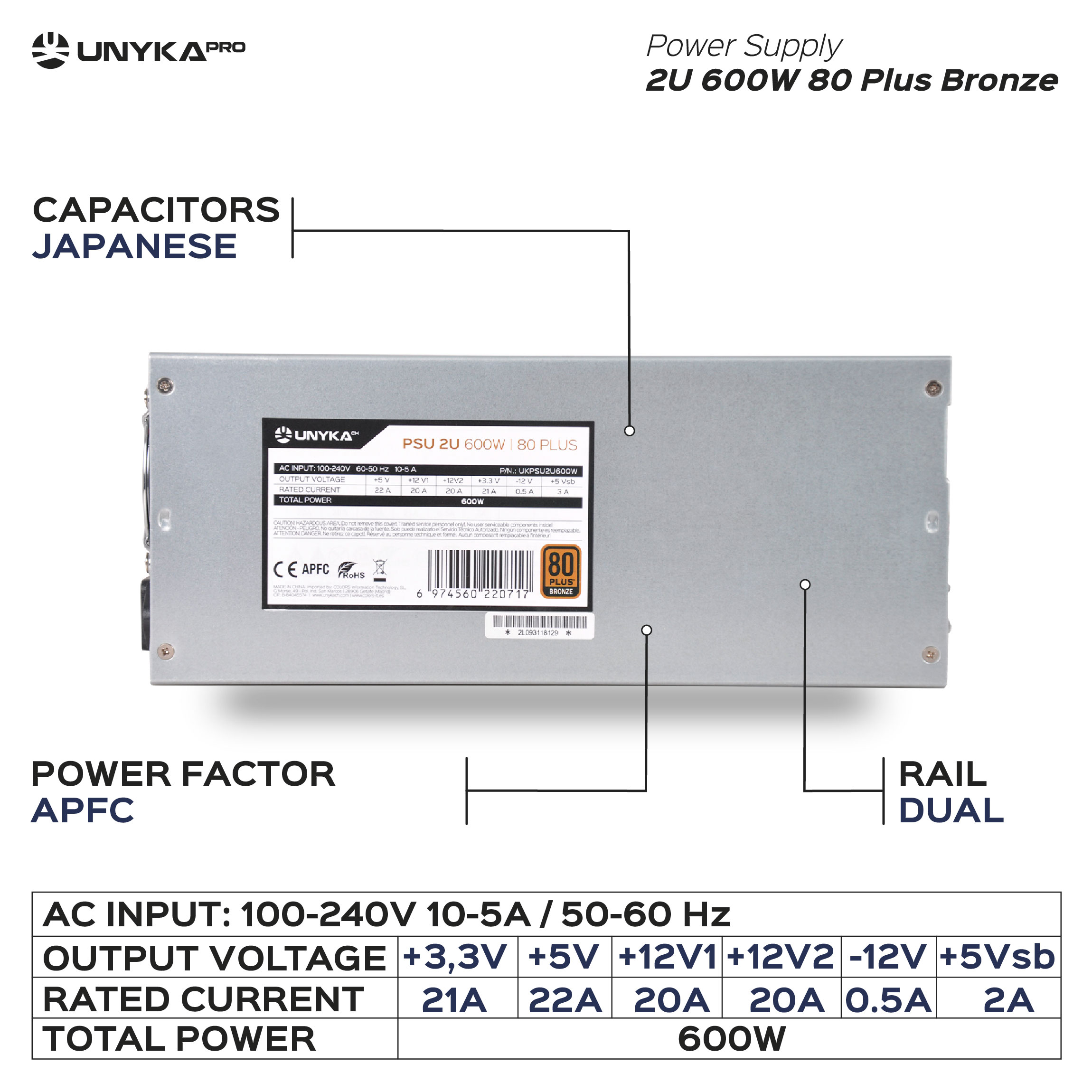

- Nominal Power Supply Voltage: 600W
- Maximum AC Input Current 100-240V 10-5A / 50-60 Hz Serial: UKPSU2U600W
- Maximum Output Current +3,3V: 21 A
- Maximum Output Current +5V: 22 A
- Maximum Output Current +12V1: 20 A
- Maximum Output Current +12V2: 20 A
- Maximum Output Current -12V: 0,5 A
- Maximum Output Current +5Vsb: 3 A
POWER FACTOR
APFC
CAPACITORS
Japanese
8 PIN PCI-E CONNECTOR
1 x 220 mm / 1 x 370 mm
24 PIN CONNECTOR
1 x 210 mm
MOLEX CONNECTOR
1 x 320 mm / 1 x 70 mm
MOLEX+FDD CONNECTOR
1 x 320 mm / 1 x 70 mm / 50 mm (FDD)
SATA CONNECTOR
1 x 520 mm / 1 x 160 mm
RAIL
Double 12V
FAN
60 mm
RPM
5000 ± 10%
PACKAGING
DIMENSIONS
240 (L) x 100 (W) x 70 (H) mm
WEIGHT
1,8 kg
CUBIC CAPACITY
0,0016 m3
COLOUR
Transparent
MATERIAL
BULK
PACKAGE CONTENT
Power Supply

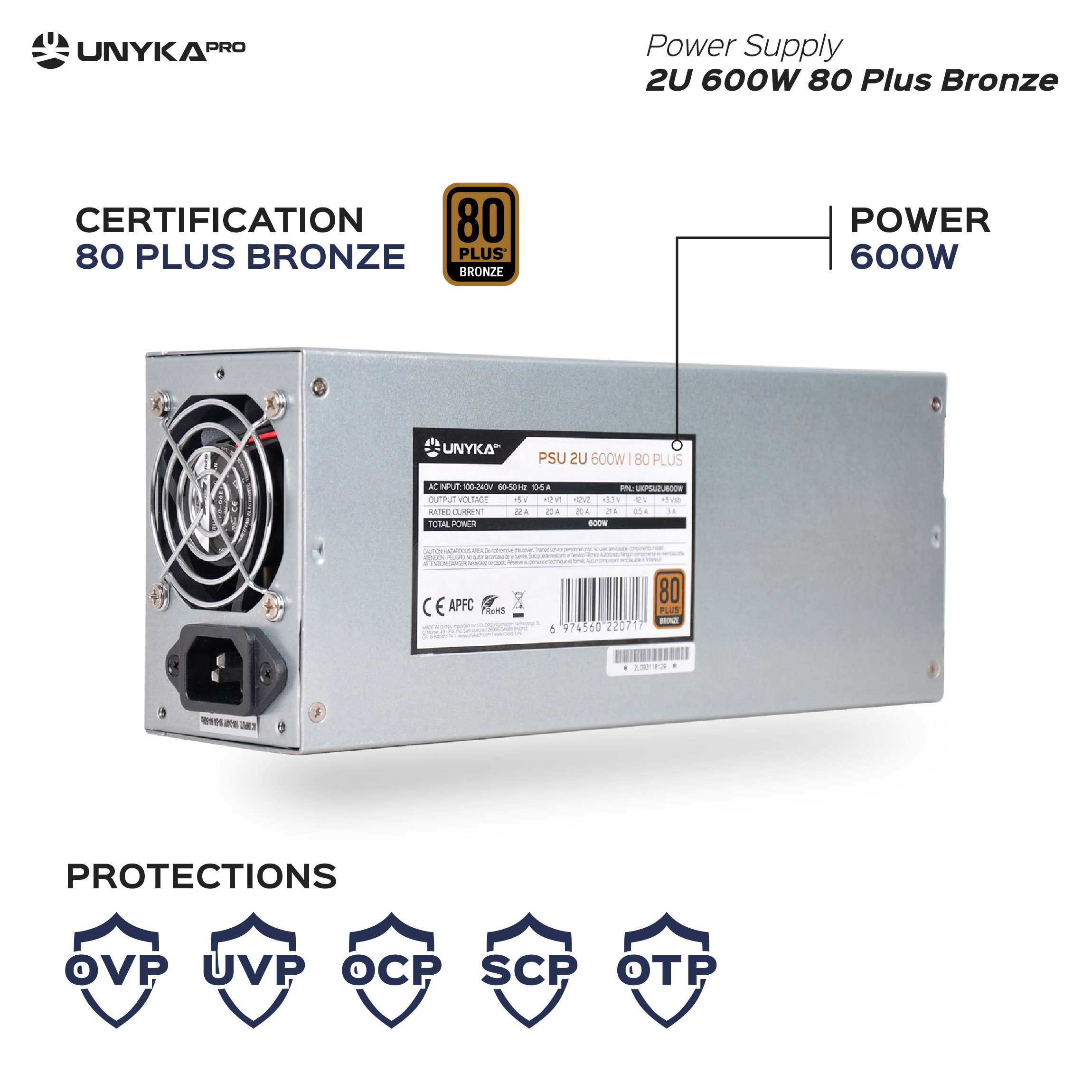

PROTECTIONS & CERTIFICATIONS
CE / OVP / UVP / OCP / SCP / OPP
EFFICIENCY & CERTIFICATIONS
ROHS / EN60950 / TÜV / 80 Plus Bronce
WARRANTY
3 Years
