Redundant Power Supply
CRPS 2000WR 80 Plus PLATINUM

P/N:PSUCRPS2000WR · EAN:8436617920486

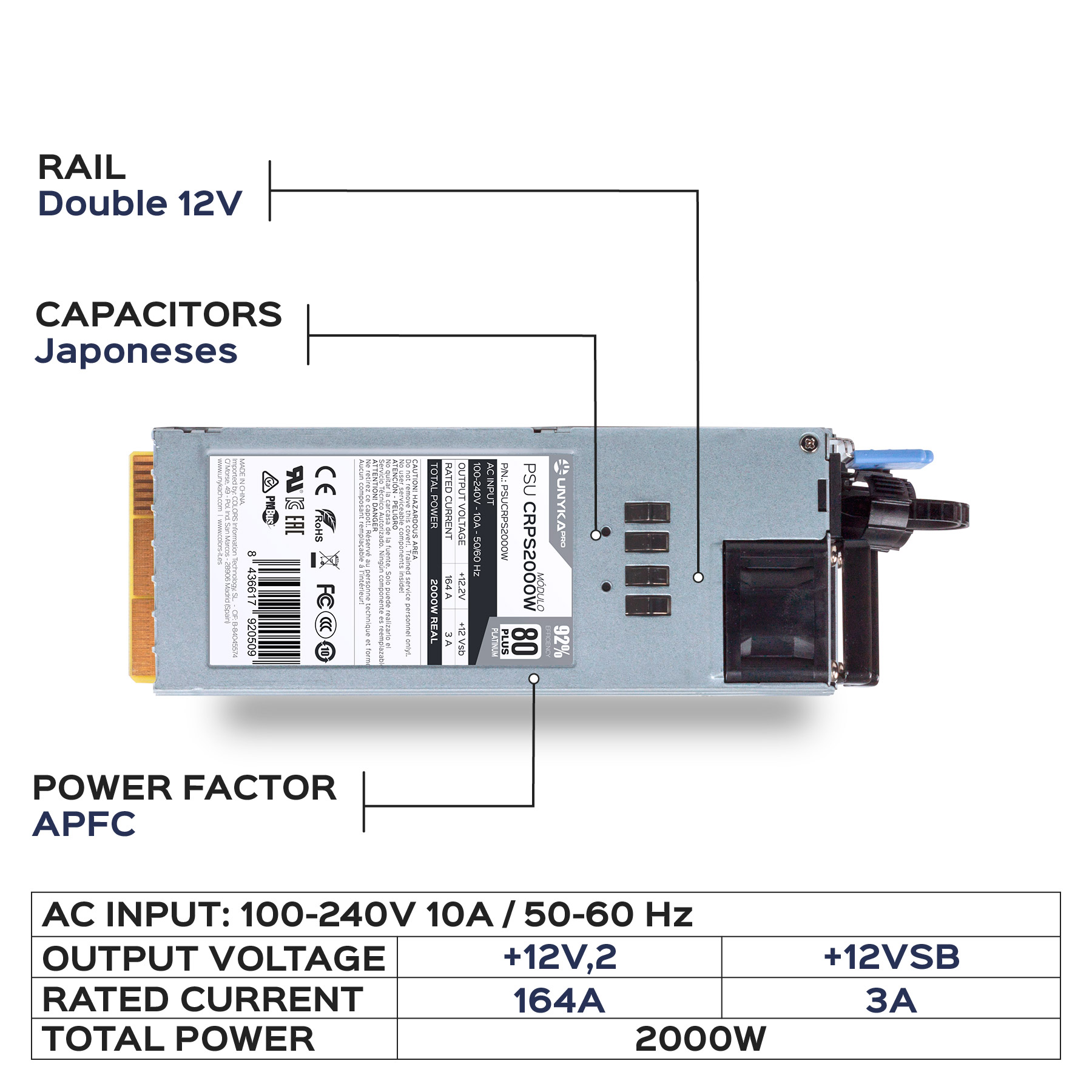

UNYKAch's professional range of redundant power supplies are designed with interchangeable modules. These two power modules, in normal situations, automatically share the load for optimal efficiency. If a power module fails, the remaining unit immediately takes over the power supply, while the damaged unit can be hot-replaced, without stopping operation, avoiding the risk of data loss or system interruption.
The user doesn't need to worry about any server/PC shutdown situation. 2 redundant CRPS 2000W modules with 80 Plus Platinum certification are included, equivalent to 92% efficiency. If you don't want to waste considerable time and money, you need a system supported by redundant sources, which keeps operational processes and system components connected at critical moments.
CRPS-2000-2300RPM-APFC-80platinum
CRPS 2000WR se puede conectar en caliente/redundante y posee la certificación 80 Plus Platinum,

PRODUCT

VERSION
INTEL 2.3

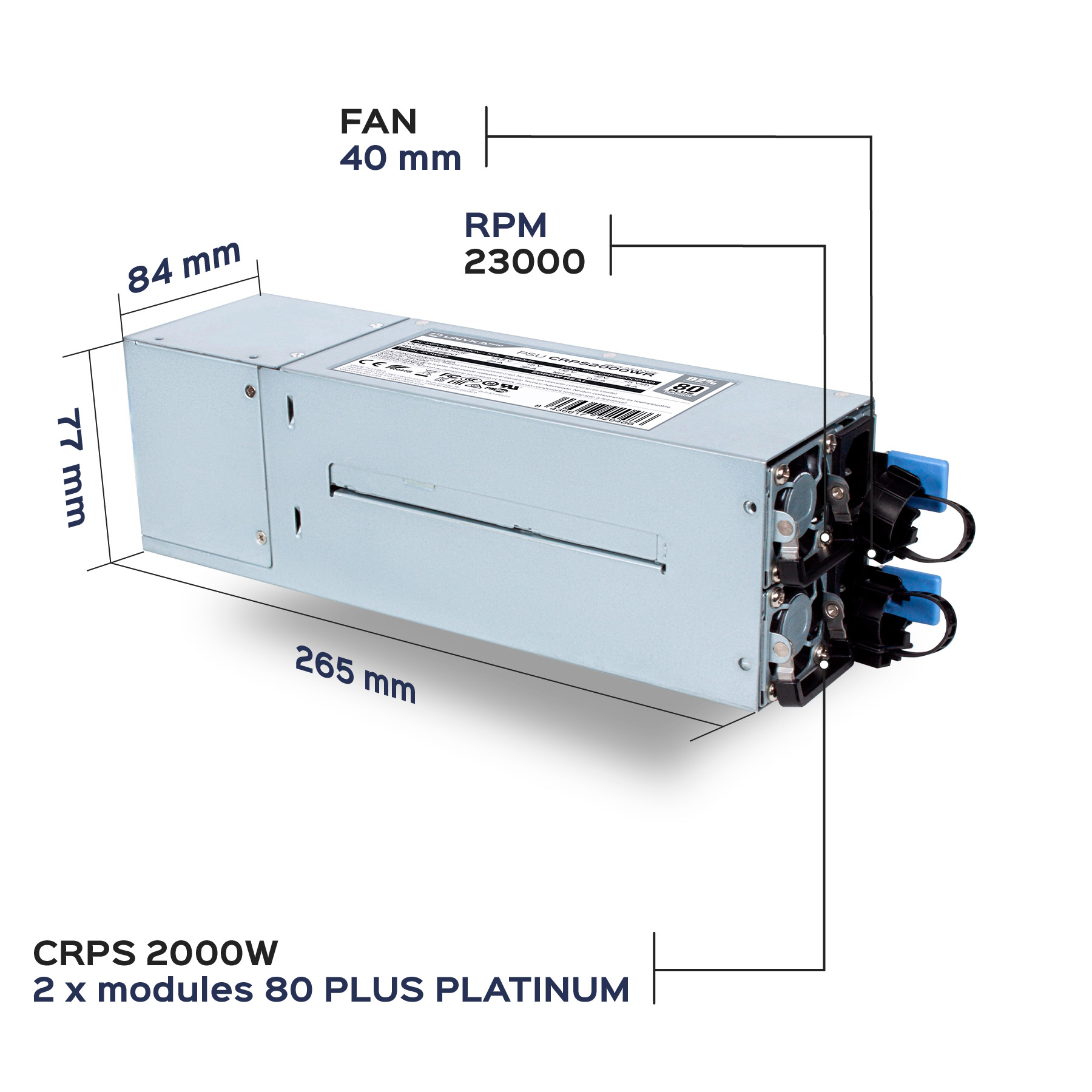

CHASSIS DIMENSIONS
265 (L) x 84 (W) x 77 (H) mm


CHASSIS WEIGHT
2,8 kg


COLOUR
Silver


CONTROL OF ENERGY

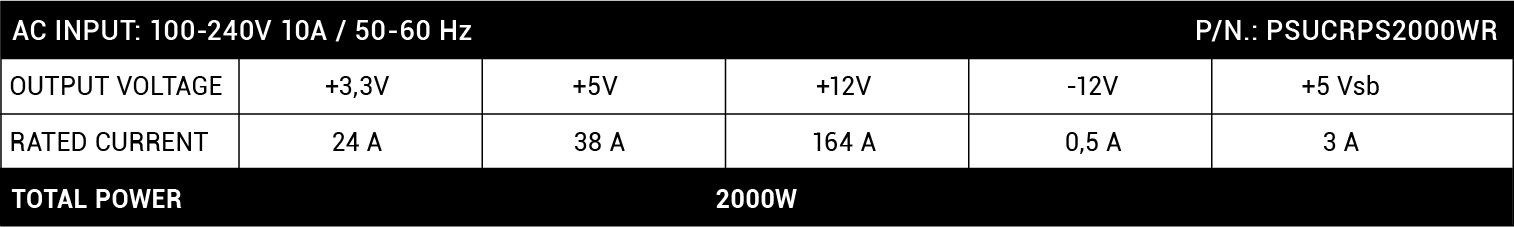

  • Nominal Power Supply Voltage: 2000W
  • Maximum AC Input Current 00-240V 10A / 50-60 Hz Serial: PSUCRPS2000WR
  • Maximum Output Current +3,3V: 24 A
  • Maximum Output Current +5V: 38 A
  • Maximum Output Current +12V: 164 A
  • Maximum Output Current -12V: 0,5 A
  • Maximum Output Current +5Vsb: 3 A

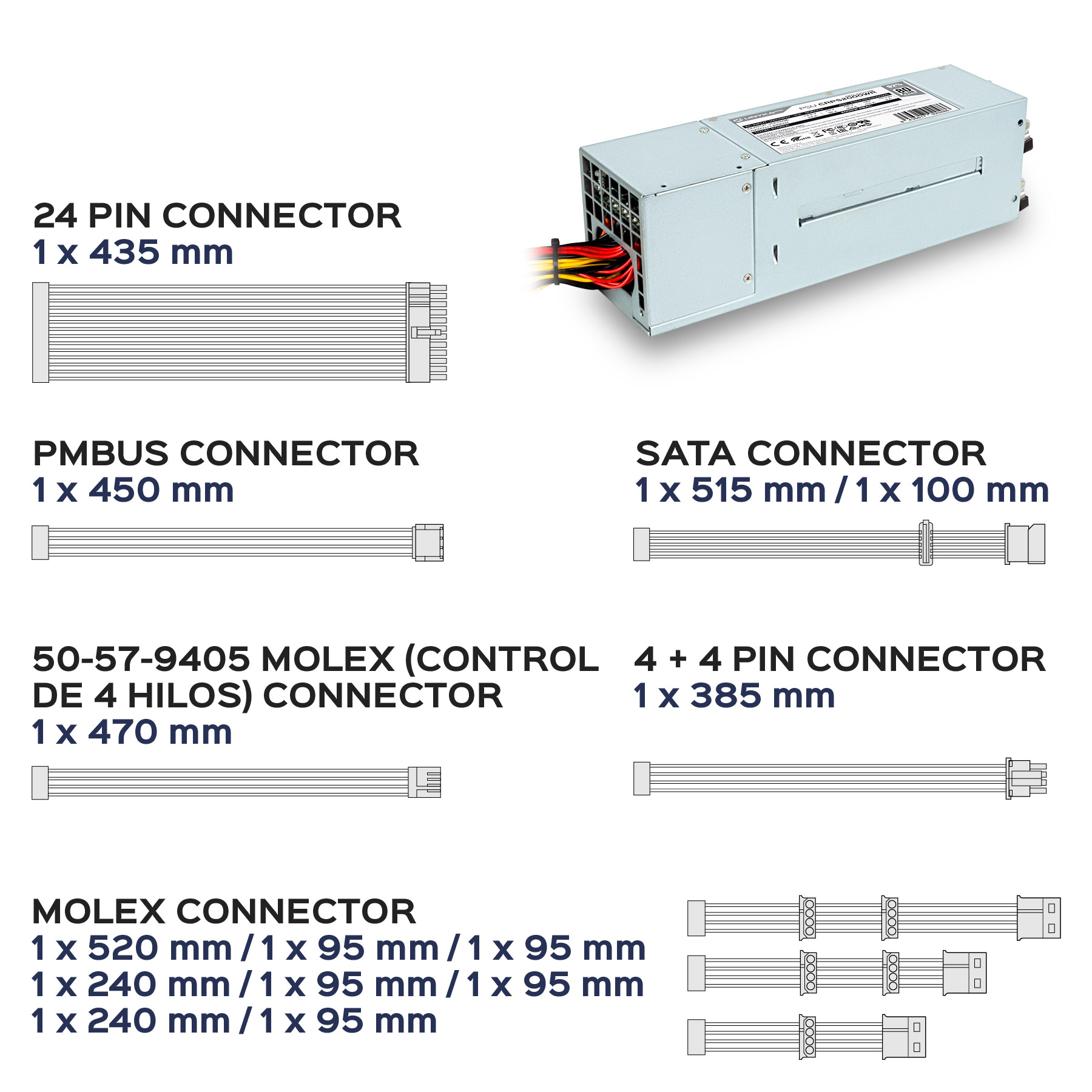

SATA CONNECTOR
1 x 515 mm / 1 x 100 mm


24 PIN CONNECTOR
1 x 435 mm


8 PIN CONNECTOR PCI-E
1 x 455 mm


4 + 4 PIN CONNECTOR
1 x 385 mm


MOLEX CONNECTOR
1 x 520 mm / 1 x 95 mm / 1 x 95 mm
1 x 240 mm / 1 x 95 mm / 1 x 95 mm
1 x 240 mm / 1 x 95 mm


MOLEX+FDD CONNECTOR
1 x 240 mm / 1 x 95 mm / 1 x 95 mm (FDD)


PMBUS CONNECTOR
1 x 450 mm


POWER SUPPLY

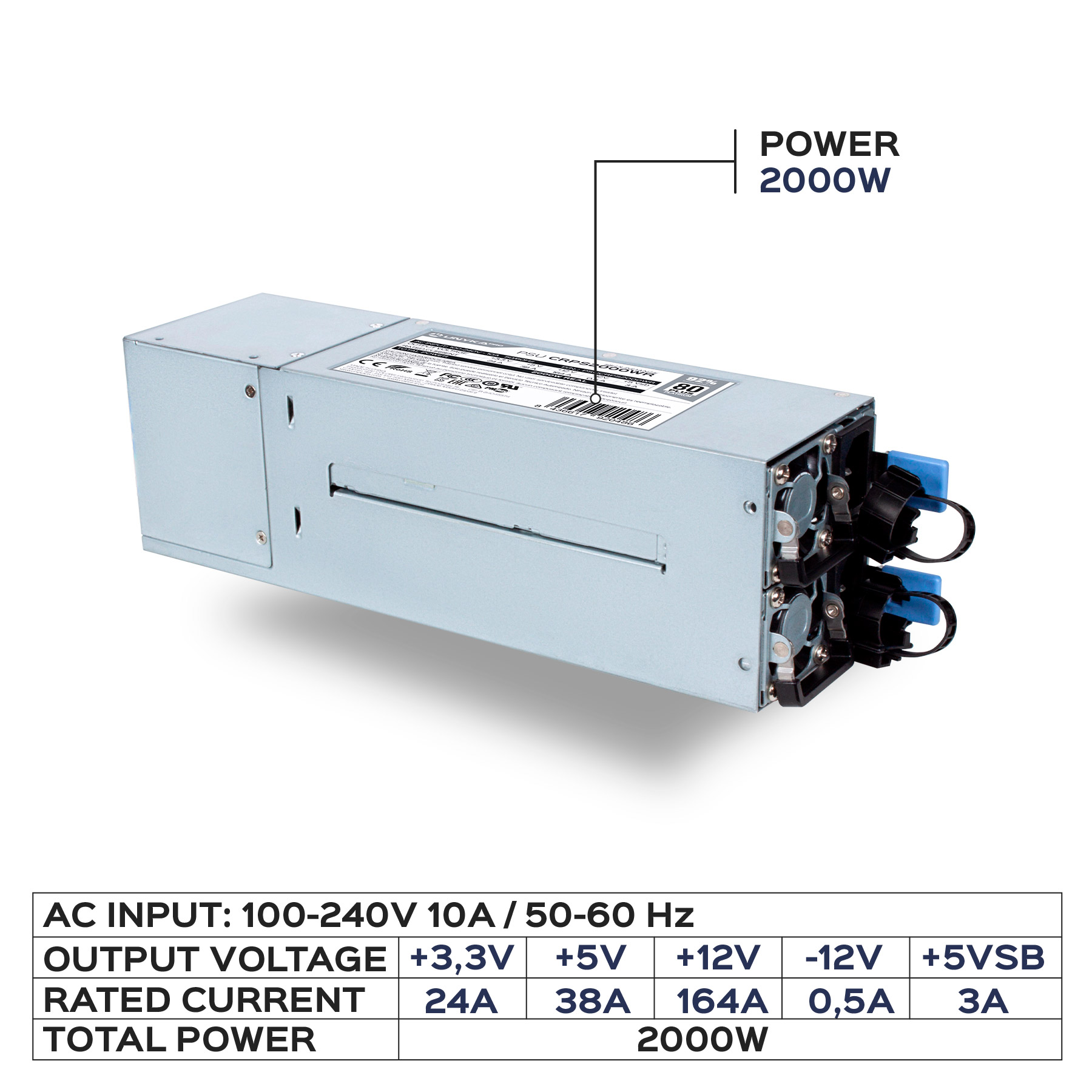

Includes 2 Power Supplies CRPS 2000W 80 Plus Platinum


PACKAGING

DIMENSIONS
265 (L) x 84 (W) x 77 (H) mm


WEIGHT
2,9 kg


CUBIC CAPACITY
0,0017 m3


COLOUR
Transparent


MATERIAL
BULK


PACKAGE CONTENT
Chassis / 2 Redundant Power Supplies / Screws

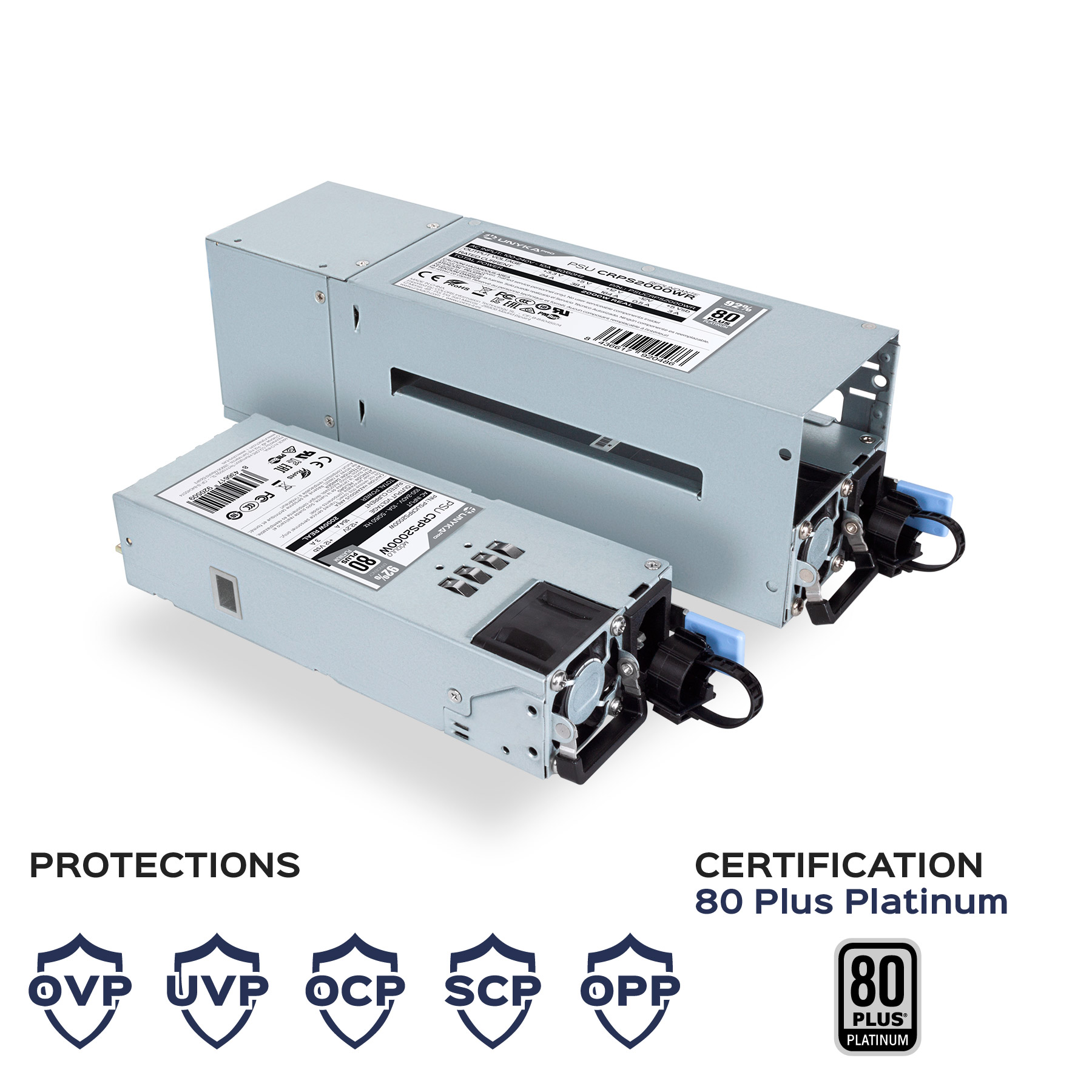

PROTECTIONS & CERTIFICATIONS
CE / OVP / UVP / OCP / SCP / OPP


EFFICIENCY & CERTIFICATIONS
ROHS / EN60950 / TÜV / 80 Plus Platinum


WARRANTY
3 Years


DOWNLOAD

TECHNICAL SHEET-GALLER
Redundant Power Supply 2000WR 80 Plus Platinum PN:PSUCRPS2000WR


MANUAL


DRIVERS


OTHERS


RECOMMENDED

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
