Telescopic Rails / Guides
P/N:UK516508 · EAN:8436617921537
GTIN-14:18436617921534 / 10 packs
This is custom heading element

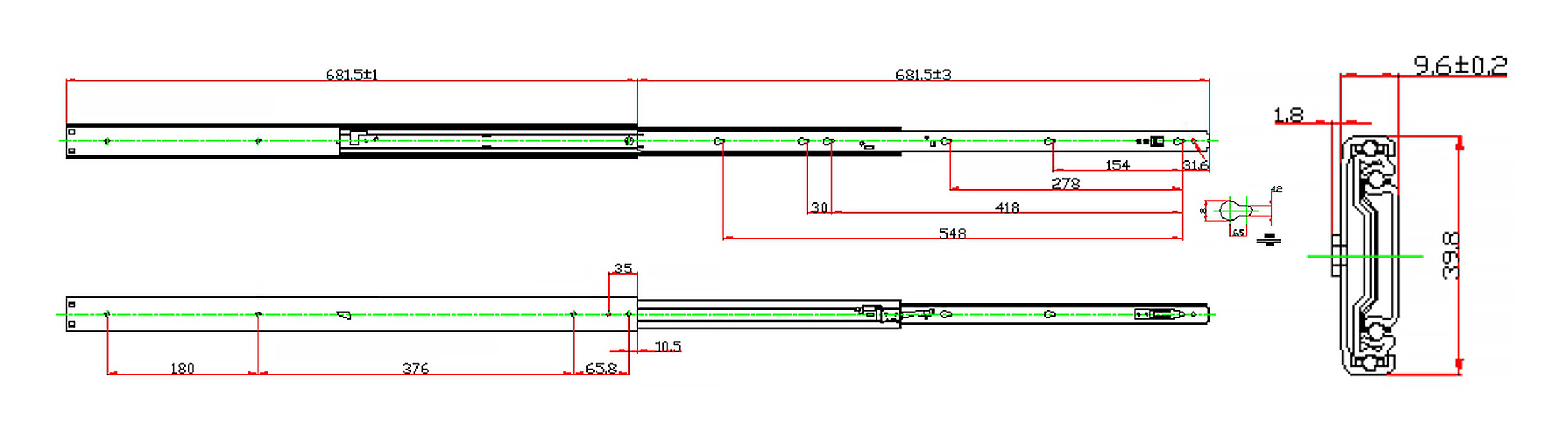

With a load capacity of up to 40 kg and a full travel length of 681.5 mm, they provide smooth and secure sliding thanks to their high-precision ball bearing system. Their three-section structure allows easy extraction and simplifies installation and maintenance tasks, making them a practical and efficient solution for datacenters, system integrators and industrial environments.
Thanks to their robust design and eco-friendly surface treatment compliant with RoHS standards, the UNYKA Pro sliding rails are the perfect choice for those seeking reliability, strength and ease of use in the integration of servers and professional systems.
IN DETAILS
| COMPATIBILITY WITH RACK AND HOT SWAP CASES | ||||
|
Rails Universal 1U / 2U / 3U / 4U P/N:UK52094 |
Rails RG4208G4 P/N:UK514208G4 |
Rails RG4208G3 P/N:UK51921 |
Rack Rails RG6508 P/N:UK516508 |
Rails RG4339U P/N:UK5191820 |
|
1U UK1029 (P/N:51916) |
2U HSW4208 G4 (P/N: UK80.20.08G4) |
2U HSW4208 G3 (P/N: UK80.20.08G3) |
4U HSW4U6508 (P/N:UK80.40.6508) |
4U UK4339H (P/N:UK51918) |
|
1U HSW4104 (P/N:80.10.04) |
- | - | - |
4U UK4339V (P/N:UK51920) |
|
2U HSW4208 (P/N:80.20.08) |
- | - | - |
4U UK4329 USB TYPE C (P/N:51915) |
|
2U UK2129 (P/N: 52095) |
- | - | - | - |
|
2U HSW6212 (P/N:80.20.12) |
- | - | - | - |
|
3U HSW4416 (P/N:80.30.16) |
- | - | - | - |
|
4U UK4129 (P/N: 51912) |
- | - | - | - |
|
4U UK4329 USB TYPE C (P/N: 51915) |
- | - | - | - |
|
4U UK4229 EVO (P/N: UK51917) |
- | - | - | - |
|
4U HSW6424 (P/N:80.40.24) |
- | - | - | - |
|
4U HSW4520 (P/N:80.40.20) |
- | - | - | - |
|
4U UK4339H (P/N:UK51918) |
- | - | - | - |
|
4U UK4339V (P/N:UK51920) |
- | - | - | - |
|
2U UK2130 2U600 (P/N:UK51922) |
- | - | - | - |
PRODUCT

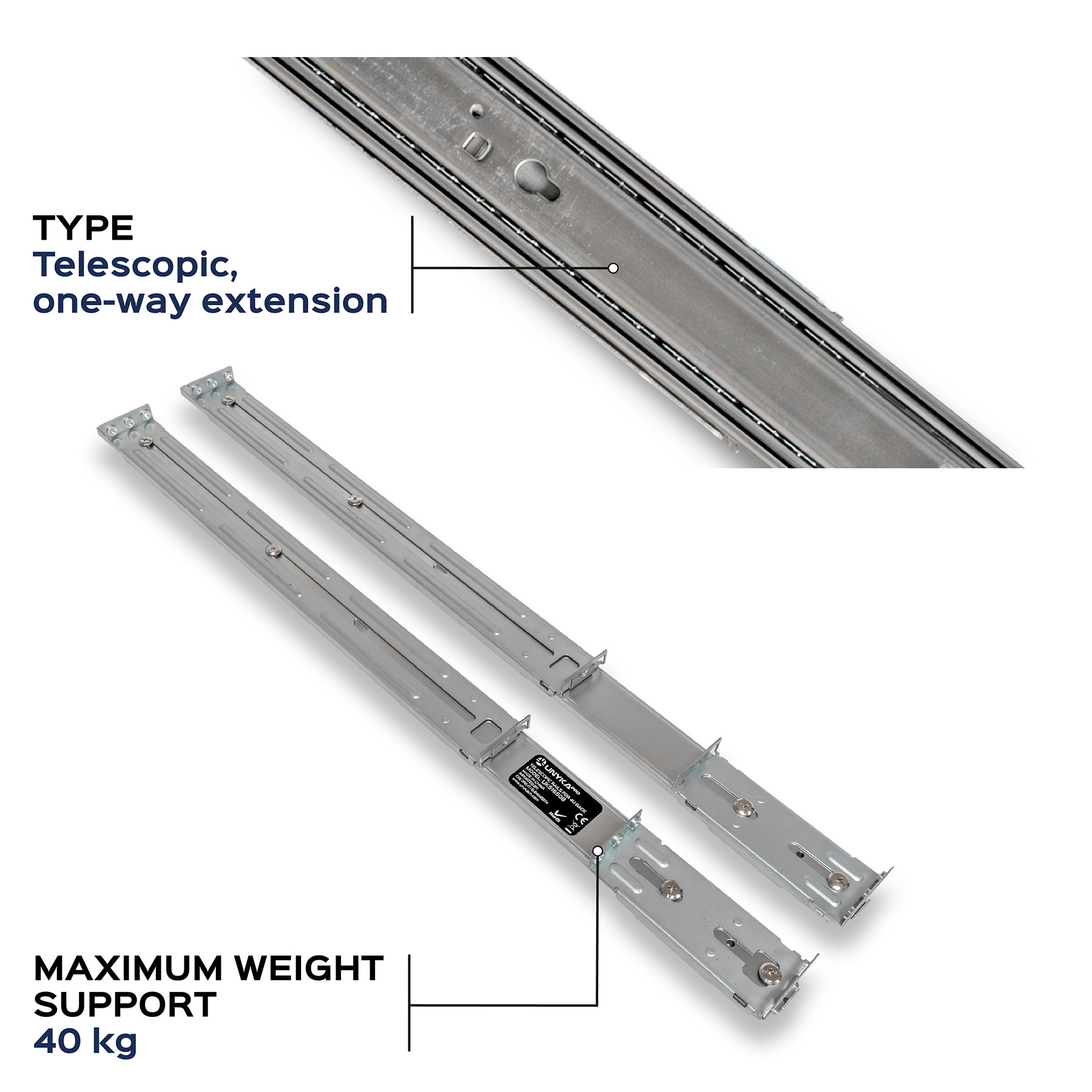

TYPE
Telescopic, one-way extension

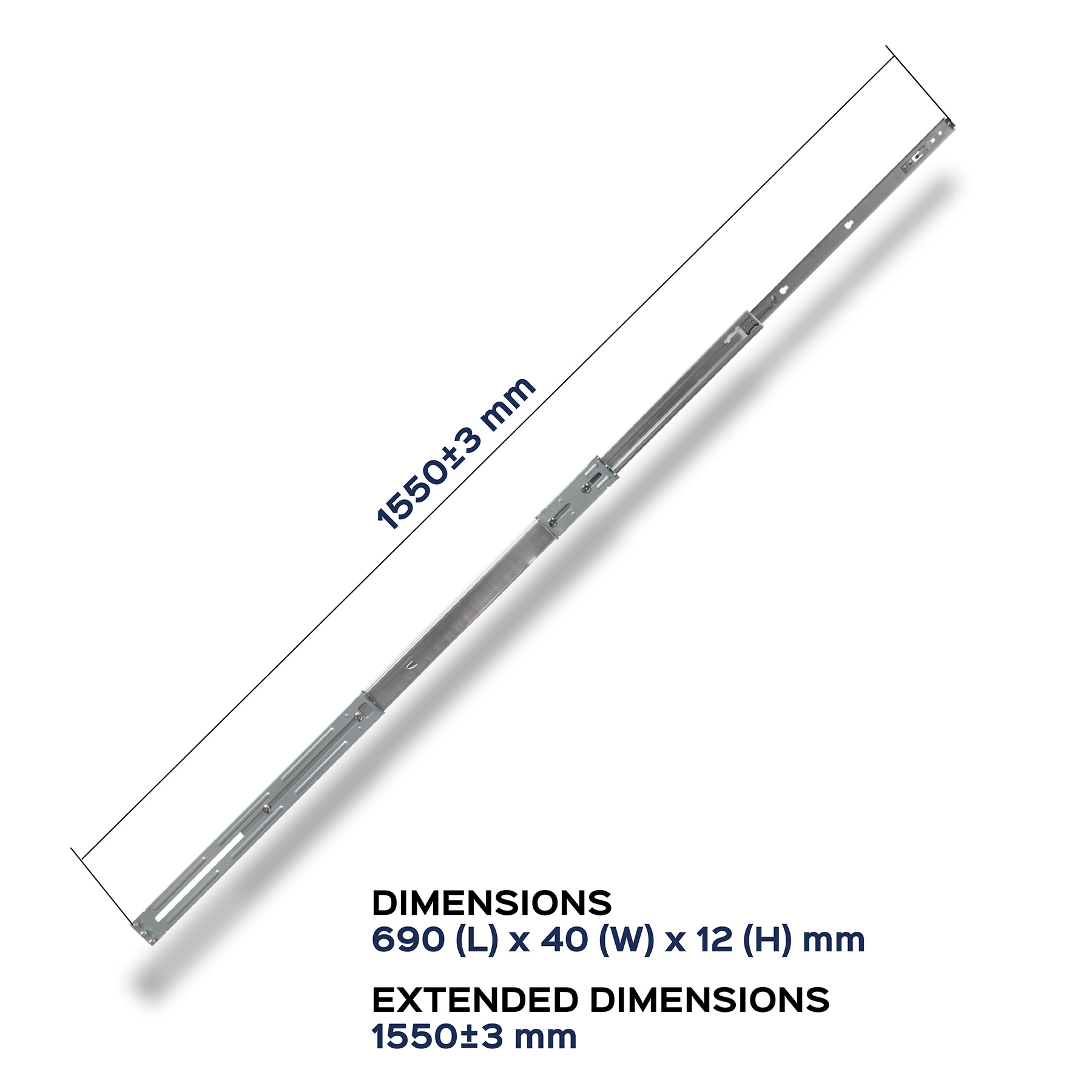

DIMENSIONS
690 (L) x 40 (W) x 12 (H) mm
EXTENDED DIMENSIONS
1550 ±3 mm

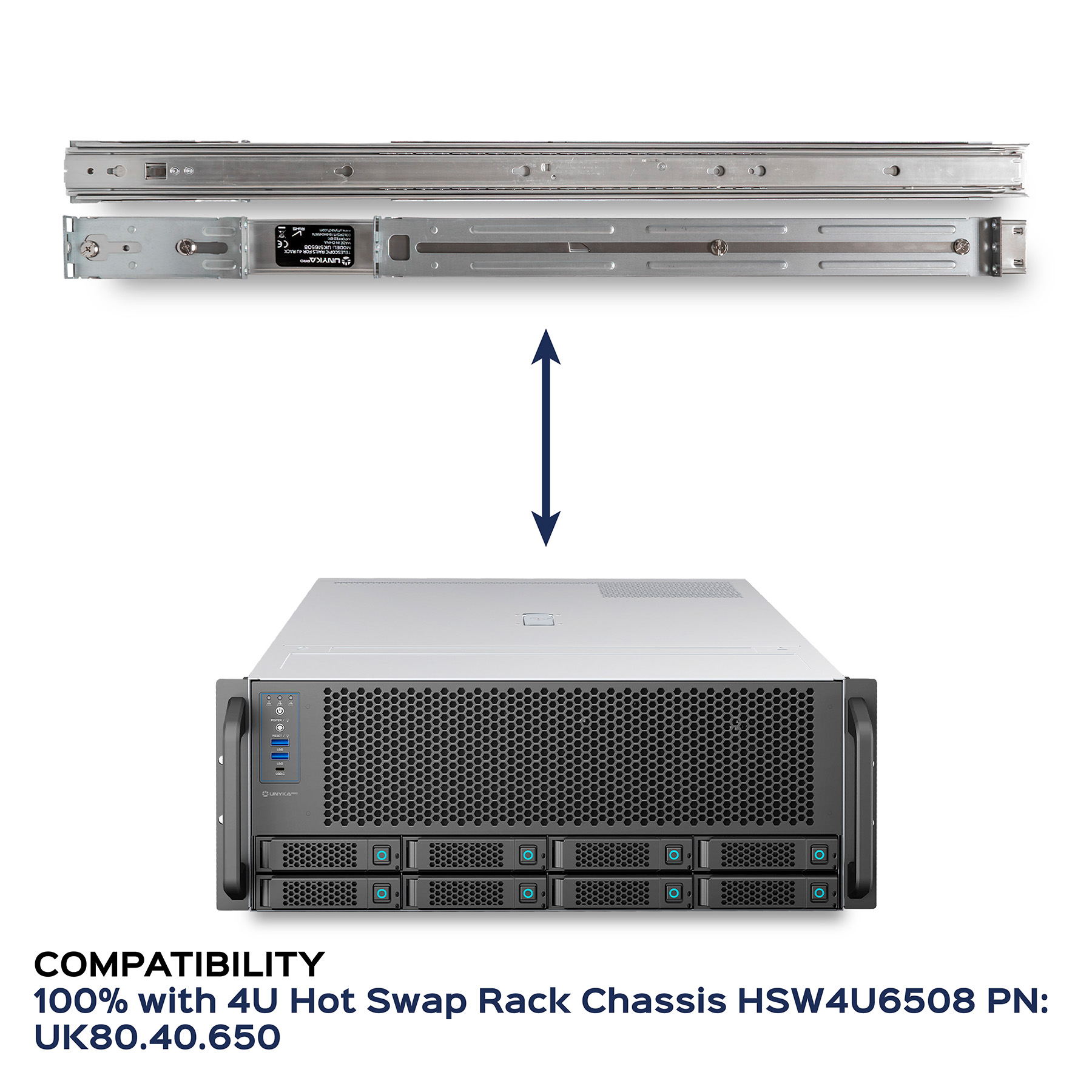

COMPATIBILITY
UNYKA Pro HSW4U6508 Hot Swap Chassis (PN: UK80.40.6508)

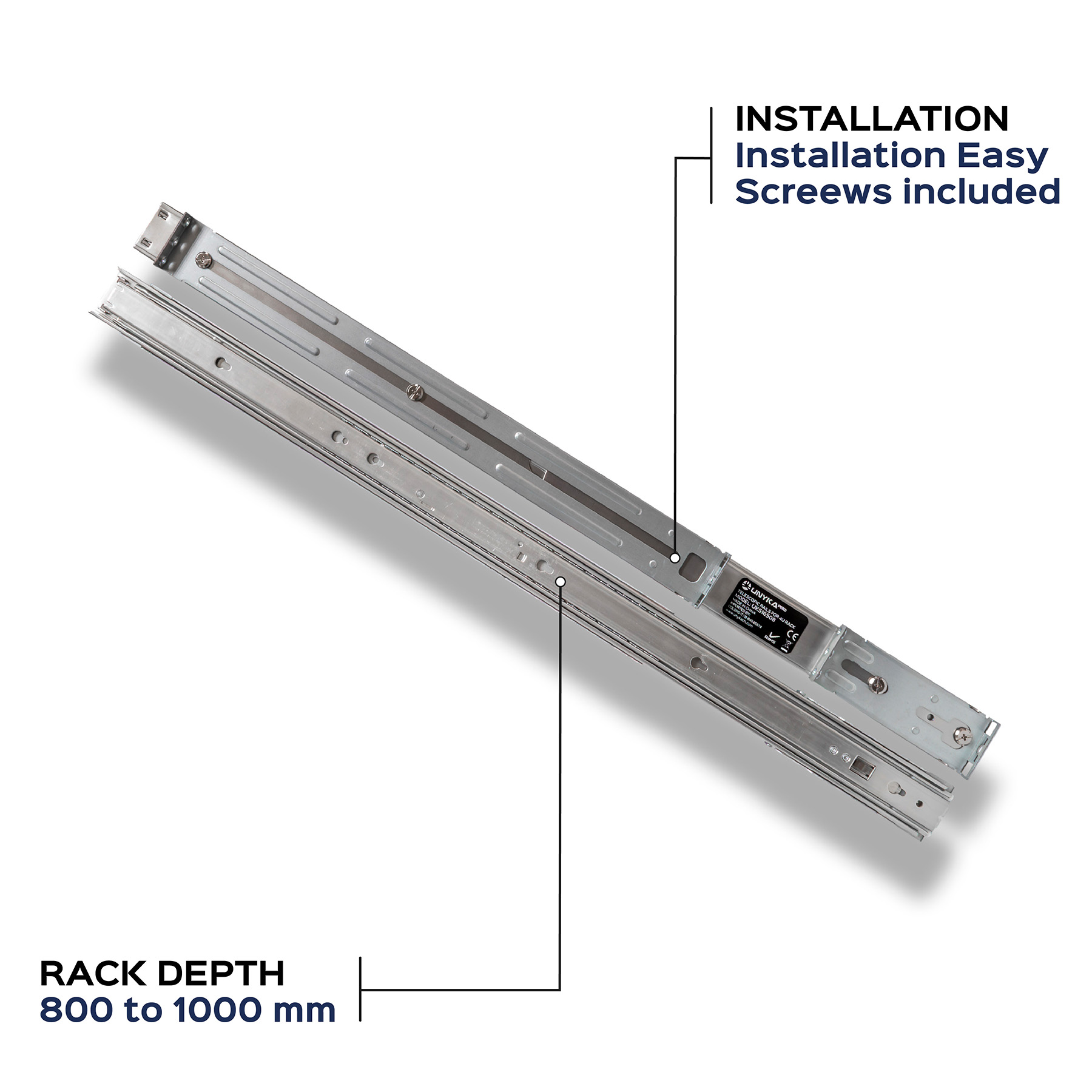

RACK DEPTH
800 to 1000 mm
MAXIMUM LOAD CAPACITY
40 kg
WEIGHT
2.472 kg
COLOR
Galvanized silver
MOUNTING
Easy installation with detachable system and direct pull-out guide
MATERIAL & FINISH
Galvanized SPCC alloy steel with eco-friendly RoHS compliant surface treatment
LIFECYCLE
Over 1,000 usage cycles with rated load
PACKAGING
DIMENSIONS
755 (L) x 95 (W) x 33 (H) mm
WEIGHT
2,6 kg
CUBIC CAPACITY
0,0023 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
2 Rack Rails / 2 Brackets / Screws
CERTIFICATIONS
CE / ROSH
DOWNLOAD
TECHNICAL SHEET
Sliding Telescopic Rails RG6508 Compatible with HSW4U6508 Hot Swap Chassis PN:UK516508
MANUAL
–
DRIVERS
–
OTHERS
CE Certificate of Conformity
OTHER FEATURES
MASTER BOX DIMENSIONS
770 (L) x 360 (W) x 115 (H) mm
MASTER BOX WEIGHT
27 kg
UNITS PER MASTER BOX
10
UNITS PER AMERICAN PALLET
–
UNITS PER EUROPEAN PALLET
–
RECOMMENDED
