Server Rack Hot Swap
P/N:UK80.20.08G4 · EAN:8436617921988
The HSW4208 G4 2U Hot-Swap Rack Server is a professional solution designed for environments that demand high performance, scalability, and continuous availability. Its 2U rack form factor optimizes space in data centers, while its robust architecture allows flexible integration into demanding infrastructures.
It features a system of 8 hot-swap bays with a 12 Gbps backplane, making it easy to replace and expand drives without stopping operation, thus ensuring service continuity. Its compatibility with multiple motherboard form factors broadens configuration possibilities, adapting to different processing and storage needs.
Designed for critical workloads such as virtualization, databases, enterprise services, or intensive data analytics, this server combines high expandability, efficient thermal management, and support for redundant power supplies, ensuring stability even in high-demand environments.
EASY-ACCESS 2U RACK DESIGN

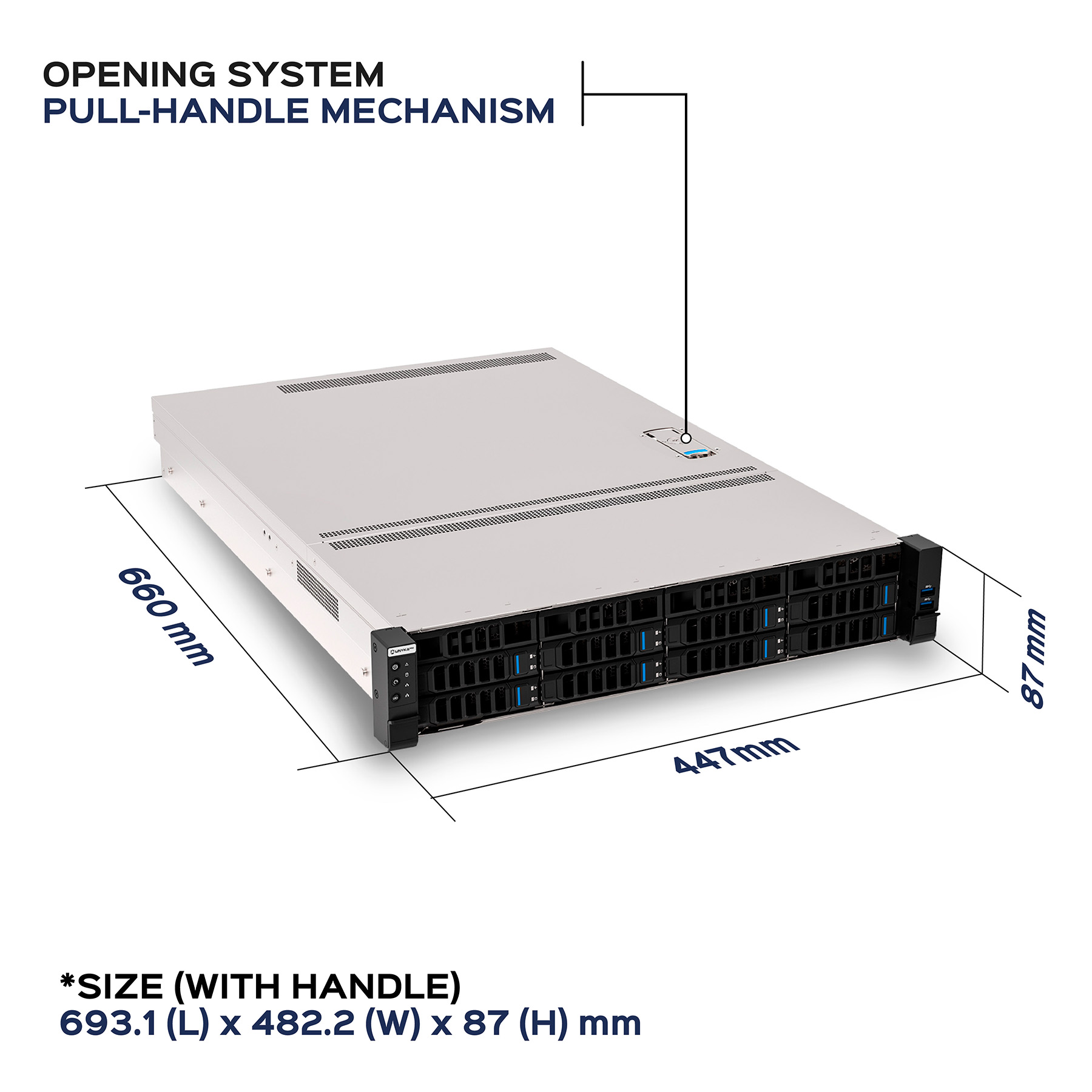

The chassis features a pull-handle opening system, allowing quick and secure access to the interior for maintenance or upgrade tasks. With dimensions of 660 x 447 x 87 mm, its 2U form factor is optimized for integration into standard racks, offering a balance between density, accessibility, and space efficiency.
FULL FLEXIBILITY IN PLATFORM AND STORAGE

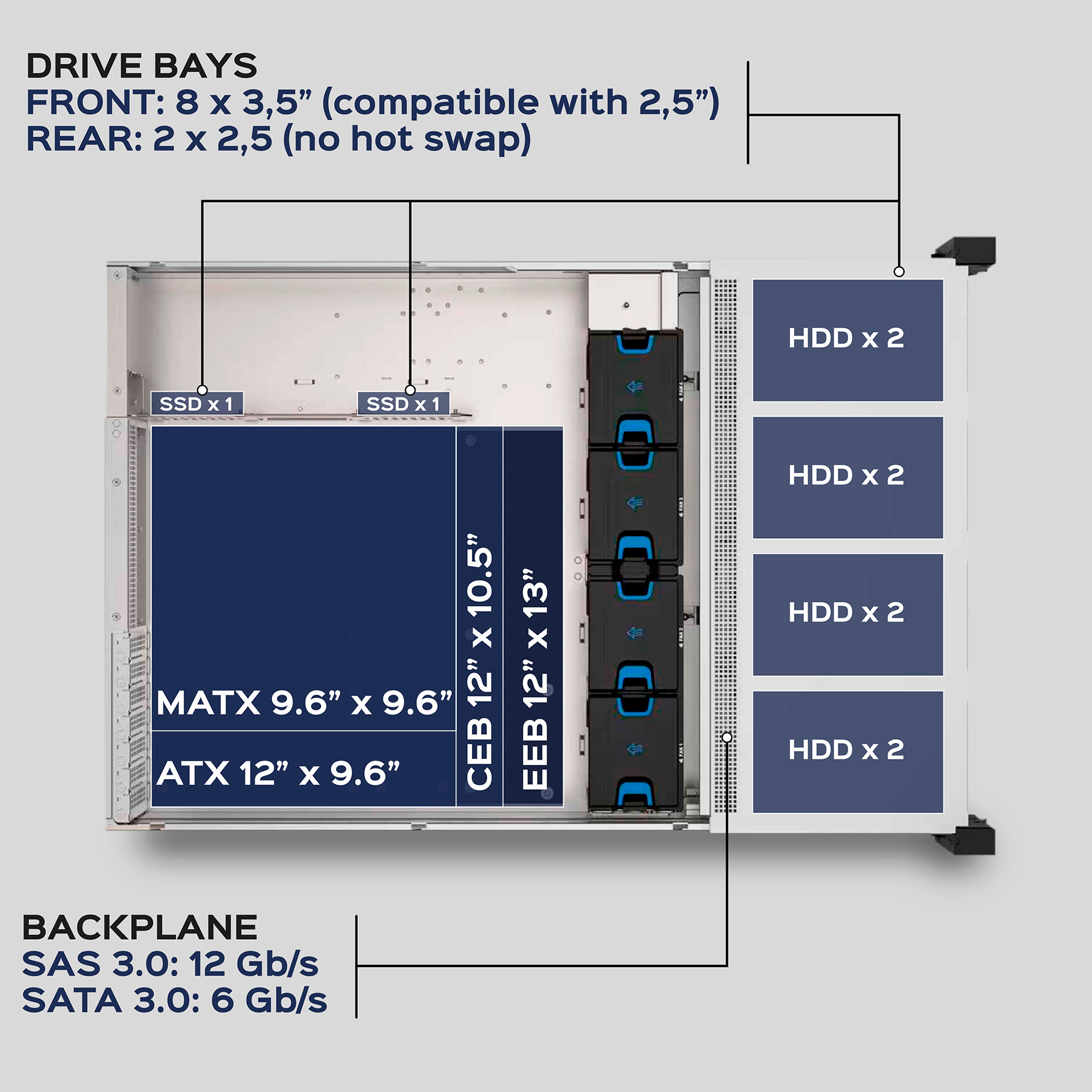

This chassis offers broad compatibility with EEB, CEB, ATX, and mATX motherboards, allowing it to adapt to different professional architectures without limitations. It features 8 front 3.5” bays compatible with 2.5” hot-swap drives, optimized for fast maintenance and continuous operation, along with 2 internal 2.5” bays for system storage or high-performance drives.
COOLING SYSTEM AND INTERNAL COMPATIBILITY

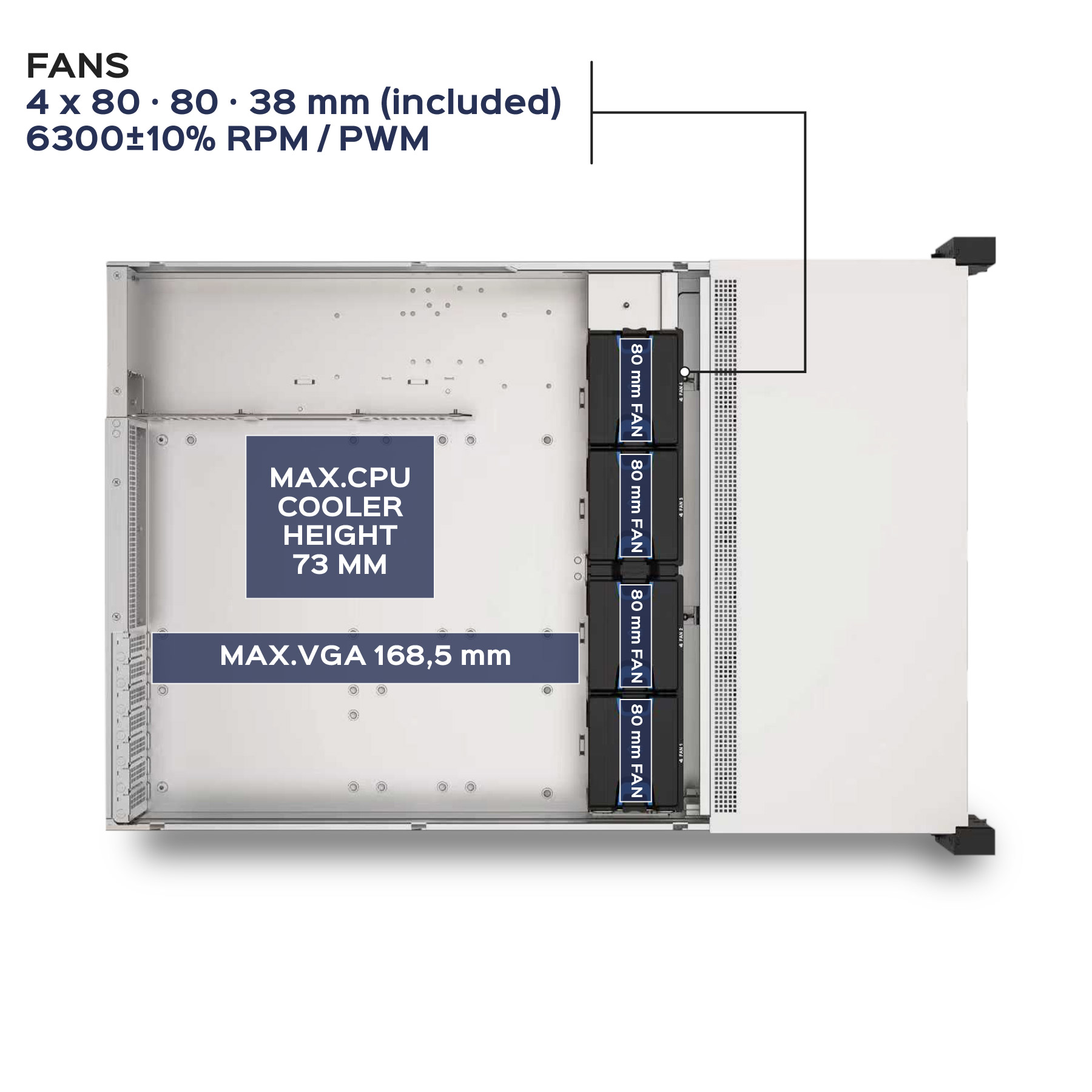

The chassis includes 4 fans measuring 80 x 80 x 38 mm, with speeds of up to 6300 RPM and 4-pin PWM control, ensuring efficient and adjustable cooling based on system load. It supports a maximum CPU cooler height of 73 mm and graphics cards up to 168.5 mm in length, ensuring compatibility with compact high-performance configurations.
HIGH EXPANSION CAPACITY AND REDUNDANT POWER SUPPLY

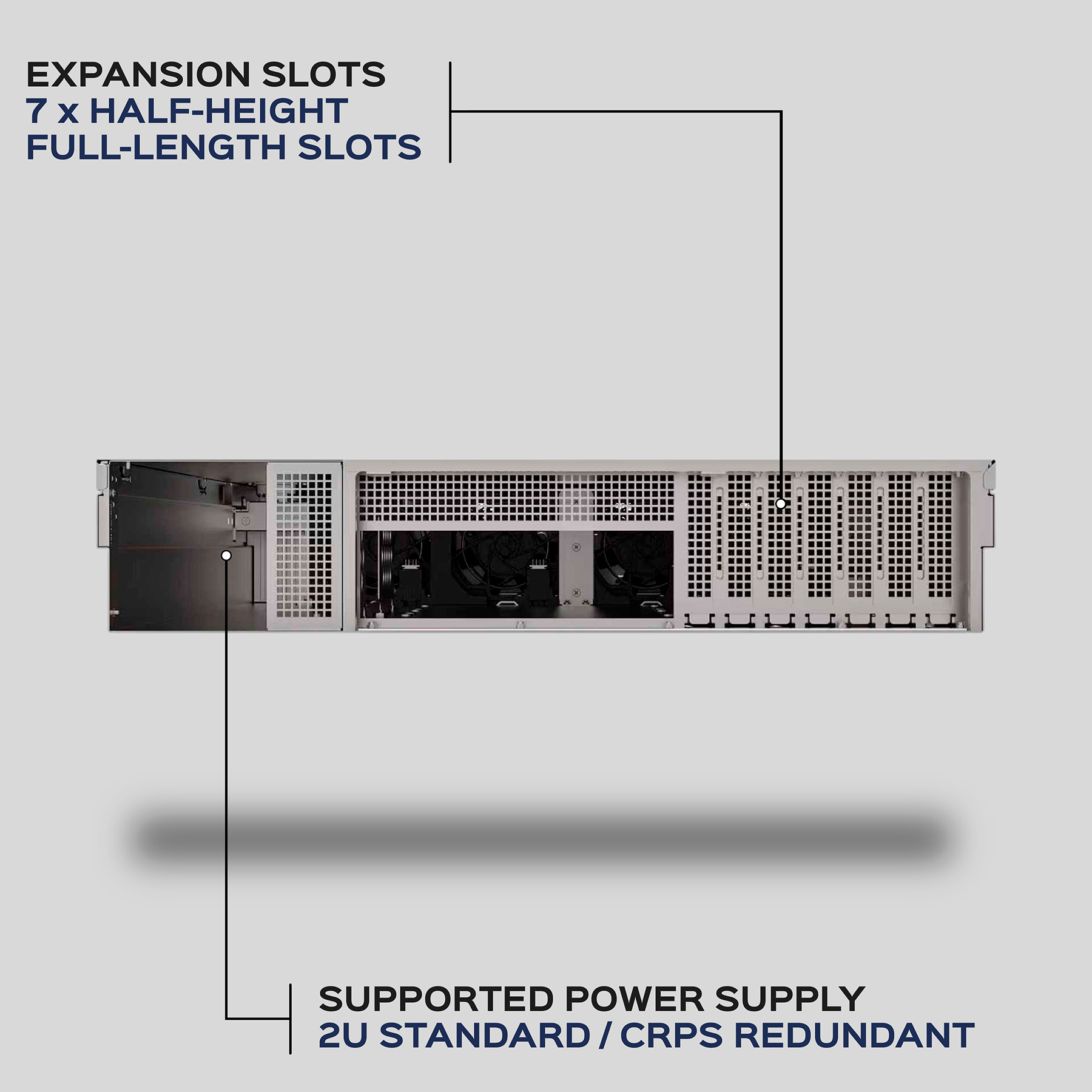

Designed for demanding professional environments, the chassis includes 7 expansion slots (half-height and full-height), providing great flexibility for network cards, storage, or high-performance acceleration cards. It is compatible with standard 2U power supplies and redundant CPS systems, ensuring stability, operational continuity, and high availability in critical environments.

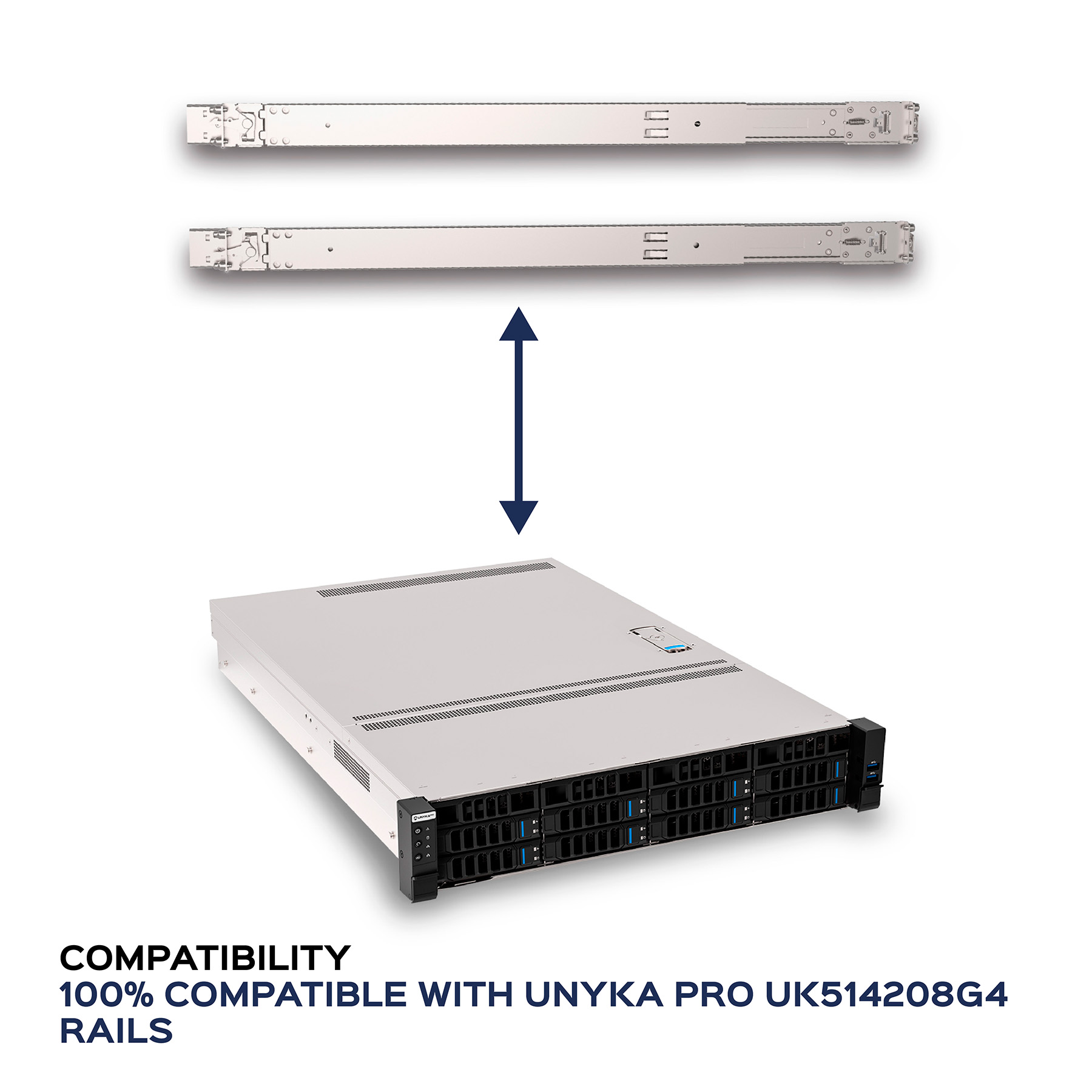

RACK INSTALLATION AND RAIL COMPATIBILITY
The chassis is designed for quick and easy installation in standard rack cabinets using pre-installed mounting holes, compatible with 22” sliding rails for rack servers. This feature facilitates deployment in data center environments and simplifies maintenance operations by allowing full system extraction.

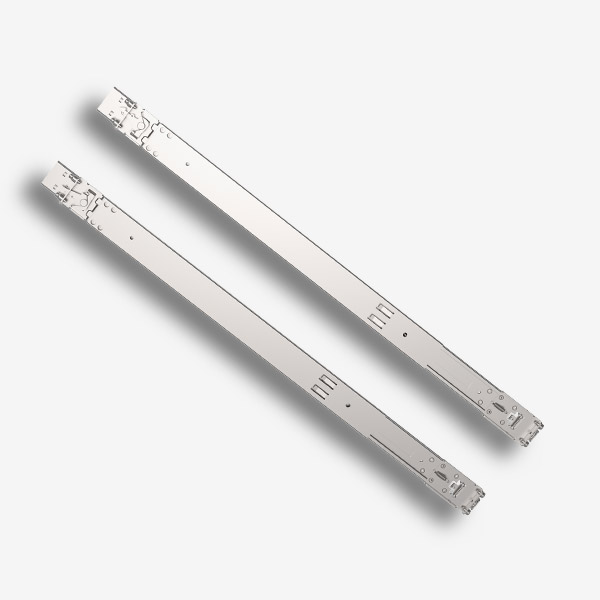

For optimal integration, the use of UNYKA PRO UK514208G4 rails is recommended, available as an optional accessory.

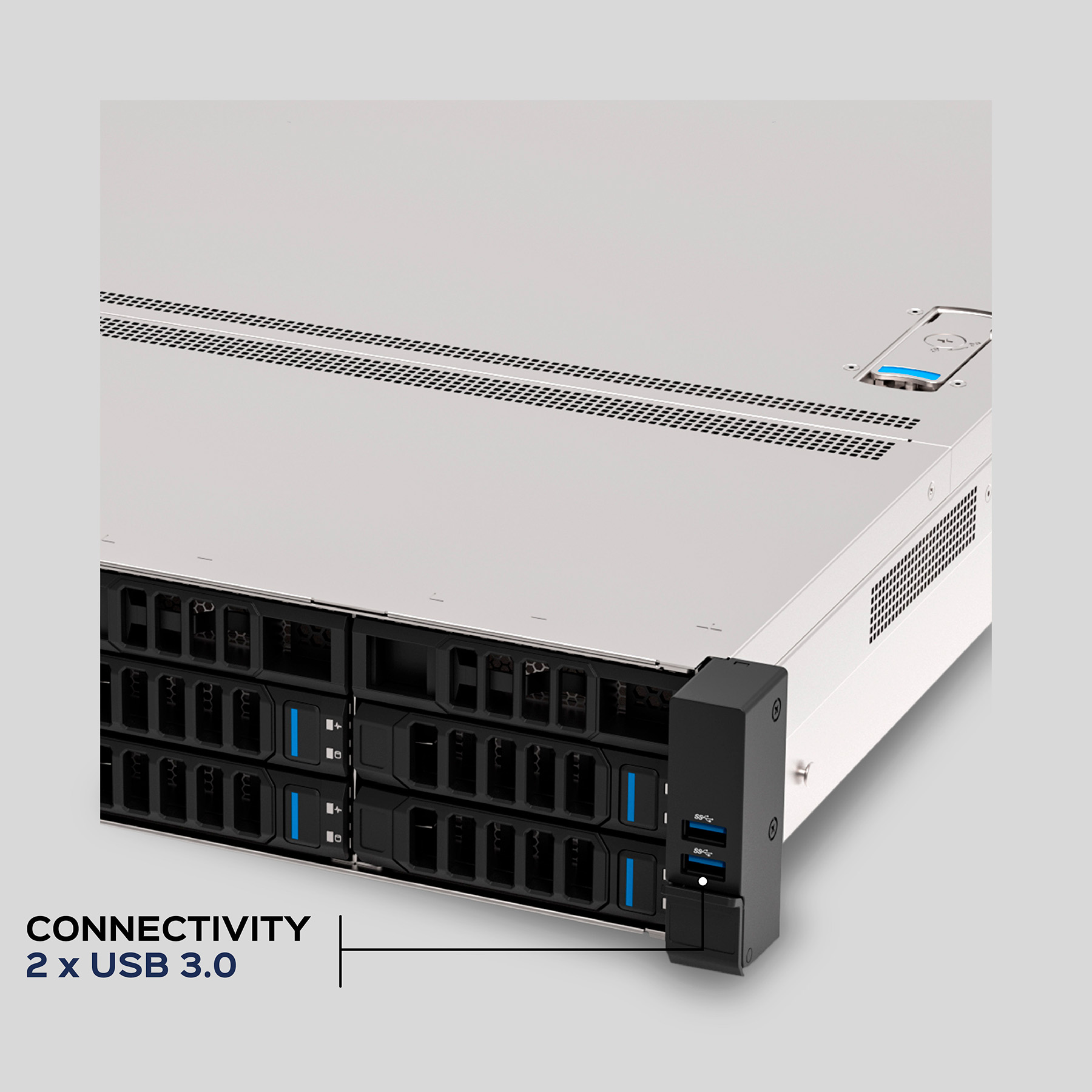

FRONT I/O PORTS

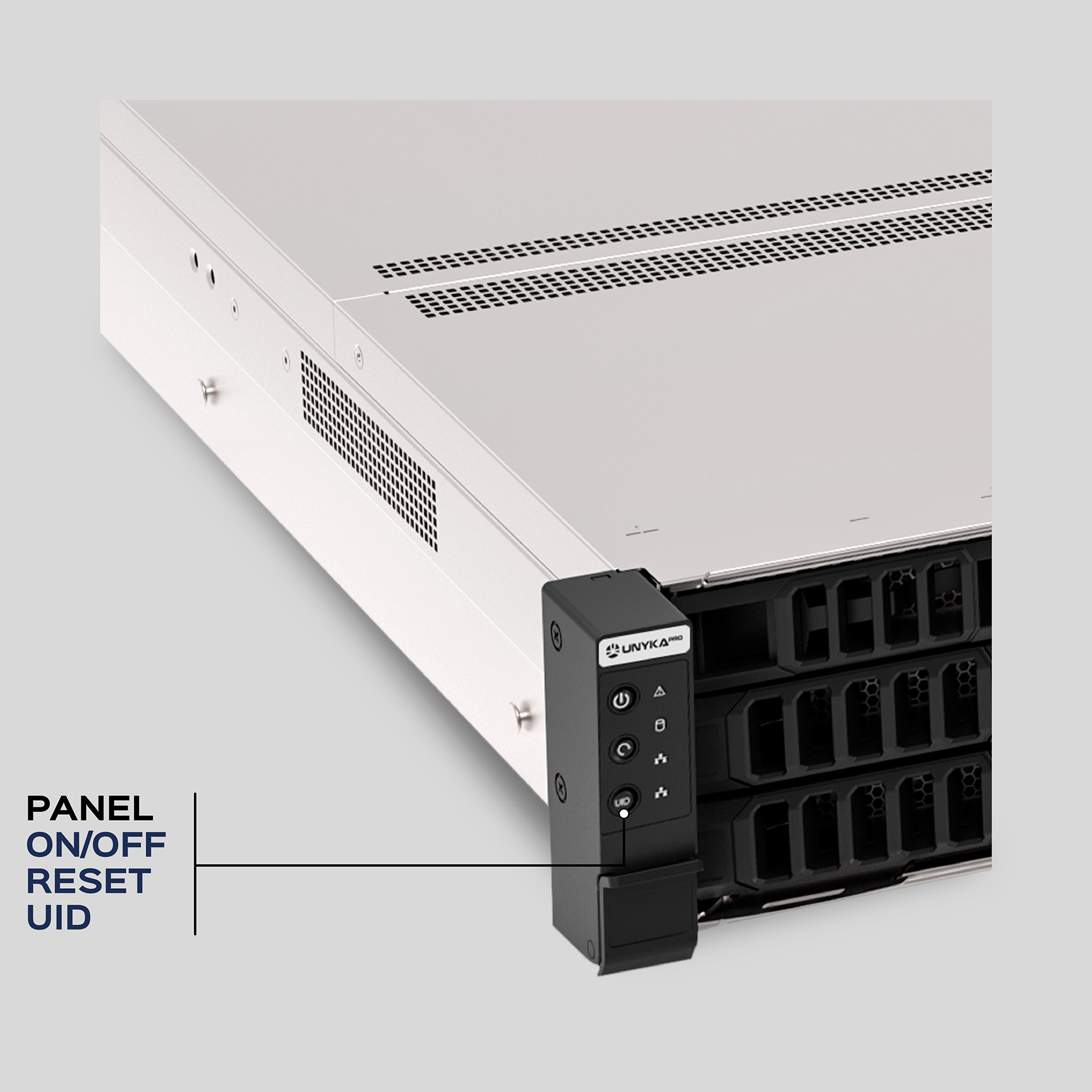

The 2U Hot Swap Rack Server HSW4208 G4 (8-bay) integrates essential front panel controls for efficient management in professional environments:
- On/Off Button: Safe system power on/off, enabling efficient and controlled server management.
- Reset Button: Quick system restart in case of failure or lock-up, facilitating operational recovery.
- UID Button: Unit Identification (UID) light indicator, allowing physical identification of the server within a rack or multi-unit environment.
- USB 3.0 Port: High-speed interface for connecting peripherals and external devices, ensuring fast and stable data transfers.
PRODUCT
TYPE CHASSIS
2U Estándar
MOTHERBOARD
EEB (12″ x 13″) / CEB (12″ x 10.5″) / ATX (12″ x 9.6″) / MATX (9.6″ x 9.6″)
DIMENSIONS
660 (L) x 447 (W) x 87 (H) mm
DIMENSIONS WIDTH HANDLE
693.1 (L) x 482.2 (W) x 87 (H) mm
WEIGHT
15 kg
COLOUR
Black / Silver
MATERIAL
SGCC 1.2 mm
HANDLE MATERIAL
ABS / SGCC
FRONT BAYS
Front: 8 x 3,5” (compatible with 2.5”)
Rear: 2 x 2,5 (no Hot Swap)”
EXPANSION SLOTS
7 x Half Height and Full Length
MAXIMUM CPU COOLER HEIGHT
73 mm
MAXIMUM SUPPORTED GRAPHICS CARD LENGTH
168,5 mm
CONNECTOR
2 x USB 3.0
INTERFACE
2 Mini SAS 12 Gbps / 2 x Molex
BACKPLANE SPEED
SAS 3.0: 12Gb/s / SATA 3.0: 6 Gb/s
POWER SUPPLY ADMITTED
Standard ATX / Redundant PSU
MAXIMUM FAN CAPACITY
80 x 80 x 80 mm x 4 (Included)
RPM
6300 RPM ± 10
NOISE LEVEL
59.4dB（100%) / Max 61.4dB
VOLTAGE
12V（7.0~13.2V)
SENSOR DE TEMPERATURA
4 PIN / PWM
RAIL COMPATIBILITY
Telescopic Rails UNYKACH HSW4208 G4 2U Hot Swap Rackmount Server PN:UK514208G4
*The HOT-SWAP bays are compatible with 3.5″ or 2.5″ drives
PACKAGING
DIMENSIONS
826 (L) x 577 (W) x 218 (H) mm
WEIGHT
18,5 kg
CUBIC CAPACITY
0,1038 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Server Rack / Fans / Screws
