Telescopic Rails / Guides for
UNYKACH HSW4208 G4 2U HOT SWAP RACKMOUNT SERVER

P/N:UK514208G4 · EAN:8436617922121
GTIN-14:18436617922128 / 6 packs

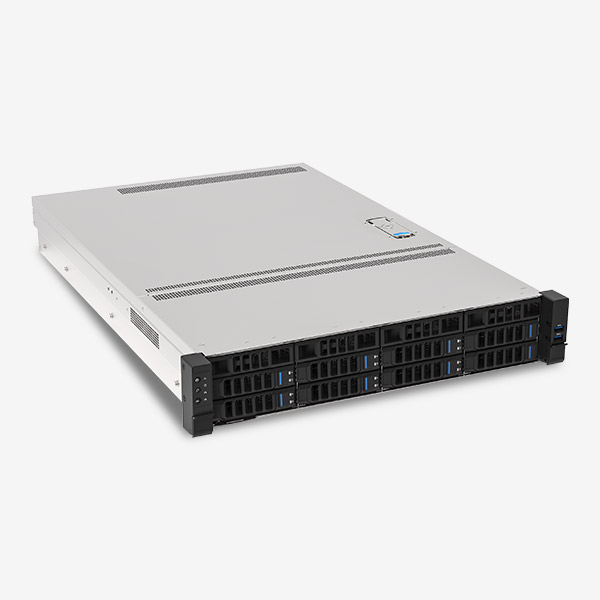

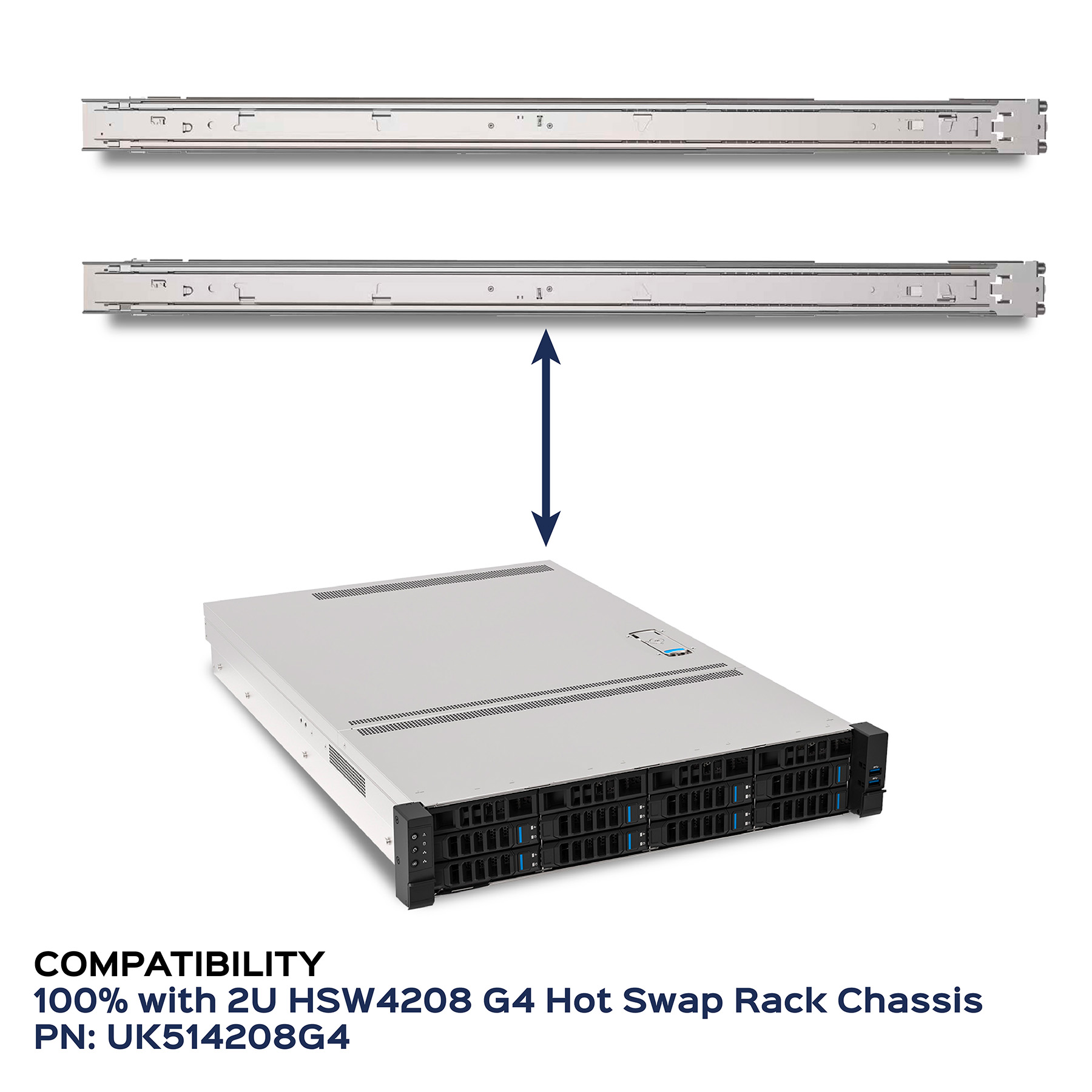

Specifically designed for the Hot Swap 2U modelo HSW4208 G4 PN: UK80.20.08G4 from UNYKAch, these telescopic rails are an essential accessory for proper installation in standard rack cabinets.
Thanks to their sliding design, they allow partial or full extension of the server, making maintenance tasks easier and improving workflow efficiency in professional environments. Made of high-strength steel, they support loads of up to 40 kg.
COMPATIBILITY WITH RACK AND HOT SWAP CASES
Rack Rails 1U / 2U / 3U / 4U P/N:UK52094 Telescopic Rack Rails 2U P/N:UK51921 Telescopic Rack Rails 2U P/N:UK514208G4 Telescopic Rack Rails 4U P/N:UK5191820 Telescopic Rack Rails 4U P/N:UK516508
4U UK4129 (P/N: 51912) HSW4208 G3 (P/N: UK80.20.08G3) 2U HSW4208 G4 (P/N: UK80.20.08G4) 4U UK4339H (P/N:UK51918) HSW4U6508 (P/N: UK80.40.6508)
2U UK2129 (P/N: 52095) 2U UK2130 2U600 (P/N:UK51922) - 4U UK4339V (P/N:UK51920) -
4U UK4329 USB TYPE C (P/N: 51915) - - - -
4U UK4229 EVO (P/N: UK51917) - - - -
1U HSW4104 (P/N:80.10.04) - - - -
2U HSW4208 (P/N:80.20.08) - - - -
3U HSW4416 (P/N:80.30.16) - - - -
2U HSW6212 (P/N:80.20.12) - - - -
4U HSW6424 (P/N:80.40.24) - - - -
4U HSW4520 (P/N:80.40.20) - - - -
4U UK4339H (P/N:UK51918) - - - -
4U UK4339V (P/N:UK51920) - - - -

PRODUCT

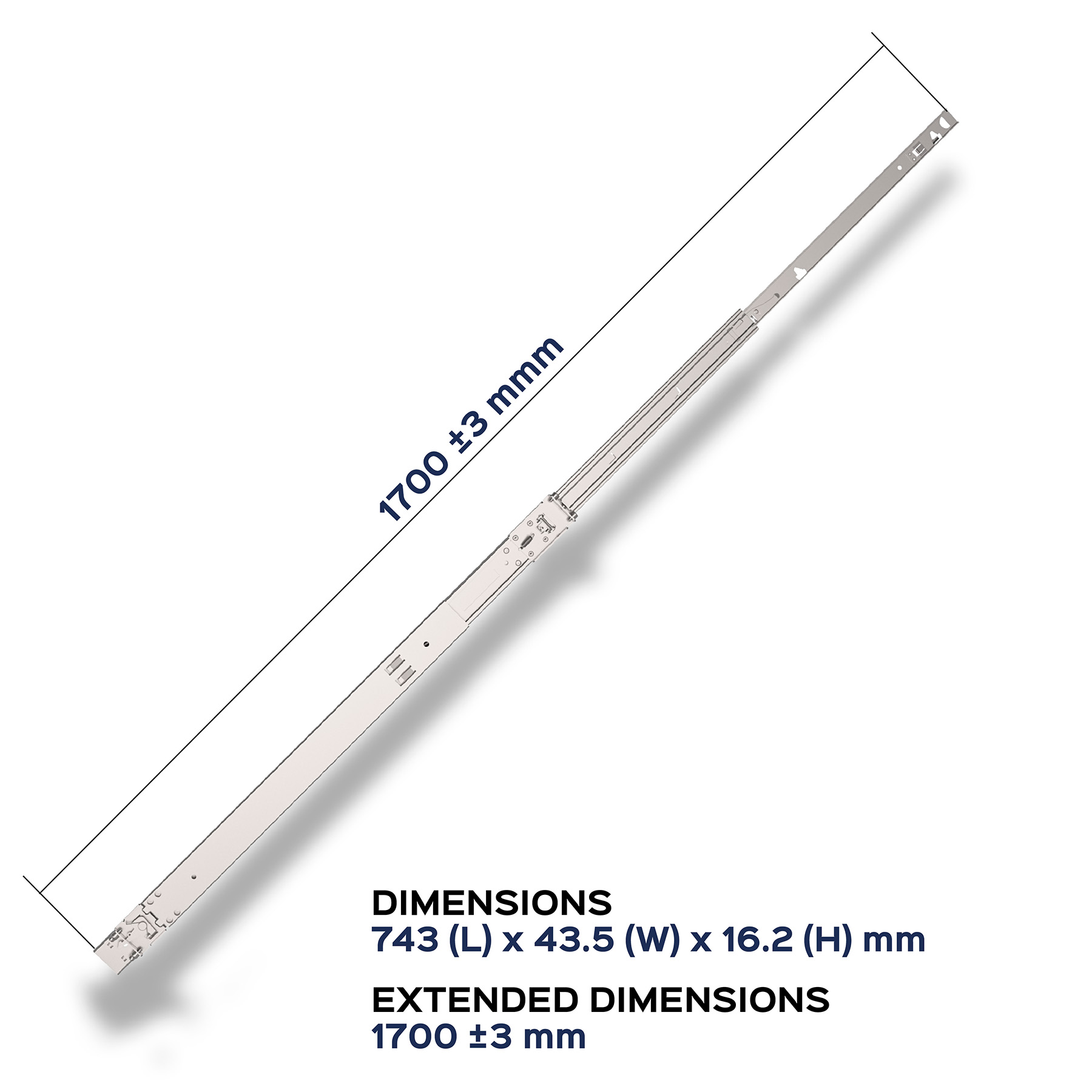

DIMENSIONS
743 (L) x 43.5 (W) x 16.2 (H)

EXTENDED DIMENSIONS
1700 ±3 mm

WEIGHT
3,13 kg

COLOUR
Silver

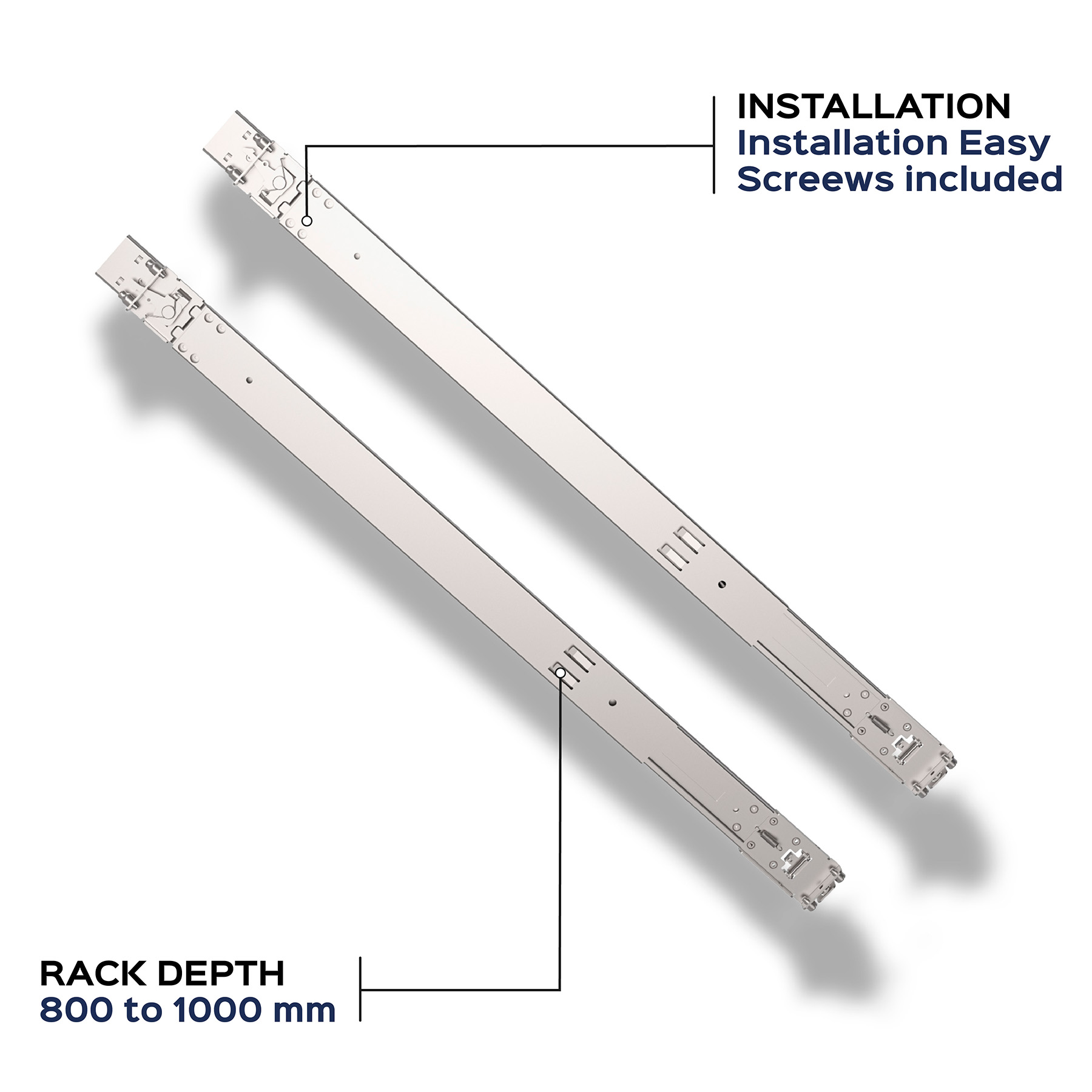

COMPATIBILITY
Cabinets with a depth of 80 to 100 cm

MOUNTING
Tool-less mounting of the bracket in cabinets with 9.5 x 9.5mm holes

MAXIMUM WEIGHT SUPPORT
40 kg

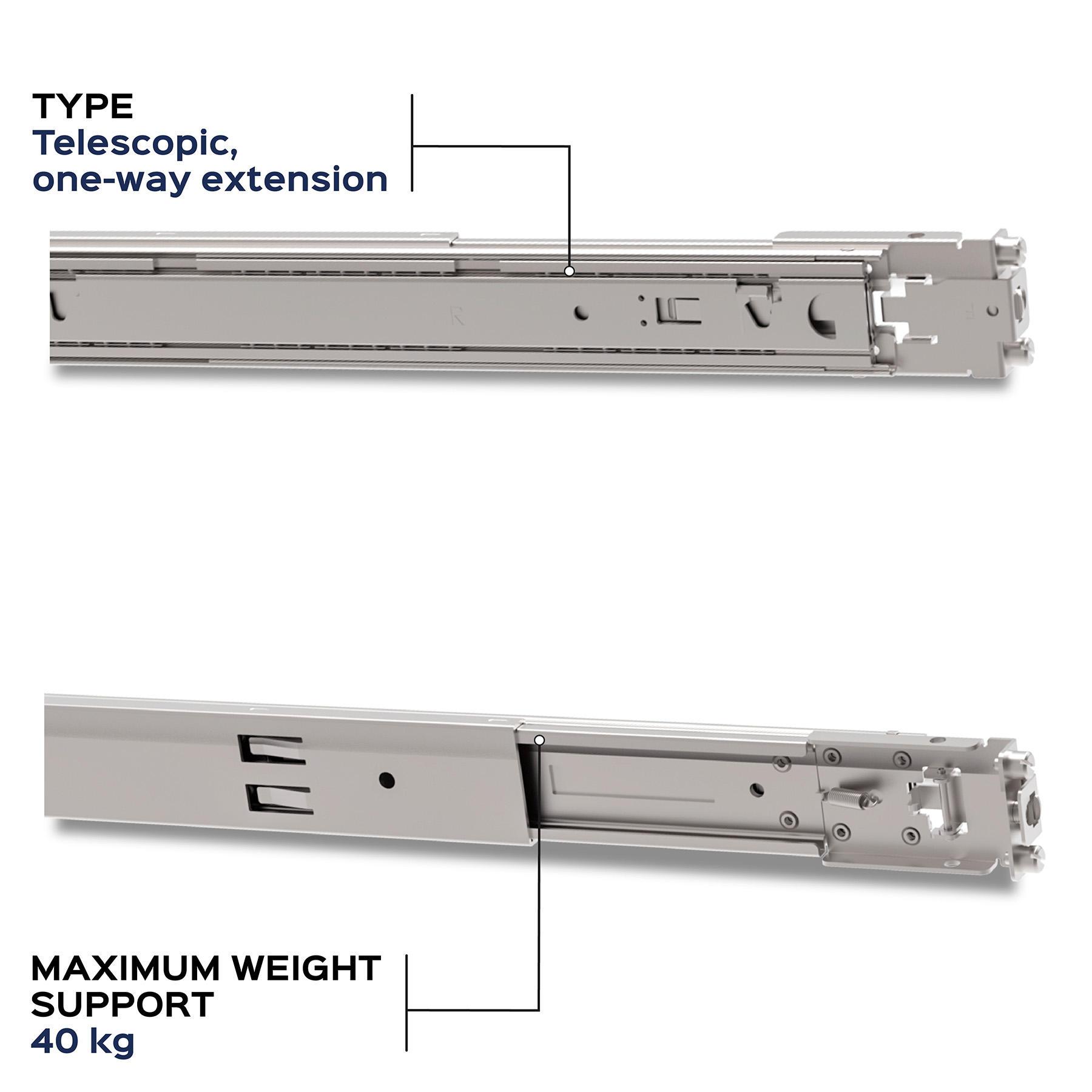

TYPE
Telescopic

PACKAGING

DIMENSIONS
894 (L) x 94 (W) x 64 (H) mm

WEIGHT
3,48 kg

CUBIC CAPACITY
0,0053 m3

COLOUR
Brown

MATERIAL
Paperboard

PACKAGE CONTENT
2 Rack Rails / Screws

CERTIFICATIONS
CE / ROSH

DOWNLOAD

TECHNICAL SHEET
Sliding Telescopic Rails Compatible with HSW4208G4 2U Rack PN:UK514208G4

MANUAL
–

DRIVERS
–

OTHERS
–

OTHER FEATURES

MASTER BOX DIMENSIONS
912 (L) x 209 (W) x 219 (H) mm

MASTER BOX WEIGHT
21,38 kg

UNITS PER MASTER BOX
6

UNITS PER AMERICAN PALLET
–

UNITS PER EUROPEAN PALLET
–

RECOMMENDED
