Rack Case
4U 19″ UK4339H

P/N:UK51918 · EAN:6974560221219
Introducing the UNYKA PRO 19" 4U Rack Case UK4339H. A professional chassis for mounting CPUs in 19" rack cabinets. It is a specially designed enclosure for the installation of high-performance computer equipment such as servers, industrial PCs, storage systems, data centers, laboratories, engineering, small businesses, SMEs, and more.
It features a spacious interior that is compatible with 360mm liquid cooling systems (the support is included), promoting airflow within the case. Constructed from high-strength steel, it incorporates a key lock on its front door for enhanced security.
This case provides space for ATX or redundant power supplies and is compatible with ATX motherboards. The UK4339H model features a vertical slot and has a USB 3.0 and a Type C port on its front.
atx-typec-80mm-LQ_Compatiblity-security

IN DETAILS

deatlles-unykach-19_Servidor-Rack-UK4339H-UK51918-j
1
Security Key
2
3 Bays compatible with 3.5″ and 2.5″ drives
3
Compatible with ATX and Redundant power supplies
4
Two 80mm fans
5
Bracket for the installation of a 360mm Liquid Cooling *(Liquid Cooling not included)
6
Intrusion prevention system

PRODUCT

TYPE CHASSIS
4U ATX

MOTHERBOARD
ATX (305 x 244 mm)

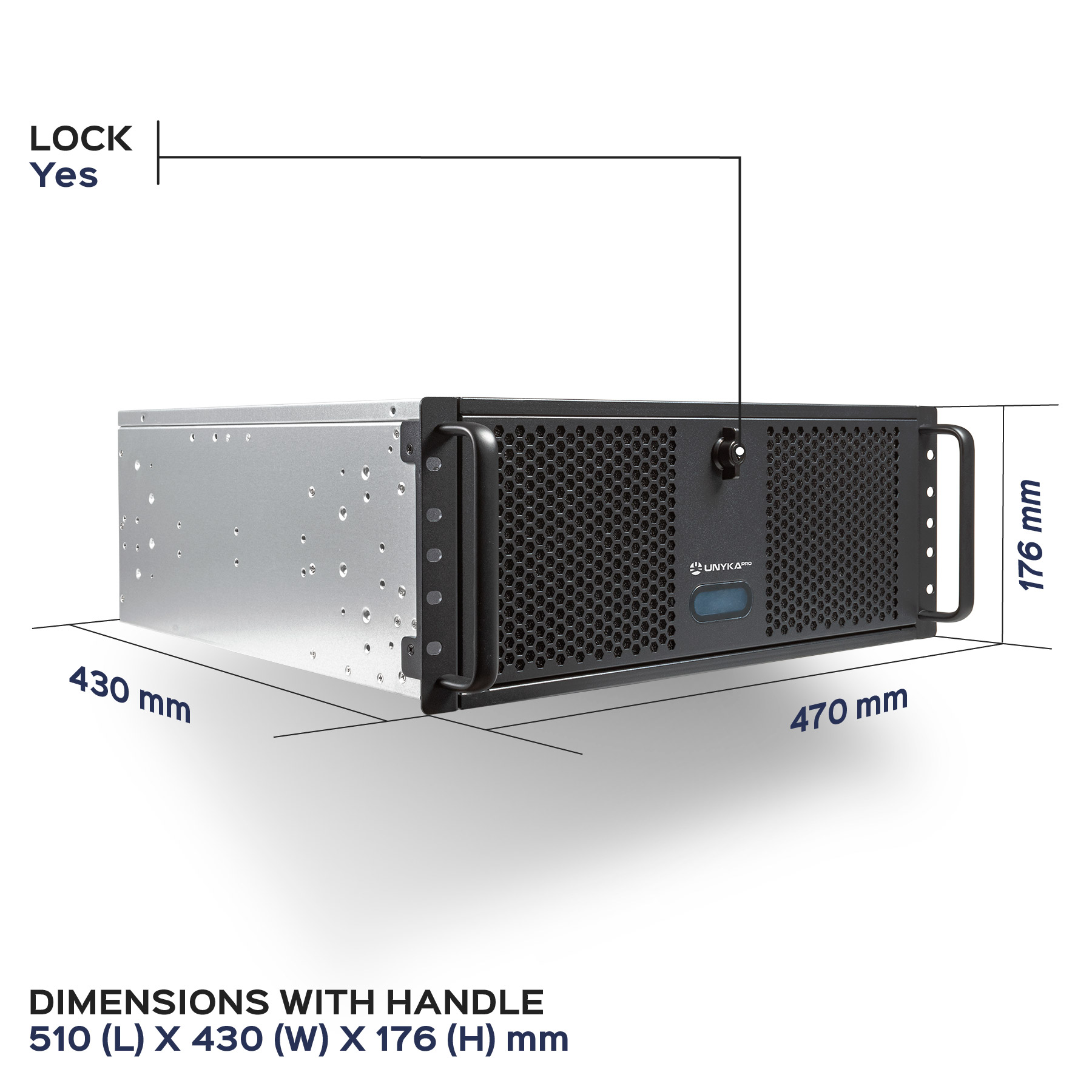

DIMENSIONS
470 (L) x 430 (W) x 176 (H) mm

DIMENSIONS WITH HANDLE
510 (L) x 430 (W) x 176 (H) mm

WEIGHT
10,34 kg

COLOUR
Black / Silver

MATERIAL
Front SGCC 1.0 mm / Case SGCC 1.2 mm

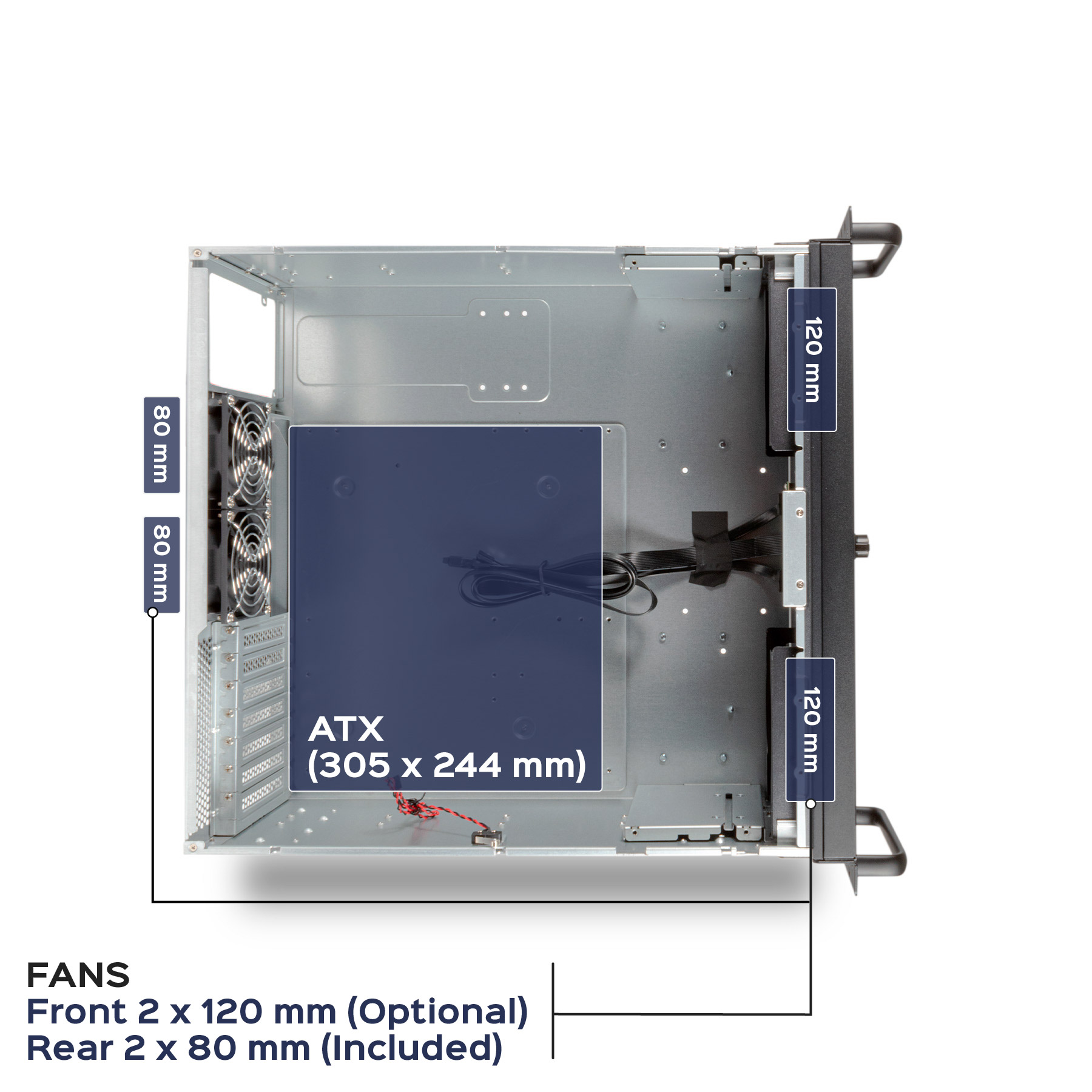

FAN
Front 2 x (120mm) *Optional / Rear 2 x (80mm) Included

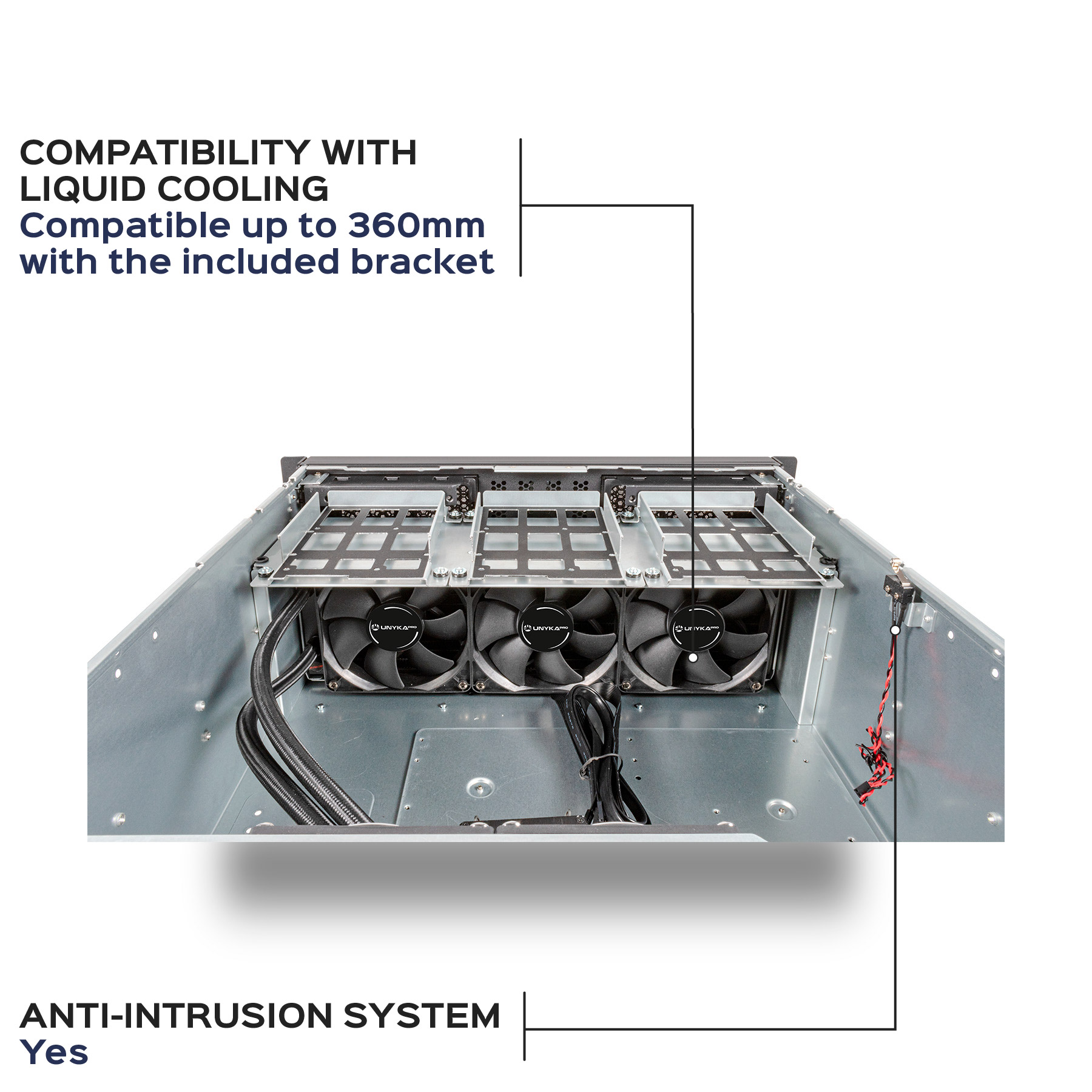

COMPATIBILITY WHITH LIQUID COOLING
Yes, compatible with 360mm liquid cooling using the included bracket

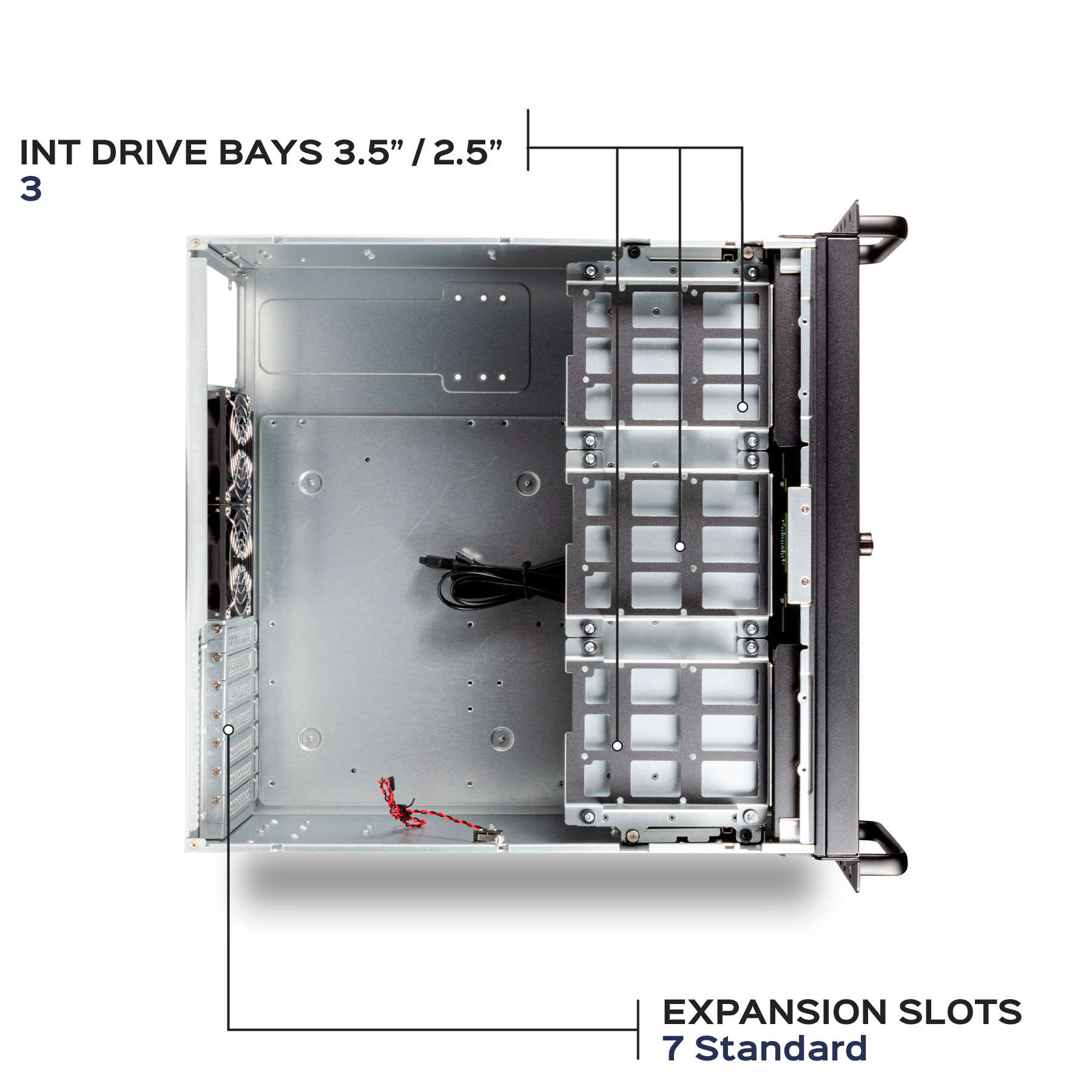

EXPANSION SLOT
7 Normal

BAY 3,25”/2,5 INT/EXT
3 / 0

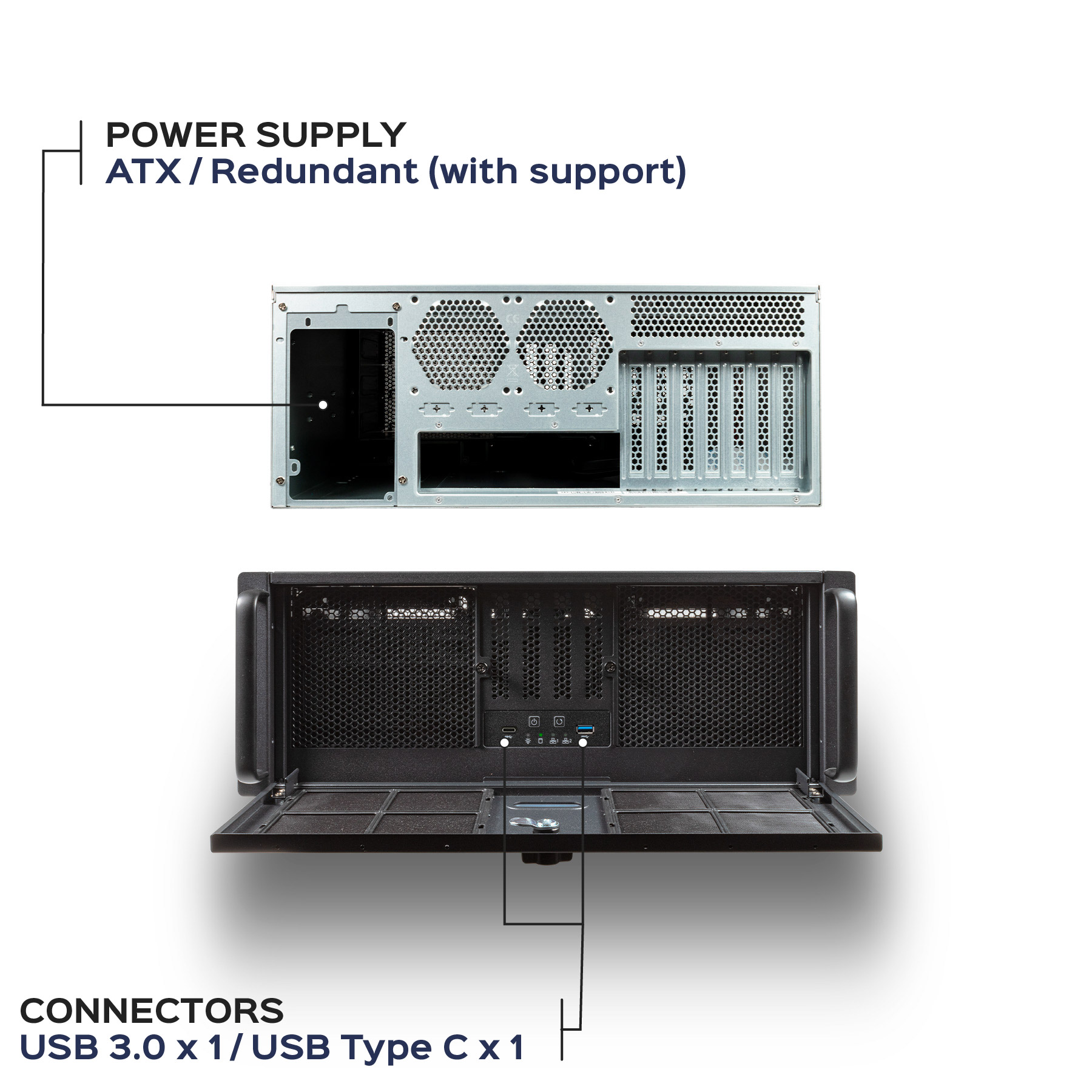

CONNECTOR
USB 3.0 x 1 / USB Type C x 1

POWER SUPPLY ADMITTED
ATX / Redundant CRPS Power Supply (with support)

ANTI DUST FILTER
Yes

KEY
Yes

ANTI INTRUSION SECURITY SYSTEM
Yes

PACKAGING

PACKAGING

DIMENSIONS
614 (L) x 565 (W) x 340 (H) mm

WEIGHT
14,06 kg

CUBIC CAPACITY
0,1179 m3

COLOUR
Brown

MATERIAL
Paperboard

PACKAGE CONTENT
Rack Case / 2 keys / Screws / Fans

CERTIFICATIONS
CE / ROSH
