Rack Rails
P/N:UK52094 · EAN:8436617920011
GTIN14:18436617920018 / 10 packs
Pair of steel rails for rackmount chassis in black color. With a length of 55 cm and a weight of 2.2 kg, they're the necessary complements to correctly install a Rack case inside a Rack cabinet. In addition, it includes the necessary hardware to facilitate assembly.
| COMPATIBILITY WITH RACK AND HOT SWAP CASES | ||||
|
Rails Universal 1U / 2U / 3U / 4U P/N:UK52094 |
Rails RG4208G4 P/N:UK514208G4 |
Rails RG4208G3 P/N:UK51921 |
Rack Rails RG6508 P/N:UK516508 |
Rails RG4339U P/N:UK5191820 |
|
1U UK1029 (P/N:51916) |
2U HSW4208 G4 (P/N: UK80.20.08G4) |
2U HSW4208 G3 (P/N: UK80.20.08G3) |
4U HSW4U6508 (P/N:UK80.40.6508) |
4U UK4339H (P/N:UK51918) |
|
1U HSW4104 (P/N:80.10.04) |
- | - | - |
4U UK4339V (P/N:UK51920) |
|
2U HSW4208 (P/N:80.20.08) |
- | - | - |
4U UK4329 USB TYPE C (P/N:51915) |
|
2U UK2129 (P/N: 52095) |
- | - | - | - |
|
2U HSW6212 (P/N:80.20.12) |
- | - | - | - |
|
3U HSW4416 (P/N:80.30.16) |
- | - | - | - |
|
4U UK4129 (P/N: 51912) |
- | - | - | - |
|
4U UK4329 USB TYPE C (P/N: 51915) |
- | - | - | - |
|
4U UK4229 EVO (P/N: UK51917) |
- | - | - | - |
|
4U HSW6424 (P/N:80.40.24) |
- | - | - | - |
|
4U HSW4520 (P/N:80.40.20) |
- | - | - | - |
|
4U UK4339H (P/N:UK51918) |
- | - | - | - |
|
4U UK4339V (P/N:UK51920) |
- | - | - | - |
|
2U UK2130 2U600 (P/N:UK51922) |
- | - | - | - |
PRODUCT

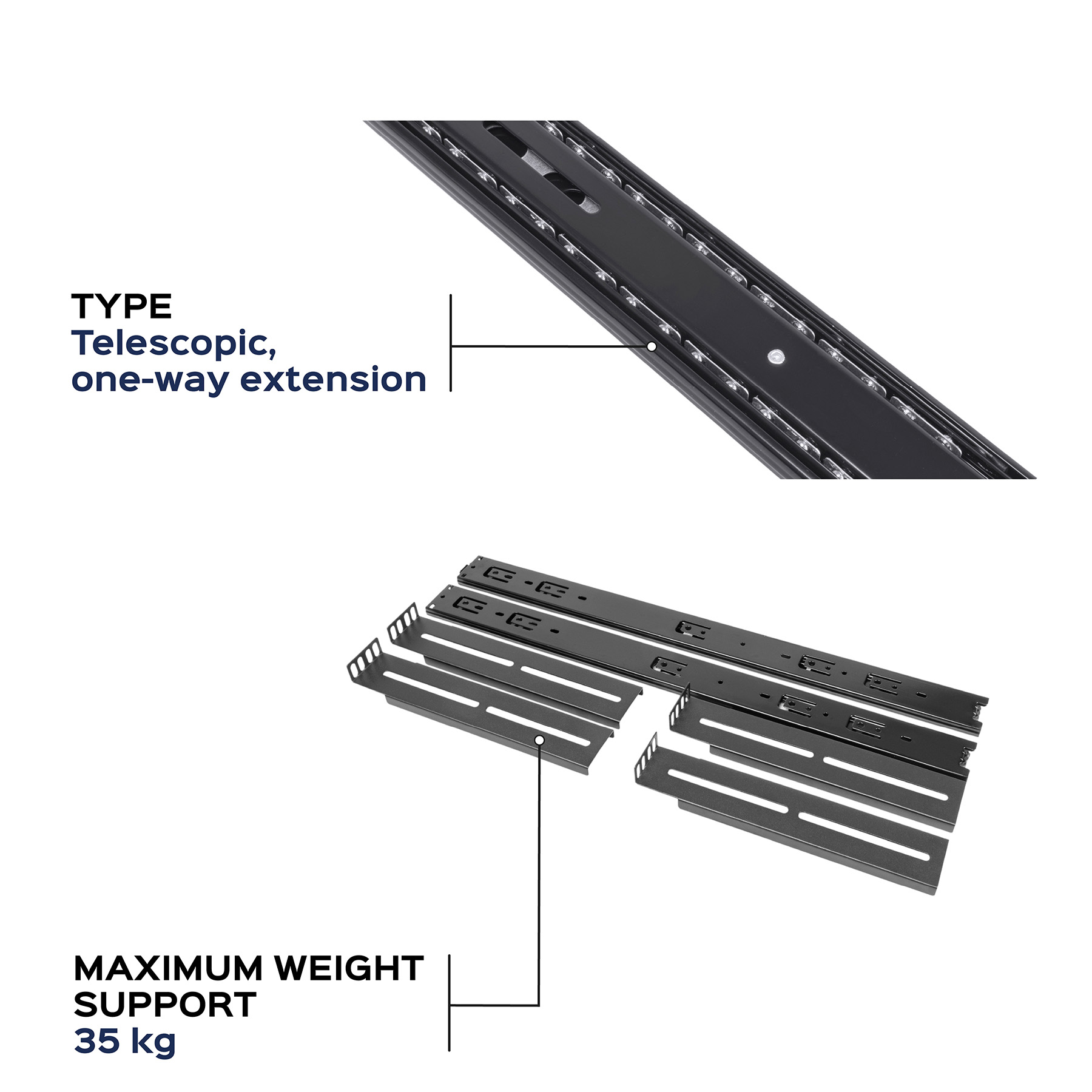

TYPE
Telescopic, one-way extension

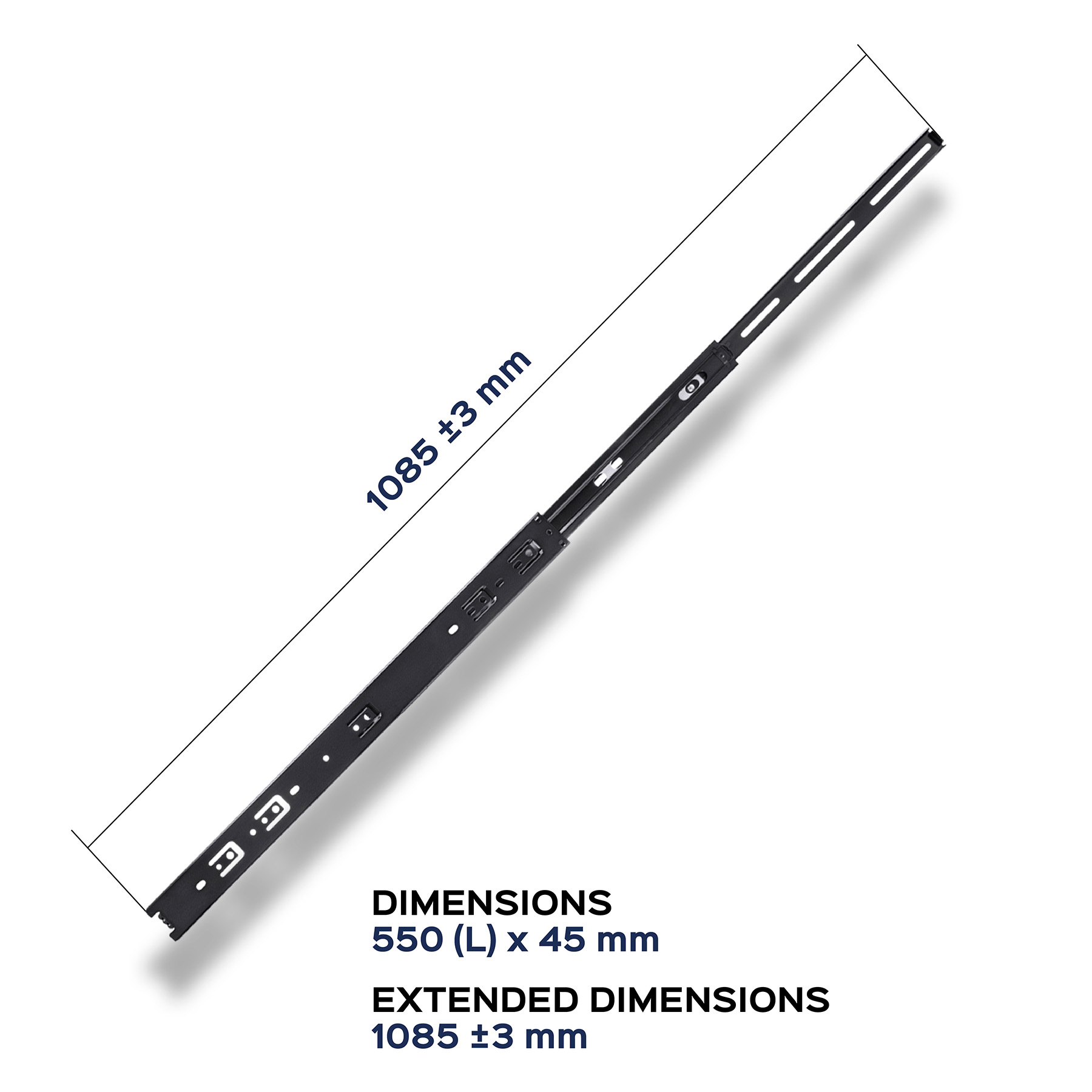

DIMENSIONS
550 (L) x 45 (W) mm
EXTENDED DIMENSIONS
1085 ±3 mm

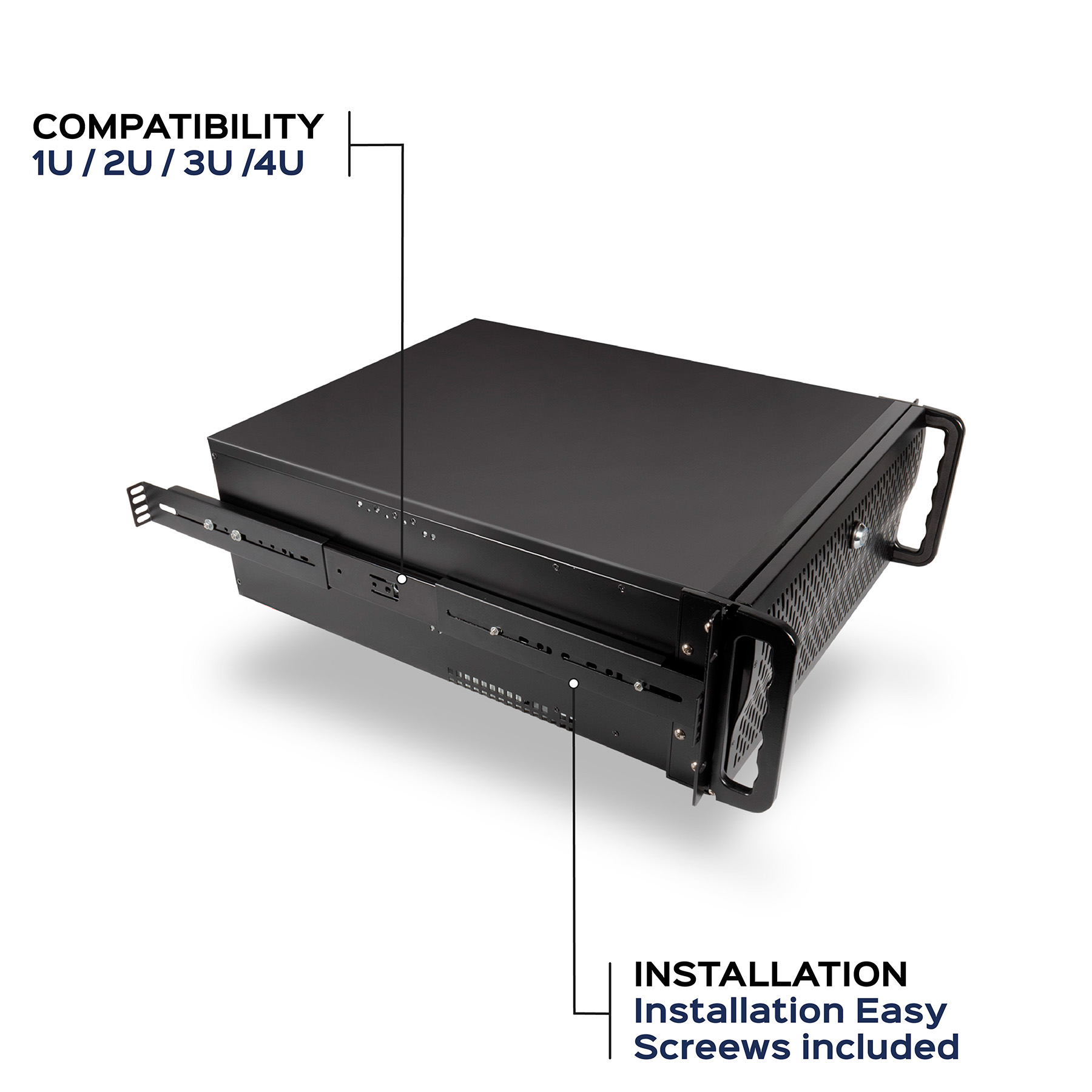

COMPATIBILITY
Chassis 1U / 2U / 3U / 4U

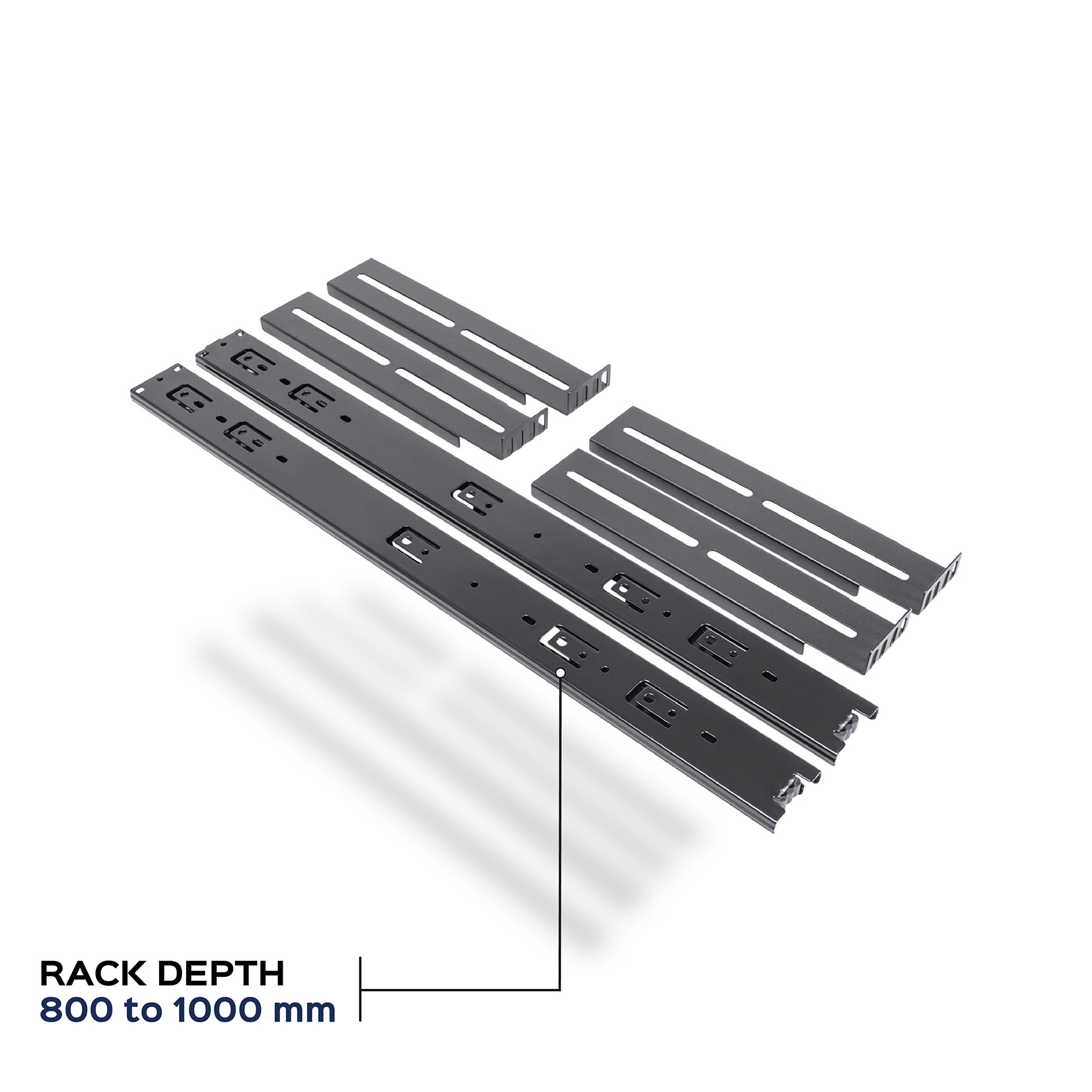

RACK DEPTH
800 to 1000 mm
MAXIMUM WEIGHT SUPPORT
35 Kg
WEIGHT
2,2 kg
COLOUR
Black
PACKAGING
DIMENSIONS
585 (L) x 56 (W) x 60 (H) mm
WEIGHT
2,2 kg
CUBIC CAPACITY
0,0023 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Rack Rails / Screws
DOWNLOAD
TECHNICAL SHEET
Universal Rails Compatible with 1U / 2U / 3U / 4U PN:UK52094
MANUAL
User Maunal Rack Rails 1U / 2U / 4U PN:UK52094
DRIVERS
–
OTHERS
Product link in ICECAT
CE Certificate of Conformity
OTHER CHARACTERISTICS
MASTER BOX DIMENSIONS
600 (L) x 340 (W) x 140 (H) mm
MASTER BOX WEIGHT
21 kg
UNITS PER MASTER BOX
10
UNITS PER AMERICAN PALLET
24
UNITS PER EUROPEAN PALLET
–
