P/N:52095 · EAN:6940533542551
Model 2129 is a case in Rack format, measuring 2U. Its metallic design with black front, structure and professional style, make it a perfect choice for work environments.
It has a compact design, but nevertheless inside it provides space for 4 of 3.5 "hard drives. Includes 3 x 80mm fans of 80mm for the correct conservation at the appropriate temperature of the elements included inside.
Furthermore, thanks to the help of the front dust filter, internal components are protected, prolonging the useful life of these in better conditions and also favoring stable cooling.

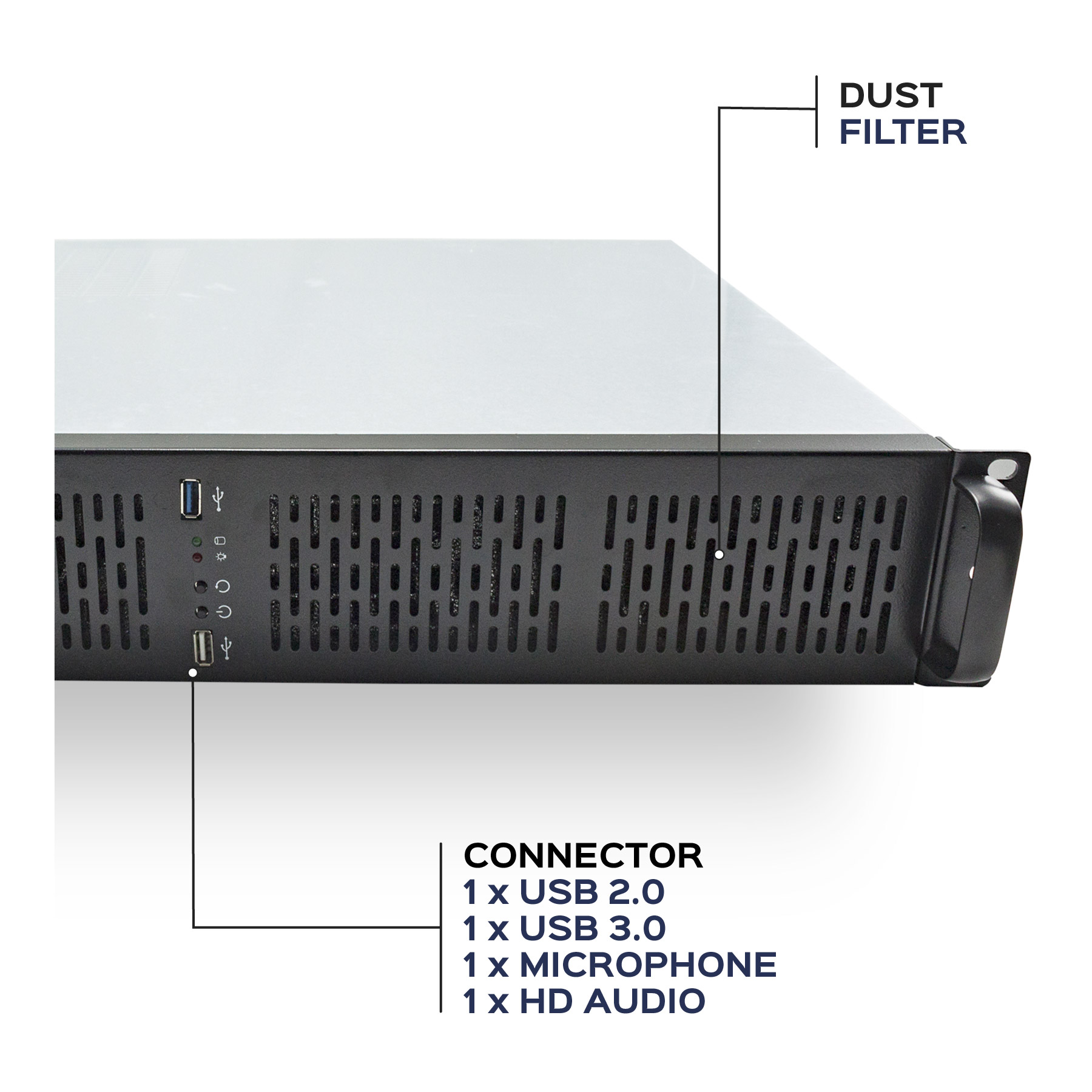

FRONT I/O PORTS
The Rack 2U 19" UK2129 is designed to provide convenient and practical access to the system’s essential connections. On its front panel you will find:
- USB 2.0 Port: Universal compatibility for peripherals and external devices.
- USB 3.0 Port: High-speed connection for fast and stable data transfers.
- Microphone Output: Dedicated connector for audio capture and communication devices.
- Audio Input: Quick access for headphones, speakers, or other sound devices.
- Dust Filter: Helps reduce particle buildup inside the system, improving cooling performance, simplifying maintenance, and extending the lifespan of the components.
OPTIMIZED COMPATIBILITY AND COOLING
The Rack 2U 19" UK2129 is compatible with Micro ATX motherboards up to 9.6 x 9.6 inches, providing a versatile configuration for professional and industrial systems. Its internal design supports multiple storage combinations, including configurations of 2 x 2.5" or 2 x 3.5", as well as 1 x 2.5" + 1 x 3.5" or 2 x 3.5", adapting to different capacity and performance requirements.
To ensure efficient cooling, it supports CPU coolers with a maximum height of 67 mm and includes 3 x 80 mm fans, optimizing internal airflow and maintaining stable temperatures even under demanding workloads.

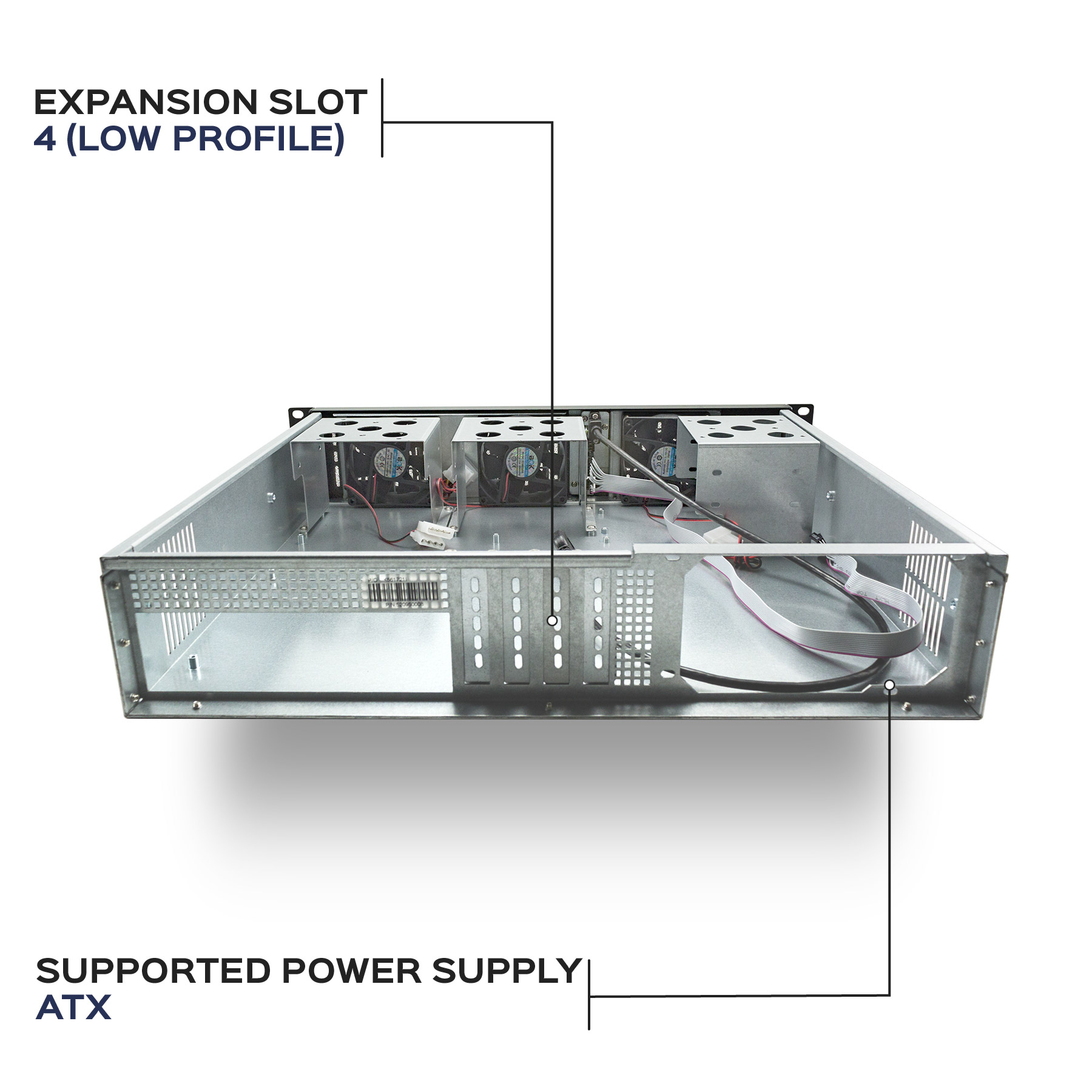

PROFESSIONAL EXPANSION AND ATX COMPATIBILITY
The Rack 2U 19" UK2129 features 4 low-profile expansion slots, allowing the integration of additional network, sound, capture, or storage cards in compact and efficient configurations. In addition, it is compatible with ATX power supplies, providing greater configuration flexibility and compatibility with a wide range of professional market solutions.
2U RACK DESIGN
With a standard 2U rack form factor, this chassis integrates seamlessly into data center infrastructures and enterprise environments.
The front panel features aluminum handles that facilitate handling and removal, optimizing maintenance tasks and hardware access.

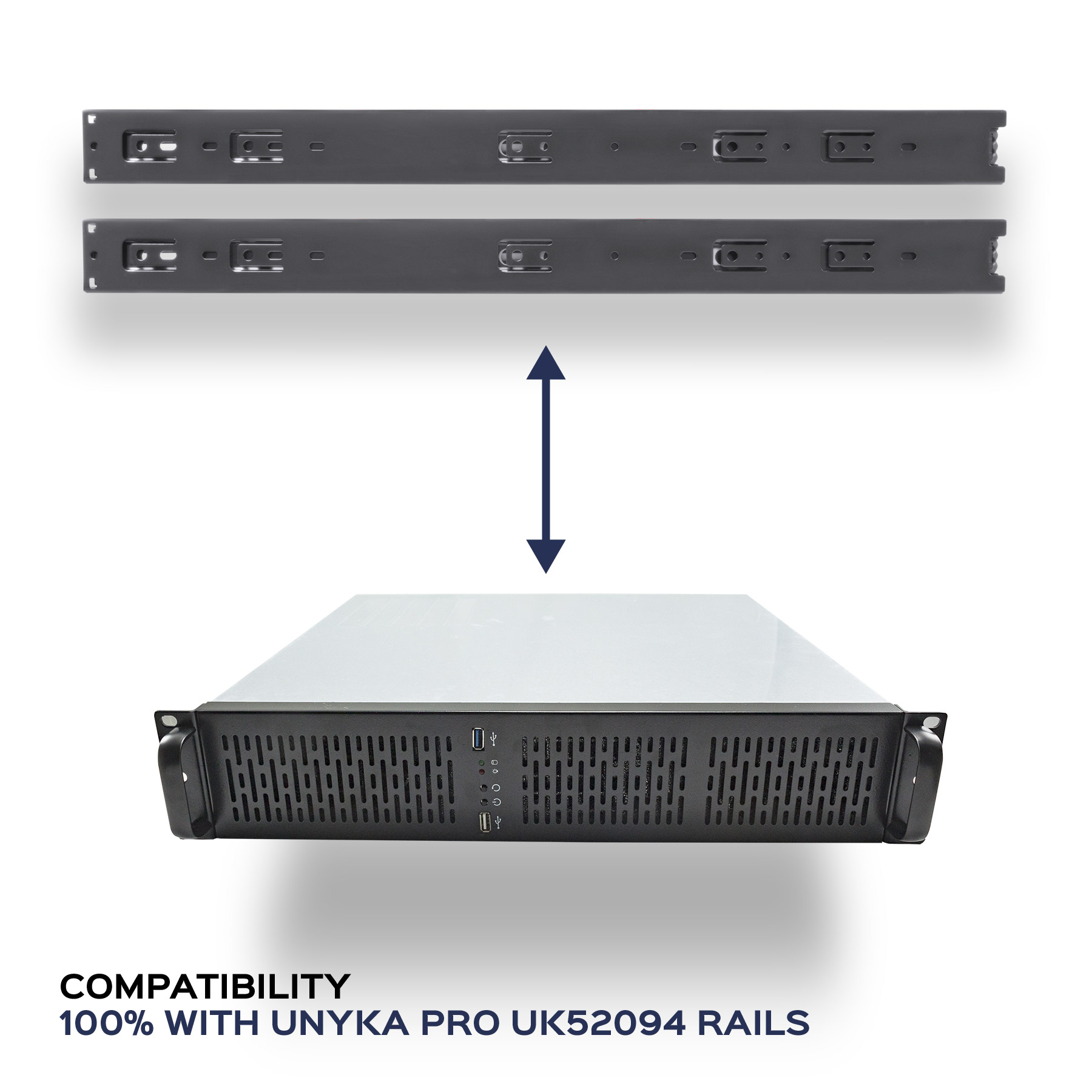

RACK INSTALLATION AND RAIL COMPATIBILITY
The chassis is designed for quick and easy installation in standard racks using pre-installed mounting holes, compatible with 22" sliding rails for rack servers. This feature facilitates deployment in data center environments and simplifies maintenance operations by allowing full extraction of the unit.
For optimal integration, the use of UNYKA PRO UK52094 rails is recommended, available as an optional accessory.
PRODUCT
TYPE CHASSIS
2U MATX
MOTHERBOARD
Micro ATX (9.6″ x 9.6″)

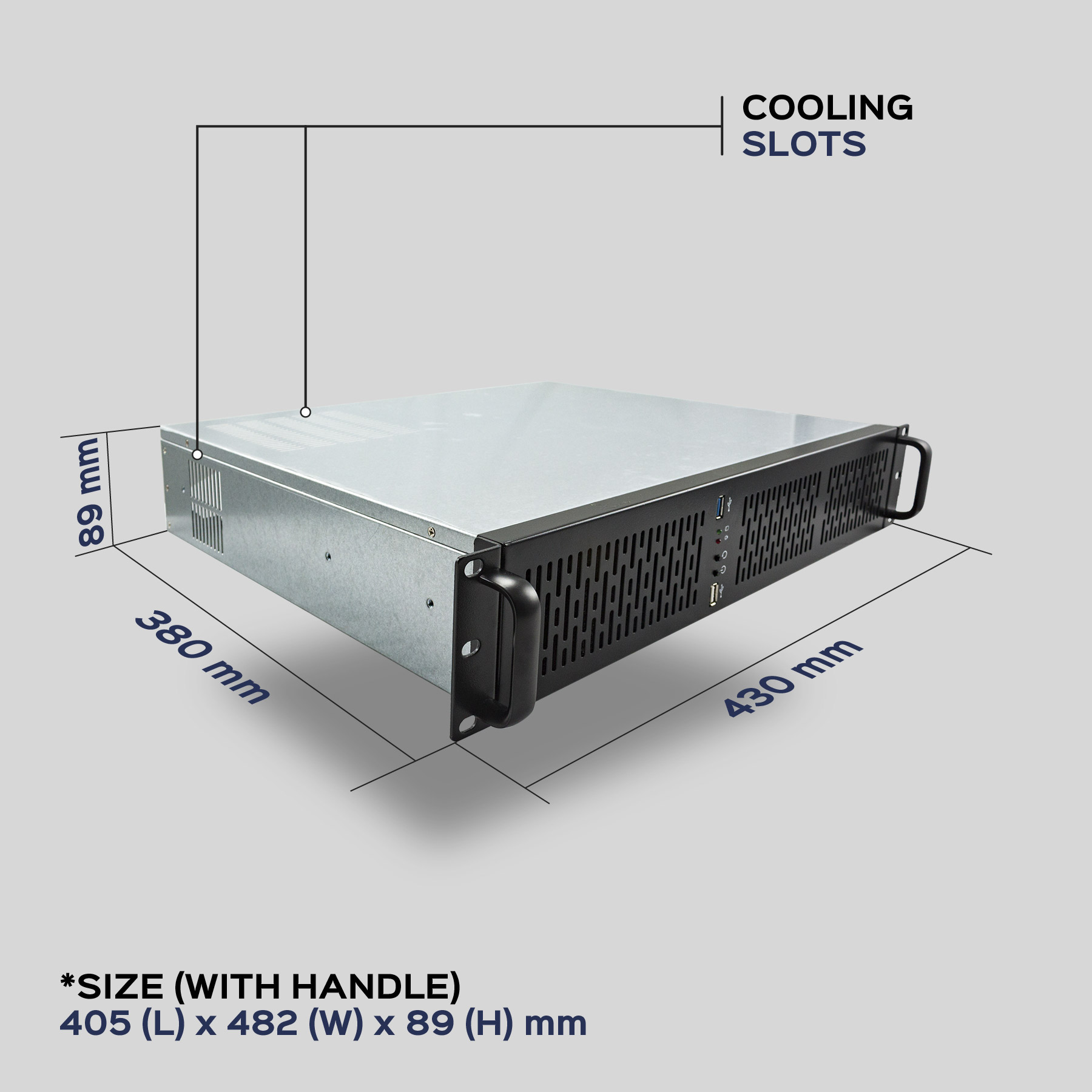

DIMENSIONS
380 (L) x 430 (W) x 89 (H) mm
DIMENSIONS WITH HANDLE
405 (L) x 482 (W) x 89 (H) mm
WEIGHT
4,9 kg
COLOUR
Black / Silver
MATERIAL
SGCC 1.0 mm
FAN
3 X 80 mm (Included)
EXPANSION SLOT
4 (Low Profile)

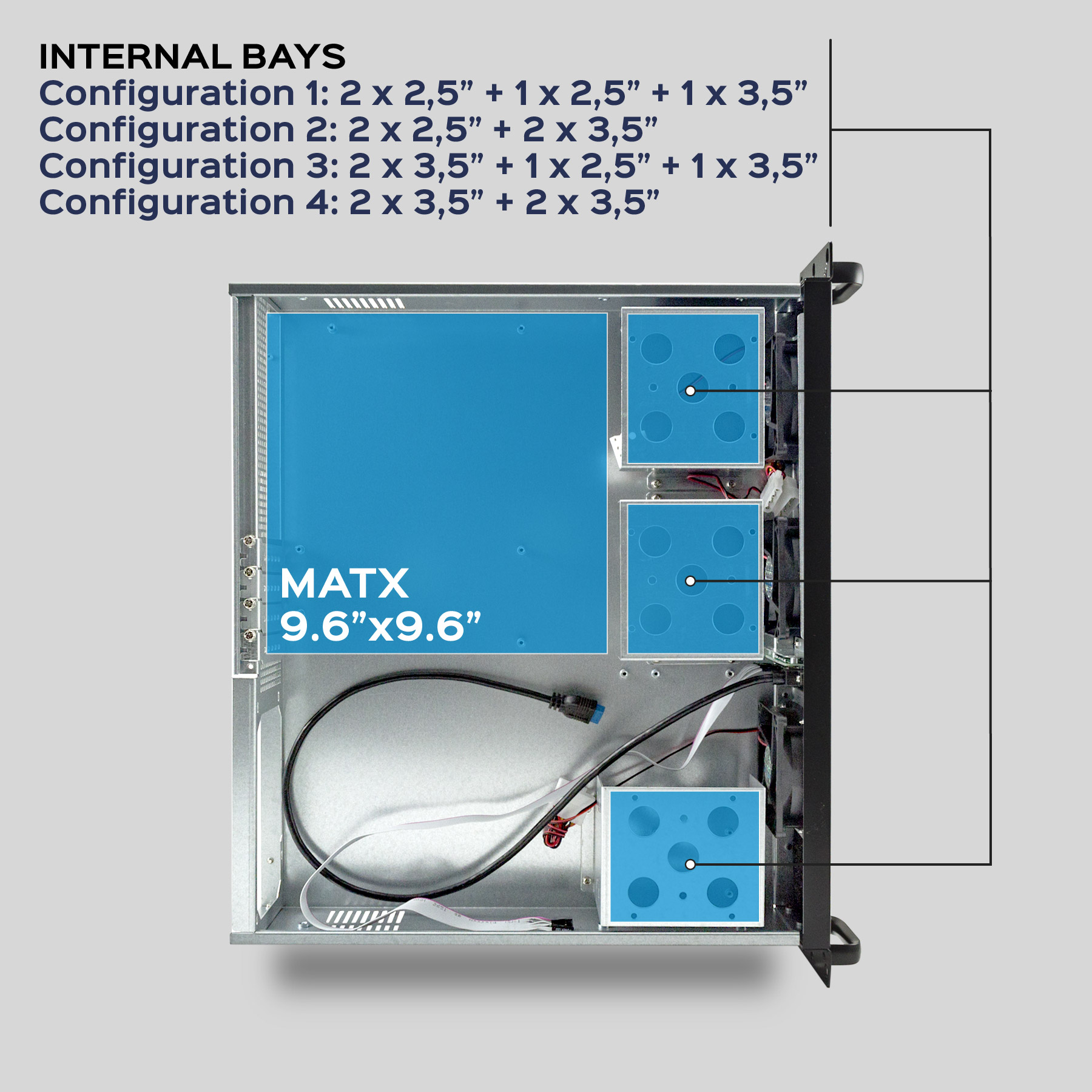

INTERNAL BAYS
Configuration 1: 2 x 2,5” + 1 x 2,5” + 1x 3,5”
Configuration 2: 2 x 2,5” + 2 x 3,5”
Configuration 3: 2 x 3,5” + 1 x 2,5” + 1x 3,5”
Configuration 4: 2 x 3,5” + 2 x 3,5”
CONECTOR
USB 2.0 x 1 / USB 3.0 x 1
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
ATX
ANTI DUST FILTER
Yes
PACKAGING
DIMENSIONS
465 (L) x 540 (W) x 160 (H) mm
WEIGHT
5,9 kg
CUBIC CAPACITY
0,0402 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Rack Case / Screws / Fans
CERTIFICATIONS
CE / ROSH
DOWNLOAD
TECHNICAL SHEET
Rack Case 2U 19″ UK2129 PN:52095
MANUAL
Manual User Rack Case 2U 19 UK2129 PN:52095
DRIVERS
–
OTHERS
Product link in ICECAT
CE Certificate of Conformity
OTHER FEATURES
MASTER BOX DIMENSIONS
465 (L) x 540 (W) x 160 (H) mm
MASTER BOX WEIGHT
5,9 kg
UNITS PER MASTER BOX
1
UNITS PER AMERICAN PALLET
48
UNITS PER EUROPEAN PALLET
–
RECOMMENDED
