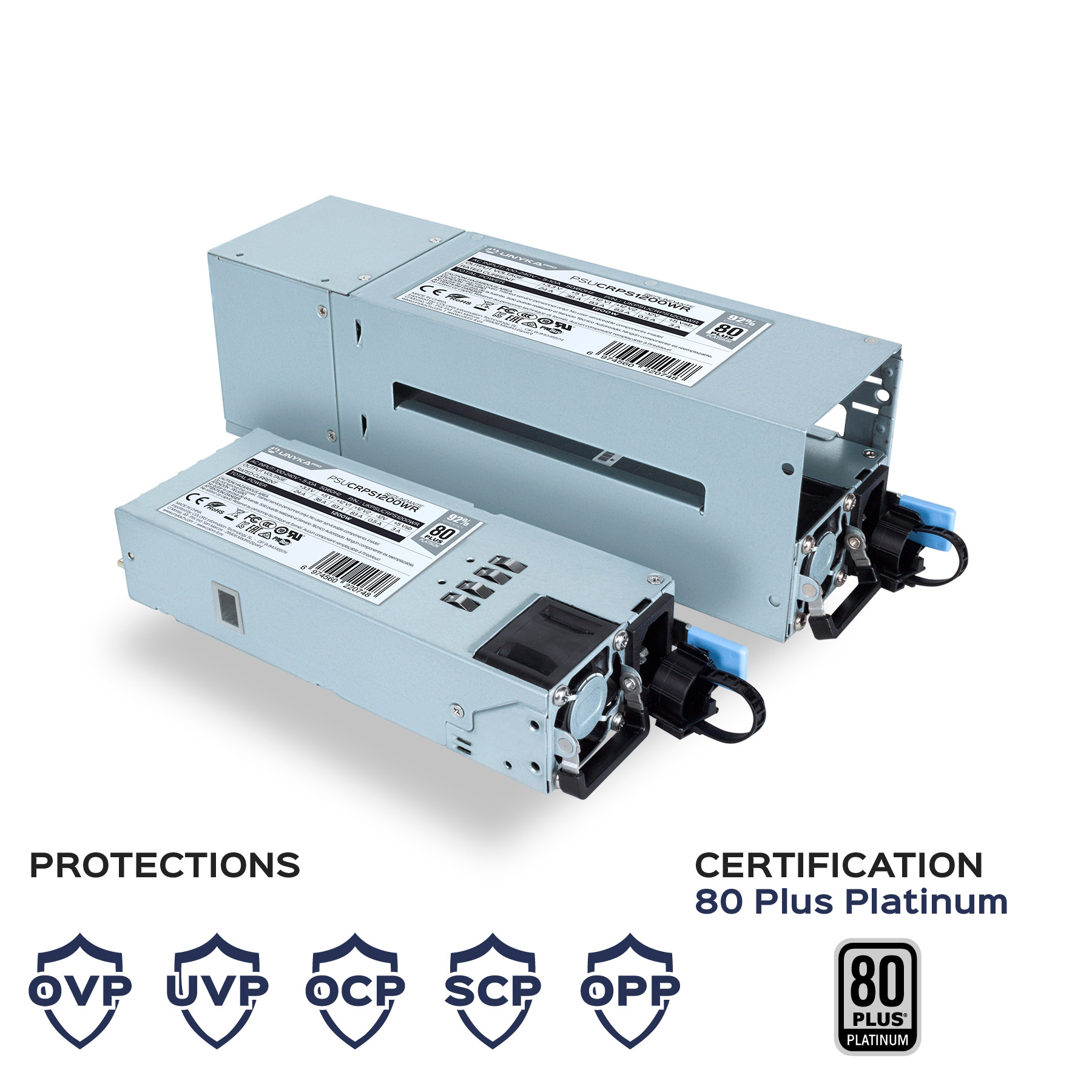

Redundant Power Supply
P/N:PSUCRPS1200WR · EAN:6974560220748
The professional range of redundant power supplies from UNYKAch is designed with interchangeable modules. These two power modules, in normal situation, automatically share the load for optimum efficiency. If a power module fails, the remaining unit immediately takes over the power supply, while the damaged unit can be replaced without stopping the operation, avoiding the risk of data loss or system interruption.
The redundant power supply CRPS 1200WR 80 Plus Platinum certification, it equivalent efficiency of 92%.
On the other hand, the CRPS 550W / 800W redundant power supply comes with an adapter that allows it to become the Standard ATX format.
PRODUCT
VERSION
INTEL 2.3

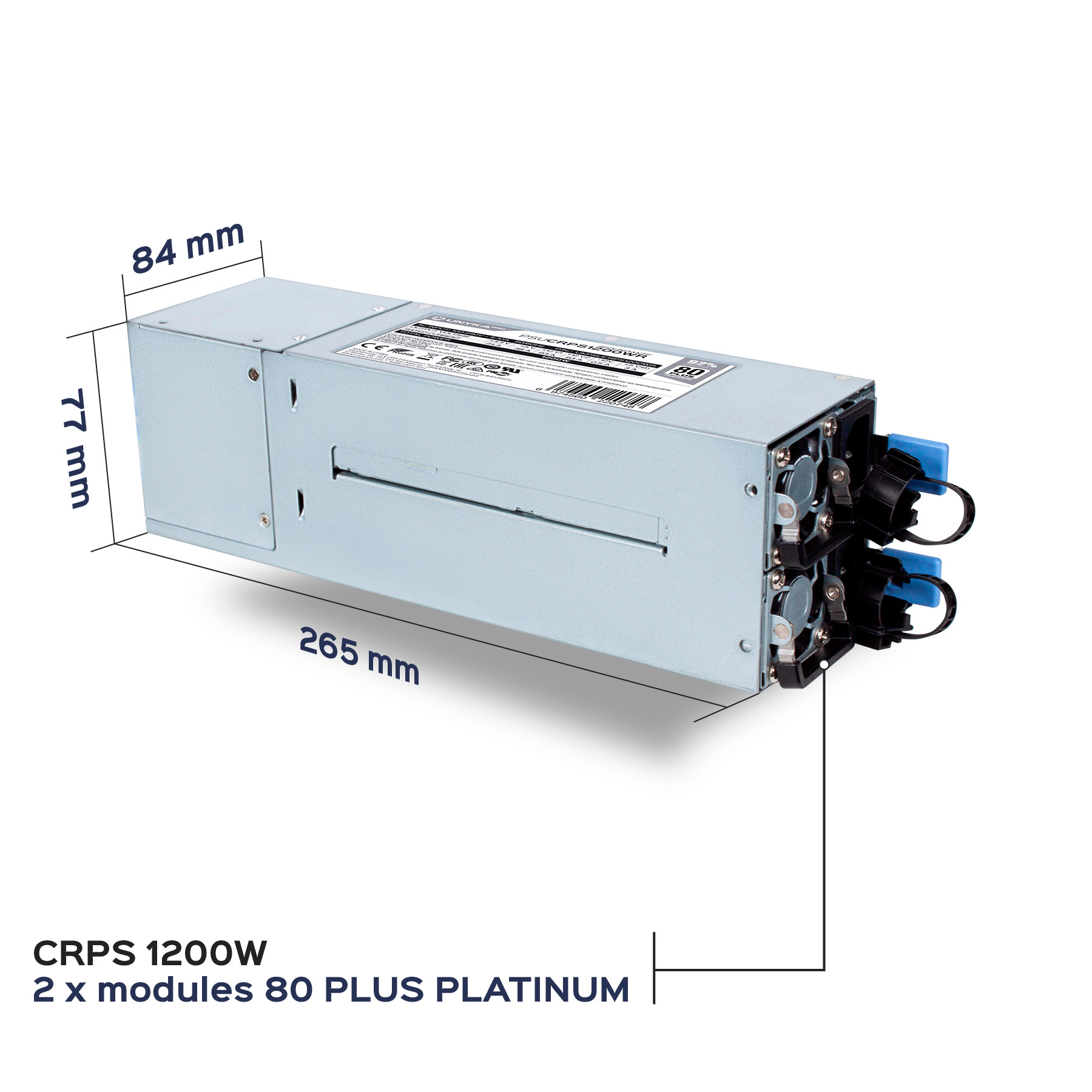

CHASSIS DIMENSIONS
265 (L) x 84 (W) x 77 (H) mm
CHASSIS WEIGHT
3,2 kg
COLOUR
Silver

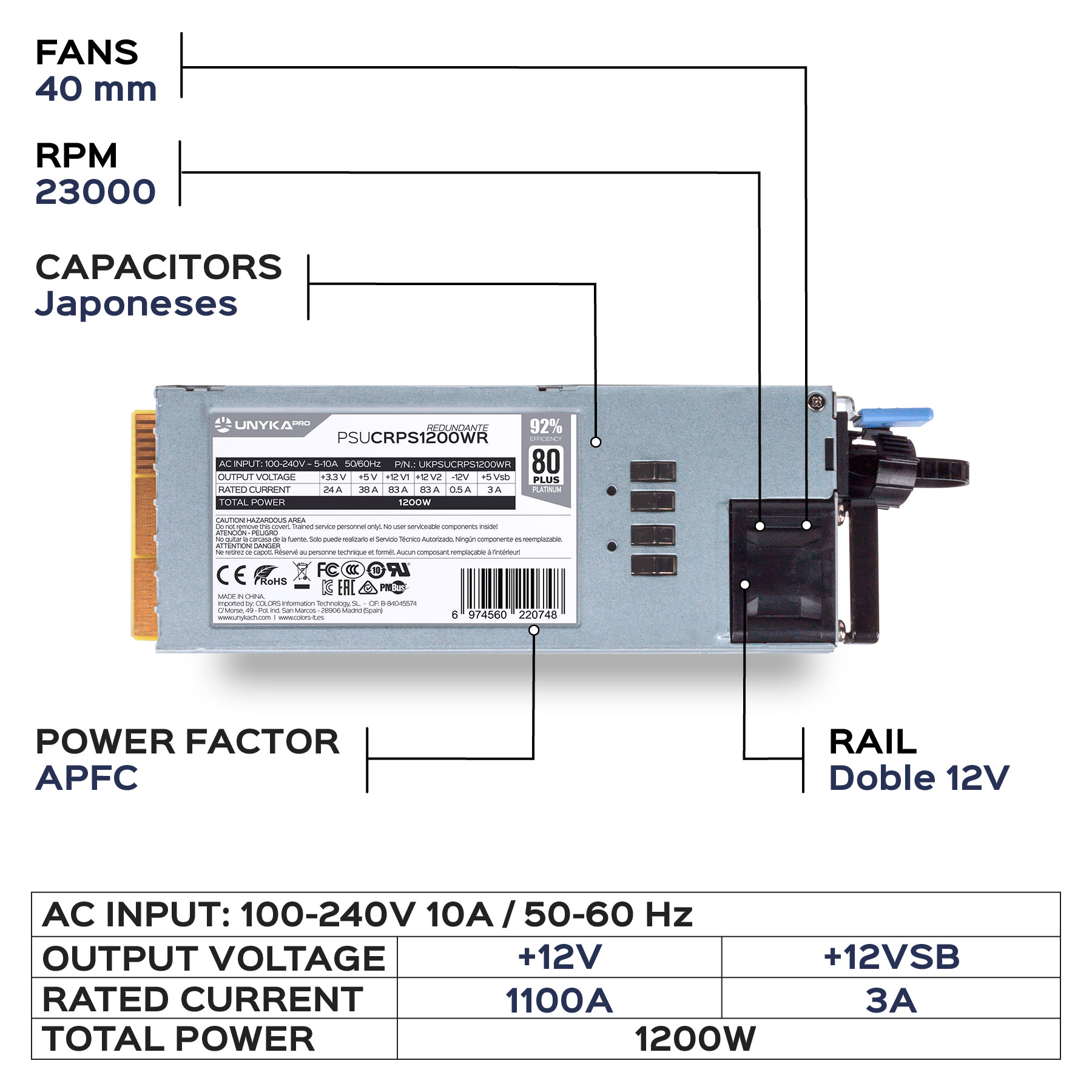

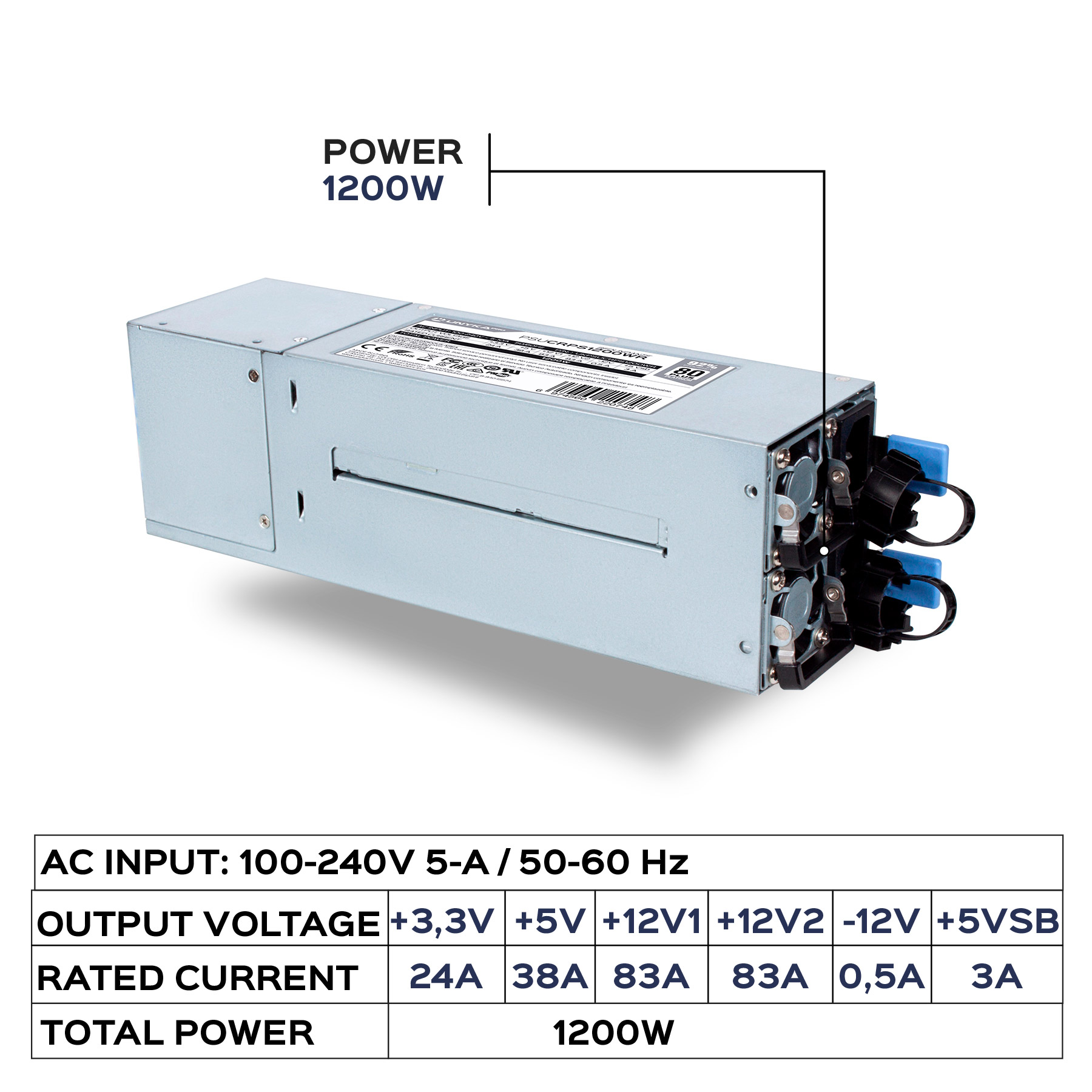

CONTROL OF ENERGY
- Nominal Power Supply Voltage: 1200W
- Maximum AC Input Current 00-240V 9.5A / 50-60 Hz Serial: PSUCRPS1200WR
- Maximum Output Current +3,3V: 24 A
- Maximum Output Current +5V: 38 A
- Maximum Output Current +12V1: 83 A
- Maximum Output Current +12V2: 83 A
- Corriente Máxima de Salida -12V: 0,5 A
- Maximum Output Current +5Vsb: 3 A

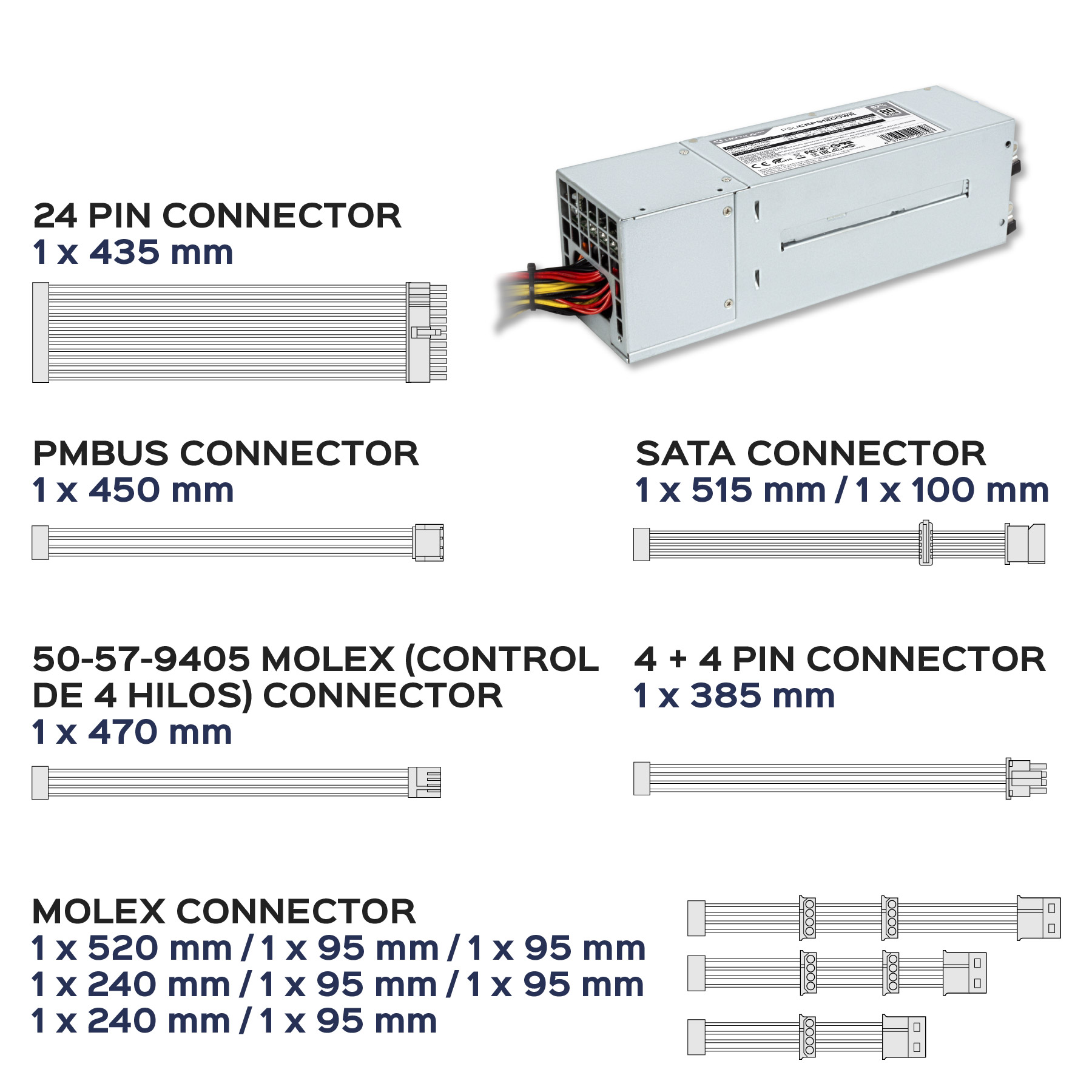

SATA CONNECTOR
1 x 515 mm / 1 x 100 mm
24 PIN CONNECTOR
1 x 435 mm
8 PIN CONNECTOR PCI-E
1 x 455 mm
4 + 4 PIN CONNECTOR
1 x 385 mm
MOLEX CONNECTOR
1 x 520 mm / 1 x 95 mm / 1 x 95 mm
1 x 240 mm / 1 x 95 mm / 1 x 95 mm
1 x 240 mm / 1 x 95 mm
MOLEX+FDD CONNECTOR
1 x 240 mm / 1 x 95 mm / 1 x 95 mm (FDD)
PMBUS CONNECTOR
1 x 450 mm
POWER SUPPLY
Includes 2 Power Supplies CRPS 1200W 80 Plus Platinum
PACKAGING
DIMENSIONS
265 (L) x 84 (W) x 77 (H) mm
WEIGHT
3,2 kg
CUBIC CAPACITY
0,0017 m3
COLOUR
Transparent
MATERIAL
BULK
PACKAGE CONTENT
Chassis / 2 Redundant Power Supplies / Screws
PROTECTIONS & CERTIFICATIONS
CE / OVP / UVP / OCP / SCP / OPP
EFFICIENCY & CERTIFICATIONS
ROHS / EN60950 / TÜV / 80 Plus Platinum
WARRANTY
3 Years
