Rack Case
P/N:UK51918 · EAN:6974560221219
The UNYKA PRO UK4340 4U600 is a 4U rackmount server chassis designed for maximum versatility and advanced compatibility, including support for liquid cooling systems.
With a depth of 600 mm, this chassis is engineered to house ATX motherboards, accommodate liquid-cooling radiators up to 360 mm, and provides 8 PCI expansion slots for enhanced configuration flexibility.
The front panel integrates USB Type-C connectivity and features an anti-theft locking system that ensures the physical security of the equipment. Additionally, it includes pre-installed mounting points for sliding rails, making installation in standard racks fast and convenient.
INTERNAL ARCHITECTURE AND POWER SYSTEMS

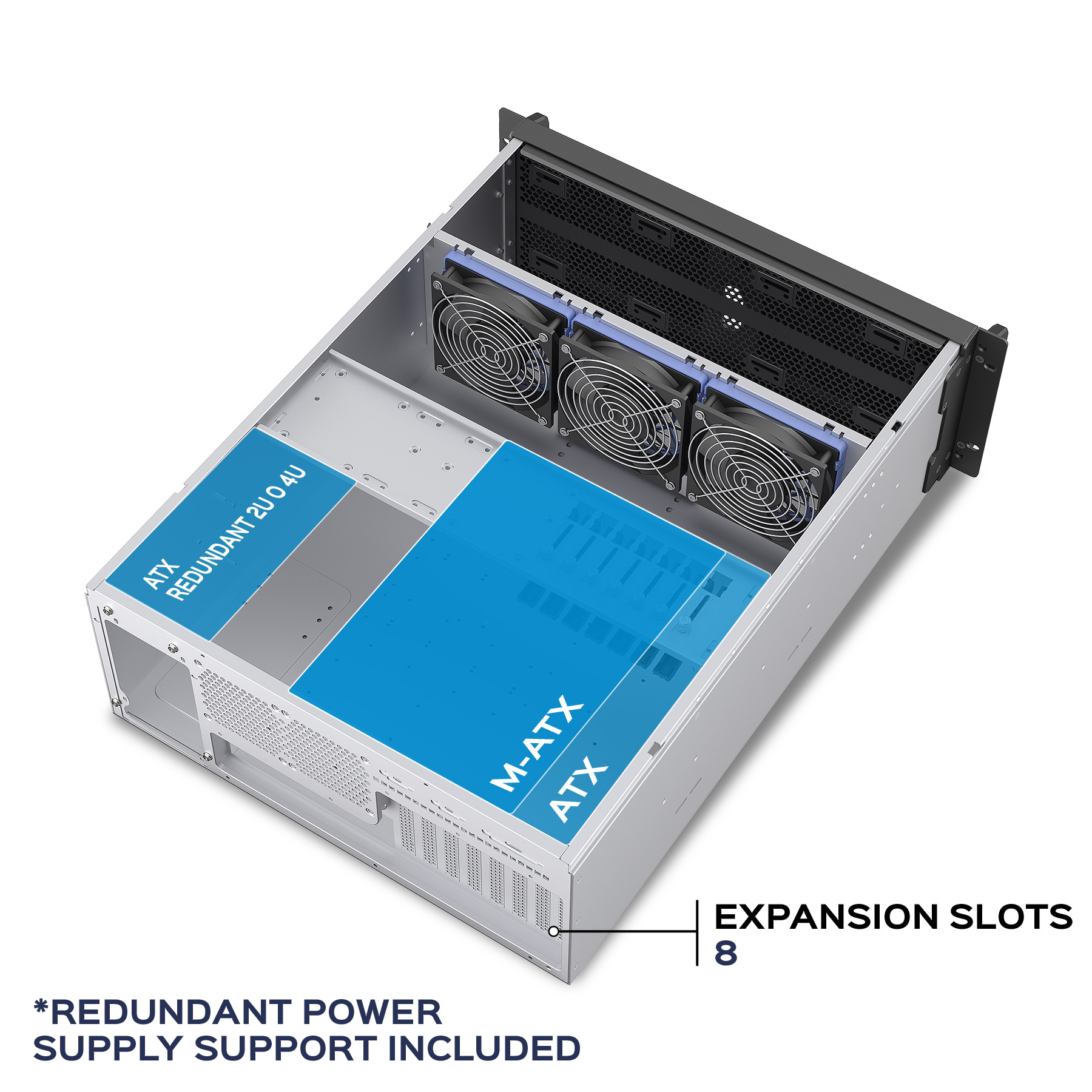

Its 600 mm depth provides generous internal space, allowing the installation of ATX and MATX motherboards, making it suitable for a wide range of server configurations.

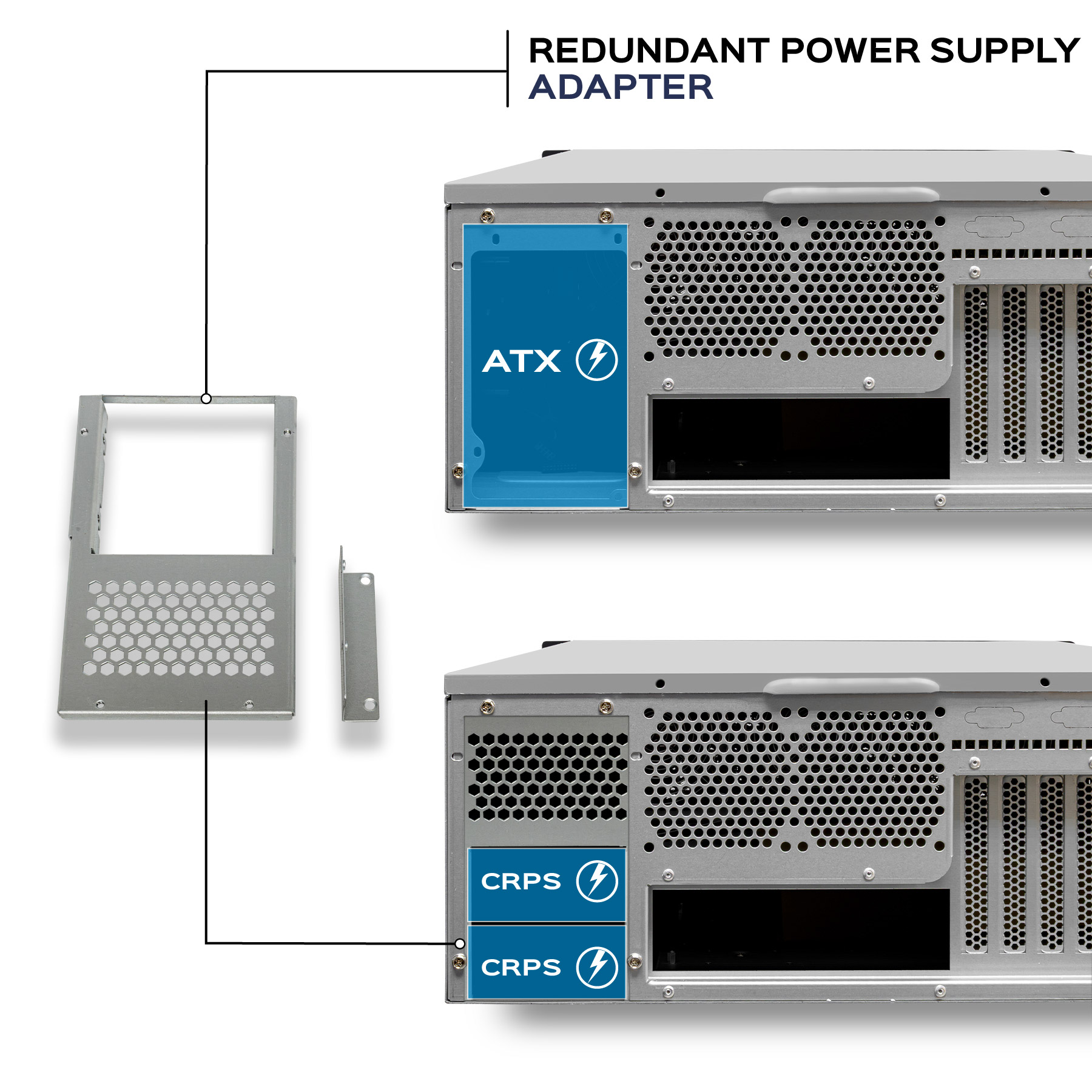

The chassis offers flexible power options, supporting both standard ATX power supplies and redundant power systems. It also includes the required mounting support to ensure a secure and professional installation.
INTERNAL STORAGE CAPACITY

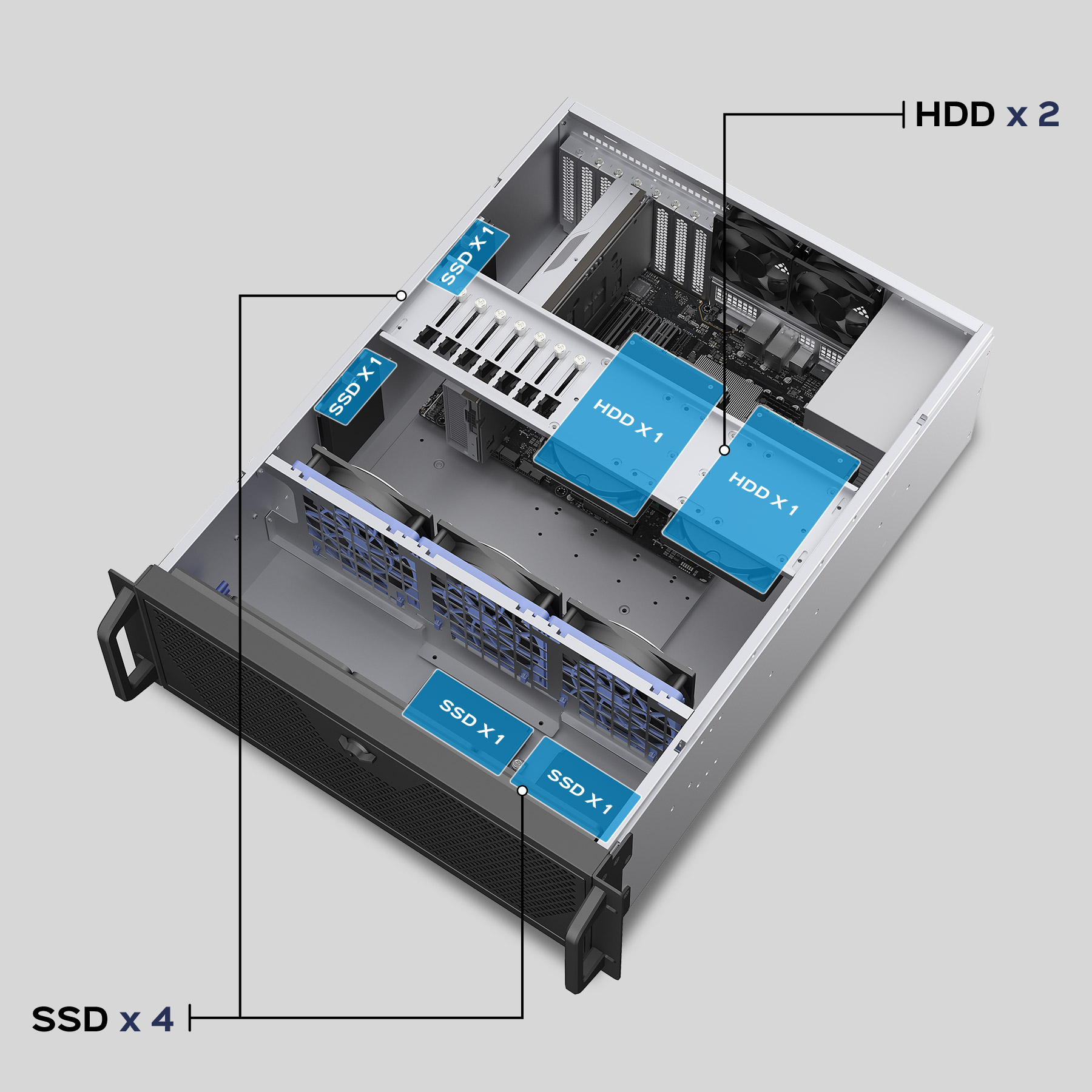

The internal storage capacity allows for the installation of up to four 2.5" SSDs and two 3.5" hard drives, providing flexibility to configure mixed storage systems that combine SSD speed with traditional HDD capacity. This setup is ideal for implementing tiered storage solutions or RAID configurations tailored to the specific requirements of each project.
COOLING SYSTEM AND THERMAL MANAGEMENT

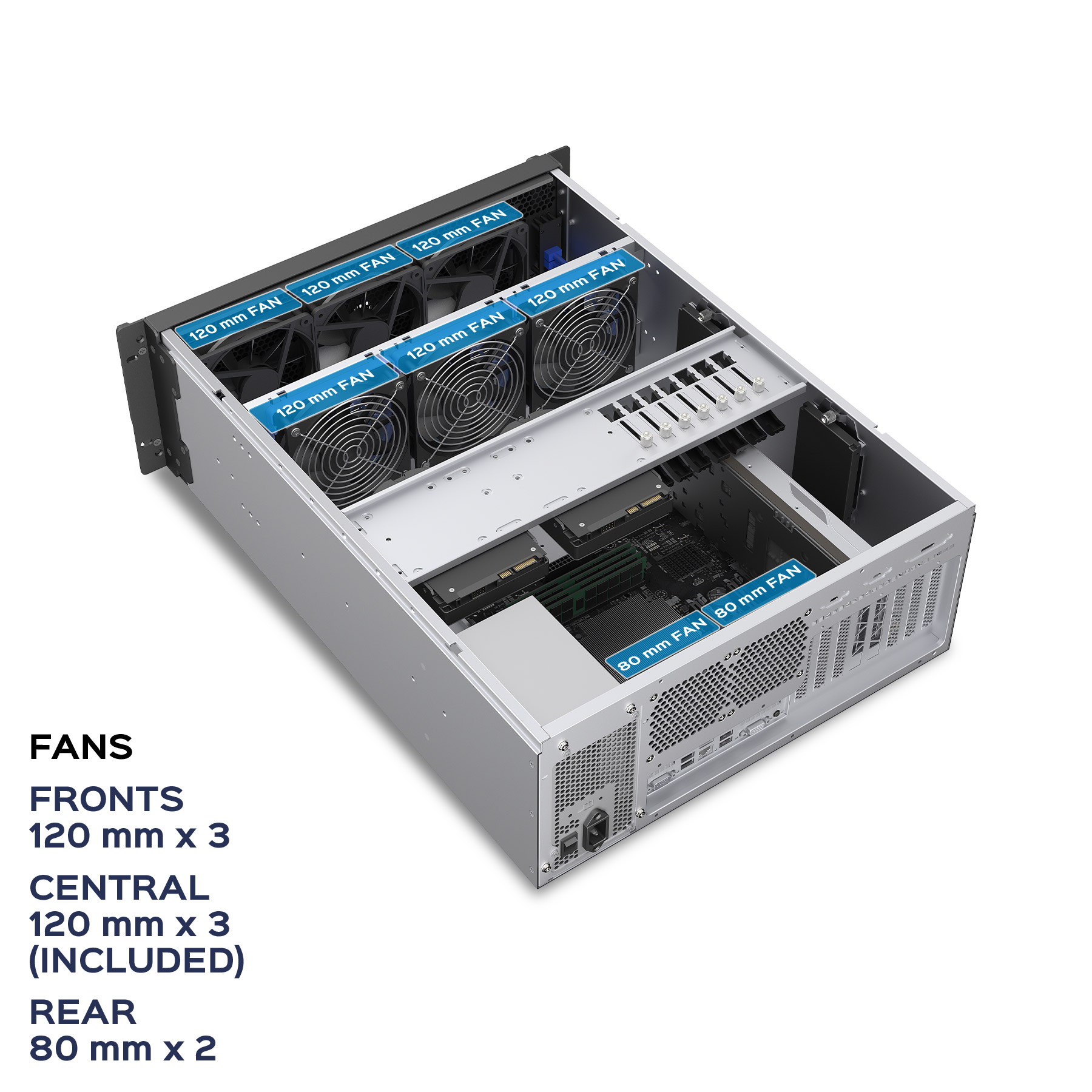

The chassis’ thermal design has been optimized with a perforated front panel that ensures unrestricted airflow. The cooling system supports up to three 120 mm front fans, includes three 120 mm central PWM fans for efficient temperature control, and allows the installation of two additional 80 mm fans on the rear panel.
This active cooling configuration ensures optimal thermal dissipation, even under demanding workloads.
HIGH-PERFORMANCE HARDWARE COMPATIBILITY

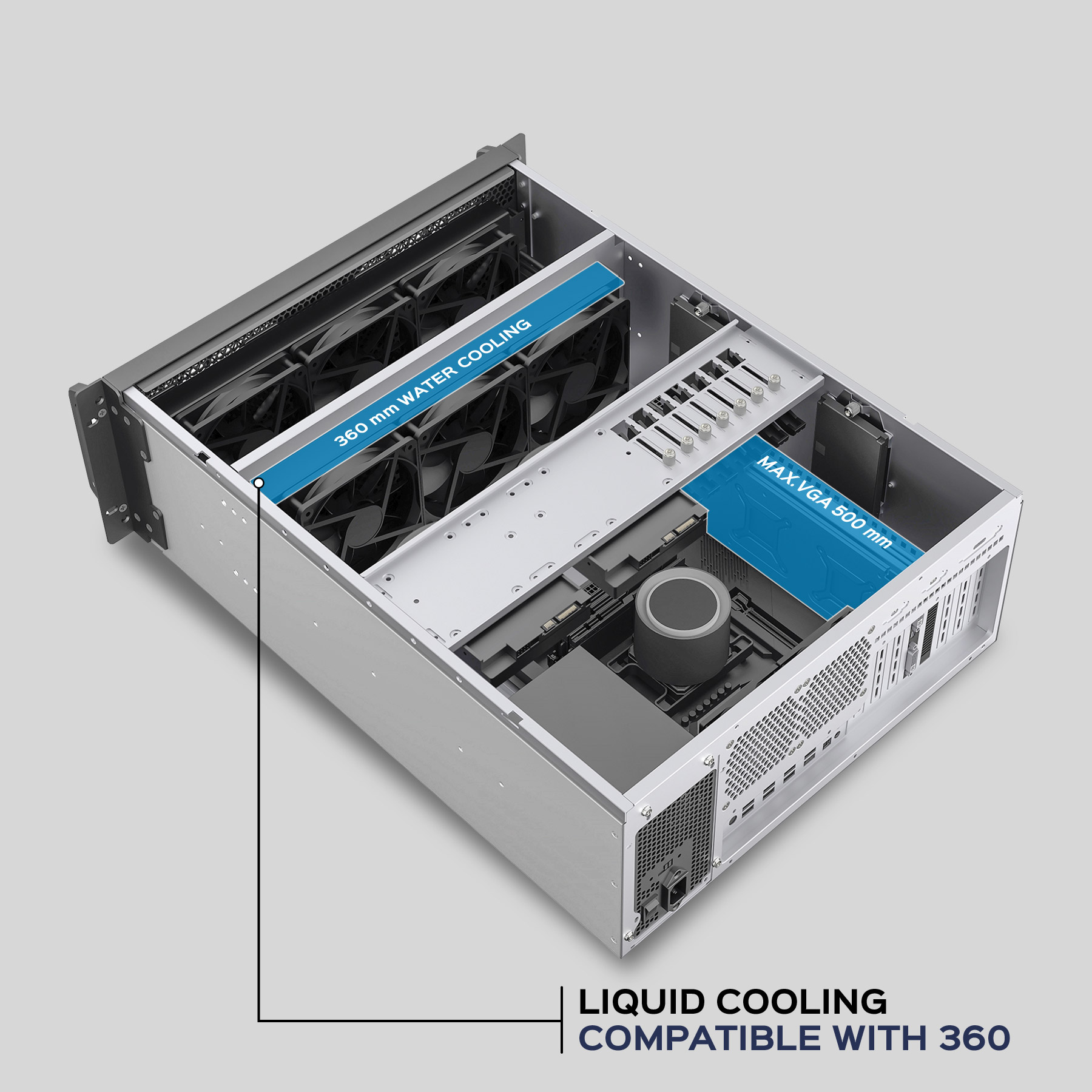

Designed to support high-performance components, the chassis includes support for liquid-cooling systems with radiators up to 360 mm in its central section, ensuring optimal temperatures in demanding configurations.
In addition, it offers ample space to accommodate next-generation graphics cards, including high-end models such as the NVIDIA RTX 4090 and RTX 5090, making it an ideal solution for compute-intensive applications, professional rendering workflows, and high-performance workstation environments.
COMPONENT RETENTION AND PROTECTION SYSTEM

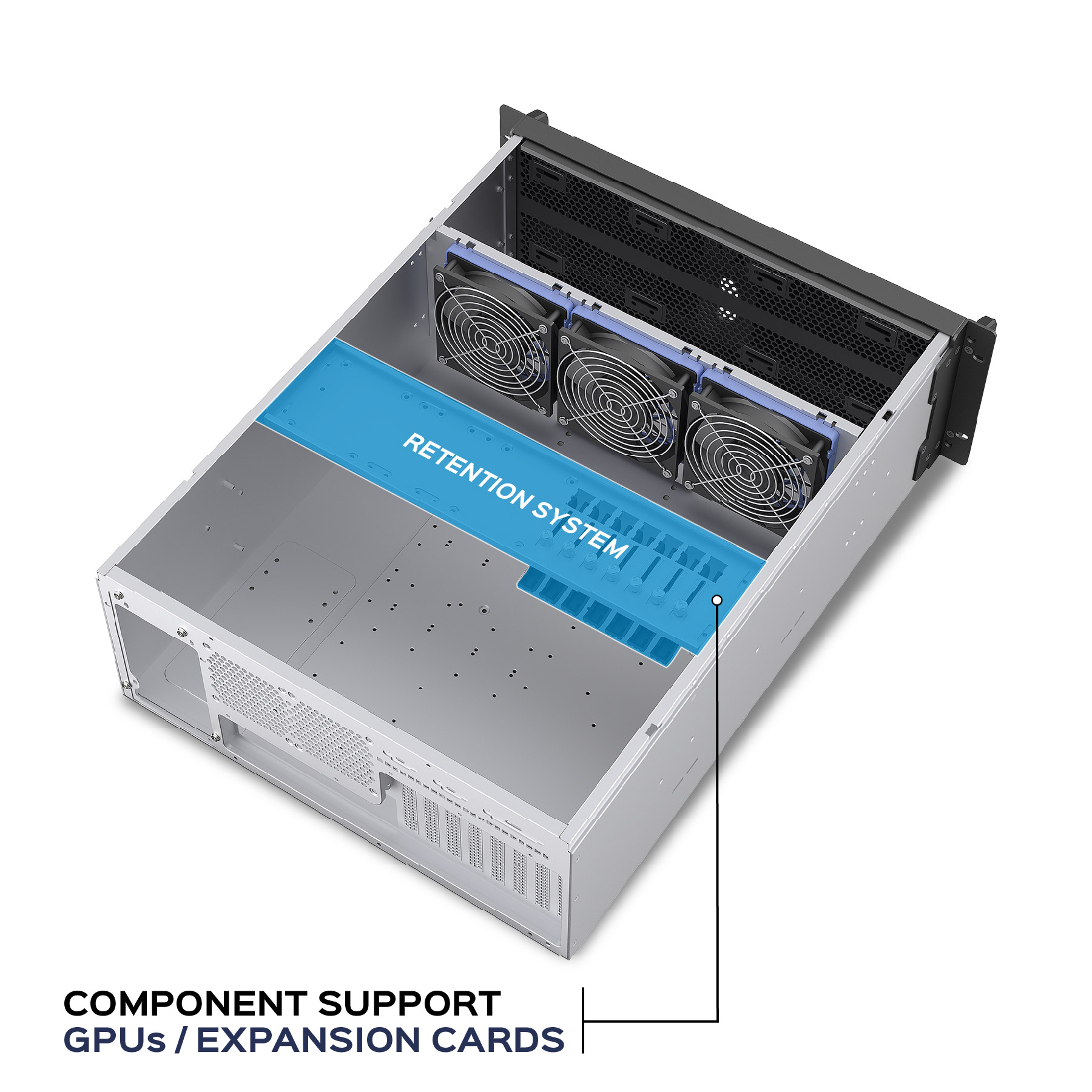

The chassis features an expansion card retention system that prevents accidental movement or displacement, protecting both the motherboard and graphics cards from potential damage during transport or handling.
This multifunctional retainer also includes additional mounting points for storage devices, optimizing internal space usage and ensuring a secure and stable installation of all critical components.
RACK INSTALLATION AND RAIL COMPATIBILITY
The chassis is designed for quick and easy installation in standard racks, featuring pre-installed mounting holes compatible with 27" sliding rack rails. This capability streamlines deployment in data center environments and simplifies maintenance operations by allowing full system extraction.
For optimal integration, the use of UNYKA PRO UK516508 rails is recommended, available as an optional accessory.
4U RACK DESIGN WITH INTEGRATED PROTECTION
With a standard 4U rack form factor, this chassis integrates seamlessly into data center infrastructures and enterprise environments.

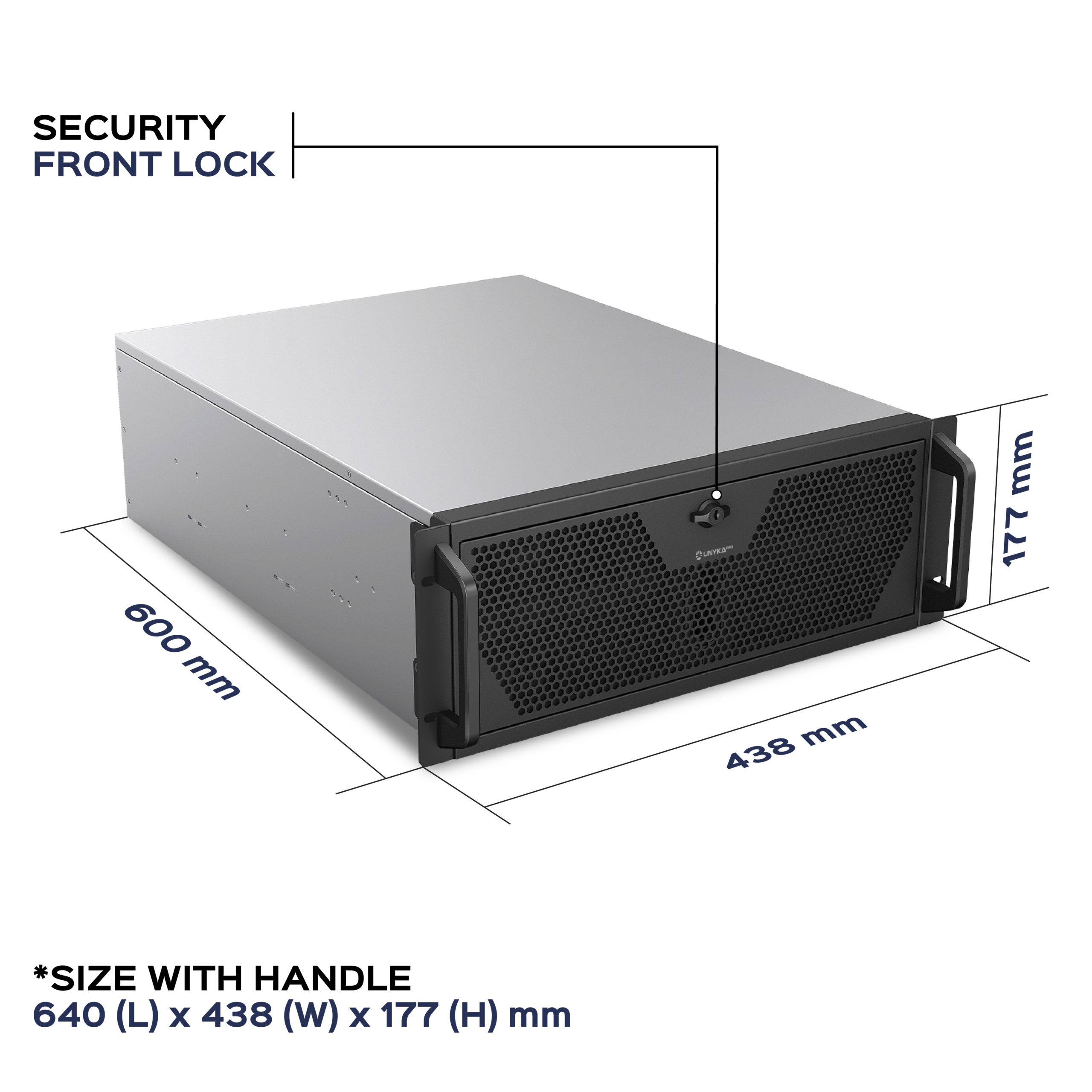

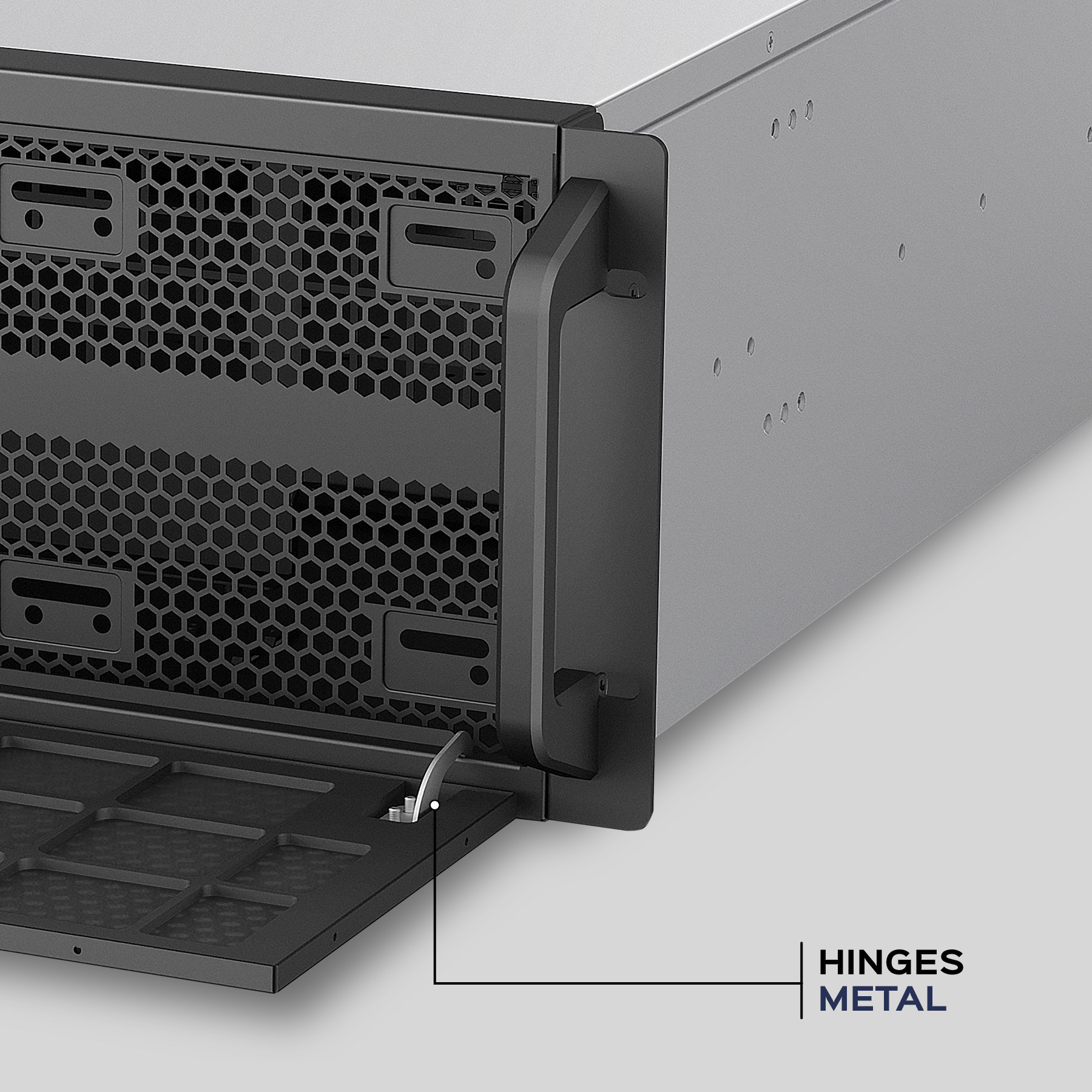

The front panel includes an anti-theft locking system that enhances the physical security of the equipment, while the aluminum handles make handling and extraction easier, streamlining maintenance tasks and hardware access.

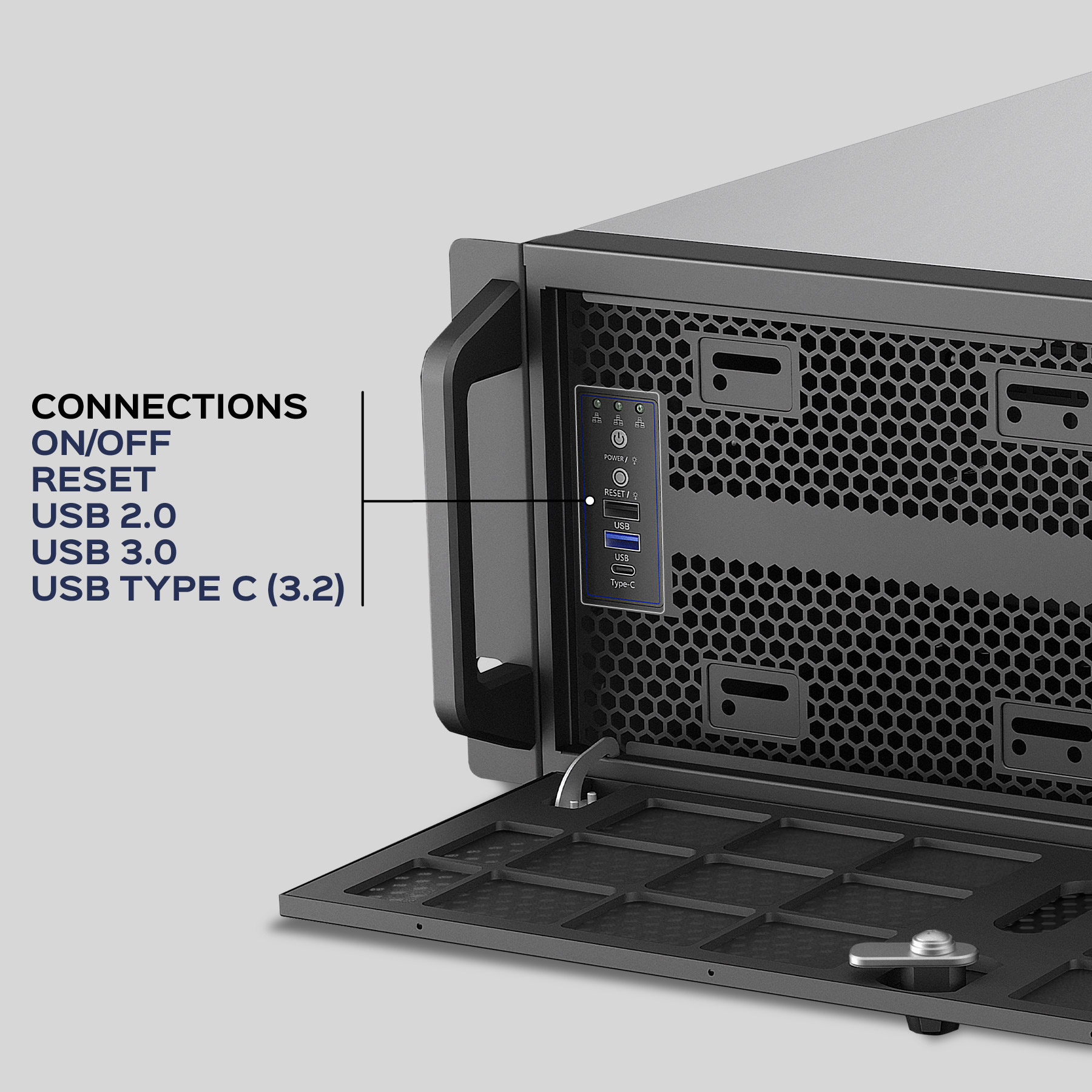

FRONT I/O PORTS
he UK4340 is designed to provide quick and efficient access to the system’s most essential functions. On its front panel, you will find:
- On/Off Button: Safe and convenient system power control.
- USB 3.0 Port: Fast and stable transfers for high-performance accessories and external drives.
- Real USB Type-C 3.2 Port (up to 10 Gbps): Maximum speed and compatibility with current technology, perfect for professionals who need fast and efficient data throughput.
With this complete and accessible front panel, the 19″ Rackmount Case UK4340 stands out as a robust and versatile solution for IT projects, servers, and industrial systems.
PRODUCT
TYPE CHASSIS
4U Estándar
MOTHERBOARD
ATX (12″ x 9.6″) / MATX (9.6″ x 9.6“)
DIMENSIONS
600 (L) x 430 (W) x 177 (H) mm
DIMENSIONS WITH HANDLE
640 (L) x 430 (W) x 177 (H) mm
WEIGHT
12,5 kg
COLOUR
Black / Silver
MATERIAL
SGCC 2 mm / Handle whith aluminium
BAY 3,5” INT
2
BAY 2,5” INT
4
CONNECTOR
USB 3.0 x 2 / USB C (3.2) x 1
POWER SUPPLY ADMITTED
ATX / Redundant CRPS Power Supply (support included)
KEY
Yes
EXPANSION SLOT
8
FANS
Front 3 x 120 mm (optional) / Center 3 x 120 mm PWM (included) / Rear 2 x 80 mm (optional)
COMPATIBILITY WHITH LIQUID COOLING
360
MAXIMUM SUPPORTED GRAPHICS CARD
4090 / 5090
TELESCOPIC RAIL COMPATIBILITY
Rails 27″ / 680 (L) x 40 (W) mm PN UK516508
PACKAGING
DIMENSIONS
727 (L) x 570 (W) x 275 (H) mm
WEIGHT
13,5 kg
CUBIC CAPACITY
0,1139 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Rack Case / Fans / Screws
