Server Rack Chassis
P/N:51916 · EAN:6940533542803
The model UK1029 is a case in Rack 19 Inch format, measuring 1U. Its compact design and its aluminum construction make it the perfect ally for work environments. Thanks to the presence of the front dust filter, the internal components are protected, prolonging the useful life of these and also favoring a stable cooling.
PRODUCT
TYPE CHASSIS
1U Standard

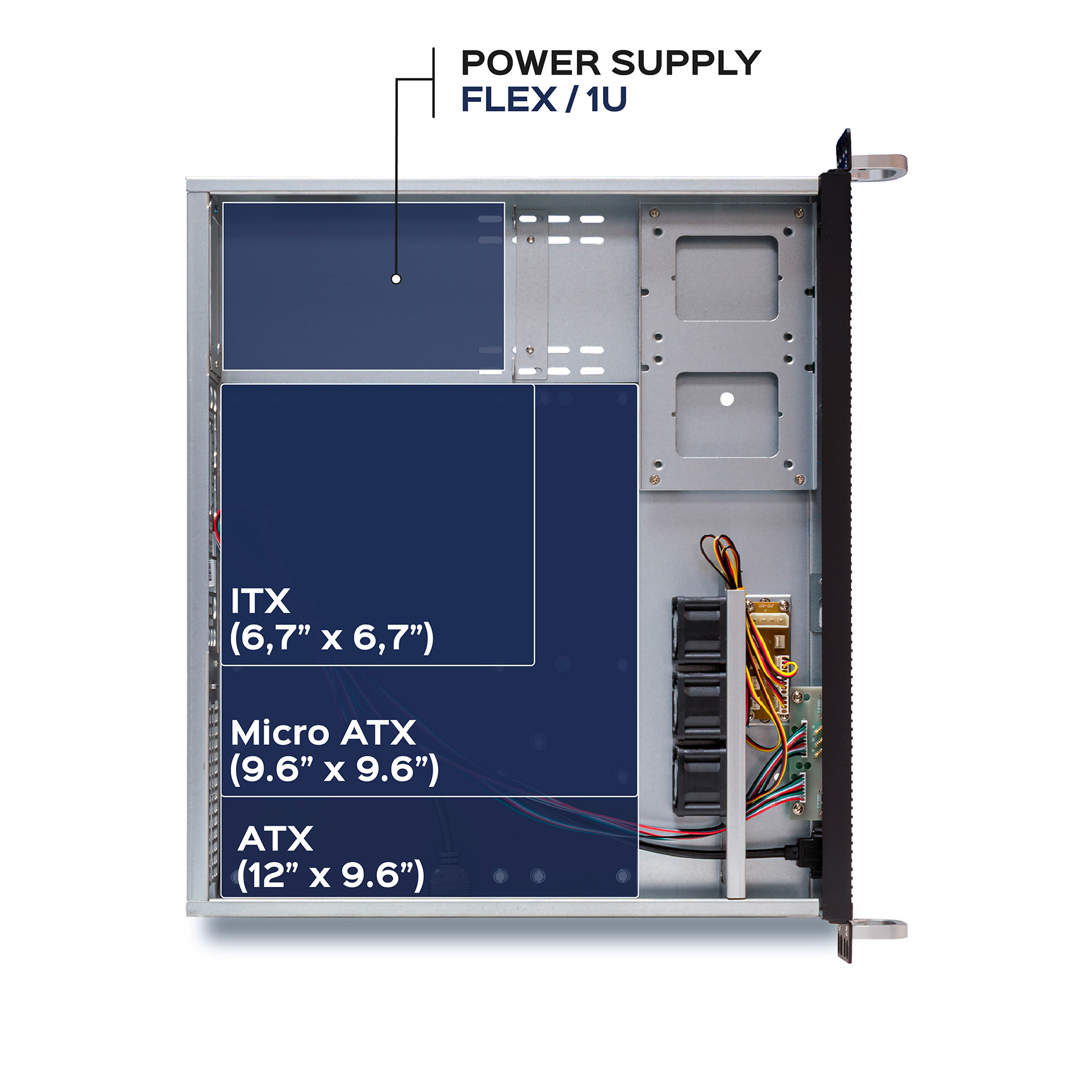

MOTHERBOARD
ATX (12″ x 9.6″) / MATX (9.6″ x 9.6″) / Mini-ITX (6.7″ x 6.7″)
DIMENSIONS
430 (L) x 380 (W) x 45 (H) mm

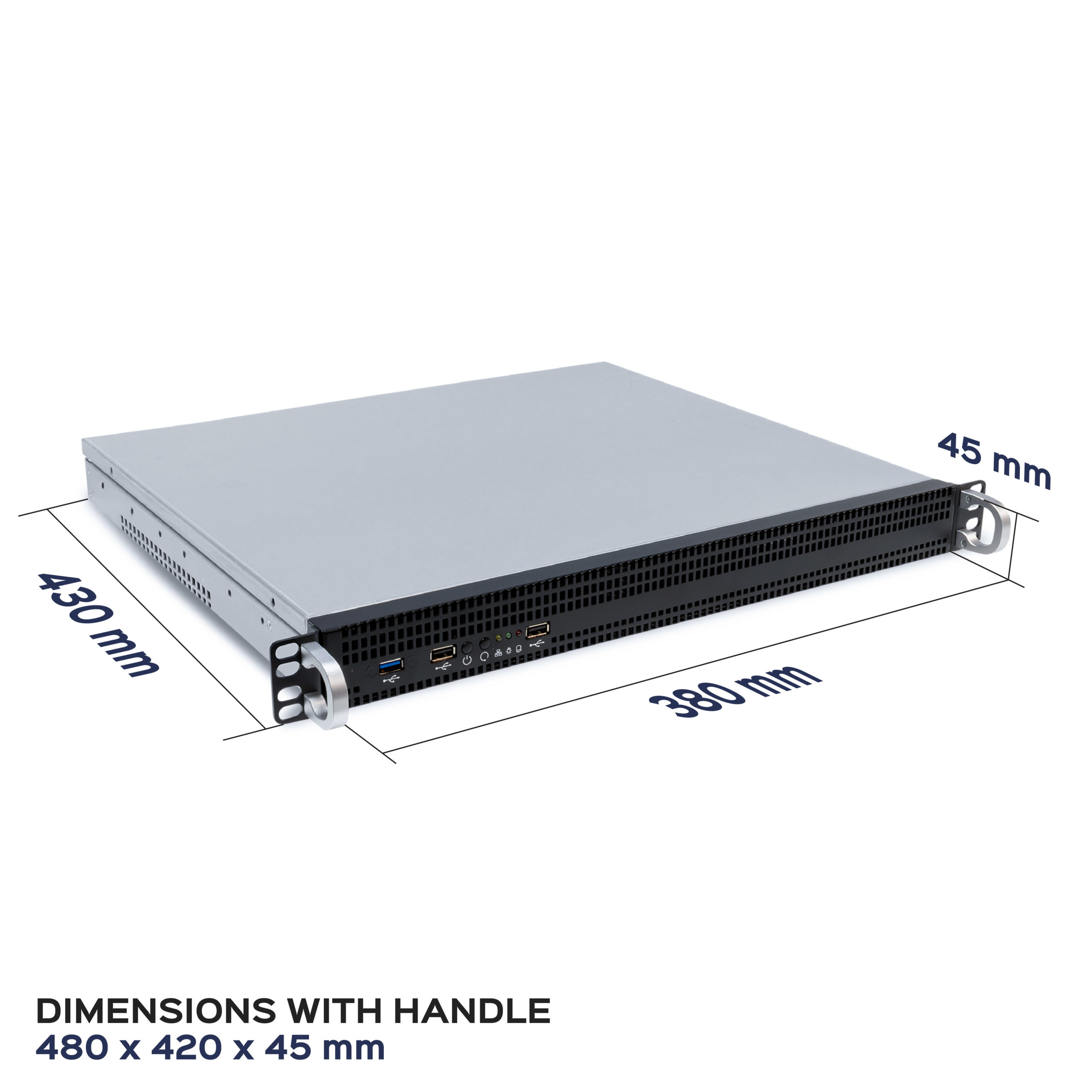

DIMENSIONS WITH HANDLE
480 (L) x 420 (W) x 45 (H) mm
WEIGHT
3,881 kg
COLOUR
Black / Silver
COLOUR
Black / Silver
MATERIAL
SGCC 1.0 mm

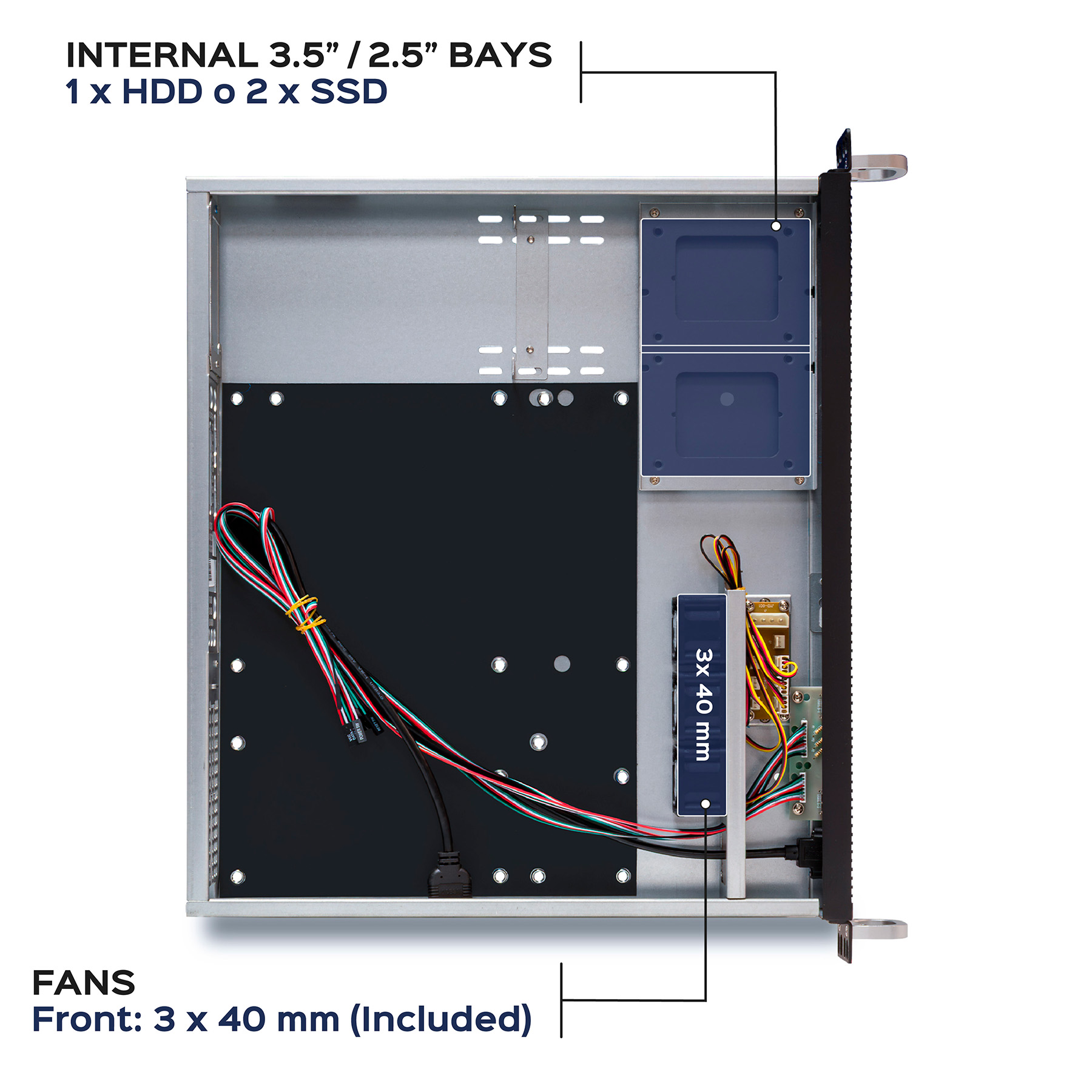

FAN
3 x 40 mm
BAY 5,25” INT/EXT
0 / 0
BAY 3,5” INT/EXT
1 / 0* (*Supports a unit 3,5” or a unit of 2,5”)
BAY 2,5” SSD INT/EXT
1 / 0* (*Supports a unit 3,5” or a unit of 2,5”)

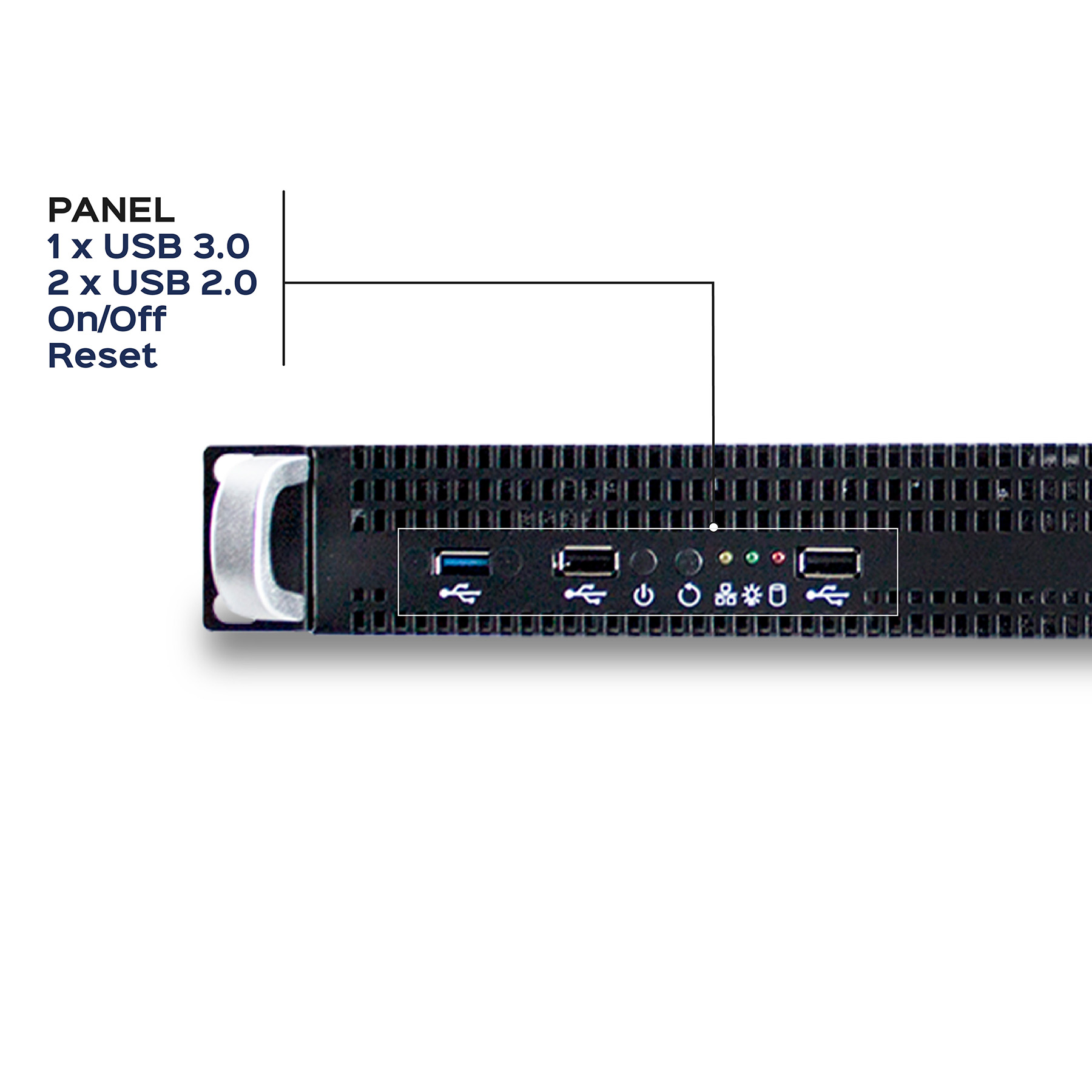

CONNECTOR
USB 2.0 x 2 / USB 3.0 x 1
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITED
1U Standard
ANTI DUST FILTER
Yes

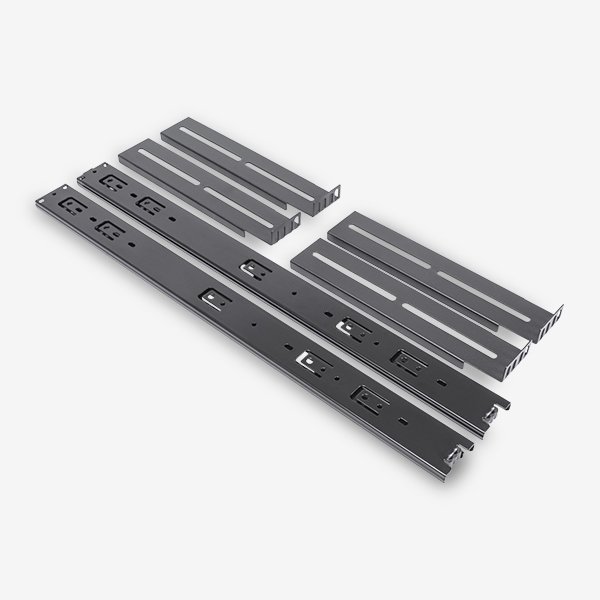

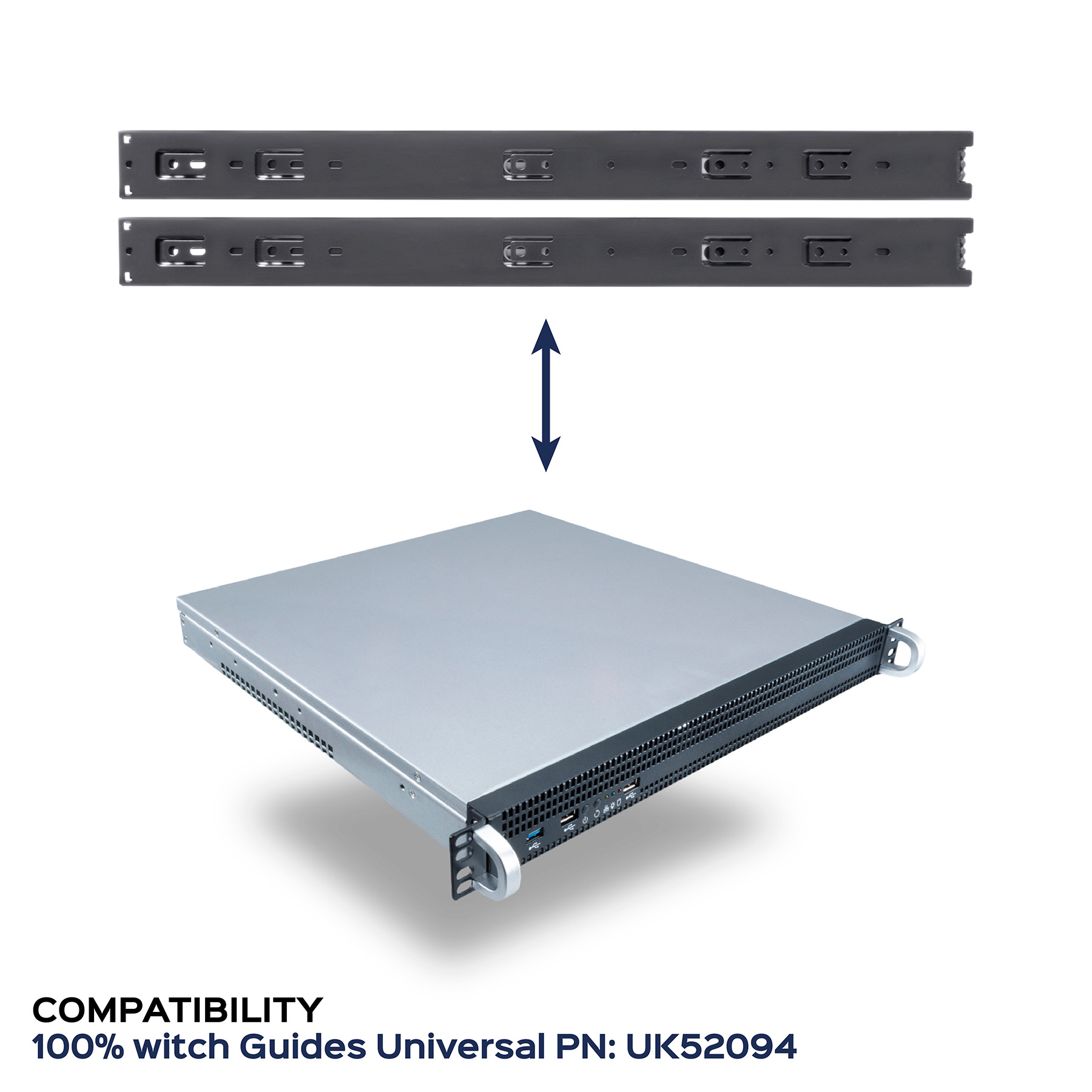

COMPATIBABLE RAILS
Rails Universal PN:UK52094 (Sold separately)
PACKAGING
DIMENSIONS
465 (L) x 530 (W) x 130 (H) mm
WEIGHT
4,906 kg
CUBIC CAPACITY
0,0320 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
Rack Case / Screws
CERTIFICATIONS
CE / ROSH
DOWNLOAD
TECHNICAL SHEET
Chassis 1U 19″ UK1029 PN:51916
MANUAL
–
DRIVERS
–
OTHERS
Product link in ICECAT
CE Certificate of Conformity
OTHER FEATURES
MASTER BOX DIMENSIONS
535 (L) x 455 (W) x 120 (H) mm
MASTER BOX WEIGHT
4,7 kg
UNITS PER MASTER BOX
1
UNITS PER AMERICAN PALLET
62
UNITS PER EUROPEAN PALLET
–
