Telescopic Rails / Guides
P/N:UK5191820 · EAN:8436617922114
GTIN-14:18436617922111 / 6 packs
Specifically designed for the UK4339H PN: UK51918, UK4339V PN: UK51920 and UK4329 PN: 51915 server racks from UNYKA PRO, these telescopic rails are an essential accessory for their correct installation in standard rack cabinets.
Thanks to their sliding design, they allow partial or full extraction of the server, making maintenance tasks easier and improving workflow in professional environments. Made of high-strength steel, they support loads of up to 45 kg.

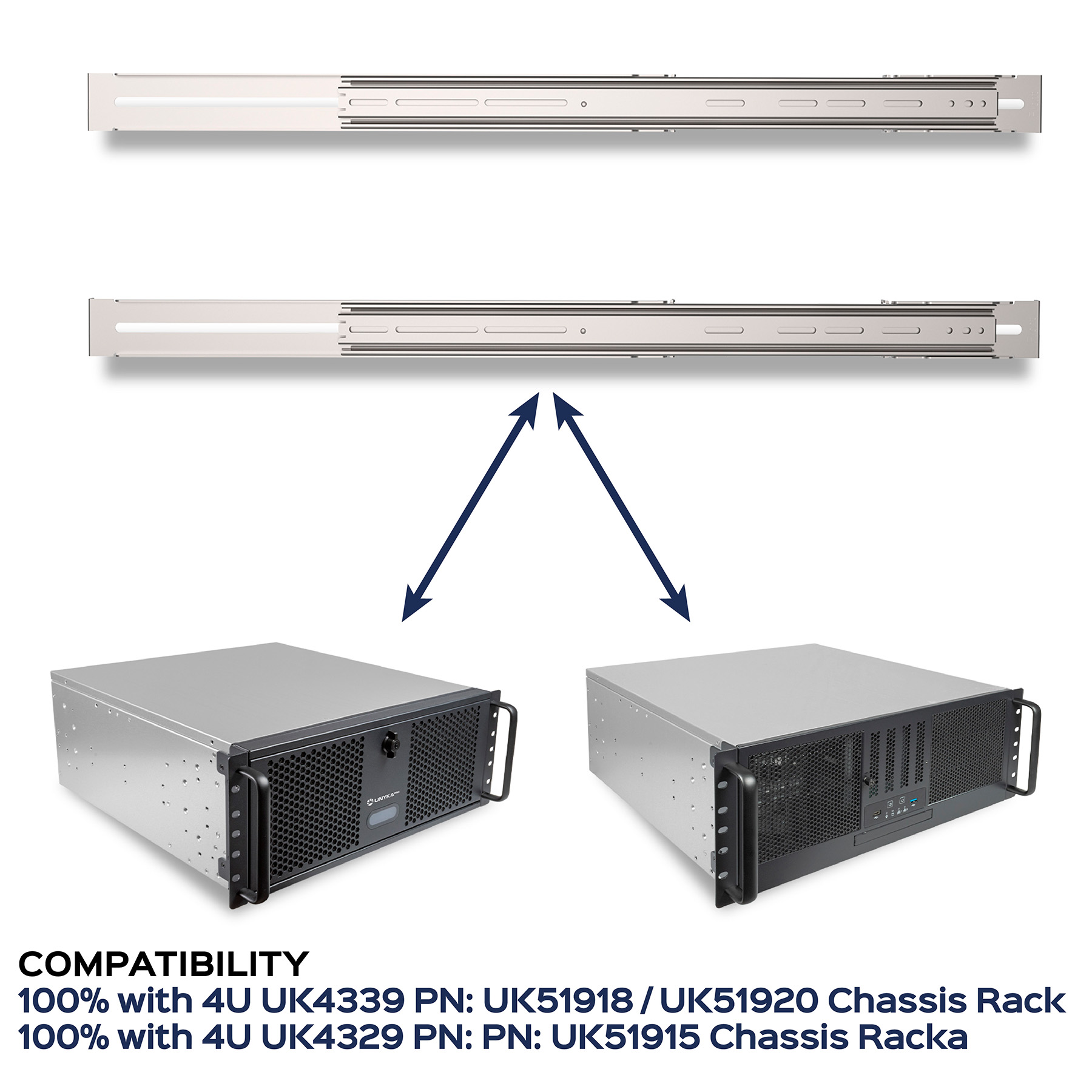

| COMPATIBILITY WITH RACK AND HOT SWAP CASES | ||||
|
Rails Universal 1U / 2U / 3U / 4U P/N:UK52094 |
Rails RG4208G4 P/N:UK514208G4 |
Rails RG4208G3 P/N:UK51921 |
Rack Rails RG6508 P/N:UK516508 |
Rails RG4339U P/N:UK5191820 |
|
1U UK1029 (P/N:51916) |
2U HSW4208 G4 (P/N: UK80.20.08G4) |
2U HSW4208 G3 (P/N: UK80.20.08G3) |
4U HSW4U6508 (P/N:UK80.40.6508) |
4U UK4339H (P/N:UK51918) |
|
1U HSW4104 (P/N:80.10.04) |
- | - | - |
4U UK4339V (P/N:UK51920) |
|
2U HSW4208 (P/N:80.20.08) |
- | - | - |
4U UK4329 USB TYPE C (P/N:51915) |
|
2U UK2129 (P/N: 52095) |
- | - | - | - |
|
2U HSW6212 (P/N:80.20.12) |
- | - | - | - |
|
3U HSW4416 (P/N:80.30.16) |
- | - | - | - |
|
4U UK4129 (P/N: 51912) |
- | - | - | - |
|
4U UK4329 USB TYPE C (P/N: 51915) |
- | - | - | - |
|
4U UK4229 EVO (P/N: UK51917) |
- | - | - | - |
|
4U HSW6424 (P/N:80.40.24) |
- | - | - | - |
|
4U HSW4520 (P/N:80.40.20) |
- | - | - | - |
|
4U UK4339H (P/N:UK51918) |
- | - | - | - |
|
4U UK4339V (P/N:UK51920) |
- | - | - | - |
|
2U UK2130 2U600 (P/N:UK51922) |
- | - | - | - |
PRODUCT

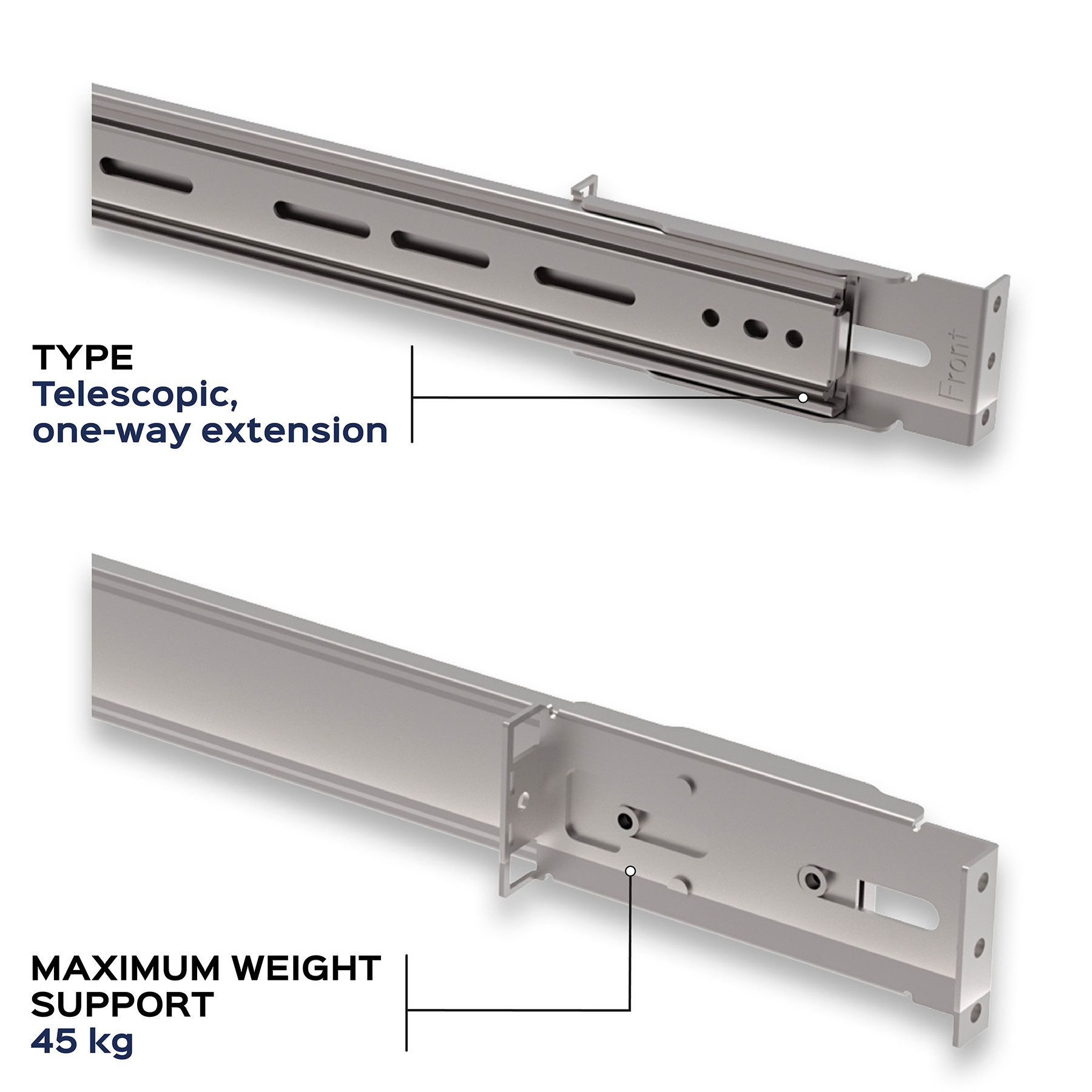

TYPE
Telescópico, unidireccional

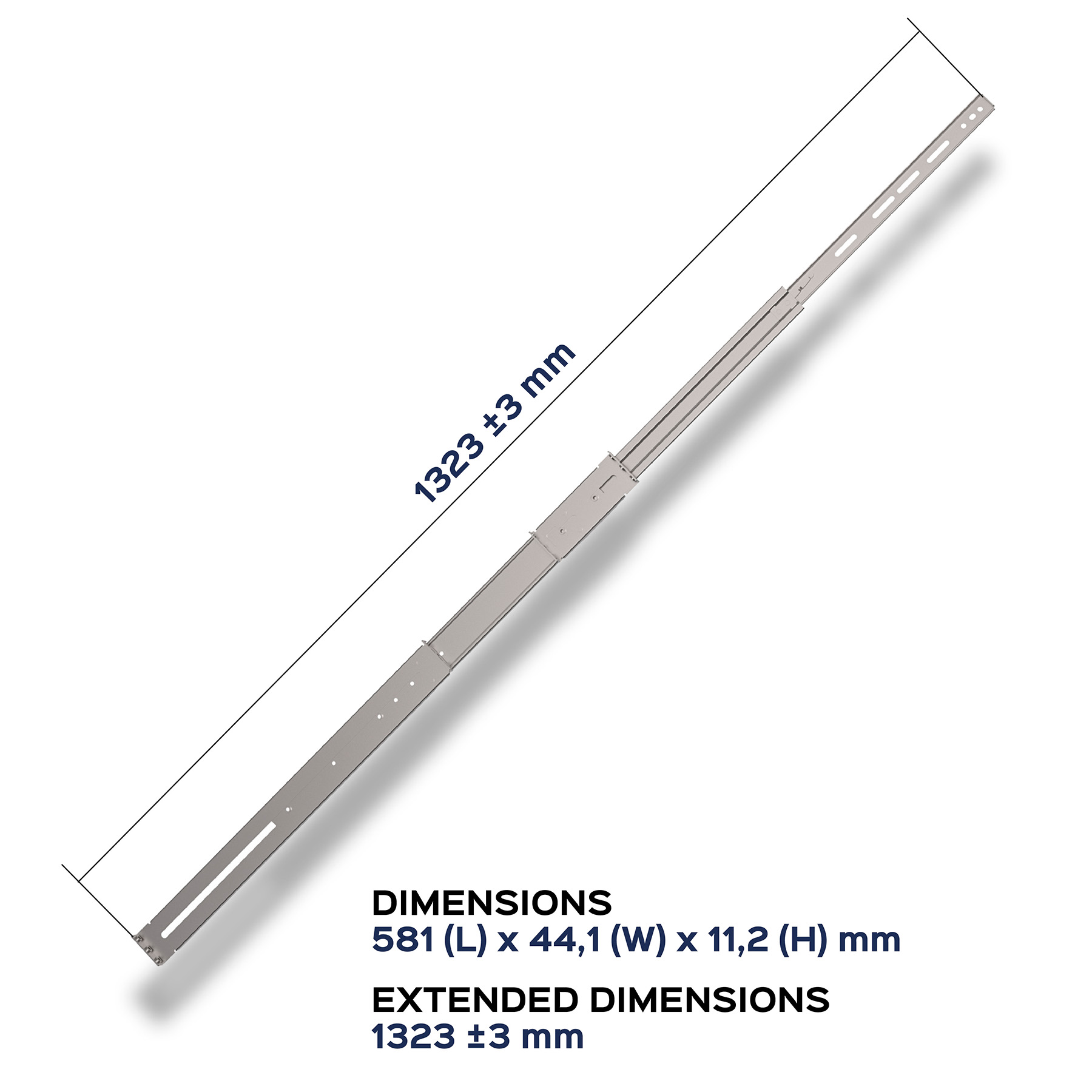

DIMENSIONS
581 (L) x 44.1 (W) x 11.2 (H) mm
EXTENDED DIMENSIONS
1323 ±3 mm
COMPATIBILITY
UNYKA PRO Chassis 4U 19″ UK4339H (PN: UK51918)
UNYKA PRO Chassis 4U 19″ UK4339V (PN: UK51920)
UNYKA PRO Chassis 4U 19″ UK4329 (PN: 51915)

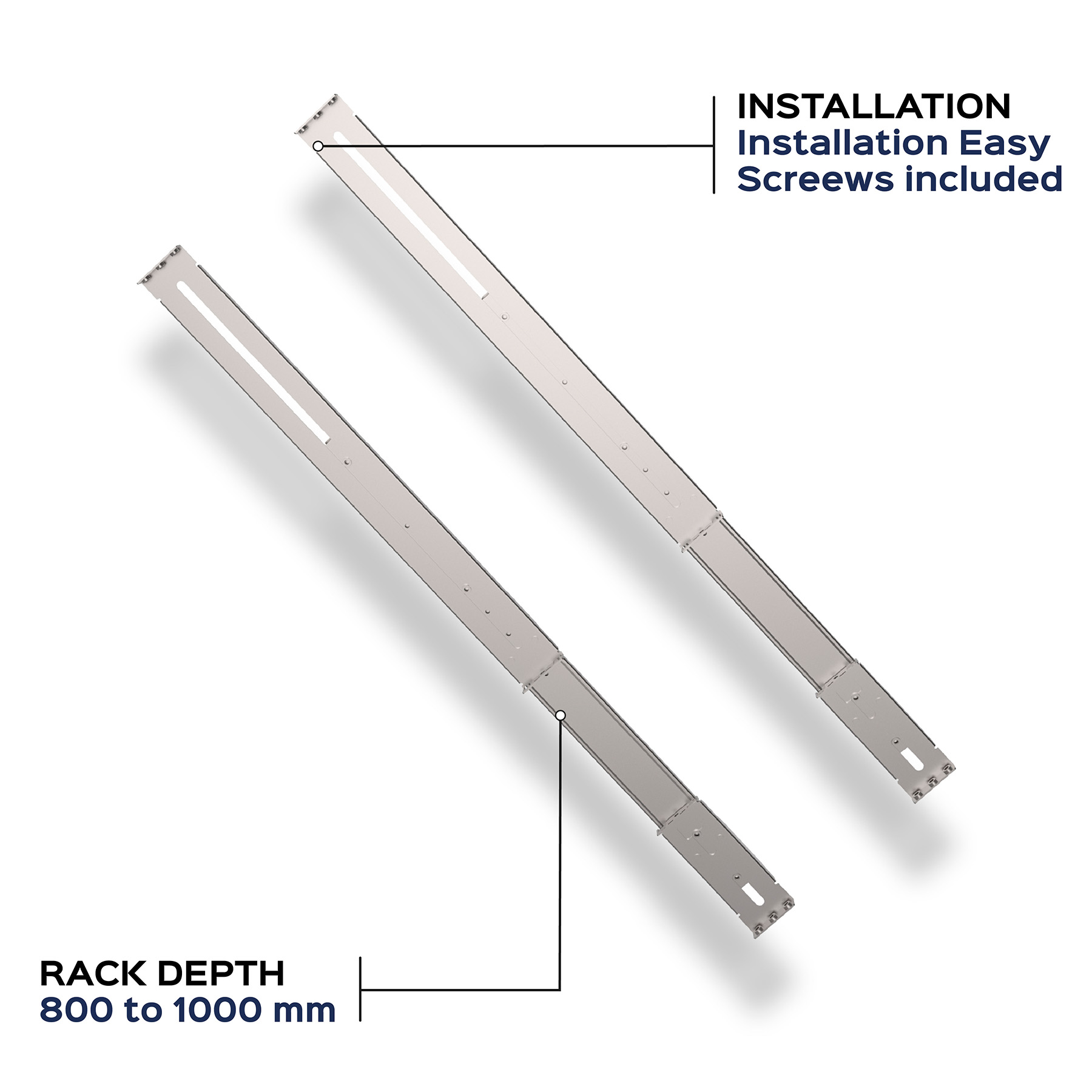

RACK DEPTH
800 to 1000 mm
MAXIMUM WEIGHT SUPPORT
45 kg
WEIGHT
2,2 kg
COLOUR
Galvanized silver
PACKAGING
DIMENSIONS
620 (L) x 103 (W) x 41 (H) mm
WEIGHT
2,66 kg
CUBIC CAPACITY
0,0026 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
2 Rack Rails / Screws
CERTIFICATIONS
CE / ROSH
DOWNLOAD
TECHNICAL SHEET
Telescopic Sliding Rails RG4339 Compatible with Rack UK4339H & UK4329 Chassis Rack PN:UK5191820
MANUAL
–
DRIVERS
–
OTHERS
–
OTHER FEATURES
MASTER BOX DIMENSIONS
645 (L) x 240 (W) x 152 (H) mm
MASTER BOX WEIGHT
13,98 kg
UNITS PER MASTER BOX
6
UNITS PER AMERICAN PALLET
–
