P/N:UK322001 · EAN:8436617921179 · GTIN14:18436617921176
Lower your CPU temperatures with the UNYCOOL H20 heatsink, keeping your PC cool and running at peak performance. Built with high-quality materials, optimized airflow, and a 9-blade fan design, this cooler ensures efficient heat dissipation with minimal noise, thanks to its PWM fan.
Compatible with multiple sockets (LGA 1151, LGA 1200, LGA 1700, AM4), it offers easy and versatile installation for a wide range of setups. Made from aluminium and copper, it delivers long-lasting durability and maximum thermal performance.
COMPACT AND FUNCTIONAL DESIGN
The UNYCOOL H20 is designed for simple builds that require hassle-free efficiency. With compact dimensions of 112 x 128 x 750 mm, it fits easily into small form factor cases and avoids interference with RAM modules or other components.

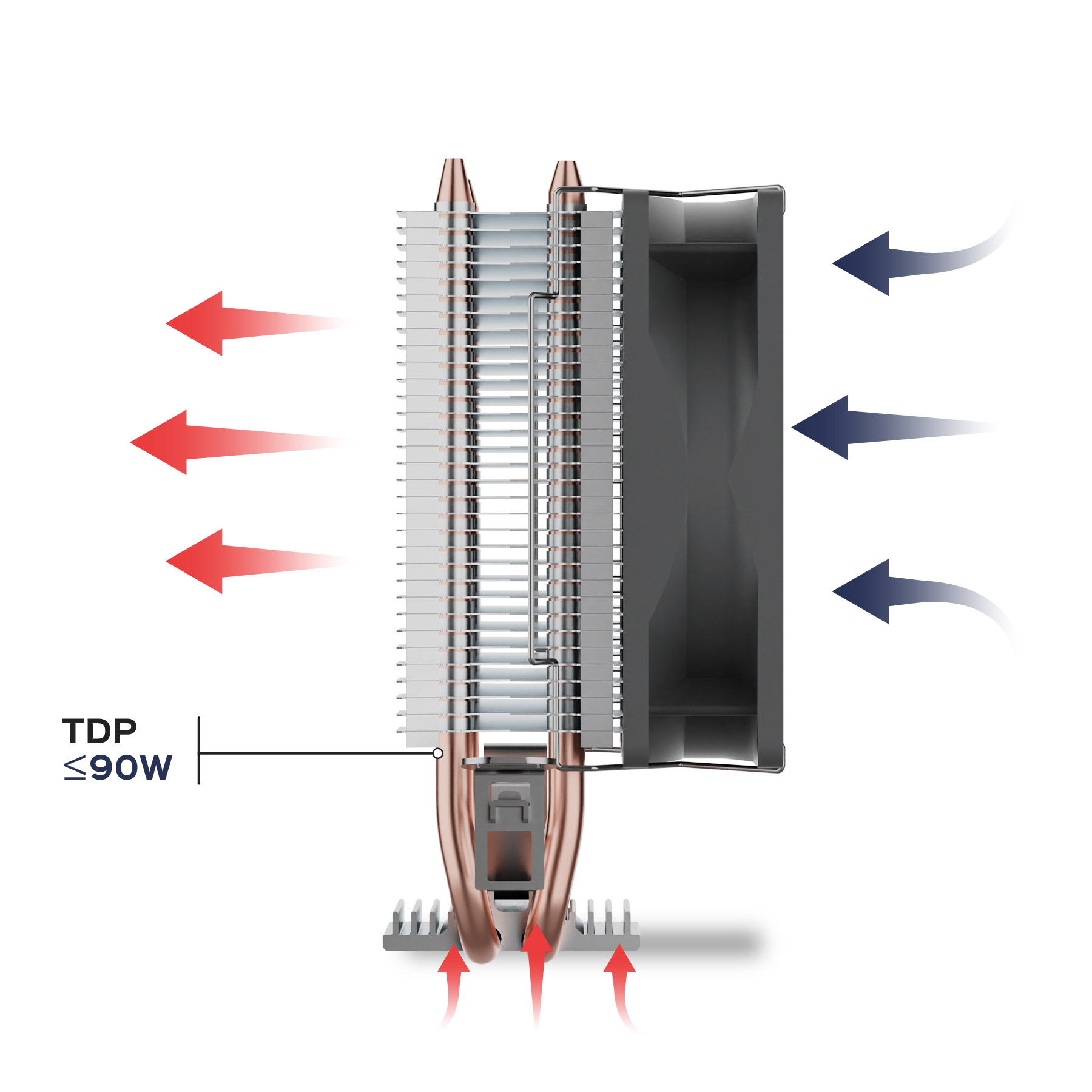

EFFICIENT ALUMINIUM HEATSINK
This model features an extruded aluminium heatsink block with high-density fins to maximize airflow. Paired with a 90 mm PWM fan (with temperature sensor) that spins up to 2100 RPM, it delivers the perfect balance between performance and quiet operation.
Its 4 copper heatpipes enhance heat dissipation, supporting CPUs with up to 90W TDP.
An excellent choice for office work, web browsing, or multimedia use.

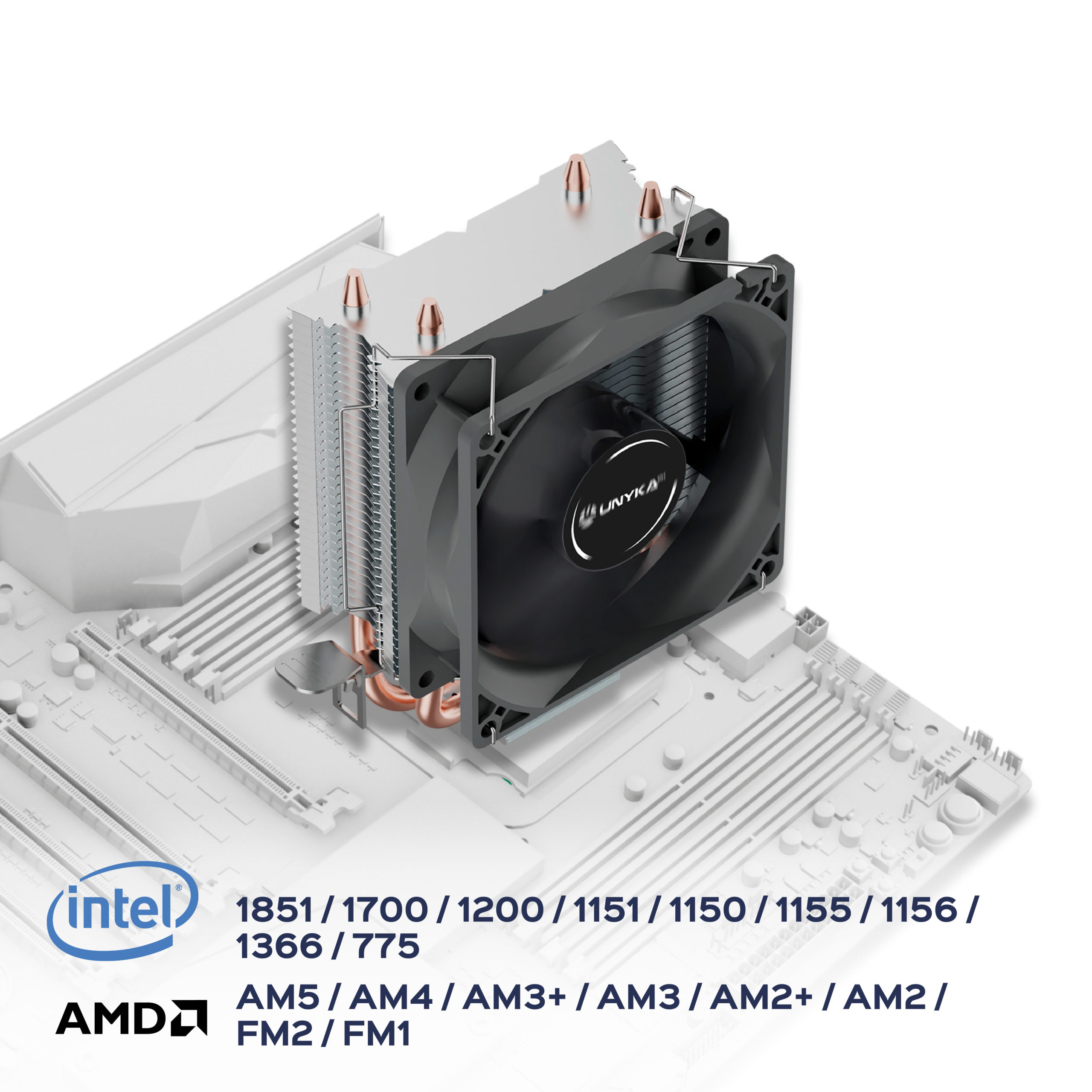

MULTIPLATFORM COMPATIBILITY
Thanks to its compact design, you won’t encounter issues with RAM clearance. It’s also compatible with multiple Intel and AMD socket platforms.
Intel: Socket 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
PRODUCT
CPU Cooler UNYCOOL H20 PN:UK322001
DIMENSIONS
112 (L) x 128 (W) x 75 (H) mm
WEIGHT
210 g
FAN
DIMENSIONS
90 (L) x 90 (W) x 25 (H) mm
COLOR
Black
DESIGN
Standard
BEARING
Hydraulic
RPM
2100 RPM ±10%
MTBF
30000 h
NOISE LEVEL
22dBA
CFM
58
NUMBER OF BLADES
7
PIN CONNECTOR
4-Pin
TEMPERATURE SENSOR
Yes / PWM
STARTUP VOLTAGE
12V
TDP
≤90W
HEATSINK
DIMENSIONS
122 (L) x 128 (W) x 42 (H) mm
COLOR
Gray
HEAT PIPE
2
MATERIAL
Aluminum / Copper
SOCKET COMPATIBILITY
Intel: Socket 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
PACKAGING
DIMENSIONS
142 (L) x 120 (W) x 76 (H) mm
WEIGHT
260 g
VOLUME
0.0012 m3
COLOR
Retail
MATERIAL
Cardboard
PACKAGE CONTENTS
Fan / Heatsink
MASTER BOX DIMENSIONS
625 (L) x 460 (W) x 375 (H) mm
MASTER BOX WEIGHT
16 kg
UNITS PER MASTER BOX
60
UNITS PER AMERICAN PALLET
–
UNITS PER EUROPEAN
–
