CPU Cooler UNYCOOL H21





P/N:UK322121 · EAN:8436617921667 · GTIN-14:18436617921664
Lower your CPU temperatures with the UNYCOOL H21 heatsink, keeping your PC cool and running at peak performance. Built with high-quality materials, optimized airflow, and a 9-blade fan design, this cooler ensures efficient heat dissipation with minimal noise, thanks to its PWM fan.
Compatible with multiple sockets (LGA 1151, LGA 1200, LGA 1700, LGA 1851, AM4), it offers easy and versatile installation for a wide range of setups. Made from aluminium and copper, it delivers long-lasting durability and maximum thermal performance.
2000rom-90mm-7blades-4pin

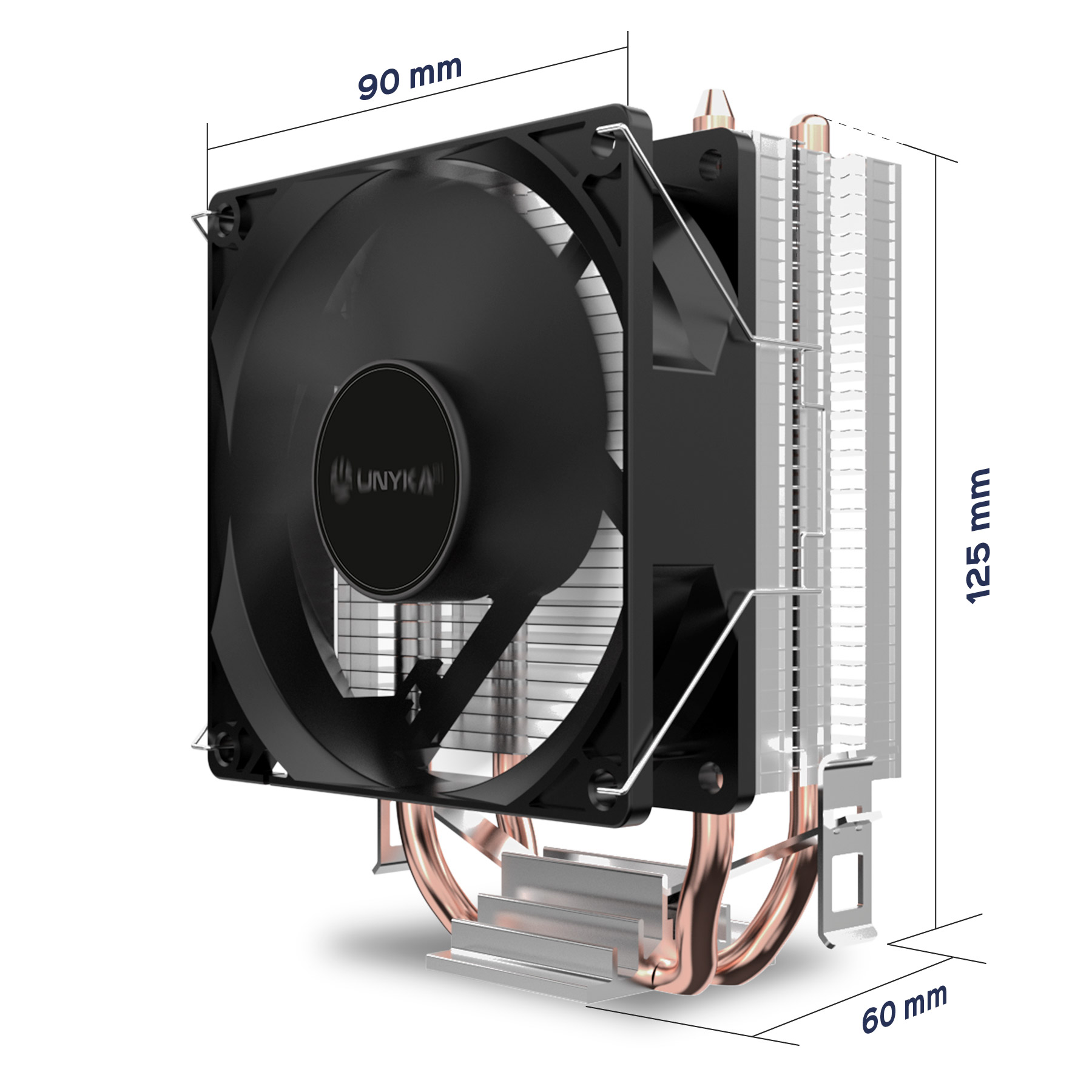

COMPACT AND FUNCTIONAL DESIGN

The UNYCOOL H21 is designed for simple builds that require hassle-free efficiency. With compact dimensions of 60 x 125 x 90 mm, it fits easily into small form factor cases and avoids interference with RAM modules or other components.

Disipador CPU UNYCOOL H21 UK322121-es_e-h21

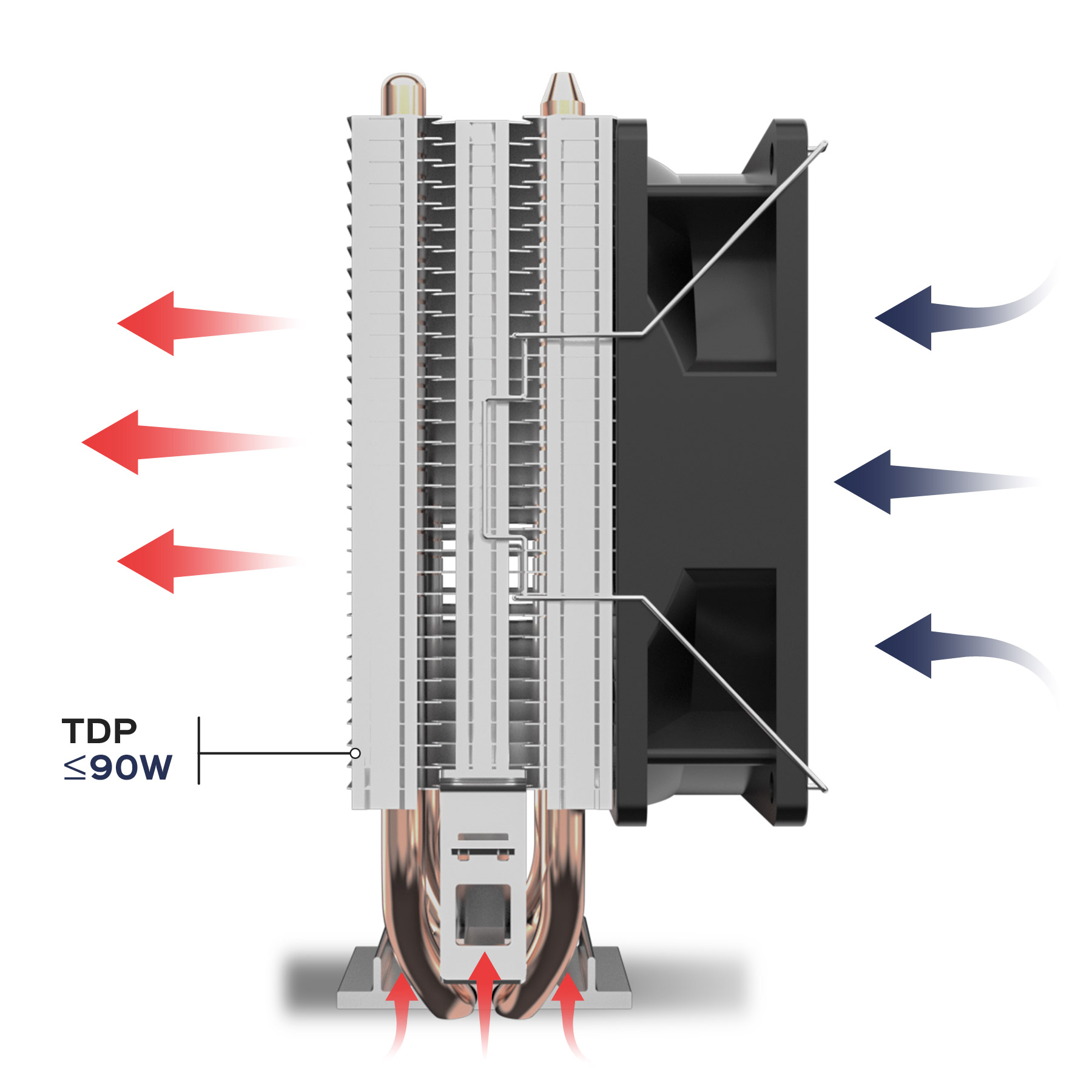

EFFICIENT ALUMINIUM HEATSINK

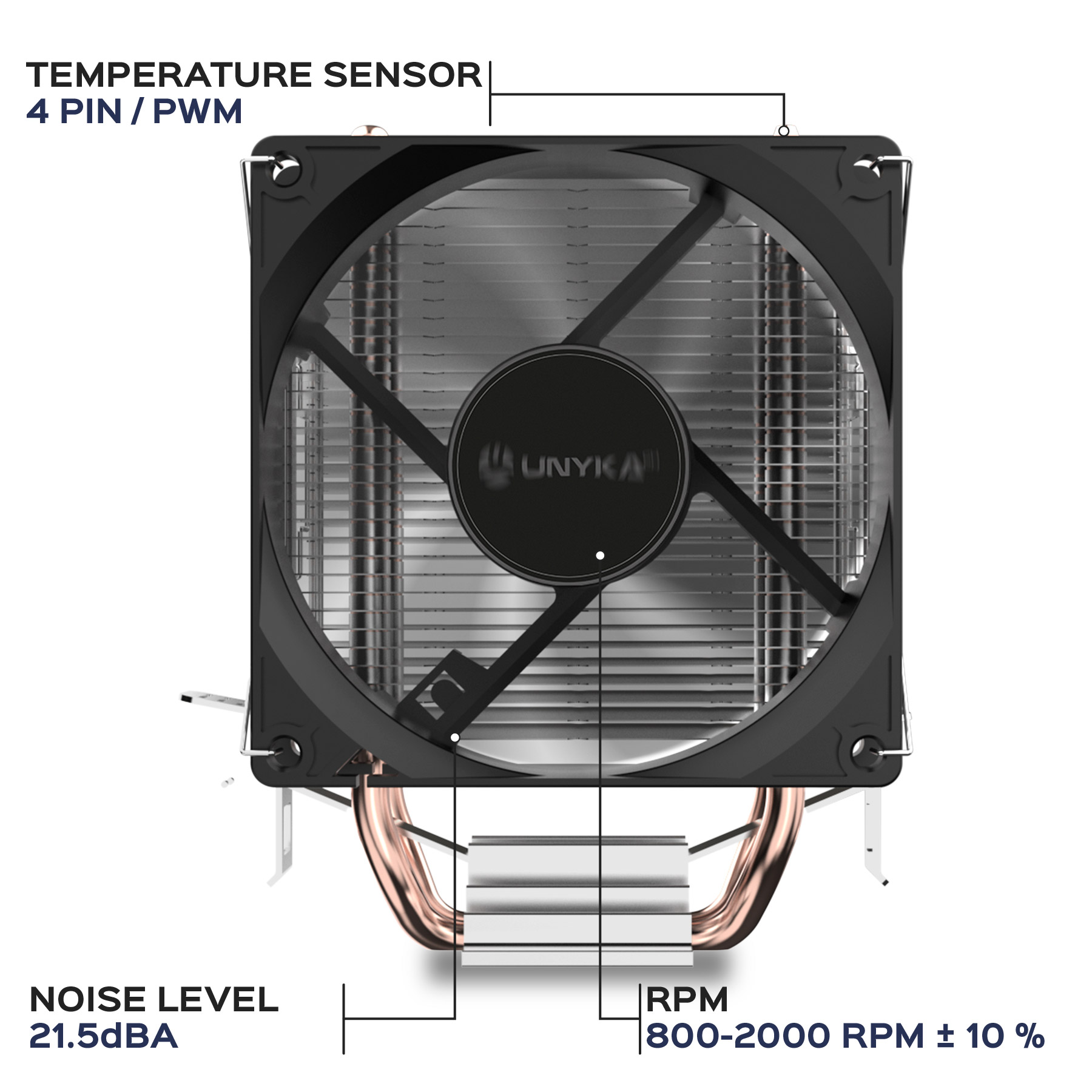

This model features an extruded aluminium heatsink block with high-density fins to maximize airflow. Paired with a 90 mm PWM fan (with temperature sensor) that spins up to 2000 RPM, it delivers the perfect balance between performance and quiet operation.
Its 4 copper heatpipes enhance heat dissipation, supporting CPUs with up to 90W TDP.
An excellent choice for office work, web browsing, or multimedia use.

Disipador CPU UNYCOOL H21 UK322121-es_c-h21-EN
Disipador CPU UNYCOOL H21 UK322121-es_b-h21

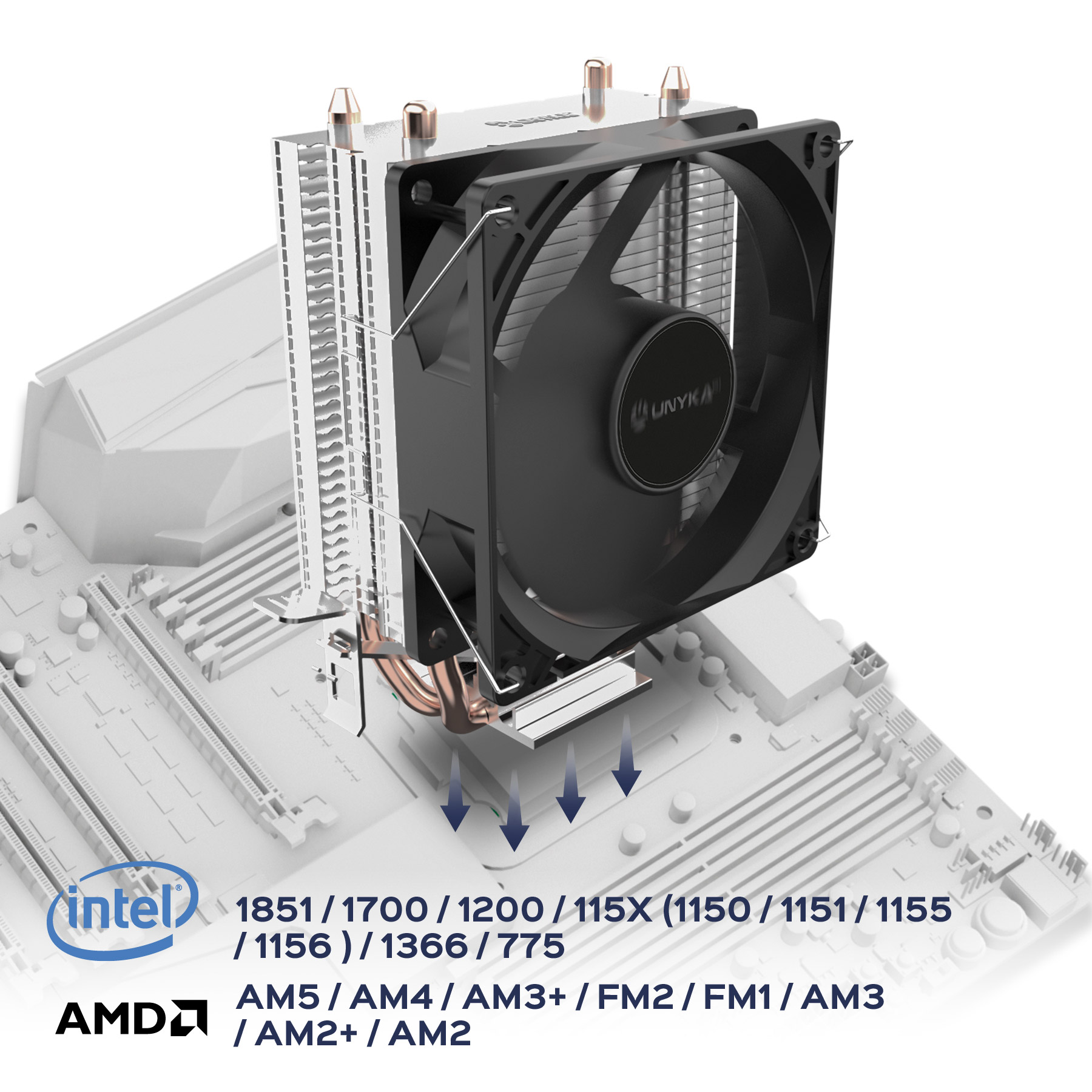

MULTIPLATFORM COMPATIBILITY

Thanks to its compact design, you won’t encounter issues with RAM clearance. It’s also compatible with multiple Intel and AMD socket platforms.
Intel: Socket 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

Disipador CPU UNYCOOL H21 UK322121-es_a-h21
unykach-refrigeracion-cpu-unycool-h40-UK324001-f
1
Intel Bracket.
2
AMD Bracket.
3
Backplate.
4
Screw Set.
5
Thermal Paste.

EASY INSTALLATION

The package includes all necessary mounting accessories for Intel and AMD platforms, along with thermal paste to guarantee a quick and secure installation.

Package Contents:
1 - Intel Bracket
2 - AMD Bracket.
3 - Backplate.
4 - Screw Set.
5 - Thermal Paste.

PRODUCT
CPU Cooler UNYCOOL H21 PN:UK322121

DIMENSIONS
60 (L) x 90 (W) x 125 (H) mm

WEIGHT
204 g

FAN

DIMENSIONS
90 (L) x 90 (W) x 25 (H) mm

COLOR
Black

DESIGN
Standard

BEARING
Hydraulic

RPM
800-2000 RPM ±10%

MTBF
30.000 h

NOISE LEVEL
21.5dBA

CFM
36.11

MAX.AIR PRESSURE
1.2 mm

NUMBER OF BLADES
7

PIN CONNECTOR
4-Pin

TEMPERATURE SENSOR
Yes / PWM

CABLE LENGHT
230 mm

STARTUP VOLTAGE
12V

TDP
≤90W

HEATSINK

DIMENSIONS
90 (L) x 35 (W) x 125 (H) mm

COLOR
Gray

HEAT PIPE
2

NUMBER OF HEAT SINK
30

MATERIAL
Aluminum / Copper

SOCKET COMPATIBILITY
Intel: Socket 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

PACKAGING

DIMENSIONS
115 (L) x 85 (W) x 145 (H) mm

WEIGHT
280 g

VOLUME
0.0014 m3

COLOR
Retail

MATERIAL
Cardboard

PACKAGE CONTENTS
Fan / Heatsink / Socket Adapter / Thermal Paste

TECHNICAL SHEET
CPU Cooler UNYCOOL H21 PN:UK322121

MANUAL
–

DRIVERS
–

OTHERS
–

MASTER BOX DIMENSIONS
595 (L) x 360 (W) x 310 (H) mm

MASTER BOX WEIGHT
–

UNITS PER MASTER BOX
60

UNITS PER AMERICAN PALLET
–

UNITS PER EUROPEAN
–

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
