P/N:UK326002 · EAN:8436617921681 · GTIN-14:18436617921688
Enhance your PC’s stability by reducing CPU heat with the UNYCOOL H61. Designed for optimal airflow and quiet performance, its robust construction and 9-blade fan deliver efficient cooling while keeping noise levels low. Featuring a 120 mm PWM fan and built with high-quality aluminum and copper, the H61 ensures effective heat dissipation and long-term durability. It is compatible with a wide range of CPU sockets, including LGA 1151, LGA 1200, LGA 1700, 1851, and AM4, making installation simple and versatile.
COMPACT AND FUNCTIONAL DESIGN

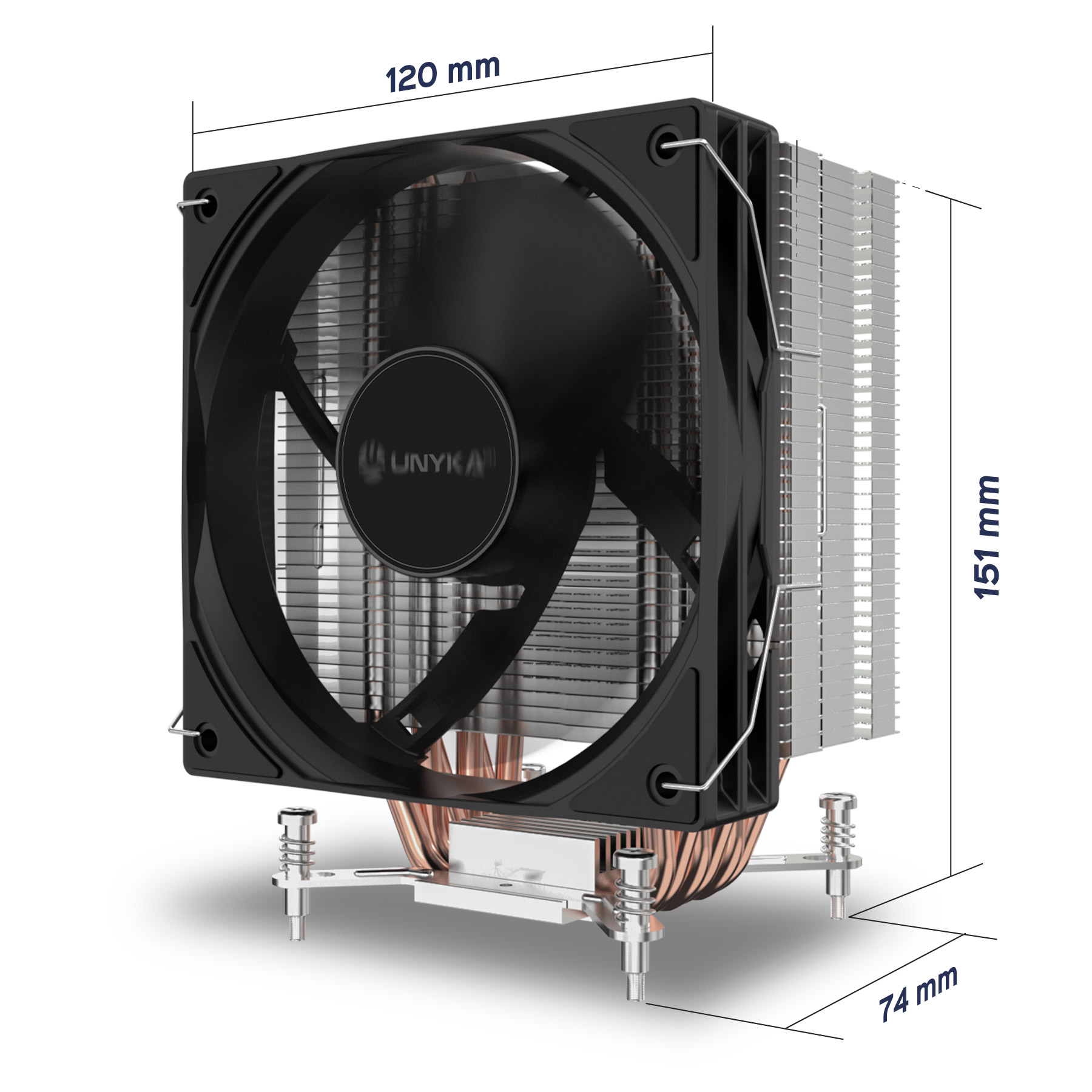

The UNYCOOL H61 is the perfect CPU cooler for setups that demand efficient cooling without complications. Measuring 120 x 74 x 151 mm, it fits easily into smaller cases without interfering with RAM modules or other components.
EFFICIENT ALUMINIUM HEATSINK

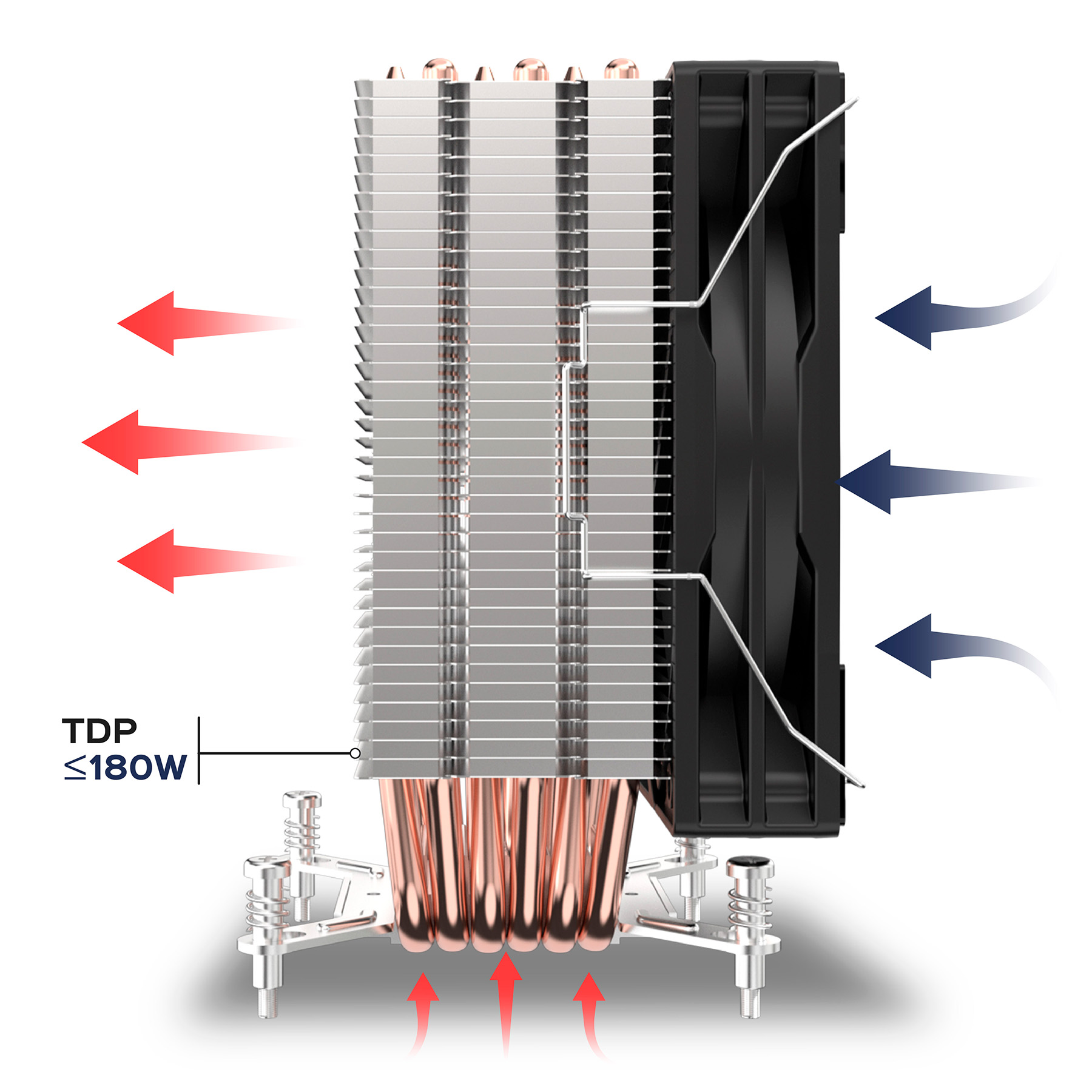

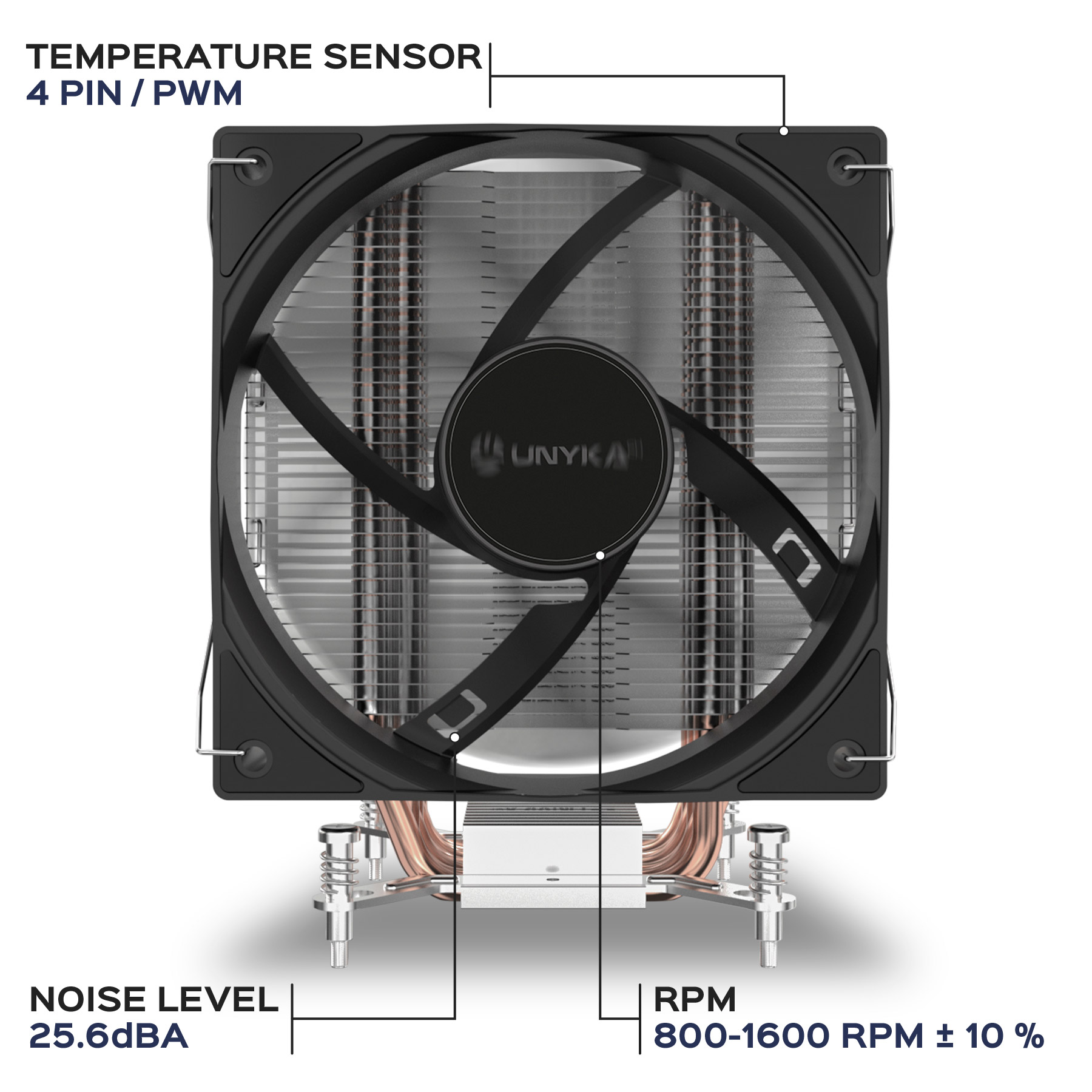

This model features a high-density extruded aluminum heatsink block designed to maximize airflow. It includes a 120 mm PWM fan with a thermal sensor, reaching speeds up to 1600 RPM for an ideal balance between performance and silence. Equipped with 6 high-performance copper heat pipes, it provides efficient heat transfer and supports CPUs with a TDP of up to 180W.
A perfect cooling solution for demanding tasks such as advanced office work, design, web browsing, and multimedia consumption.

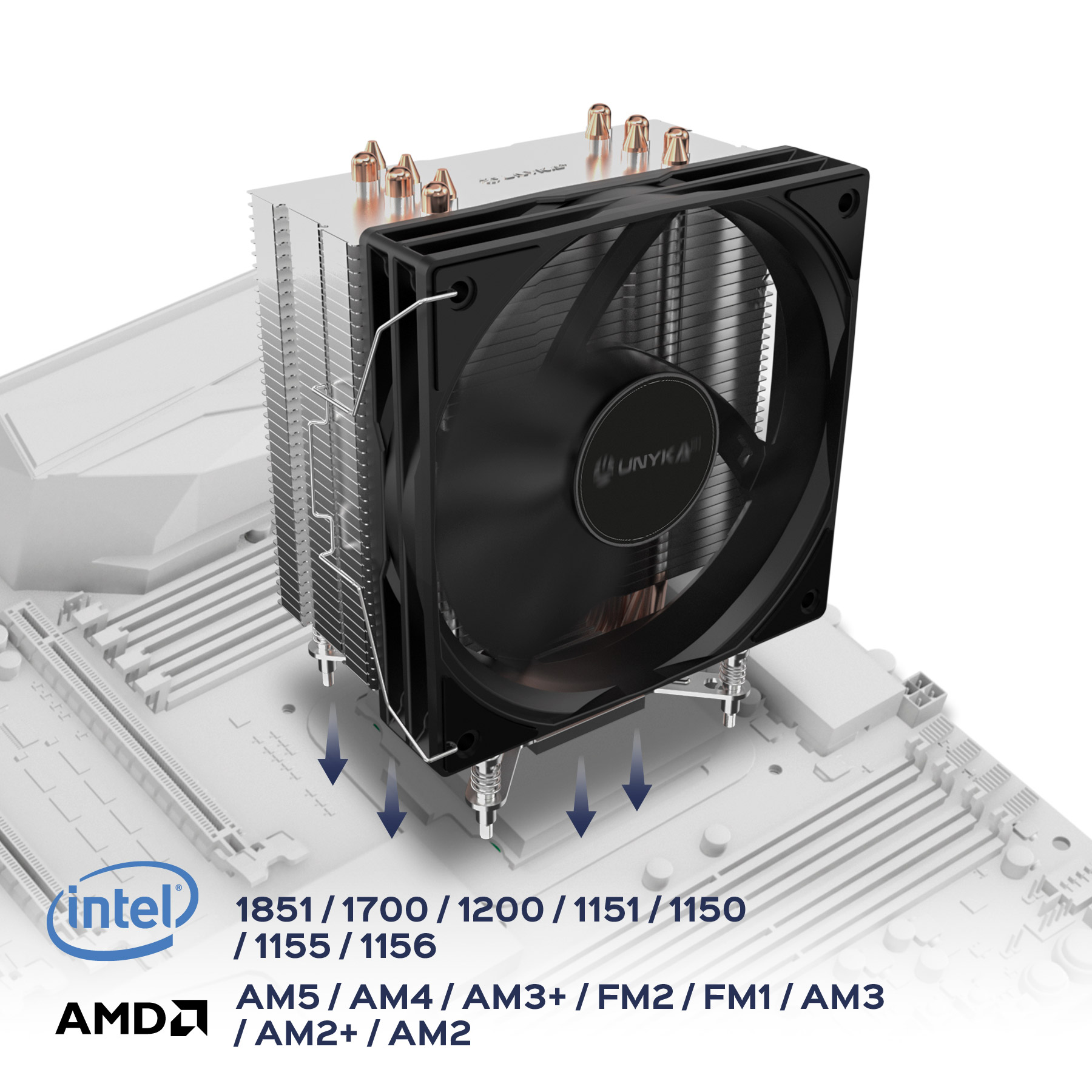

MULTIPLATFORM COMPATIBILITY
Thanks to its compact design, the UNYCOOL H61 ensures full RAM clearance and wide compatibility with both Intel and AMD platforms.
Intel: Socket 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
AMD: AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
1
Intel Bracket.
2
AMD Bracket.
3
Backplate.
4
Screw Set.
5
Thermal Paste.
EASY INSTALLATION
The package includes all necessary mounting accessories for Intel and AMD platforms, along with thermal paste to guarantee a quick and secure installation.
Package Contents:
1 - Intel Bracket
2 - AMD Bracket.
3 - Backplate.
4 - Screw Set.
5 - Thermal Paste.
PRODUCT
CPU Cooler UNYCOOL H61 PN:UK326002
DIMENSIONS
120 (L) x 74 (W) x 151 (H) mm
WEIGHT
560 g
FAN
DIMENSIONS
120 (L) x 120 (W) x 25 (H) mm
COLOR
Black
DESIGN
Standard
BEARING
Hydraulic
RPM
800-1600 RPM ± 10%
MTBF
40000 h
NOISE LEVEL
25.6dBA
PRESIÓN MÁXIMA DE AIRE
2.53 mm H2O
CFM
59.98
NUMBER OF BLADES
9
PIN CONNECTOR
4-Pin
TEMPERATURE SENSOR
Yes / PWM
STARTUP VOLTAGE
12V
TDP
≤180W
HEATSINK
DIMENSIONS
120 (L) x 49 (W) x 151 (H) mm
COLOR
Gray
NUMBER OF HEAT SINK FINS
38
HEAT PIPES
6
DIAMETER
φ 6mm
MATERIAL
Aluminum / Copper
SOCKET COMPATIBILITY
LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
PACKAGING
DIMENSIONS
135 (L) x 115 (W) x 172 (H) mm
WEIGHT
640 g
VOLUME
0.0026 m3
COLOR
Retail
MATERIAL
Cardboard
PACKAGE CONTENTS
Fan / Heatsink / Intel and AMD Mounting Kits / Screws / Thermal Paste
MASTER BOX DIMENSIONS
595 (L) x 420 (W) x 360 (H) mm
MASTER BOX WEIGHT
–
UNITS PER MASTER BOX
30
UNITS PER AMERICAN PALLET
–
UNITS PER EUROPEAN
–
