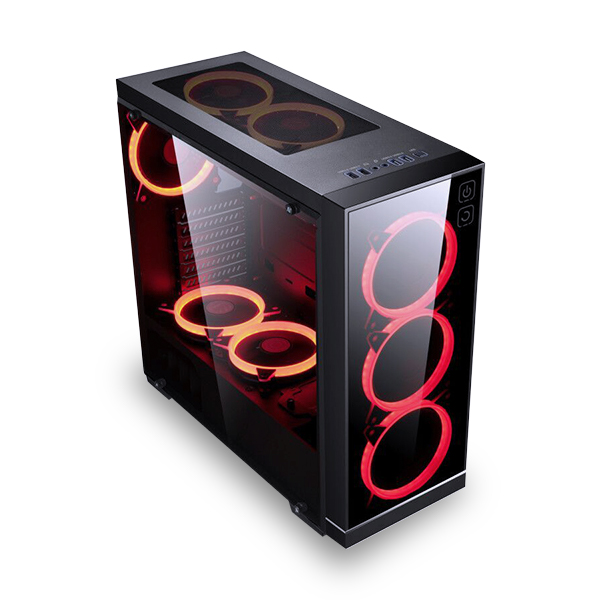

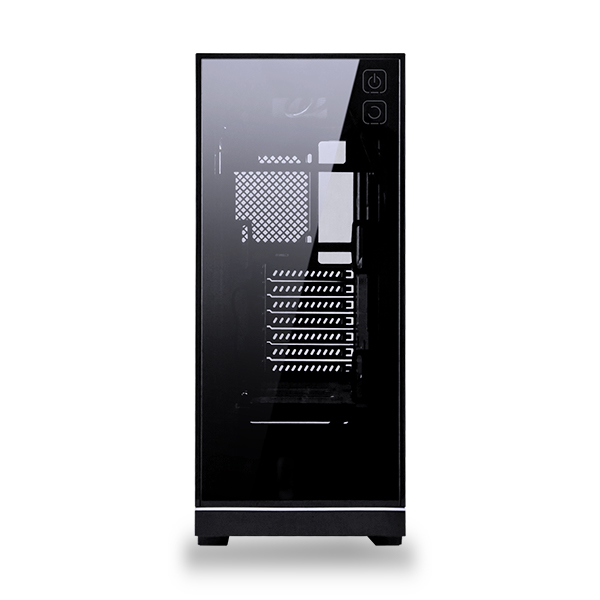

Exagon EVO RGB is an evolved model of its predecessor, the Exagon EVO case.
In this case, the ATX Exagon Evo RGB case has a design characterized by having the sides and front of tempered glass. But, above all, its composition stands out, designed to incorporate up to 8 fans and a liquid cooling of up to 360 mm. its tactile buttons for ON / OFF of the equipment.
P/N: 511103 · EAN: 6940533543206


MORE THAN VENTILATION
Exagon EVO RGB allows to incorporate three 120 mm fans on the front, two on the top, one on the back and two on the inside of the box. Optimum ventilation of all components that also adds a touch of color. In addition, it is compatible with liquid cooling systems of up to 360 mm, favoring the correct ventilation of all the components which will substantially improve the performance of the equipment.
EXAGON EVO RGB ATX
– Frontal and tempered glass side panels.
– Touch buttons on / off on the front panel.
– It allows to install up to 8 fans of 120mm.
– Tool Less mounting system.
– Compatible with liquid cooling systems up to 360mm.
– 3 Built-in RGB Candy 30 fans.

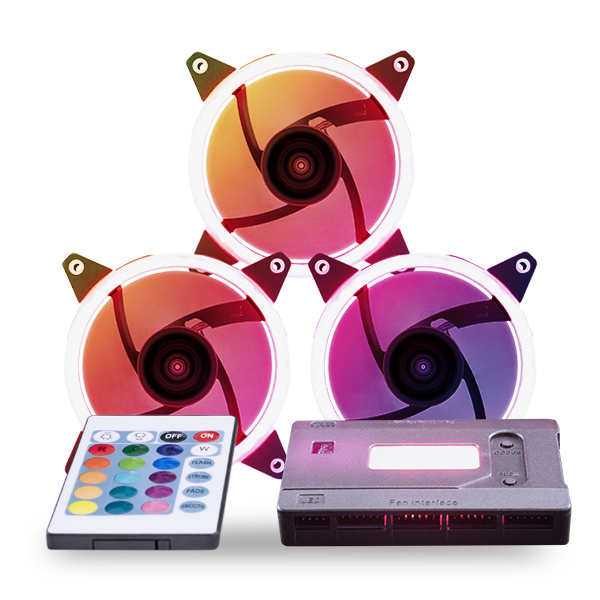

CANDY 30 RGB RING LED FANS
There are 3 fans of 120mm to adapt to any configuration without dispensing with its cooling power thanks to its 7 blades that favor airflow and optimize static pressure.
These fans have an RGB lighting system with 4 effects: Flash, Strobe, Fade, Smooth or up to 16 static colors.
PRODUCT
PC Case ATX Exagon Evo RGB PN:511103
TYPE CHASSIS
ATX
DIMENSIONS
468 (L) x 202 (W) x 454 (H) mm / 43 l
WEIGHT
6,8 kg
COLOUR
Black
MATERIAL
SPCC 0,6 mm / Tempered Glass
FAN
Included CANDY 30 RGB Ring Led 120MM
SIDE PANEL
Tempered Glass
EXPANSION SLOT
7 Normal
BAY 5,25” INT/EXT
0 / 0
BAY 3,5” INT/EXT
2 / 0
BAY 2,5” SDD INT/EXT
3 / 0
CONNECTOR
2 x USB 2.0 / 2 x USB 3.0
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
ATX
ANTI DUST FILTER
Yes
COMPATIBILITY AIR COOLING
Yes
COMPATIBILITY LIQUID COOLING
Yes
MAX CAPACITY OF FANS
Front 3 x (120 mm) / Rear 1 x (120 mm) / Top 2 x (120 mm) / Down 2 x (120 x 120 mm)
MAX CAPACITY LIQUID REFRIGERATION
Front 1 x (360 mm) / Top 1 x (240 mm)
CPU COOLER MAX HEIGHT
155 mm
WIDTH MAX GPU / PCI CARD
400 mm
VGA COMPATIBILITY
Yes (Low Profile)
MAX DIMENSION ADMITTED GRAPHIC CARD
400 mm
TOOL LESS
Yes
PACKAGING
DIMENSIONS
542 (L) x 260 (H) x 515 (W) mm
WEIGHT
8,3 kg
CUBIC CAPACITY
0,0726 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
PC Case ATX / Screws / Fans
CERTIFICATIONS
CE / ROHS
