UNYKAch ATX 550W MAX is a standard ATX power supply in black, designed to provide quiet, stable and safe operation. It is specifically developed to meet the needs of office environments and to optimise work in repair workshops and computer refurbishment operations.
P/N:UK53099B · EAN:8436617921926 · GINT14: 18436617921923
ATX 550W MAX Black Office Power Supply
– ATX power supply ideal for repair and refurbishment.
– Power: 550W Max.
– Version: ATX 2.31
– Quiet 120 mm fan with intelligent speed and temperature control.
– Includes power switch.
– Includes power cable.
– AC input: 230V – 5 A – 50/60 Hz
– Output rails:
– 12V rail: 25 A (stable combined real power for processors)
– +5V rail: 28 A
– +3.3V rail: 28 A
UPDATED AESTHETICS
Black chassis, fully finished in black to blend perfectly with contemporary PC cases.
QUIET OPERATION
Features a 120 mm fan with intelligent temperature control that adjusts its speed to minimise noise.
QUIET OPERATION
It features a highly stable single +12V rail and integrates overvoltage, undervoltage, short-circuit and overpower protection systems (OVP / UVP / SCP / OPP), helping to protect your components against unexpected electrical events.
FLAT CABLING
The UNYKAch MAX Office Line Black power supply uses black flat cables, a design focused on efficient installation and clean cable management while also optimising internal airflow.
Advantages:
• Reduced aerodynamic resistance inside the chassis, helping improve cooling efficiency and reduce heat build-up.
• More precise cable management, providing a clean and uniform finish in any configuration.
• Easier and more adaptable installation, even in compact chassis with limited working space.

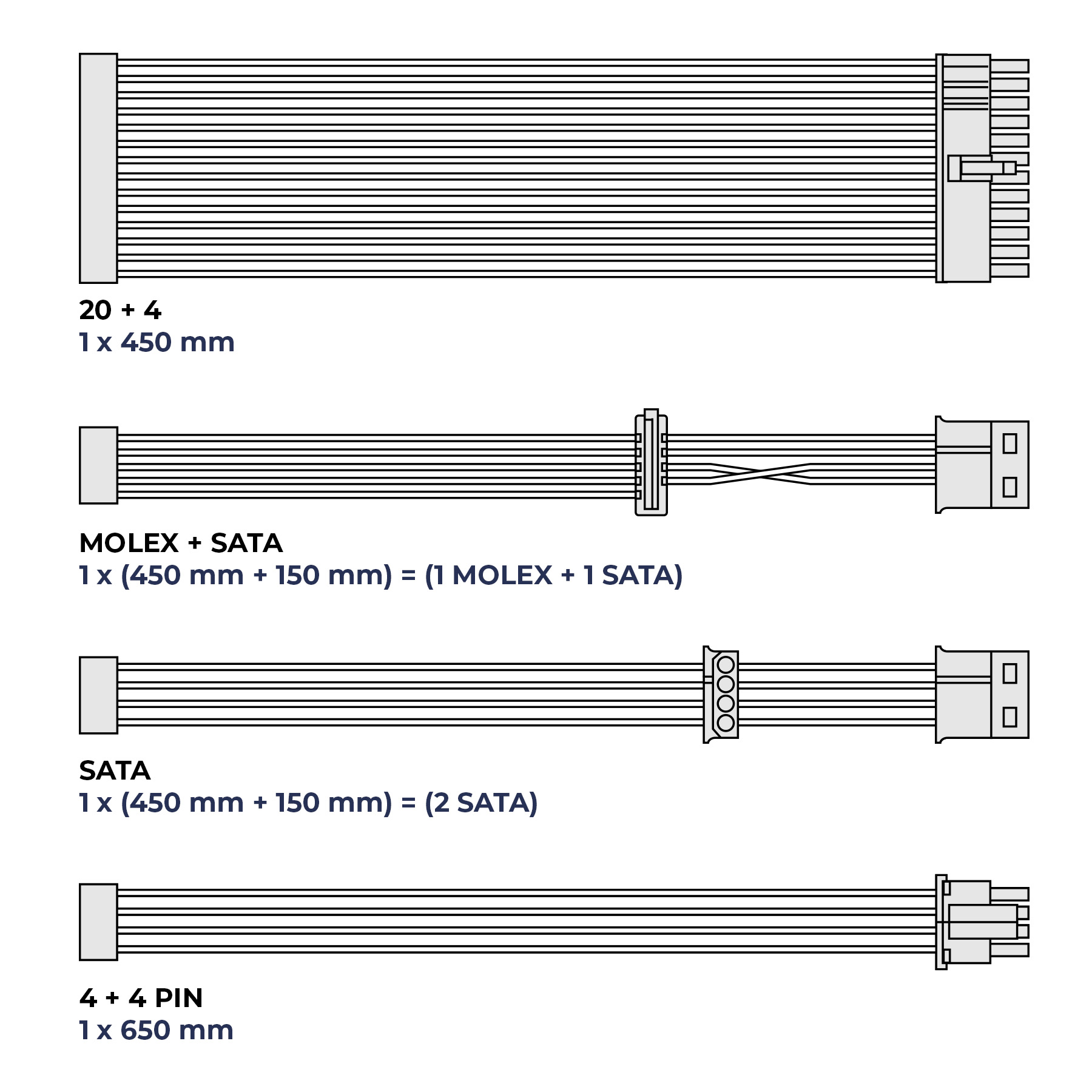

CONNECTIVITY AND CABLING
Equipped with a set of cables optimised for ATX systems, this power supply ensures easy installation and full compatibility with the main system components.
Connector distribution:
• 1 x Main ATX 20 + 4-pin.
• 1 x CPU 12V 4 + 4-pin.
• 2 x SATA.
• 1 x 4-pin Molex (IDE) + 1 x SATA.
PRODUCT
Power Supply ATX 550W MAX Black Office PN:UK53099B
USAGE
Basic Office Line
VERSION
INTEL 2.31
TYPE CHASSIS
ATX
DIMENSIONS
140 (L) x 150 (W) x 86 (H) mm
WEIGHT
1,102 kg
COLOUR
Black
SWITCH
Yes
CONTROL OF ENERGY
- Nominal Power Supply Voltage (Maximum Peak): 550W
- AC Input Current 230V, 5A / 50-60
- Maximum Output Current +3,3V: 28 A
- Maximum Output Current +5V: 28 A
- Maximum Output Current +12V: 25 A
- Maximum Output Current -12V: 0,5 A
- Maximum Output Current +5Vsb: 2 A
CAPACITORS
Chinese
SATA CONNECTOR
1 x (450 mm + 150 mm) = (2 SATA)
4 + 4 PIN CONNECTOR
1 x 650 mm
MOLEX + SATA CONNECTOR
1 x (450 mm + 150 mm) = (1 MOLEX + 1 SATA)
20 + 4 CONNECTOR
1 x 450 mm
RAIL
Single 12V
FAN
120 mm Temperature Control
BEARINGS
Hydraulic
AIR FLOW
64-71 CFM
NOISE LEVEL
32-37dBA
RPM
1900±10%
MTBF
40.000
220V POWER CABLE
Included
PACKAGING
DIMENSIONS
285 (L) x 180 (W) x 95 (H) mm
WEIGHT
1,35 kg
CUBIC CAPACITY
0,0048 m3
COLOUR
Retail
MATERIAL
Paperboard
PACKAGE CONTENT
Power Supply / Power Cable
PROTECTIONS & CERTIFICATIONS
CE / OVP / UVP / SCP / OPP
EFFICIENCY & CERTIFICATIONS
CE / ROHS
MASTER BOX DIMENSIONS
500 (L) x 385 (W) x 305 (H) mm
MASTER BOX WEIGHT
14,3 kg
UNITS PER MASTER BOX
10
UNITS PER AMERICAN PALLET
–
UNITS PER EUROPEAN PALLET
–
