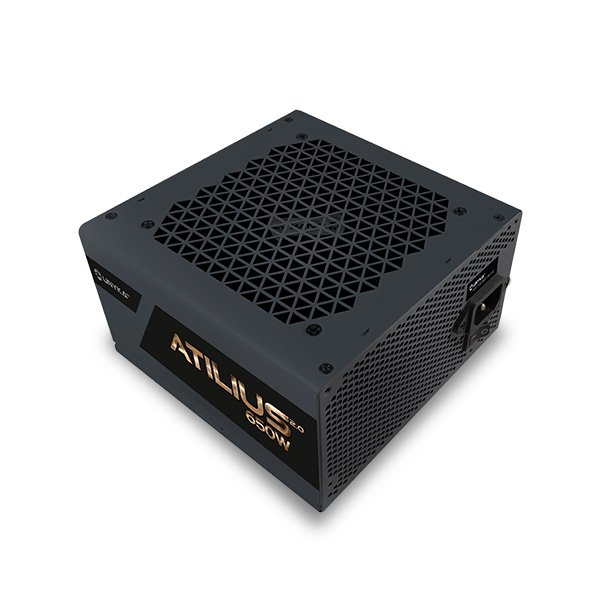

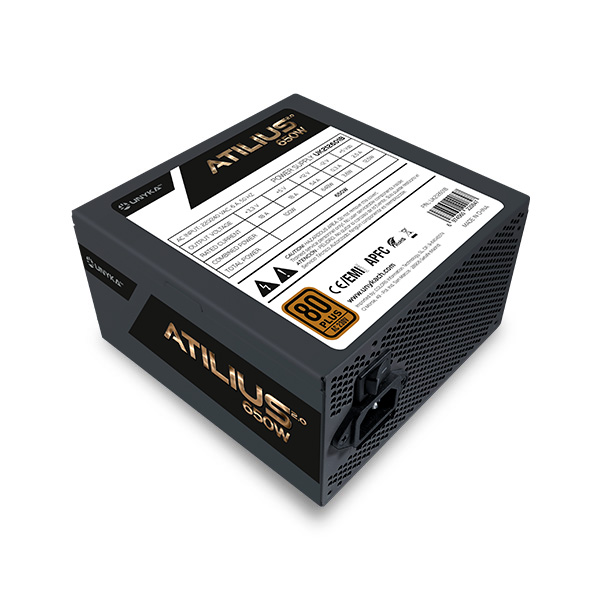

Power Supply ATX ATILIUS 2.0 BLACK 650W
80+ Bronze

The ATILIUS 2.0 power supply is an excellent choice for users who require real and reliable power for work or leisure without interruptions. With an ATX format of 650W and 80+ Bronze, this power supply is perfect for the most demanding users.
In addition, its ultra-silent 120mm fan ensures optimal performance and effective cooling at all times. And when it comes to style, the elegance and sobriety of its black design make it a perfect complement to any case.
P/N:UK212601 · EAN:6974560220847
atx-650-120mm-apfc-85eff

80+ BRONZE

The ATILIUS 2.0 650W power supply is an ideal choice for those looking for an efficient and reliable power supply. 80+ Bronze provides 85% efficiency, stable and safe for your equipment, which translates into lower energy consumption and therefore lower electricity costs.

ATILIUS 2.0 BLACK 650W

– Real power of 650W.
– 80+ Bronze.
– Ultra-silent 120mm fan.

REAL POWER

The standout feature of UNYKAch's ATILIUS 2.0 power supplies is their real power of 650W, which means that they provide precise and stable power delivery without fluctuations or drops that could affect the performance of your equipment. This is due to their intelligent circuit design and the incorporation of high-quality components that ensure a constant and safe energy supply.

PRODUCT
Power Supply ATX Atilius 2.0 Black 650W 80+ Bronze PN:UK212601


VERSION
INTEL 2.3


TYPE CHASSIS
ATX


DIMENSIONS
150 (L) x 150 (W) x 85 (H) mm


WEIGHT
1,45 kg


COLOUR
Black


SWITCH
Yes


CONTROL OF ENERGY

  • Nominal Power Supply Voltage:650W
  • Maximum AC Input Current 220-240V / 50-60 Hz Serial: UK212601 / +3.3V / +5V / +12V / -12V / +5Vsb
  • Maximum Output Current +3,3V: 18 A
  • Maximum Output Current +5V: 18 A
  • Maximum Output Current +12V: 54 A
  • Maximum Output Current -12V: 0,3 A
  • Maximum Output Current +5Vsb: 2,5 A

POWER FACTOR
APFC


CAPACITORS
Taiwanese


SATA CONNECTOR
2 x (500 mm + 150 mm + 15 mm)


20 + 4 PIN CONNECTOR
1 x 550 mm


4 + 4 PIN CONNECTOR
1 x (600 mm + 150 mm)


PCI-E 6 + 2 PIN CONNECTOR
2 x (550 mm + 150 mm)


MOLEX CONNECTOR
1 x (550 mm + 150 mm + 150 mm)


RAIL
Single


FAN
120 mm


RPM
1600 – 2000 ± 10 %


PACKAGING

DIMENSIONS
290 (L) x 195 (W) x 85 (H) mm


WEIGHT
1,8 kg


CUBIC CAPACITY
0,0067 m3


COLOUR
Retail


MATERIAL
Paperboard


PACKAGE CONTENT
ATX Power Supply / European Standard Power Cable


PROTECCIONES & CERTIFICACIONES
CE / OVP / UVP / OTP / OLP / OPP / SCP / APFC


EFICIENCIA & CERTIFICACIONES
ROHS / CE / 80+ Bronze


OTHER FEATURES

MASTER BOX DIMENSIONS
480 (L) x 530 (W) x 233 (H) mm


MASTER BOX WEIGHT
18 kg


UNITS PER MASTER BOX
10


UNITS PER AMERICAN PALLET
32


UNITS PER EUROPEAN PALLET


MASTER BOX DIMENSIONS
480 (L) x 530 (W) x 233 (H) mm


MASTER BOX WEIGHT
18 kg


UNITS PER MASTER BOX
10


UNITS PER AMERICAN PALLET
32


UNITS PER EUROPEAN PALLET


Recommended

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
