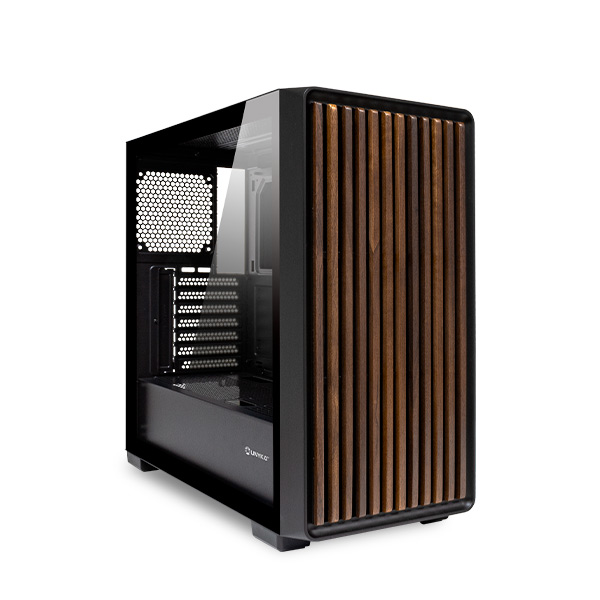

The Unykach Revelat MADEIRA Black is the perfect fusion of nature and technology. Each case is a unique piece, featuring carefully selected wooden slats and a high-strength tempered glass side panel. It is a statement of style, a perfect balance between organic and modern design.
Beyond its aesthetics, this ATX tower is engineered for maximum performance and versatility. It supports E-ATX, ATX, and Micro ATX motherboards, accommodates graphics cards up to 425 mm, and allows for the installation of 360 mm liquid cooling, ensuring optimal airflow to keep hardware at the ideal temperature.
Its tempered glass side panel showcases every component with style, while its advanced connectivity includes USB 3.0 and Type-C Gen 2 ports for a more efficient experience. With an optimized cooling design and ample space for fans, the Revelat Madeira Black is the perfect choice for those seeking the perfect balance between premium design and high performance.
The tempered glass side panel provides a clear view of your machine, while the top panel features USB 3.0 and Type-C Gen 2 ports for a more efficient experience.
For gamers who value design as much as power, and for creators who seek a setup with personality: Revelat MADEIRA is not just a case—it’s the essence of your PC.
P/N:UK121804 · EAN:8436617921100
ELEGANT DESIGN & EXCEPTIONAL VISIBILITY

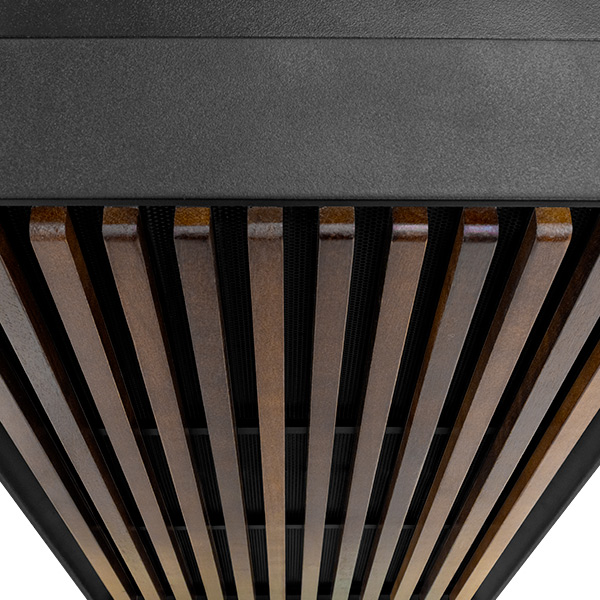

Showcase the power and beauty of your gaming setup with Revelat MADEIRA. This exclusive case combines the warmth of natural wood slats on the open front panel with the transparency of a tempered glass side panel, allowing you to admire every component of your PC. Design and performance in perfect harmony.
REVELAT MADEIRA BLACK ATX
– Tempered Glass Side Panel.
– 2 x USB 3.0 / 1 x USB Type-C GEN 2 + HD Audio.
– Compatible with GPUs up to 425 mm.
– Compatible with liquid cooling systems up to 360 mm.
ADVANCED CONNECTIVITY & TOTAL CONTROL
The Revelat MADEIRA is equipped with next-generation connectivity options for the best experience. The top panel includes a USB Type-C 3.1 Gen2 port for ultra-fast data transfers, two USB 3.0 ports, and an HD audio jack for seamless connection to your latest peripherals.
Additionally, it features an LED control button, allowing you to customize the interior lighting with ease and tailor it to your style.
Top Panel Layout:
1 - On/Off
2 - Reset
3-5 - USB 3.0
4 - Audio
6 - USB Type C 3.1 Gen 2
7 - LED
1
On/Off
2
Reset
3
Conexión USB 3.0
4
Audio
5
Conexión USB 3.0
6
USB Type-C 3.1 Gen 2
7
LED
SPACE FOR YOUR HIGH-END HARDWARE

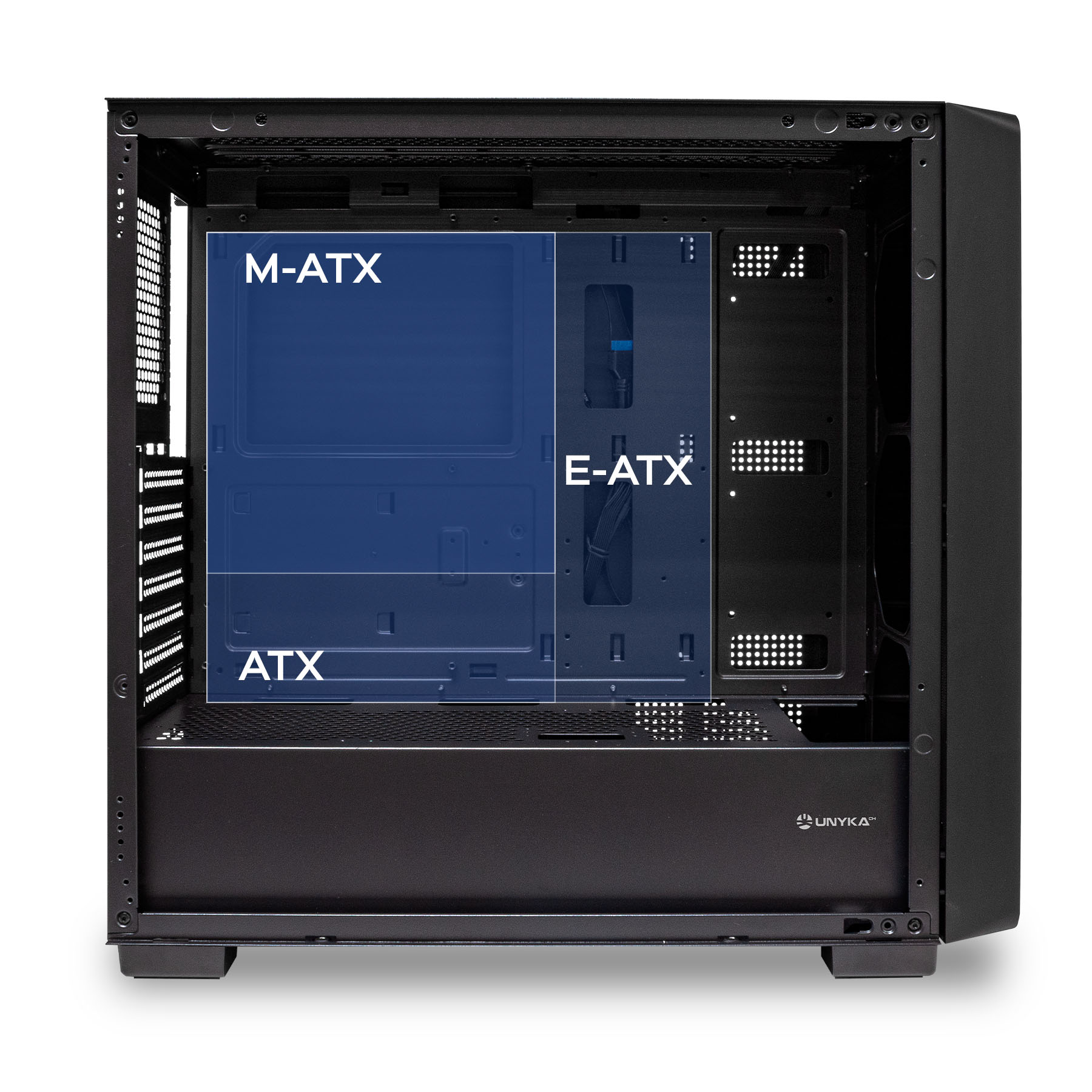

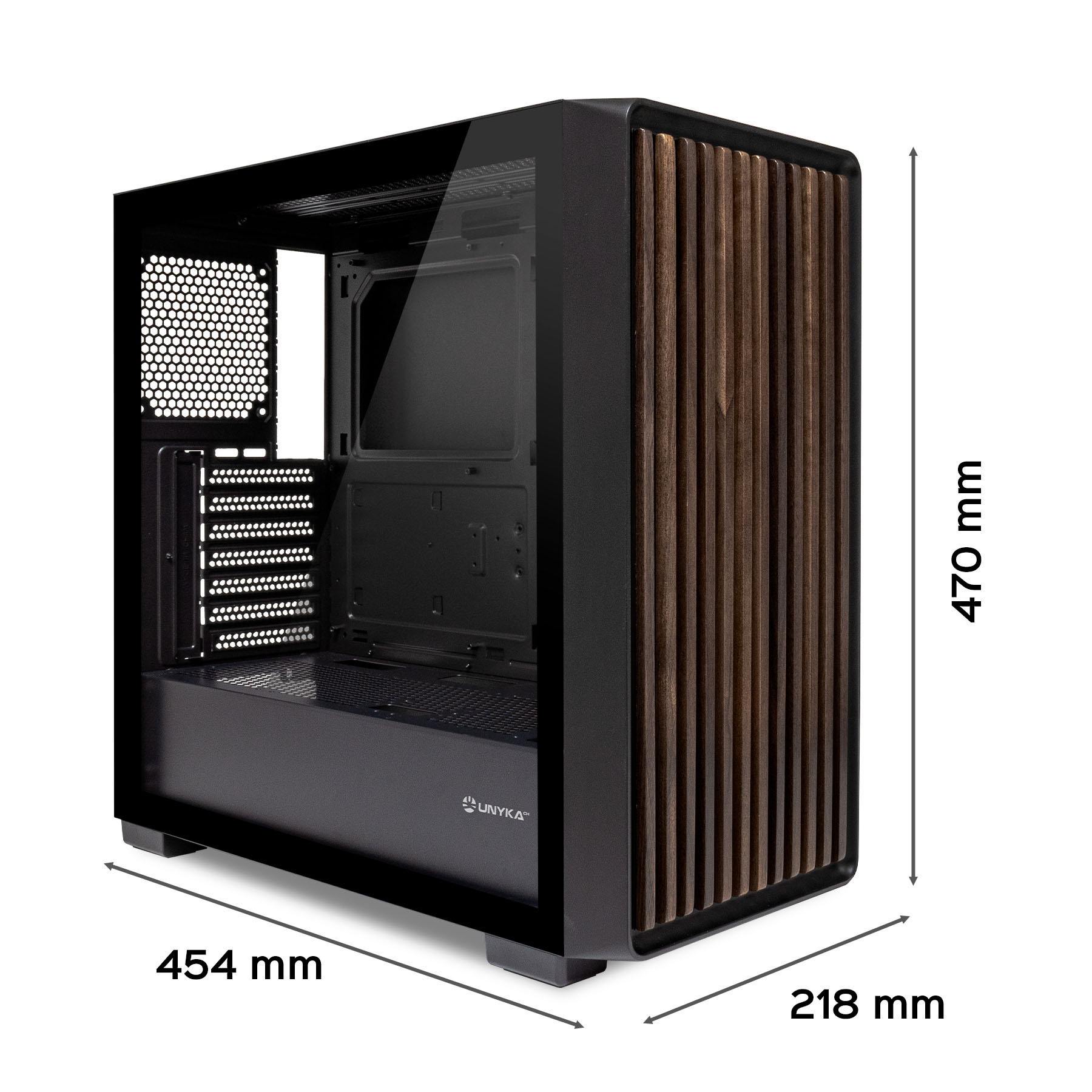

The Unykach Revelat MADEIRA tower is designed with a spacious and optimized interior, ideal for high-performance users. Measuring 454 mm (L) x 218 mm (W) x 470 mm (H), it supports large-format motherboards (E-ATX, ATX, Micro ATX, ITX), next-generation graphics cards, and advanced cooling systems.

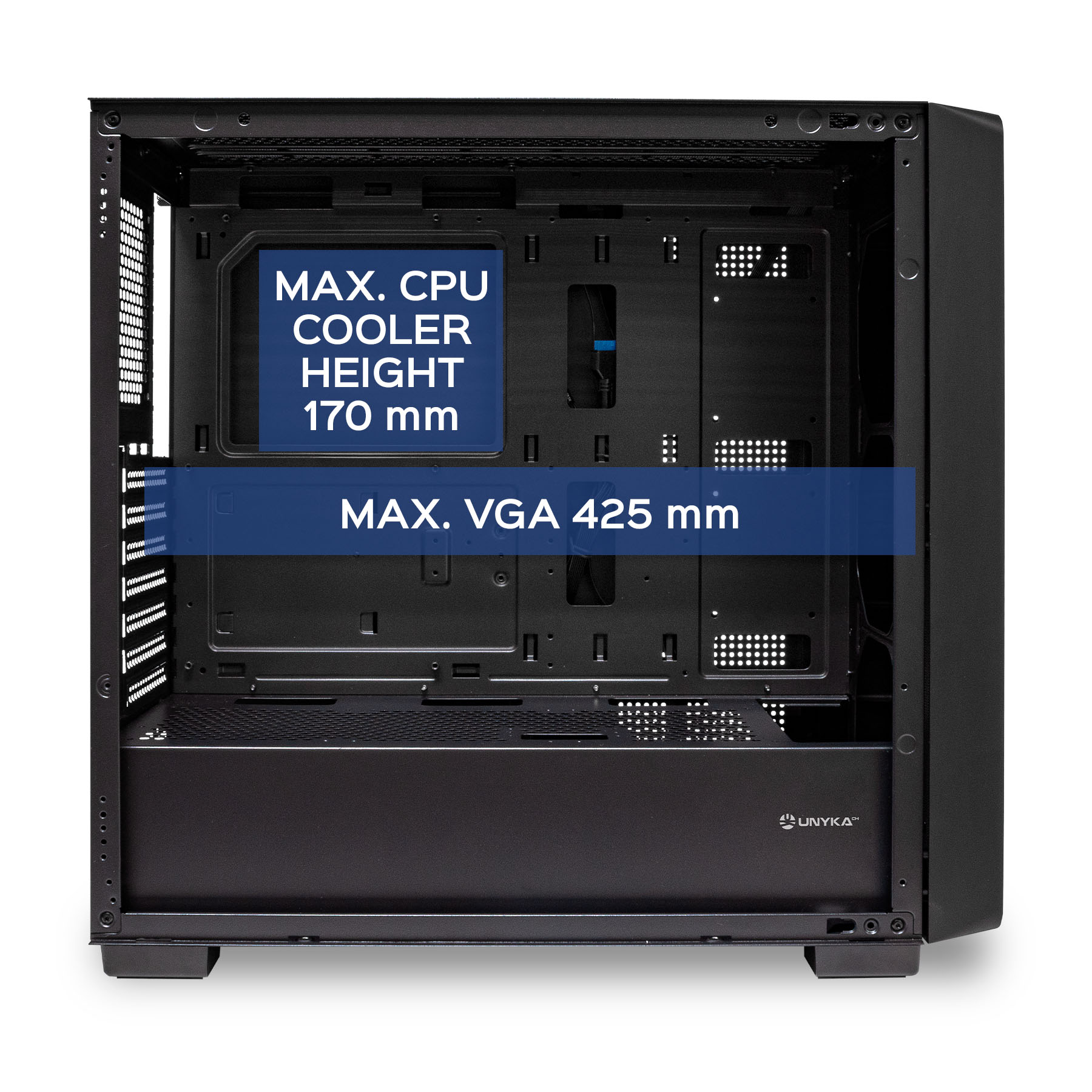

- Supports air coolers up to 170 mm
- Compatible with GPUs up to 425 mm

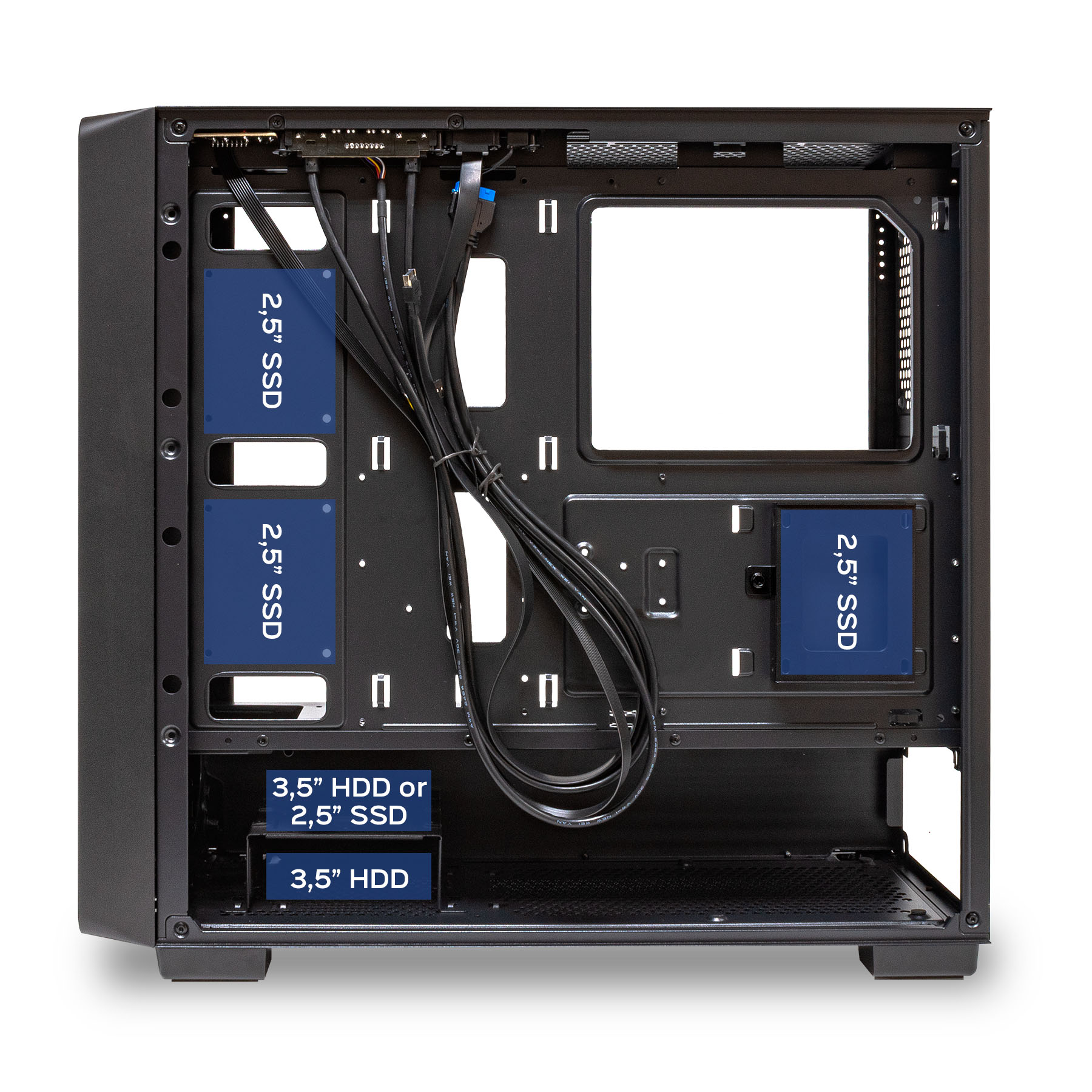

Flexible storage options:
- 2 x 2.5" + 2 x 3.5" drives
- 3 x 2.5" + 1 x 3.5" drive
PRODUCT
ATX Case REVELAT Madeira Black PN: UK121804
TYPE CHASSIS
ATX
DIMENSIONS
454 (L) x 218 (W) x 470 (H) mm
WEIGHT
8,96 kg
COLOUR
Black / Wood
MATERIAL
SGCC 0.5 mm / ABS / Tempered Glass, Wood
SIDE AND FRONT PANELS
Tempered Glass
MOTHERBOARD
E-ATX / ATX / Micro ATX
EXPANSION SLOT
7
BAY INT
2 x 2´5″ + 2 x 3´5″ or 3 x 2´5″ + 1 x 3´5″
CONNECTOR
2 x USB 3.0 / 1 x USB Type C GEN 2
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
ATX
COMPATIBILITY AIR COOLING
Yes
COMPATIBILITY LIQUID COOLING
Yes
MAX CAPACITY AIR REFRIGERATION
Front 3 x (120 mm) / Rear 1 x (120 mm) / Top 2 x (140 mm) or 3 x (120 mm) / Bottom 3 x (120 mm)
MAX CAPACITY LIQUID REFRIGERATION
Front 240 mm / Top 240 – 360 mm (Memory height up to 45 mm)
CPU COOLER MAX HEIGHT
170 mm
VGA COMPATIBILITY
Yes (Normal Profile)
MAX DIMENSION ADMITTED GRAPHIC CARD
425 mm
FILTER ANTI DUST
2
PACKAGING
DIMENSIONS
495 (L) x 280 (W) x 545 (H) mm
WEIGHT
9,9 kg
CUBIC CAPACITY
0,0755 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
PC Case ATX
CERTIFICATIONS
CE / ROHS
TECHNICAL SHEET-GALLERY
PC Case ATX REVELAT Maderia Black PN:UK121804
MANUAL
User Manual for PC CASE ATX REVELAT Madeira Black PN:UK121802
DRIVERS
–
OTHERS
–
CUSTOMIZED COOLING

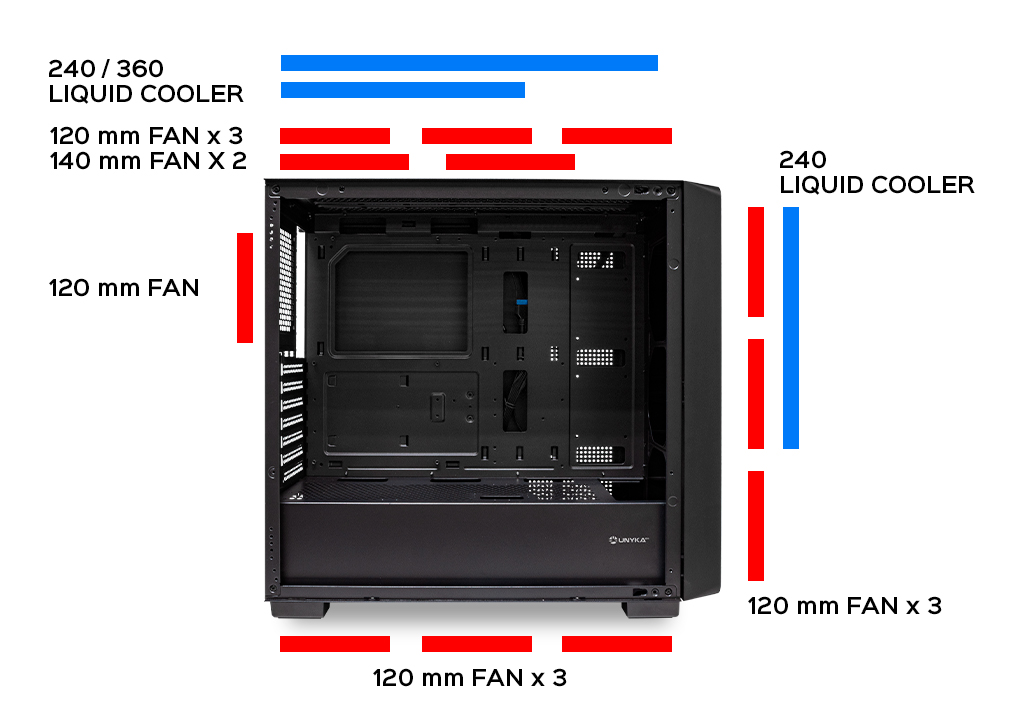

The Revelat MADEIRA tower offers total cooling flexibility, allowing you to install up to 10 fans for optimal airflow. If you prefer a quieter and more efficient solution, it supports liquid cooling systems up to 360 mm, which can be installed on the top panel
DUST PROTECTION

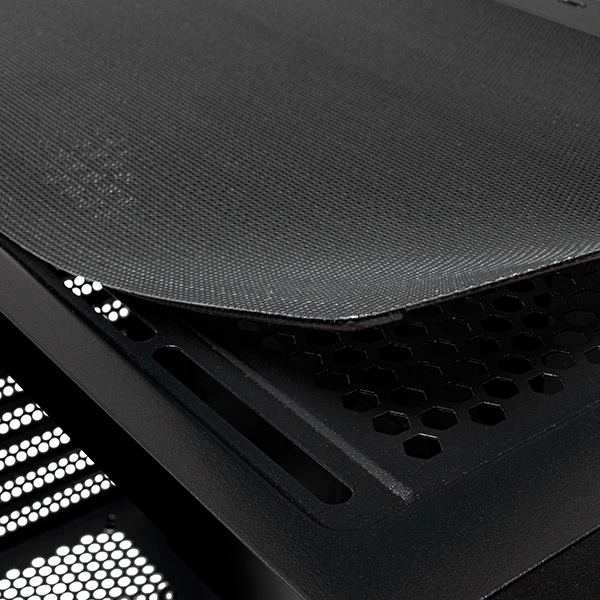

The Revelat MADEIRA chassis features multiple ventilation grilles and includes two strategically placed dust filters (top and bottom). Thanks to its magnetic system, the filters can be easily removed and reattached, ensuring quick and efficient maintenance whenever needed.
