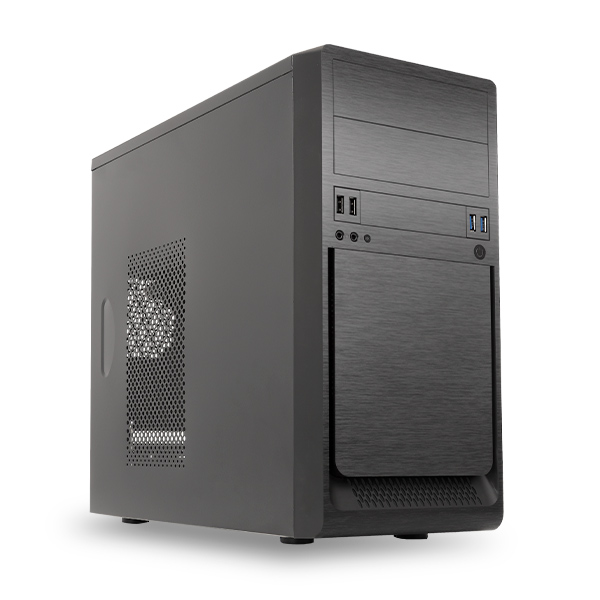

PC Case Micro ATX UK6023 U3

The Micro ATX model 6023 case is the perfect choice for those seeking a simple yet professional and bold aesthetic, thanks to its brushed metal texture on the front panel. Additionally, this case includes a 500W power supply, ensuring you have enough power to run your components.
Connectivity won't be an issue with this case, as it features four USB ports, two of them high-speed 3.0 and two standard 2.0. Its compact design is ideal for building mid-range systems with Micro ATX motherboards, and it has enough space to accommodate a standard ATX power supply, as well as 3.5" storage drives and a 2.5" SSD.
P/N:51992 · EAN:6940533540700
matx-500w-usb3

PURE DESIGN

In addition, the connectivity of the 6023 chassis is ensured thanks to its 2 x 3.0 USB connectors + 2 x 2.0 USB connectors.

UK6023 U3 Micro ATX

– It has 2 USB 3.0 and 2 USB 2.0.
– Incorporates 500W ATX power supply.

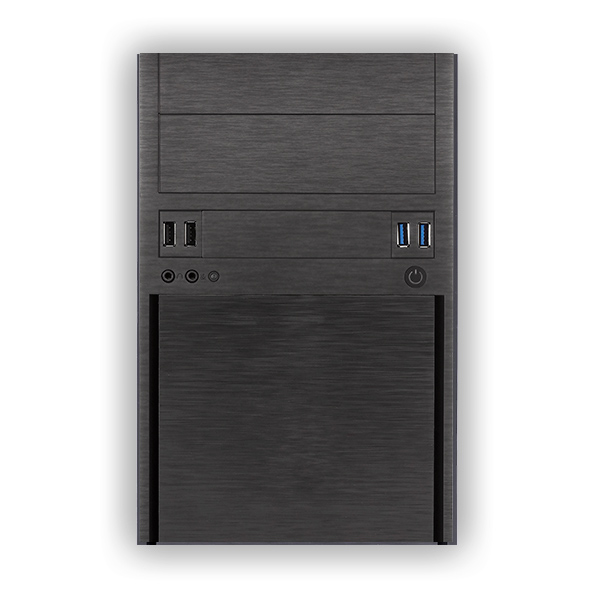

– Frontal with textured brushed steel

CONNECTIVITY 360

The connectivity of the 6023 chassis is ensured thanks to its 2 x 2.0 USB connectors and its 2 x 3.0 USB connectors.

PRODUCT
Caja Micro ATX UK6023 U3 PN:51992


TYPE CHASSIS
Micro ATX


DIMENSIONS
405 (L) x 175 (W) x 370 (H) mm


WEIGHT
4,1 kg


COLOUR
Black


MATERIAL
SGCC / SECC


SIDE PANEL
Metal


EXPANSION SLOT
4 Normal


BAY 5,25” INT/EXT
0 / 2


BAY 3,5” INT/EXT
2 / 1


BAY 2,5” SSD INT/EXT
1 / 0


CONNECTOR
2 x USB 2.0 / 2 x USB 3.0


MICROPHONE / HD AUDIO
Yes / Yes


POWER SUPPLY ADMITTED
Included ATX 500W


COMPATIBILITY AIR COOLING
Yes


MAX CAPACITY OF FANS
2 x (80 mm) o (90 mm)


CPU COOLER MAX HEIGHT
140 mm


WIDTH MAX GPU / PCI CARD
320 mm


VGA COMPATIBILITY
Yes (Normal Profile)


MAX DIMENSION ADMITTED GRAPHIC CARD
320 mm


PACKAGING

DIMENSIONS
405 (L) x 209 (W) x 445 (H) mm


WEIGHT
4,8 kg


CUBIC CAPACITY
0,0376 m3


COLOUR
Brown


MATERIAL
Paperboard


PACKAGE CONTENT
PC Case Micro ATX / Power Supply / Screws


CERTIFICATIONS
CE / ROHS


TECHNICAL SHEET-GALLERY
PC Case Micro ATX UK6023 U3 PN:51992


MANUAL


DRIVERS


OTHERS
Product link in ICECAT


*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
