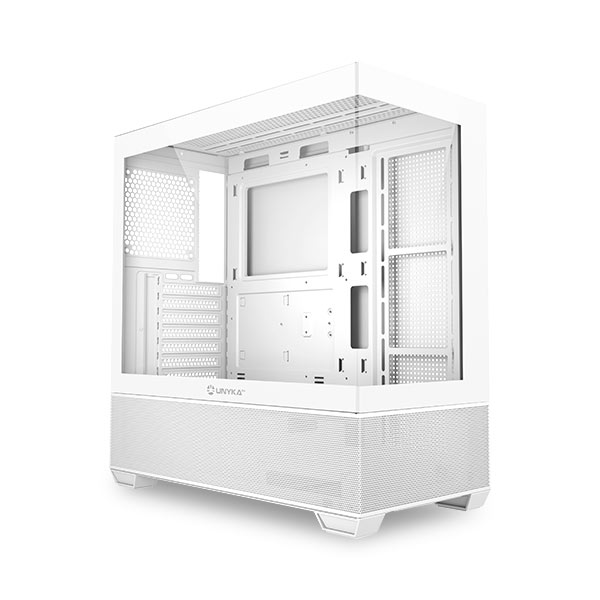

The REVELAT case by UNYKAch perfectly combines cutting-edge aesthetics based on tempered glass with exceptional performance due to its spacious design, meeting the needs of the most demanding gamers and enthusiasts.
It supports a wide range of high-performance hardware, allowing you to build the ultimate gaming rig. It is compatible with graphics cards up to 425 mm in length. Additionally, it provides ample space for ATX, Micro ATX, and Mini ITX motherboards, and for liquid cooling, it supports 240 mm and 360 mm systems. In terms of storage, it accommodates two 3.5-inch HDDs and one 2.5-inch SSD, offering a wide variety of system configuration possibilities.
P/N:UK121802 · EAN:8436617920622
REVELAT WHITE ATX
– Tempered Glass Front and Side Panels.
– 2 x USB 3.0 / 1 x USB Type-C GEN 2 + HD Audio.
– Compatible with GPUs up to 425 mm.
– Supports liquid cooling systems up to 360 mm.
COMPLETE NEXT-GENERATION CONNECTIVITY

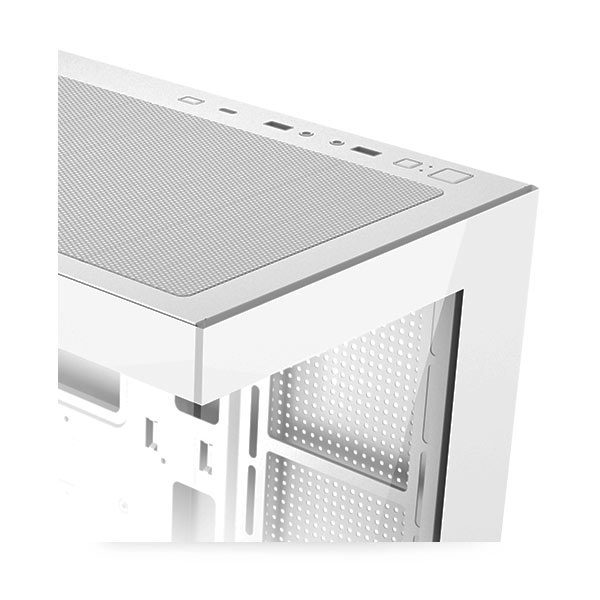

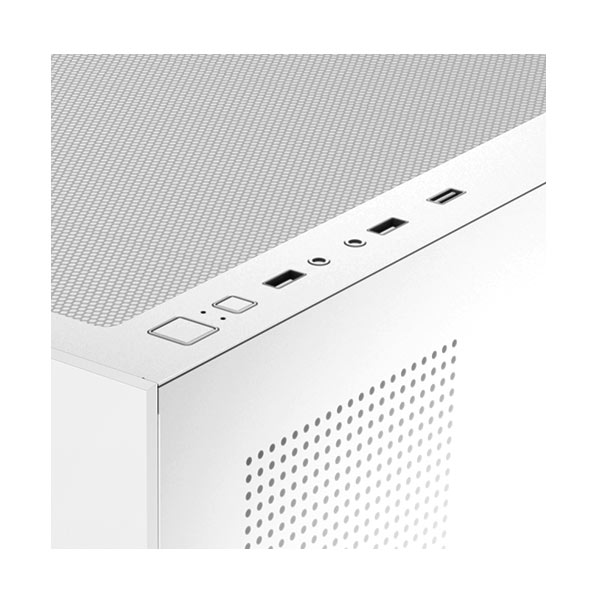

The REVELAT case offers the latest connectivity options right at your fingertips. The top panel features 1 x USB Type-C 3.1 GEN2, perfect for transferring files at incredible speeds. Additionally, there are 2 USB 3.0 ports and an HD audio jack, allowing you to easily connect your newest peripherals.
SEPARATE PSU DESIGN
For optimal internal space management, we have designed the tower with a dedicated area to house the power supply, separate from the main compartment. This configuration optimizes thermal management and organizes the interior space, facilitating orderly cable management and improved airflow to achieve maximum efficiency.
SPACIOUS INTERIOR

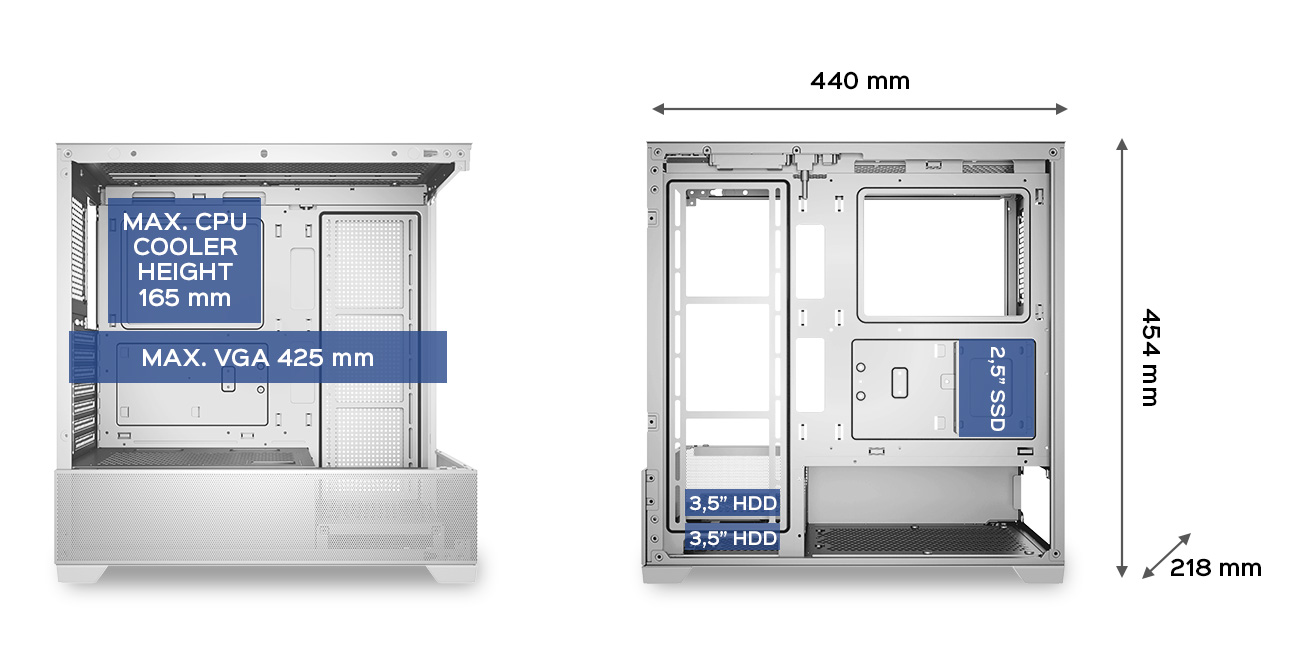

The REVELAT PC case by UNYKAch offers ample space to house the high-end components required by the most demanding gamers. With dimensions of 434 (L) x 218 (W) x 454 (H) mm, this PC case provides enough room to accommodate large motherboards (supporting ATX / Micro ATX / ITX boards), next-generation graphics cards, and advanced cooling systems.
You can install CPU air coolers up to 165 mm in height and graphics cards up to 425 mm in length.

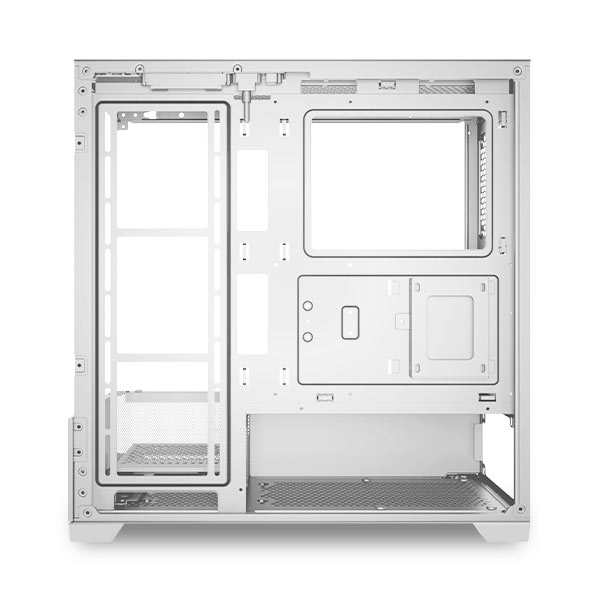

Additionally, you can house up to 3 hard drives:
• Behind the Motherboard Tray: 1 x 2.5" drive.
• Front Bay: 2 x 3.5" drives or 1 x 3.5" drive + 1 x 2.5" drive.

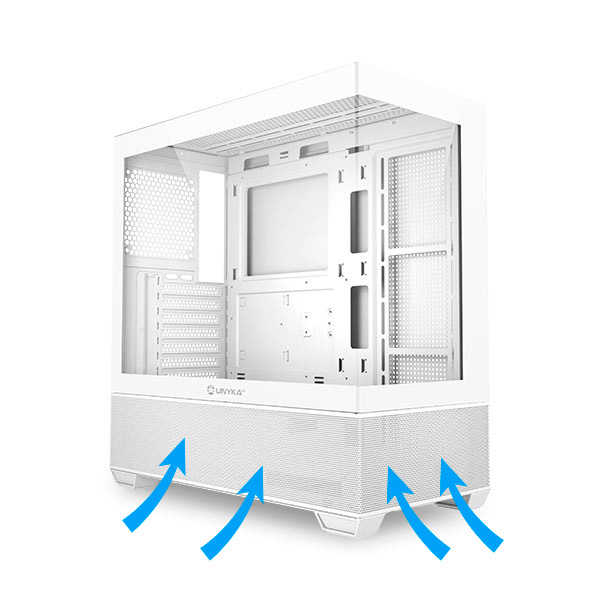

ENSURED VENTILATION
The use of glass on two sides doesn't compromise cooling, as the side, rear, top, and bottom vents, combined with strategically placed fans, ensure optimal airflow. This keeps your system at ideal temperatures, even with high-demand components and during the most intense gaming sessions.
PRODUCT
ATX Case REVELAT WHITE PN: UK121802
TYPE CHASSIS
ATX
DIMENSIONS
434 (L) x 218 (W) x 454 (H) mm
WEIGHT
5,65 kg
COLOUR
White
MATERIAL
SGCC 0,5 mm / ABS / Tempered Glass
SIDE AND FRONT PANELS
Tempered Glass
MOTHERBOARD
ATX / Micro ATX / ITX
EXPANSION SLOT
7
BAY 5,25” INT/EXT
0 / 0
BAY 3,5” INT/EXT
2 / 0
BAY 2,5” SSD INT/EXT
1 / 0
CONNECTOR
2 x USB 3.0 / 1 x USB Type-C GEN 2
MICROPHONE / HD AUDIO
Yes / Yes
POWER SUPPLY ADMITTED
ATX
COMPATIBILITY AIR COOLING
Yes
COMPATIBILITY LIQUID COOLING
Yes
MAX CAPACITY AIR REFRIGERATION

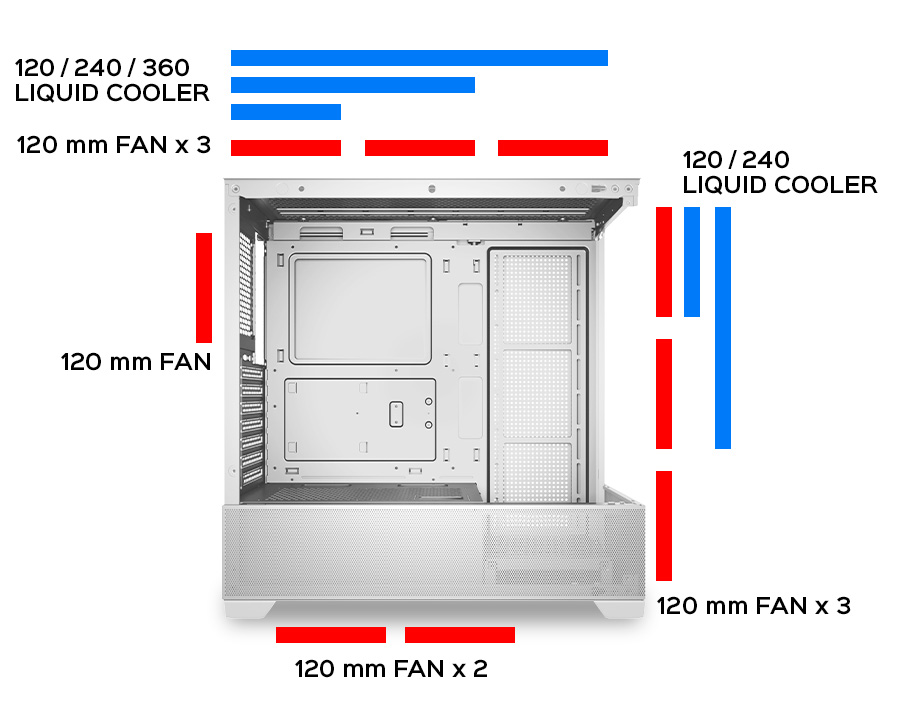

Side 3 x (120 mm) / Rear 1 x (120 mm) / Top 3 x (120 mm) / Bottom 2 x (120 mm)
MAX CAPACITY LIQUID REFRIGERATION
Side 120 – 240 mm / Top 120 – 240 – 360 mm
CPU COOLER MAX HEIGHT
165 mm
VGA COMPATIBILITY
Yes (Normal Profile)
MAX DIMENSION ADMITTED GRAPHIC CARD
425 mm
FILTER ANTI DUST
2
PACKAGING
DIMENSIONS
495 (L) x 280 (W) x 515 (H) mm
WEIGHT
6,85 kg
CUBIC CAPACITY
0,0713 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
PC Case ATX
CERTIFICATIONS
CE / ROHS
TECHNICAL SHEET-GALLERY
PC Case ATX REVELAT White PN:UK121802
MANUAL
User Manual for PC CASE ATX REVELAT White PN:UK121802
