Telescopic Rails / Guides
P/N:UK51921 · EAN:8436617920653
GTIN-14:18436617920650 / 6 packs
Specifically designed for the UNYKAch HSW4208 G3 2U Hot Swap and 2U UK2130 2U600 (PN: UK51922) rackmount server, these telescopic rails are the essential accessory for proper installation in standard rack cabinets.Being telescopic they allow partial or total extraction.
Thanks to their sliding design, they allow partial or full extension of the server, making maintenance tasks easier and improving workflow efficiency in professional environments. Made of high-strength steel, they support loads of up to 60 kg, ensuring stability and durability even in demanding installations.
• 2 rails (left + right) + 2 supports (left + right) + 2 M4 screws.
• Length: 730 mm (retracted) / 675 + 695 ±2 (extended).
• Compatibility: cabinet 80 to 100 cm deep.
• Tool-less mounting of the bracket in cabinets with 9.5 x 9.5mm holes.
• Maximum support weight: 60 kg.
• Weight: 2.83 kg / Silver color.
| COMPATIBILITY WITH RACK AND HOT SWAP CASES | ||||
|
Rails Universal 1U / 2U / 3U / 4U P/N:UK52094 |
Rails RG4208G4 P/N:UK514208G4 |
Rails RG4208G3 P/N:UK51921 |
Rack Rails RG6508 P/N:UK516508 |
Rails RG4339U P/N:UK5191820 |
|
1U UK1029 (P/N:51916) |
2U HSW4208 G4 (P/N: UK80.20.08G4) |
2U HSW4208 G3 (P/N: UK80.20.08G3) |
4U HSW4U6508 (P/N:UK80.40.6508) |
4U UK4339H (P/N:UK51918) |
|
1U HSW4104 (P/N:80.10.04) |
- | - | - |
4U UK4339V (P/N:UK51920) |
|
2U HSW4208 (P/N:80.20.08) |
- | - | - |
4U UK4329 USB TYPE C (P/N:51915) |
|
2U UK2129 (P/N: 52095) |
- | - | - | - |
|
2U HSW6212 (P/N:80.20.12) |
- | - | - | - |
|
3U HSW4416 (P/N:80.30.16) |
- | - | - | - |
|
4U UK4129 (P/N: 51912) |
- | - | - | - |
|
4U UK4329 USB TYPE C (P/N: 51915) |
- | - | - | - |
|
4U UK4229 EVO (P/N: UK51917) |
- | - | - | - |
|
4U HSW6424 (P/N:80.40.24) |
- | - | - | - |
|
4U HSW4520 (P/N:80.40.20) |
- | - | - | - |
|
4U UK4339H (P/N:UK51918) |
- | - | - | - |
|
4U UK4339V (P/N:UK51920) |
- | - | - | - |
|
2U UK2130 2U600 (P/N:UK51922) |
- | - | - | - |

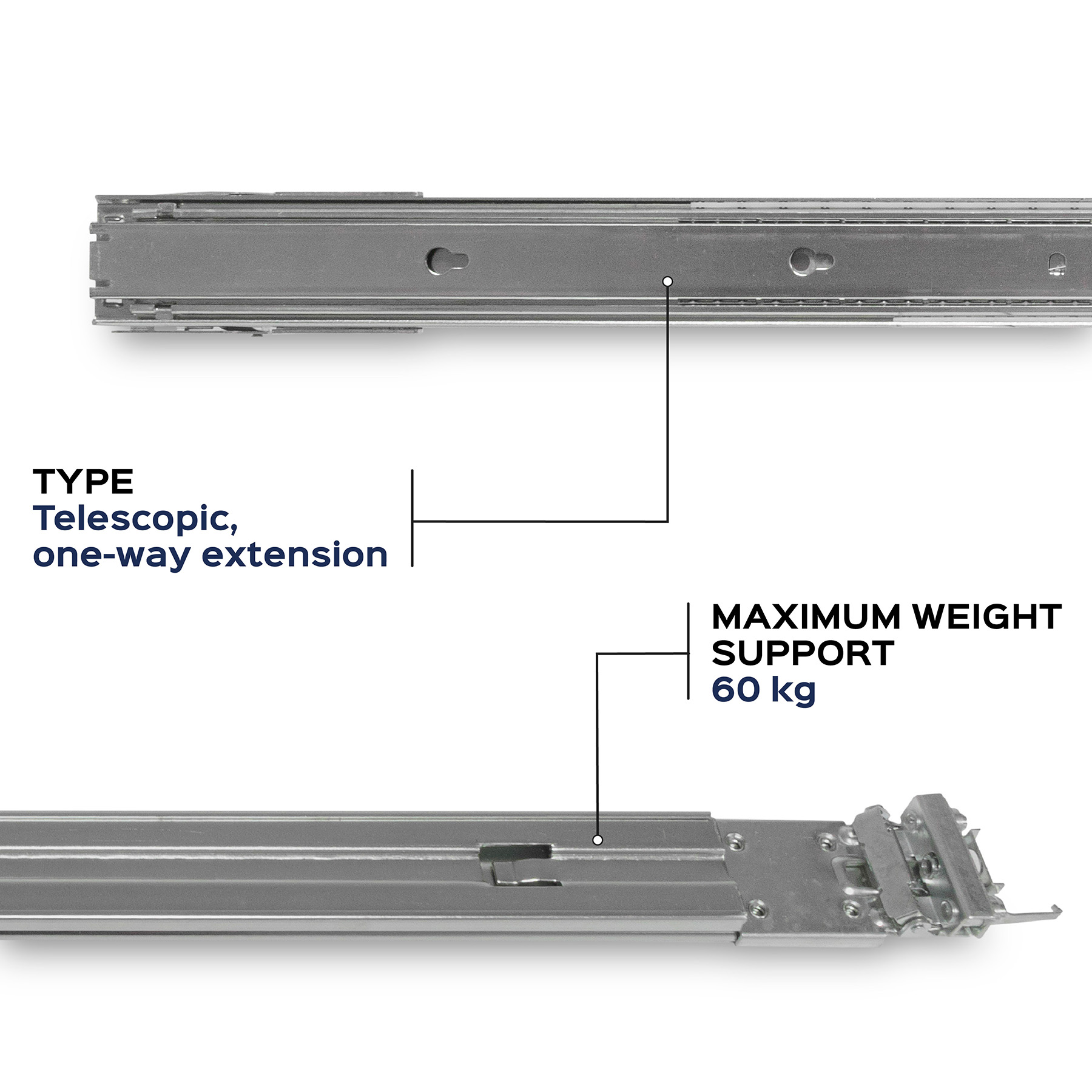

PRODUCT
TYPE
Telescopic

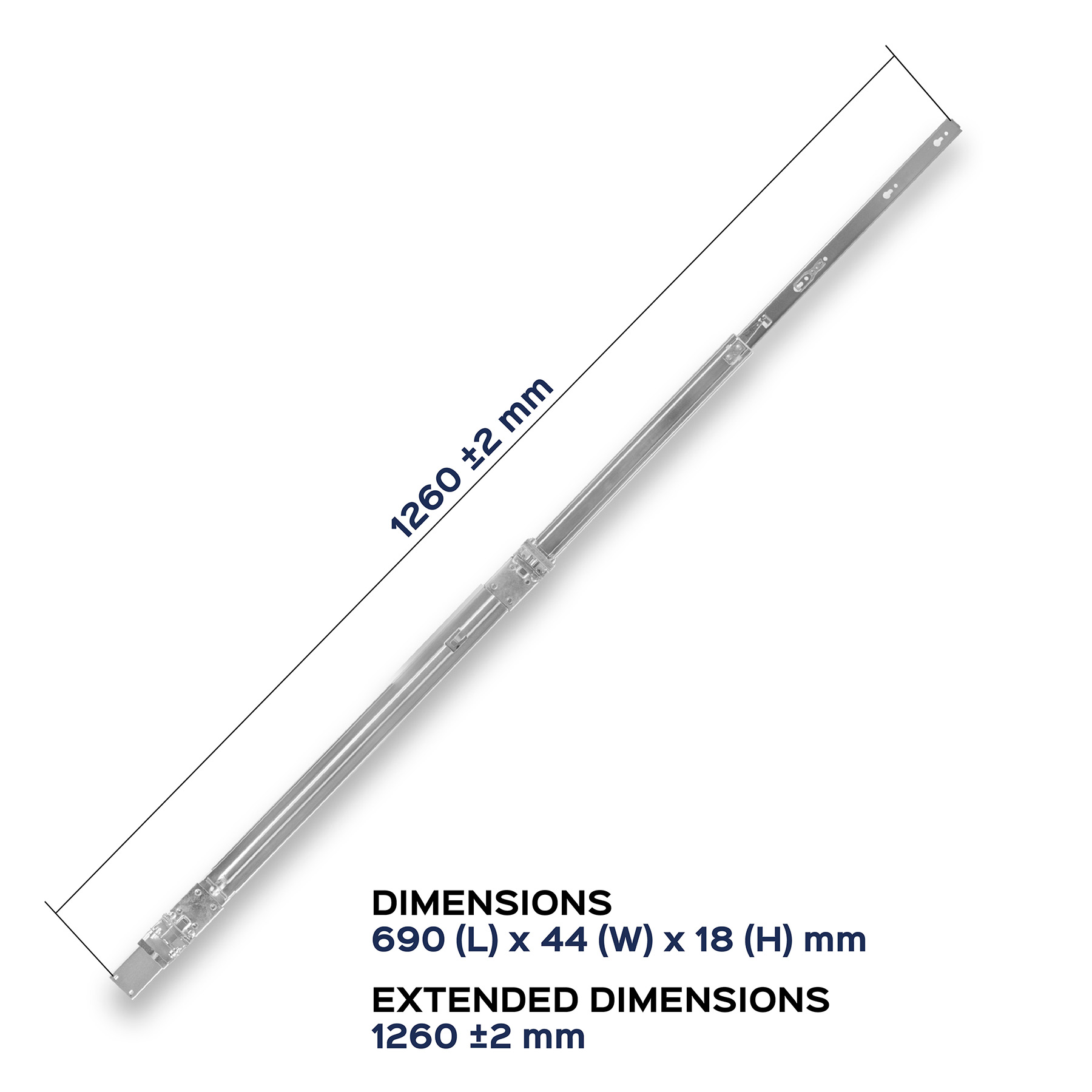

DIMENSIONS
690 (L) x 44 (W) x 18 (H) mm
EXTENDED DIMENSIONS
1260 ±2 mm

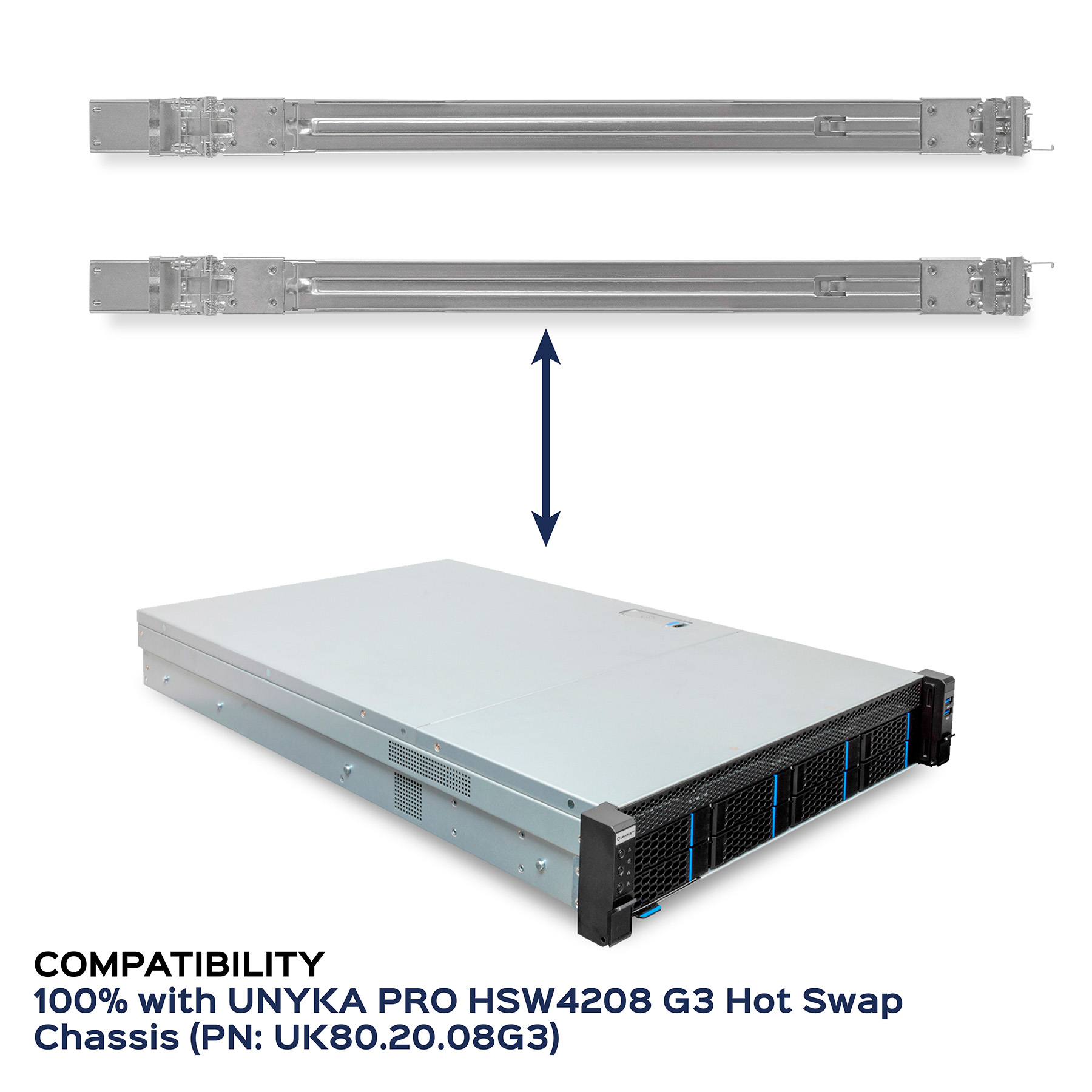

COMPATIBILITY
UNYKA PRO HSW4208 G3 Hot Swap Chassis (PN: UK80.20.08G3)

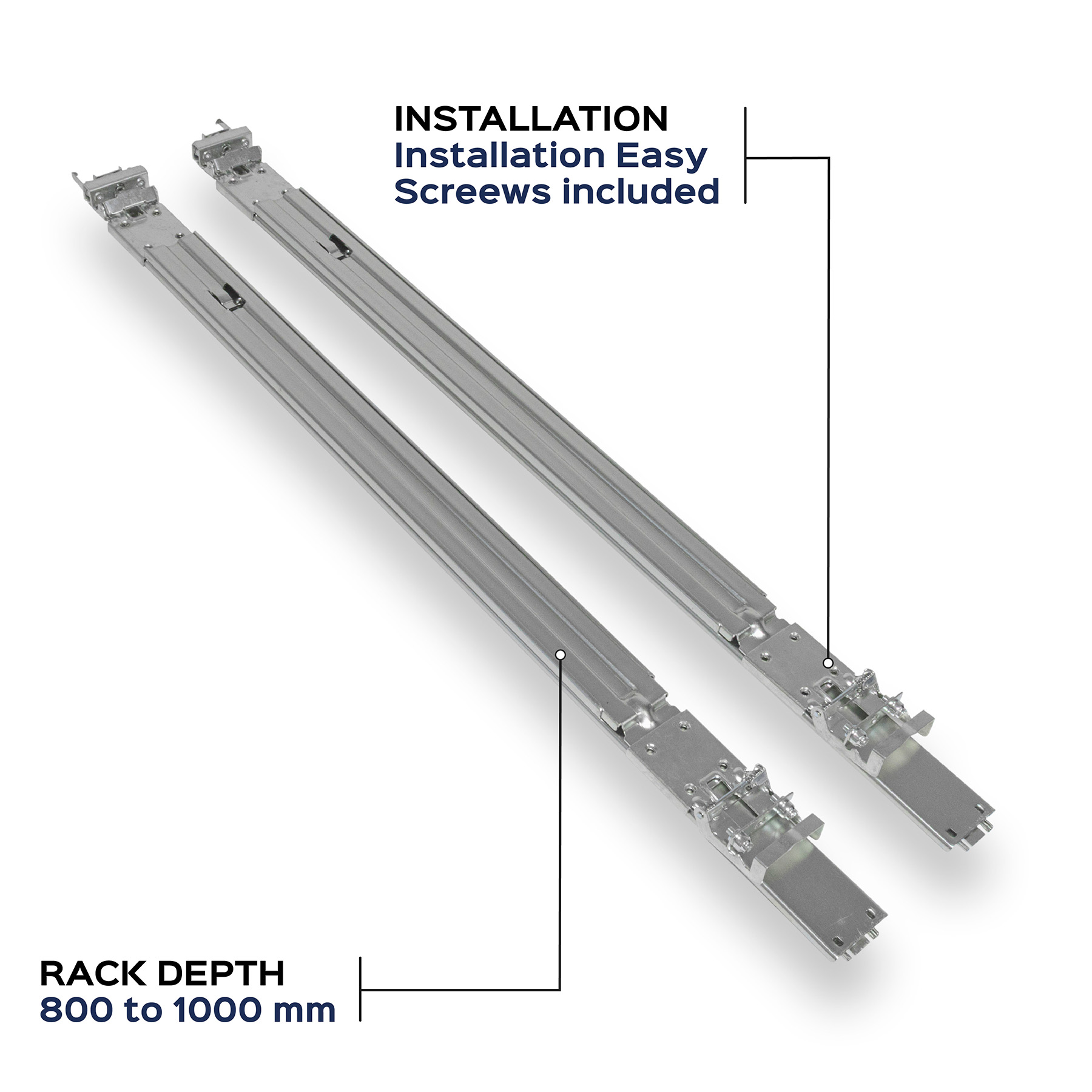

RACK DEPTH
800 to 1000 mm
MAXIMUM WEIGHT SUPPORT
60 kg
WEIGHT
2,83 kg
COLOUR
Galvanized silver
MOUNTING
Tool-less mounting of the bracket in cabinets with 9.5 x 9.5mm holes
PACKAGING
DIMENSIONS
760 (L) x 100 (W) x 40 (H) mm
WEIGHT
3,1 kg
CUBIC CAPACITY
0,0030 m3
COLOUR
Brown
MATERIAL
Paperboard
PACKAGE CONTENT
2 Rack Rails / 2 Brackets / Screws
CERTIFICATIONS
CE / ROSH
DOWNLOAD
TECHNICAL SHEET
Sliding Telescopic Rails Compatible with HSW4208G3 2U Rack PN:UK51921
MANUAL
–
DRIVERS
–
OTHERS
–
OTHER FEATURES
MASTER BOX DIMENSIONS
600 (L) x 340 (W) x 140 (H) mm
MASTER BOX WEIGHT
21 kg
UNITS PER MASTER BOX
10
UNITS PER AMERICAN PALLET
24
UNITS PER EUROPEAN PALLET
–
